| Specifications | |
|---|---|
| Manufacturer | ASCO |
| Type | NEMA 3R |
| Voltage | 480V |
| Amps | 2000 |
| Service Entrance Rated | Yes |
| Breaker Size | 2000A |
| Frequency | 60 Hz |

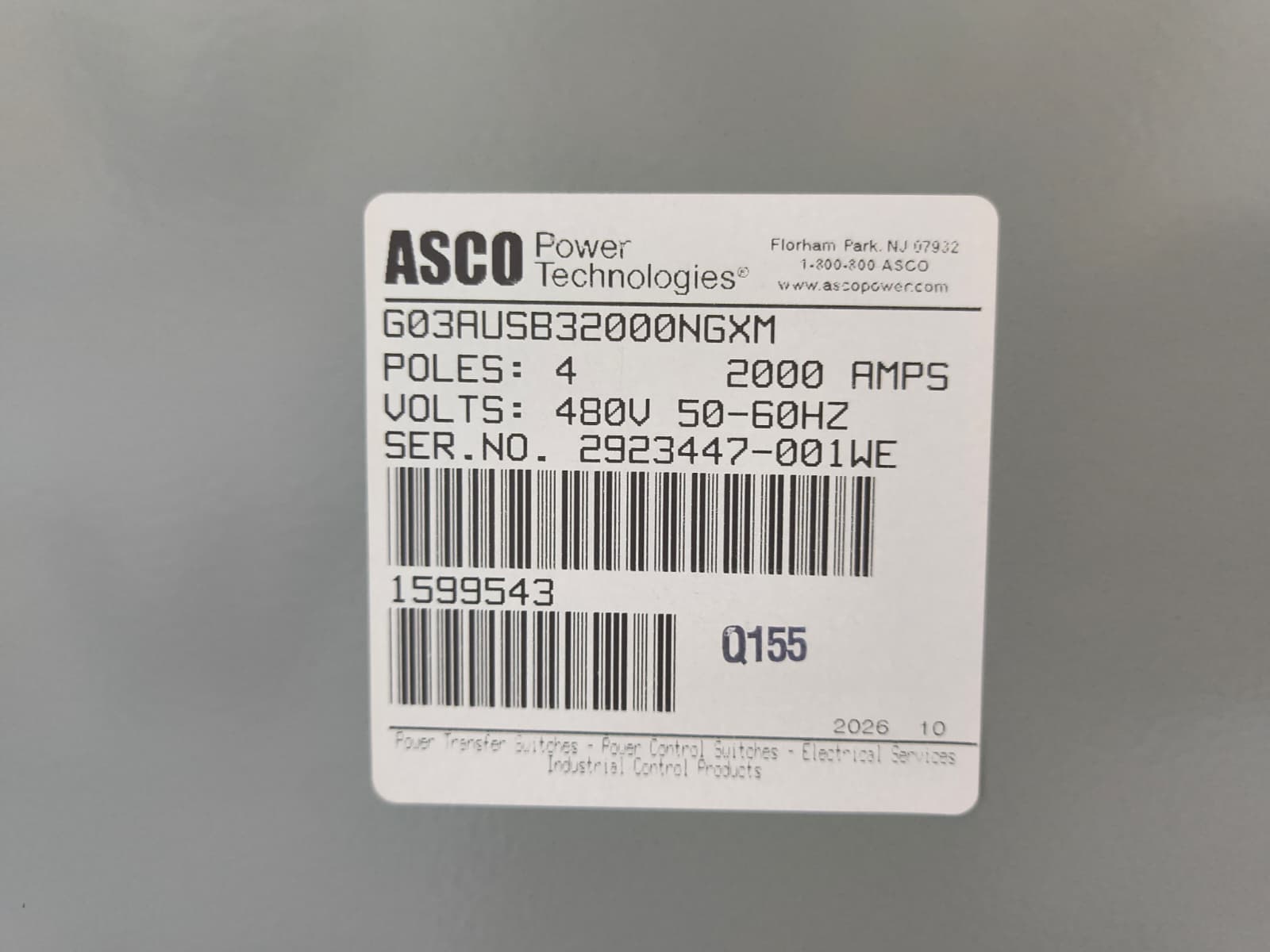

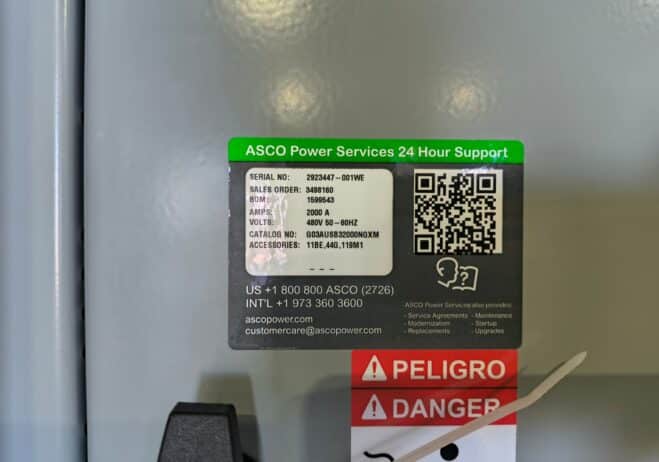

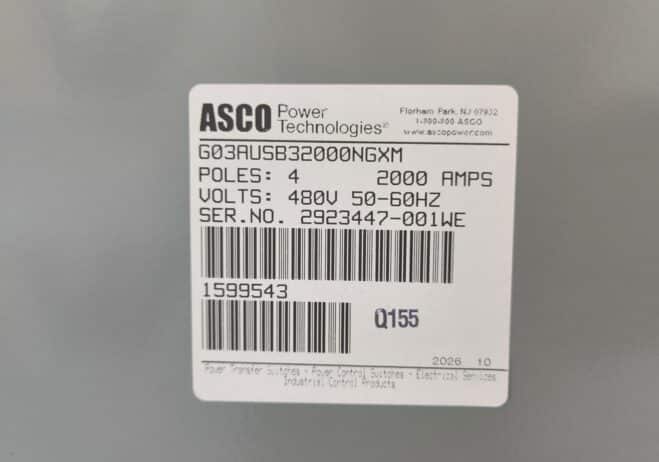

| ATS Model | G03AUSB32000NGXM |
| Overall Dimensions | 62" x 41" x 95.5" | 2,400 lbs |
| Condition | New |
| Status | Coming In |

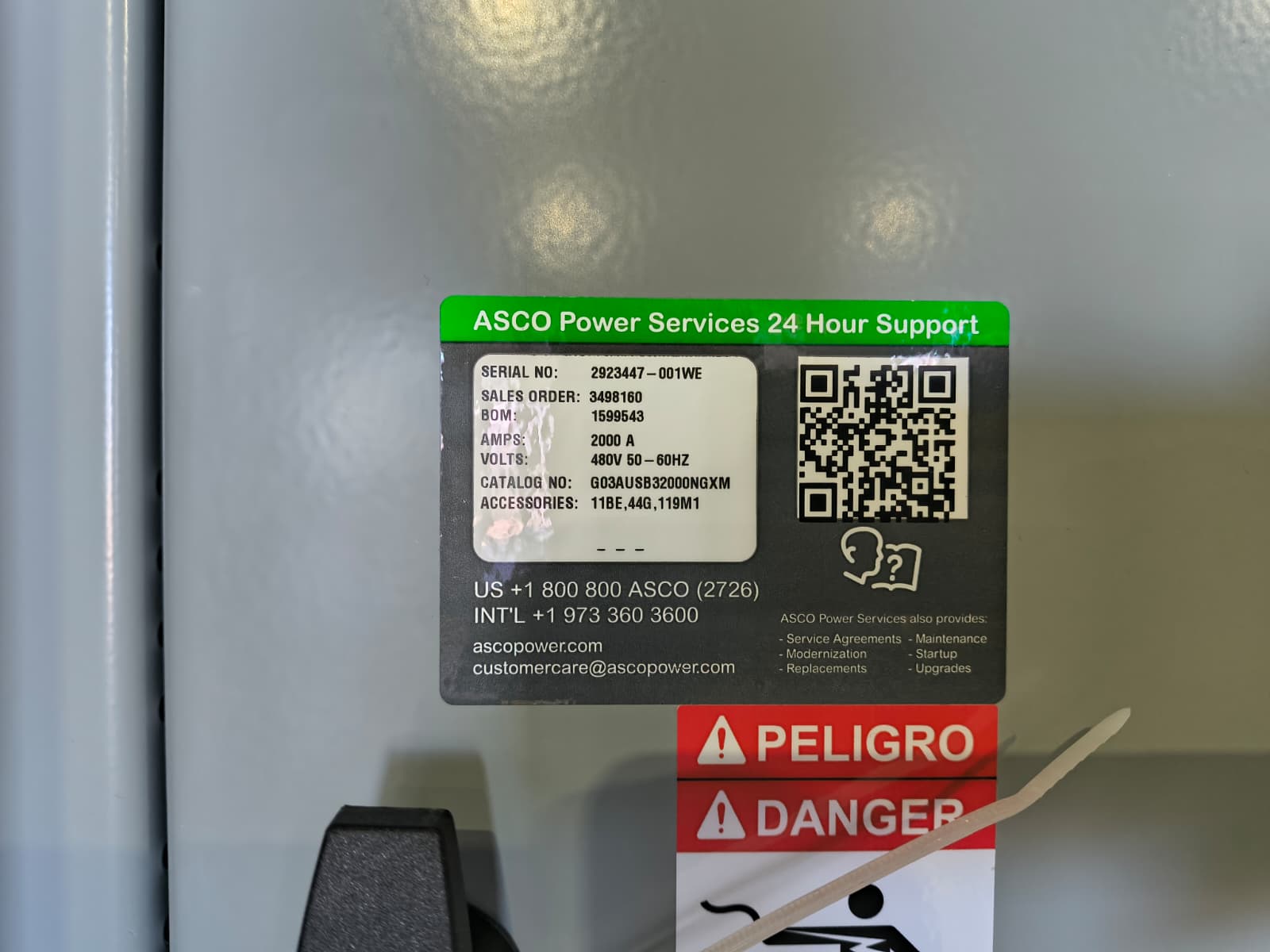

| Accessories | 11BE, 44G, 119M1 |
|
Additional Features

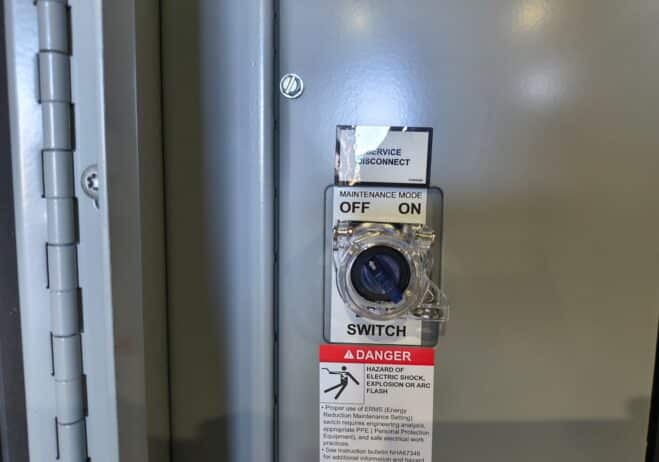

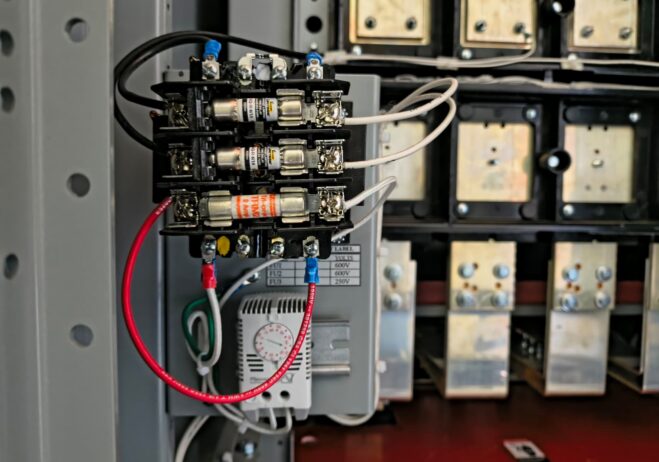

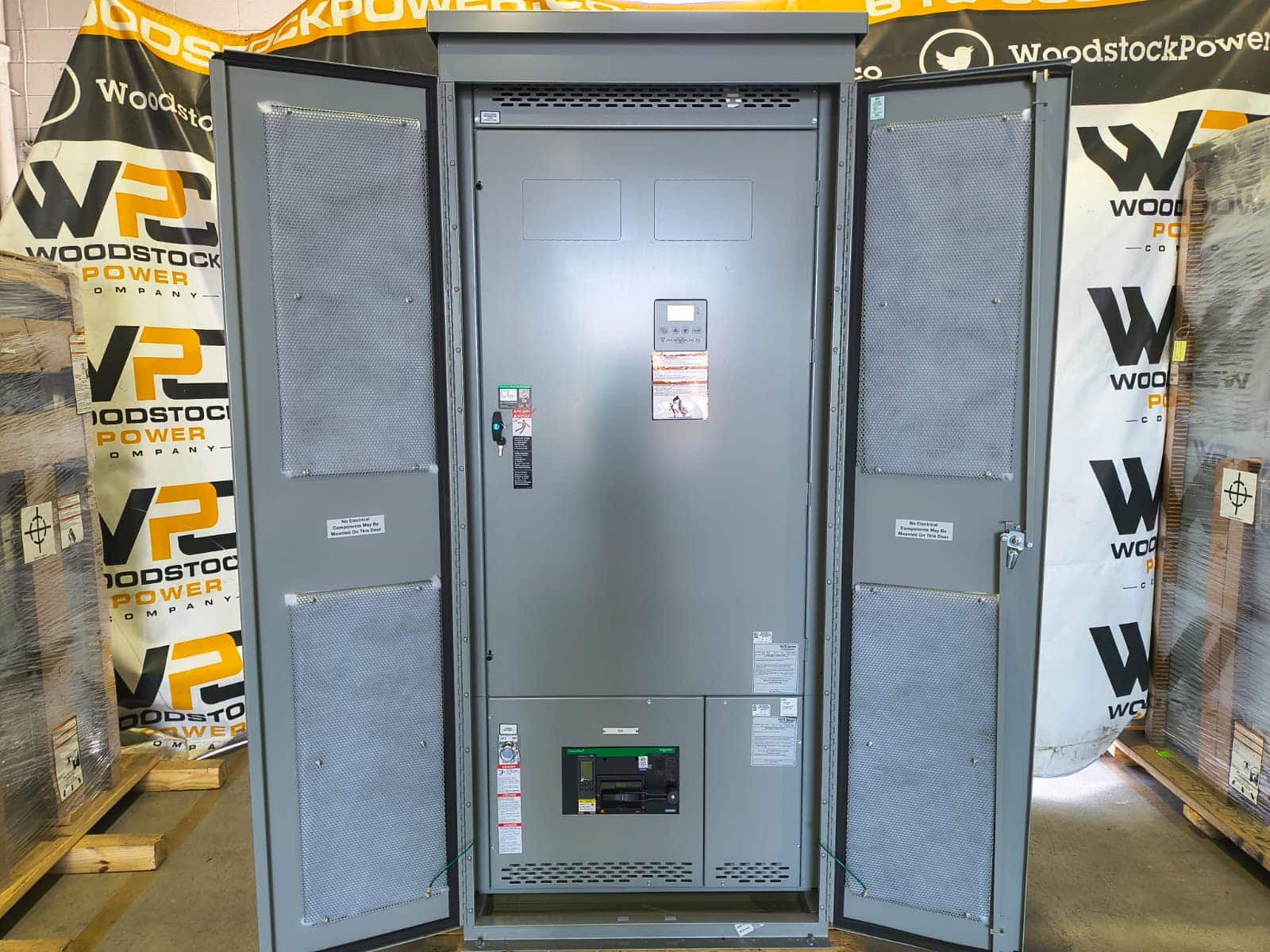

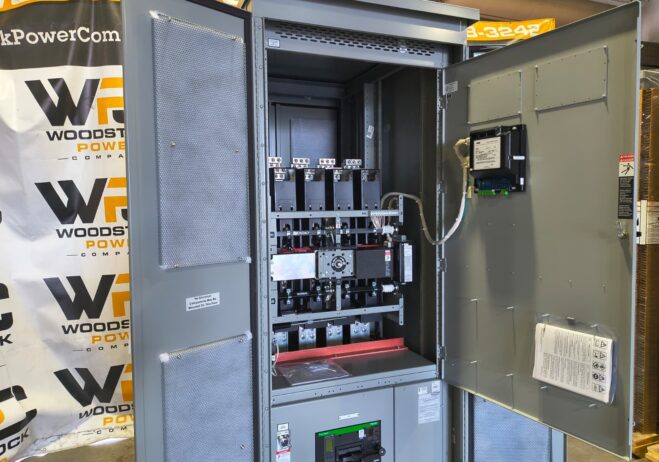

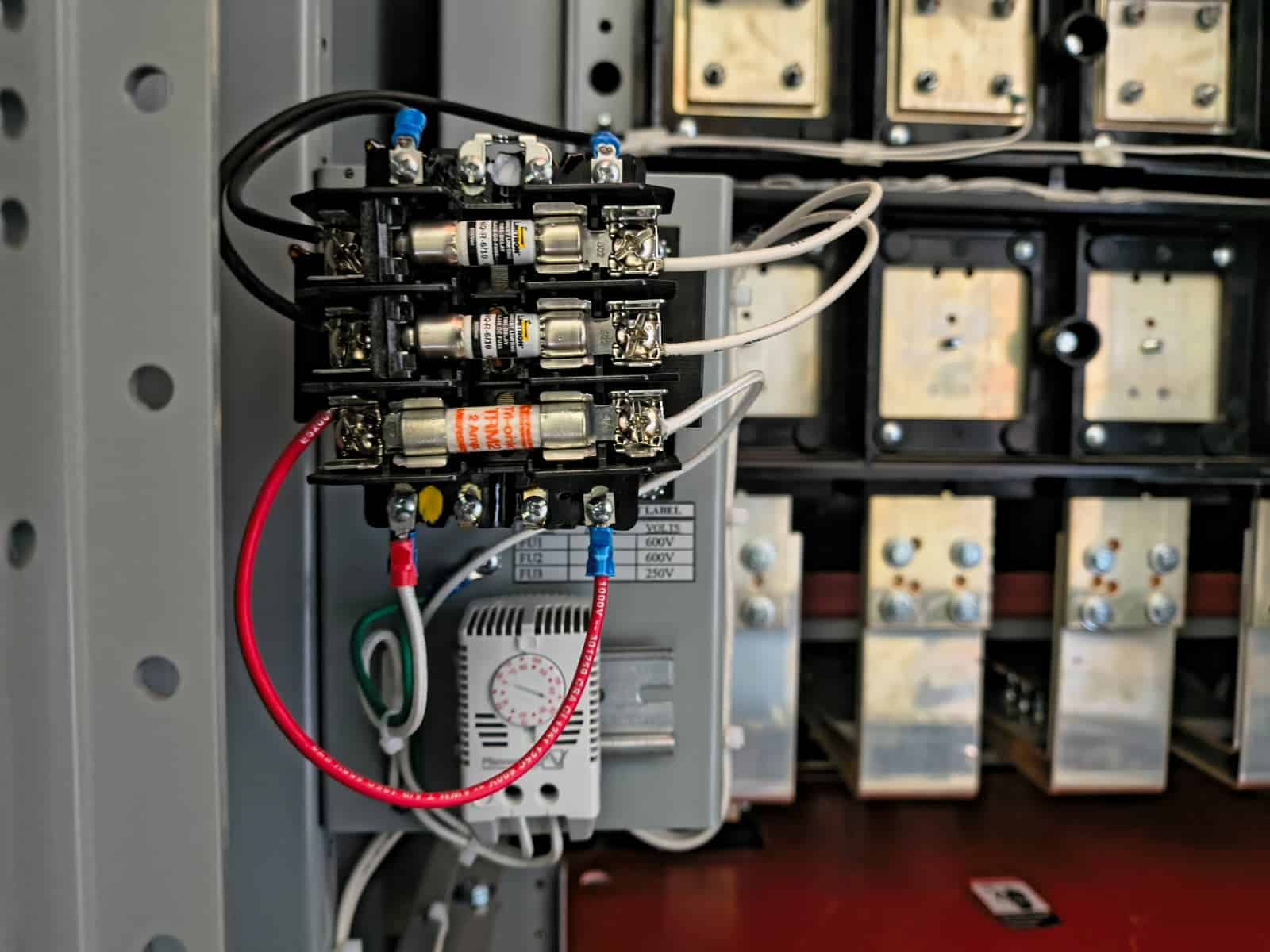

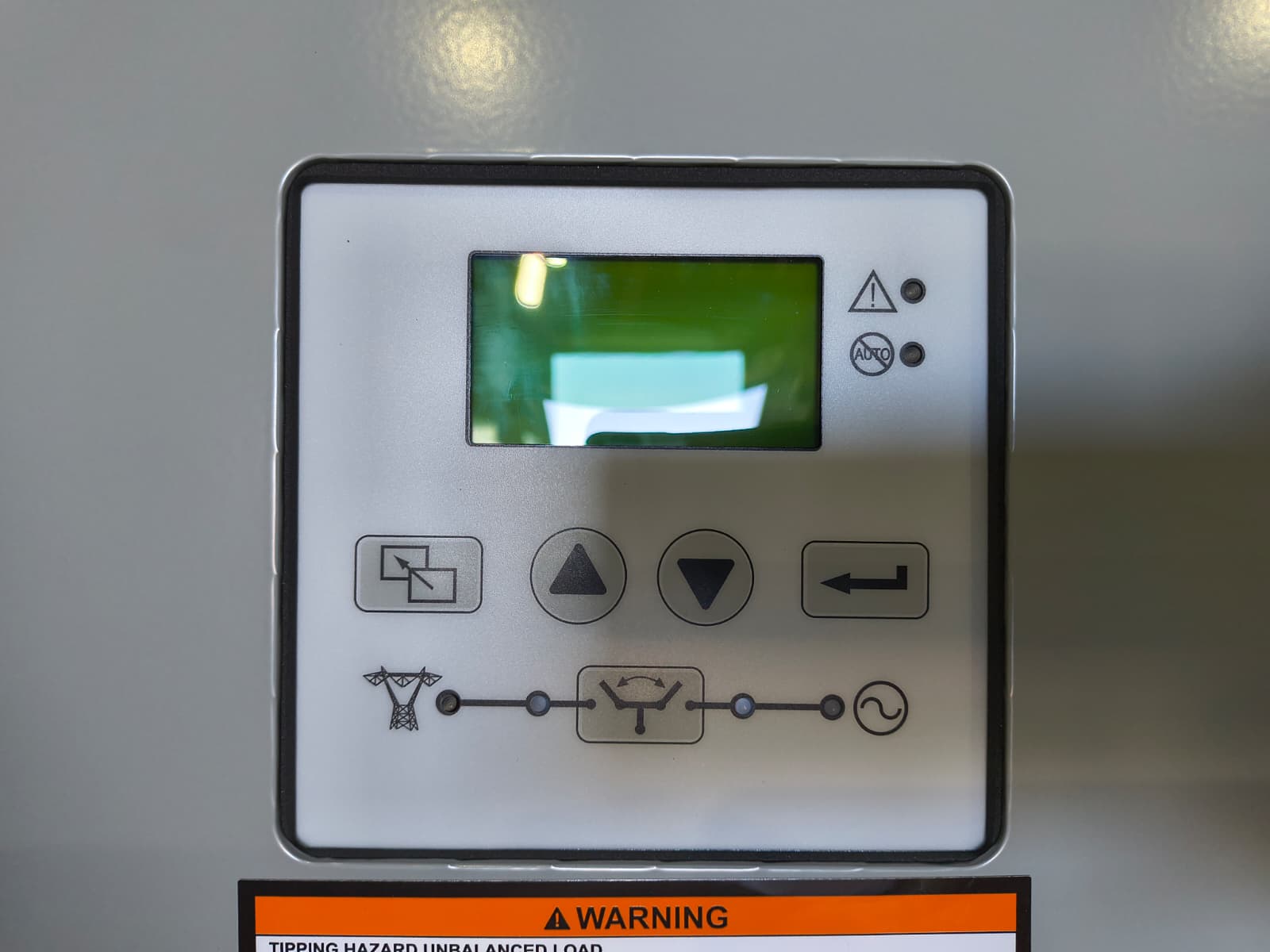

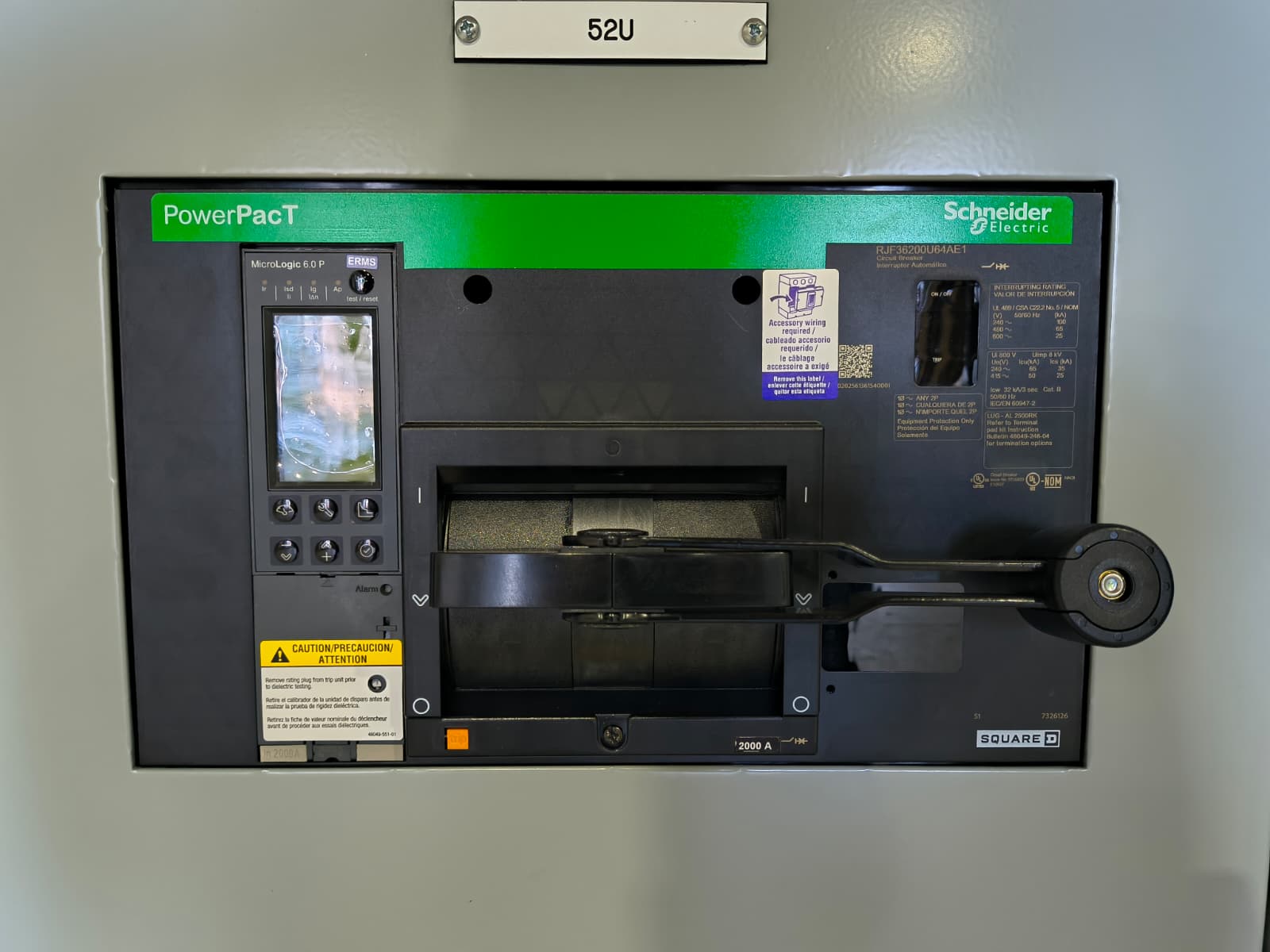

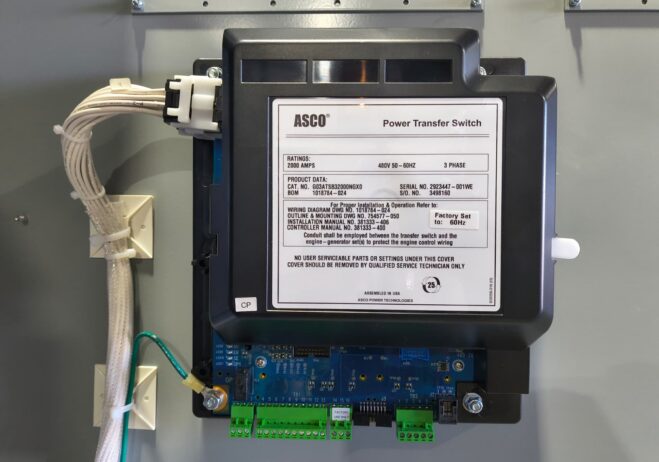

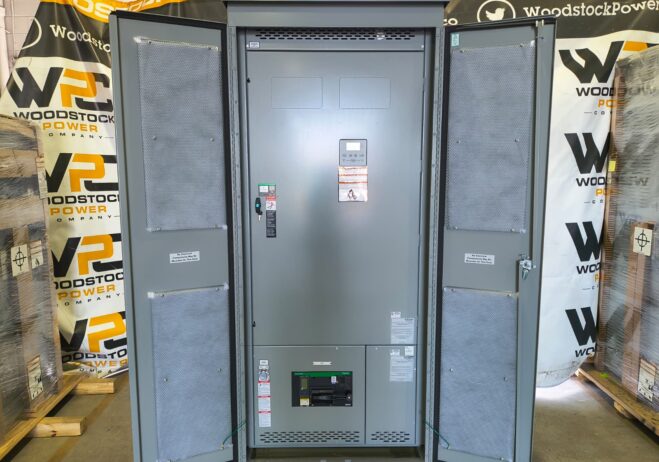

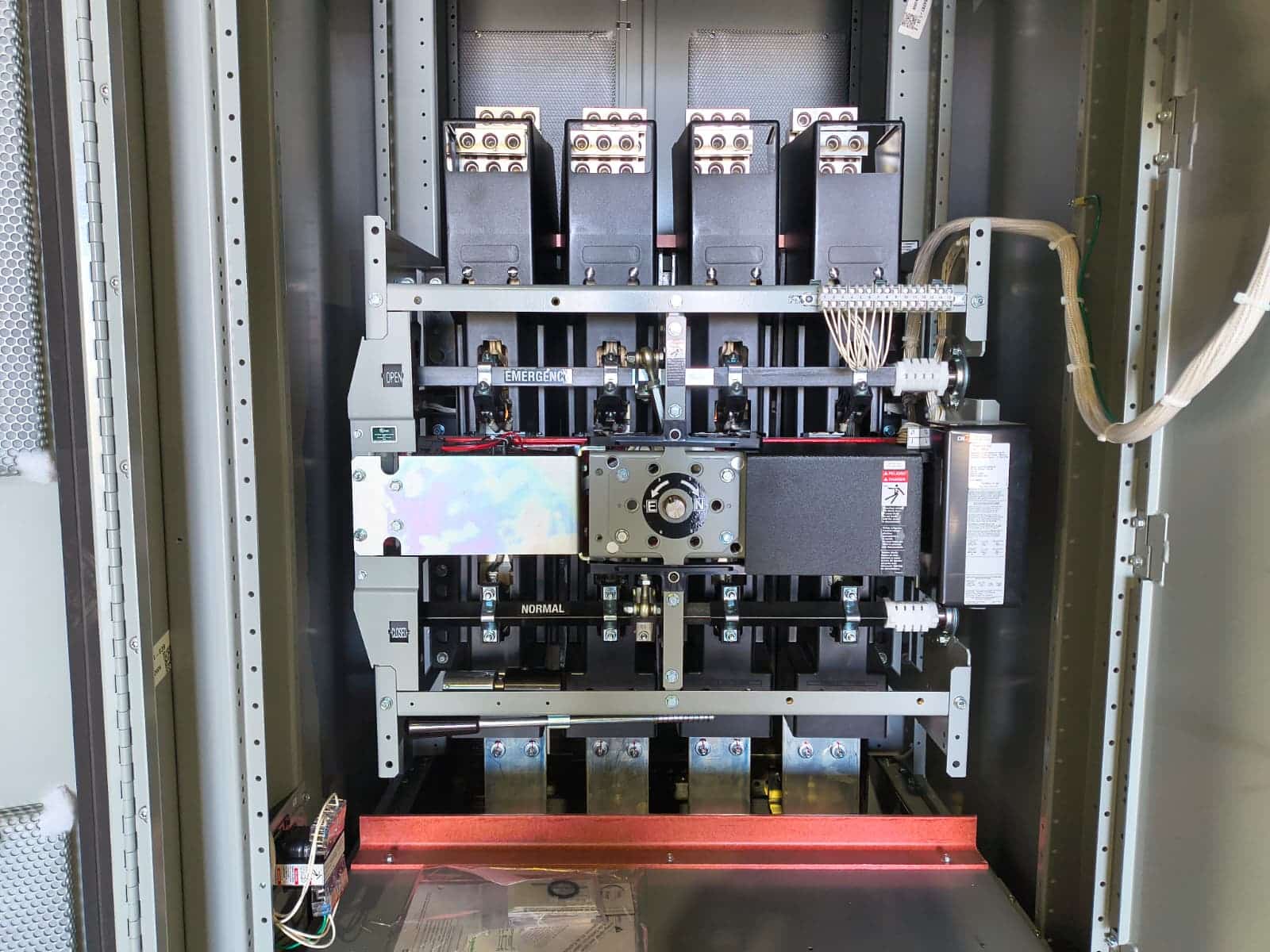

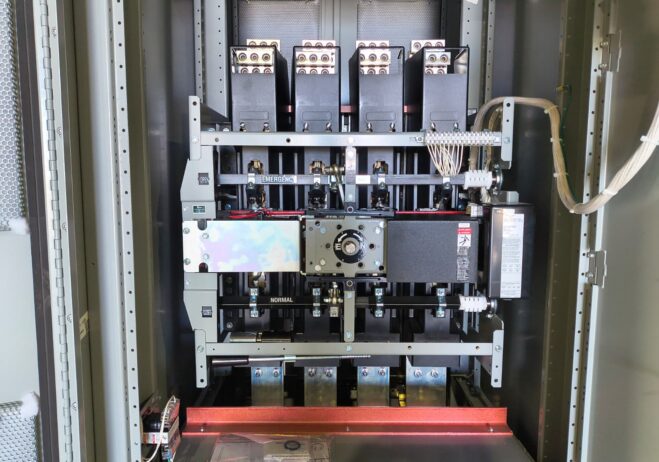

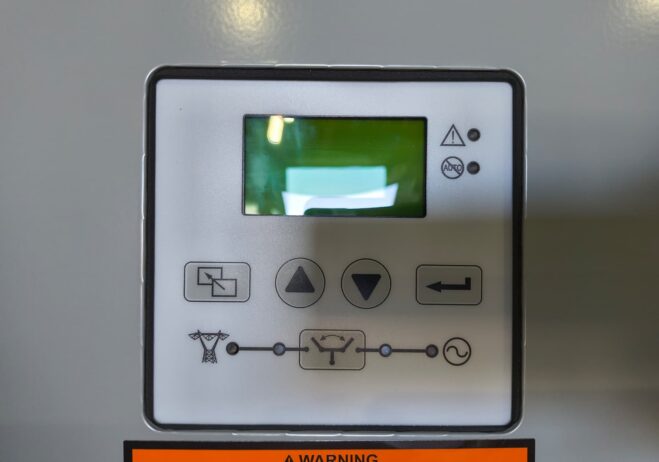

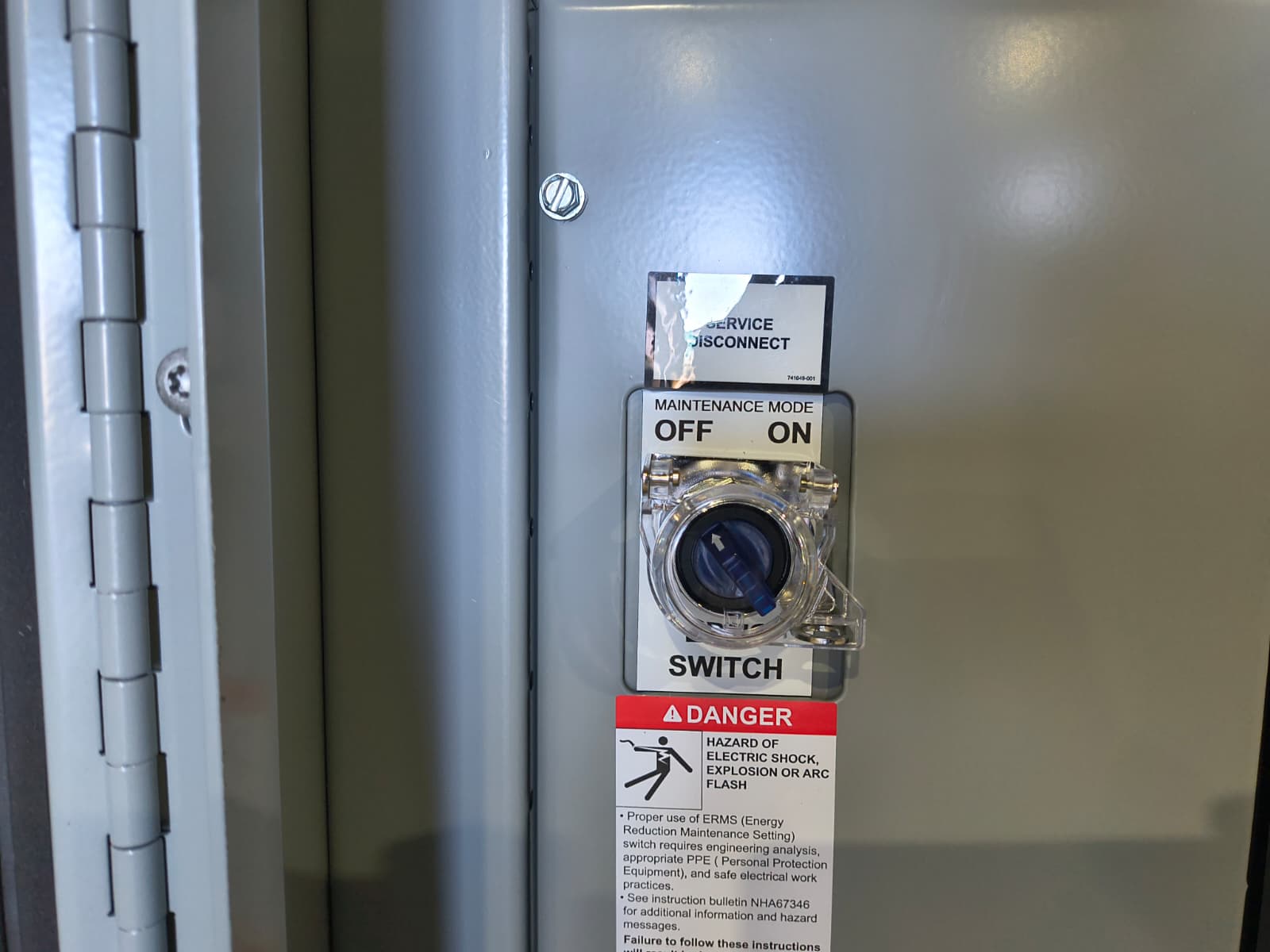

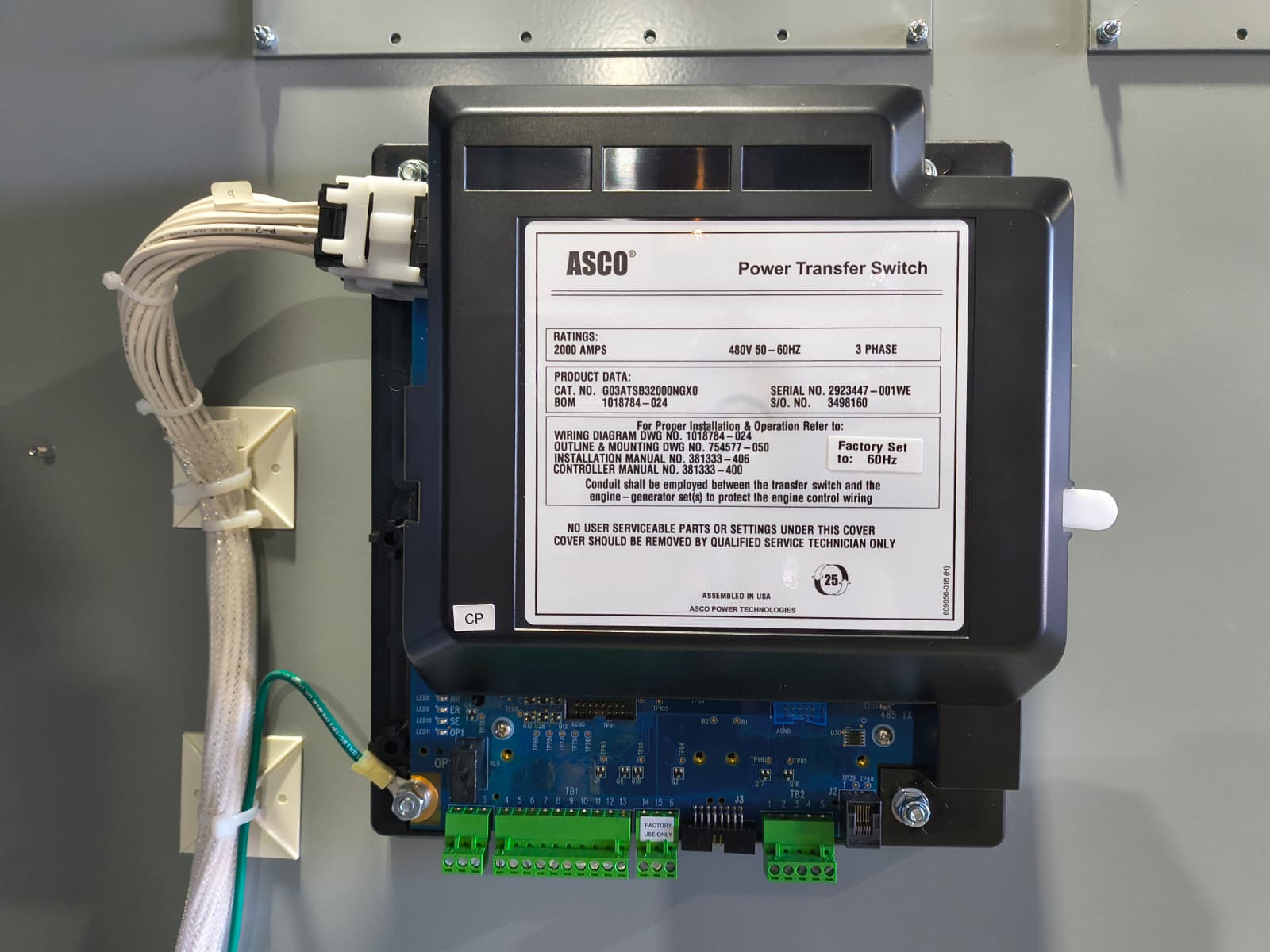

New 2000 Amp ASCO G03AUSB32000NGXM Service Entrance Rated Automatic Transfer Switch 2000 amp automatic transfer switch Service Entrance Rated NEMA 3R 480V 4-Pole 3-Phase 4-Wire Switched [B] neutral configuration Optional accessories: 11BE – Adds the following features to the Group G controller: (1) Serial RS-485 Modbus Communications (2) Multi-Schedule Engine Exerciser (3) a 300 Entry Event Log and (4) a common alarm output function. When applied on 3-Phase systems it also enables: (1) 3-Phase Emergency Source VLL sensing (2) Phase Rotation Monitoring (3) Emergency Source VLL Unbalance Monitoring 44G – Strip heater w/ thermostat, wired to load terminals: 208-600 volts 1191M1 – Internally powered Energy Reducing Maintenance Switch (ERMS) ERMS lowers the instantaneous pickup setting, utilizes a faster acting instantaneous trip function, or activates an alternate set of trip settings on a breaker to provide reduced arc flash incident energy. To be used on service entrance rated switches containing Square D breakers with MicroLogic 5.0/6.0 P/H trip units Customer is responsible for all trip unit settings. |
|
