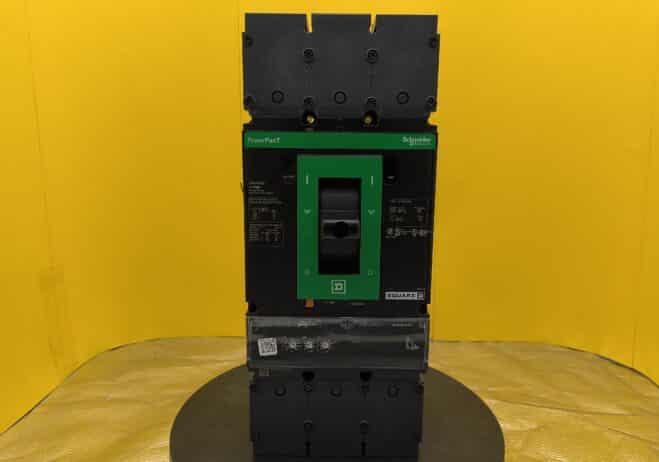

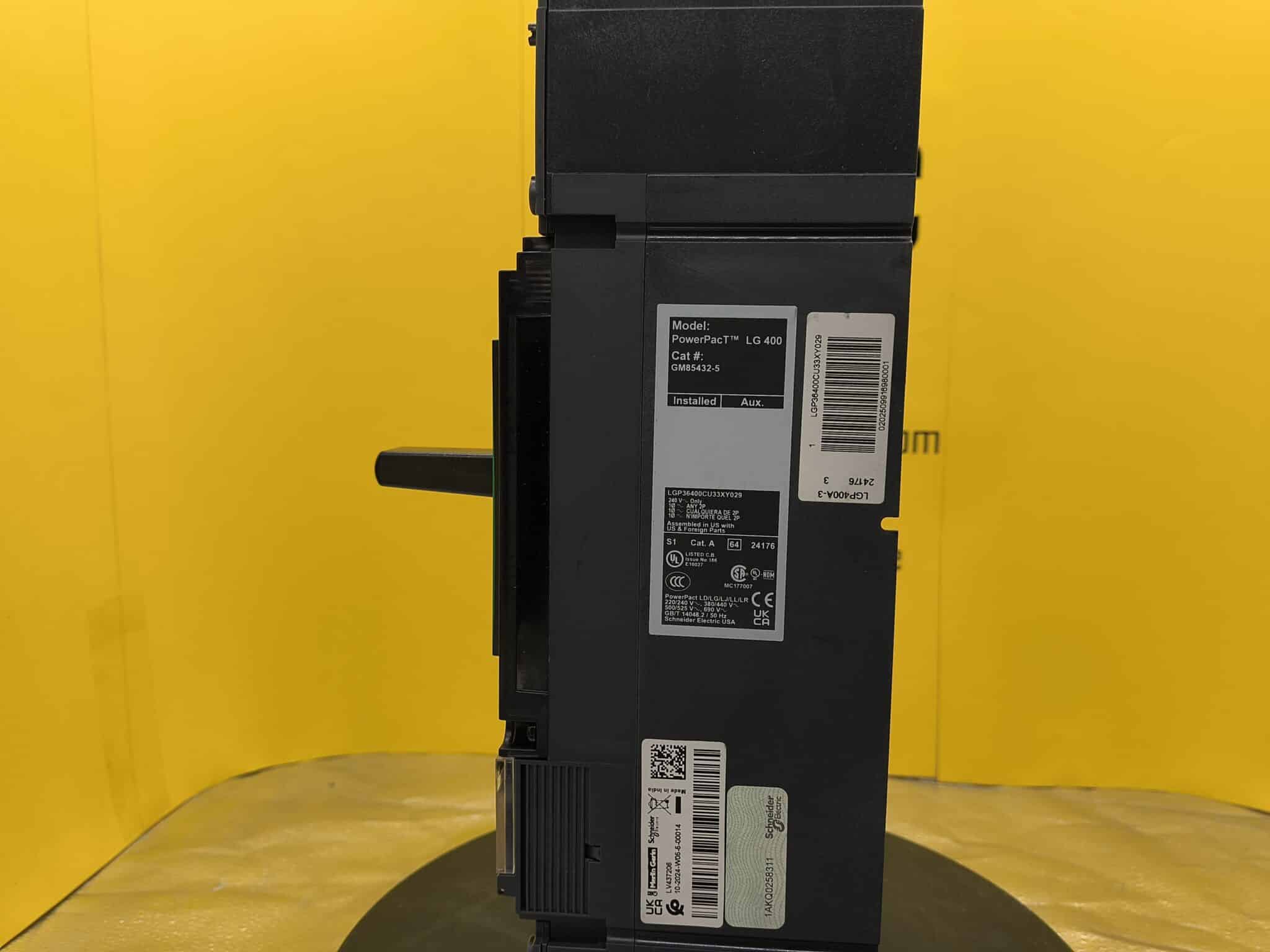

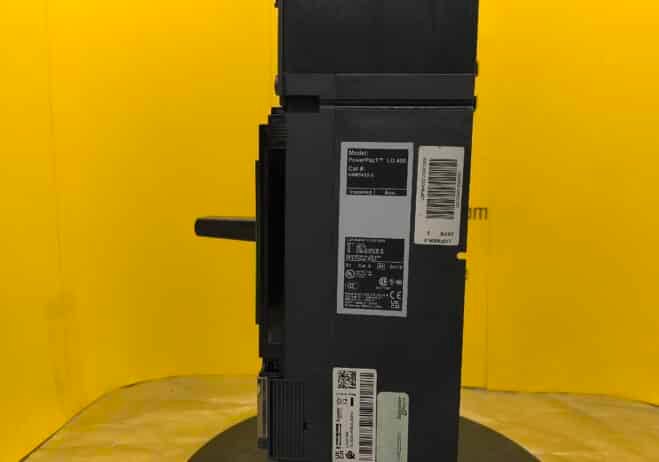

New 400 Amp Square D PowerPact LGP36400CU31XY029 LSI Breaker (13 Available)

Manufacturer	Schneider Electric
Type	Breaker
MFG Year	2024

Specifications

Unit #

Multiple Units Available - Check Status

Manufacturer

Schneider Electric

Type

Breaker

MFG Year

2024

Condition

New

Status

Available

Additional Features

New 400 Amp Square D PowerPact LGP36400CU31XY029 Breaker

Part No: GM95432-4

BRK030PA-PHILA
BRK031PA-PHILA (SALE PENDING)
BRK032PA-PHILA
BRK033PA-PHILA
BRK034PA-PHILA
BRK035PA-PHILA
BRK036PA-PHILA
BRK037PA-PHILA
BRK038PA-PHILA
BRK039PA-PHILA
BRK040PA-PHILA
BRK041PA-PHILA
BRK042PA-PHILA

Compatible lugs for this unit are also available for sale!

Main
Range	PowerPact
Product name	PowerPact L
Device short name	L-Frame
Product or Component Type	Circuit breaker
Device Application	Distribution

Complementary
Line Rated Current	400 A
Number of Poles	3P
Control Type	Toggle
Breaking capacity code	G

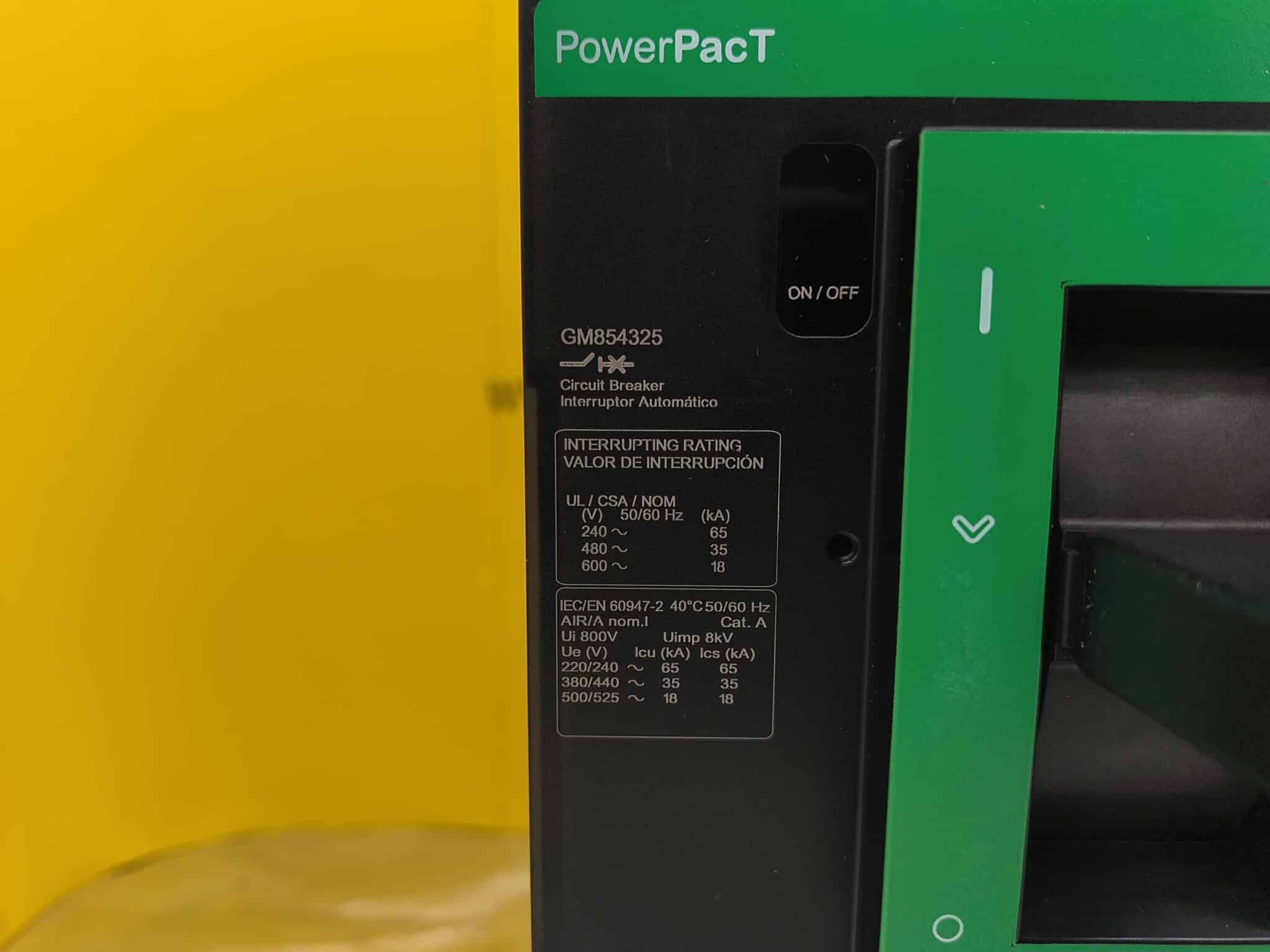

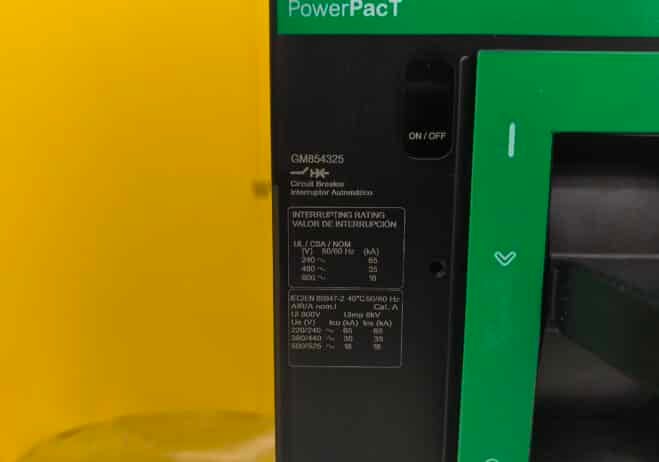

Breaking capacity	65 kA 240 V AC 50/60 Hz UL 489 35 kA 480 V AC 50/60 Hz UL 489 18 kA 600 V AC 50/60 Hz UL 489 20 kA 250 V DC UL 489 20 kA 500 V DC UL 489
[Ue] rated operational voltage	600 V AC 50/60 Hz IEC 60947-3
Network Frequency	50/60 Hz
[Ics] rated service breaking capacity	65 kA 220/240 V AC 50/60 Hz IEC 60947-2 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 20 kA 250 V DC IEC 60947-2 20 kA 500 V DC IEC 60947-2
[Uimp] rated impulse withstand voltage	8 kV IEC 60947-2

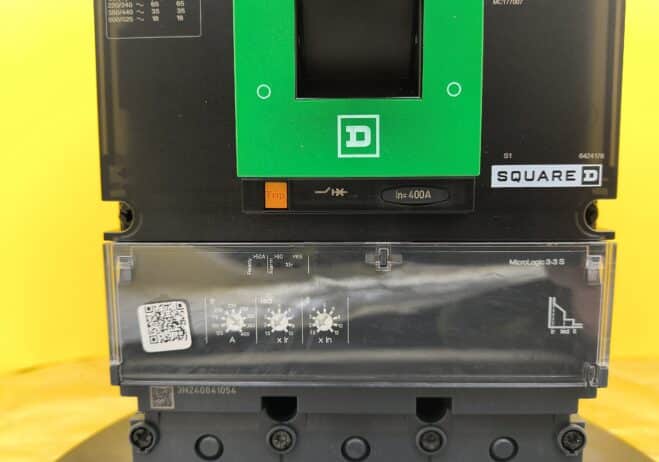

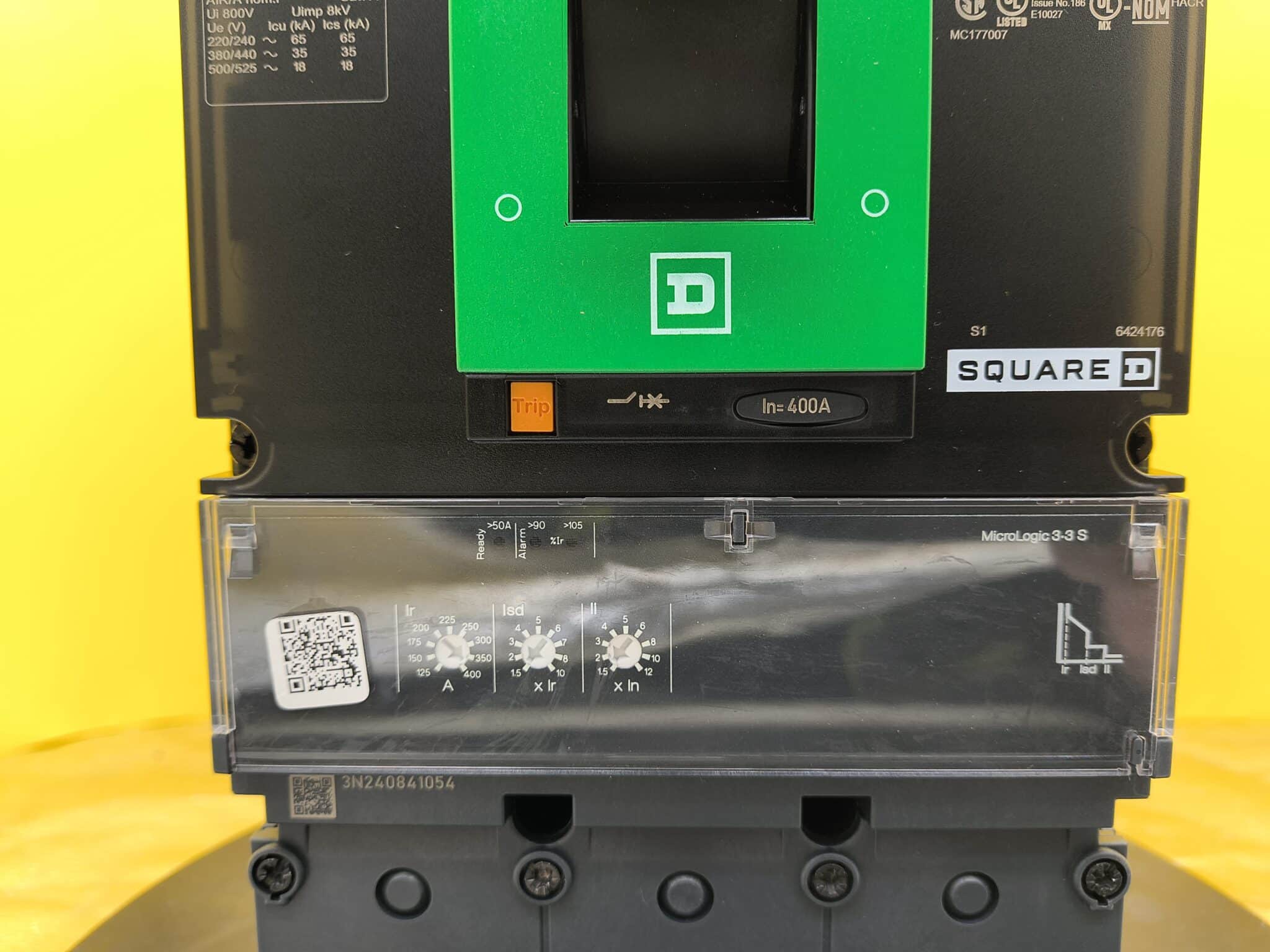

Trip unit technology	Electronic, standard, Micrologic 3.3, LI
Continuous current rating	100 %
[Ui] rated insulation voltage	750 V IEC 60947-2
Trip unit name	Micrologic 3.3
Suitability for isolation	Yes IEC 60947-2
Utilisation category	Category A

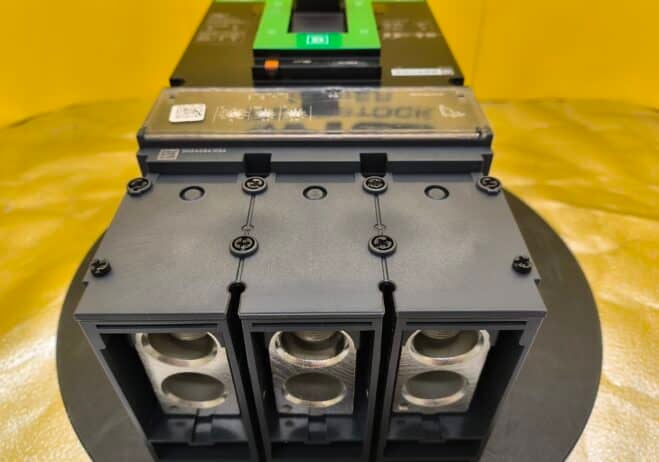

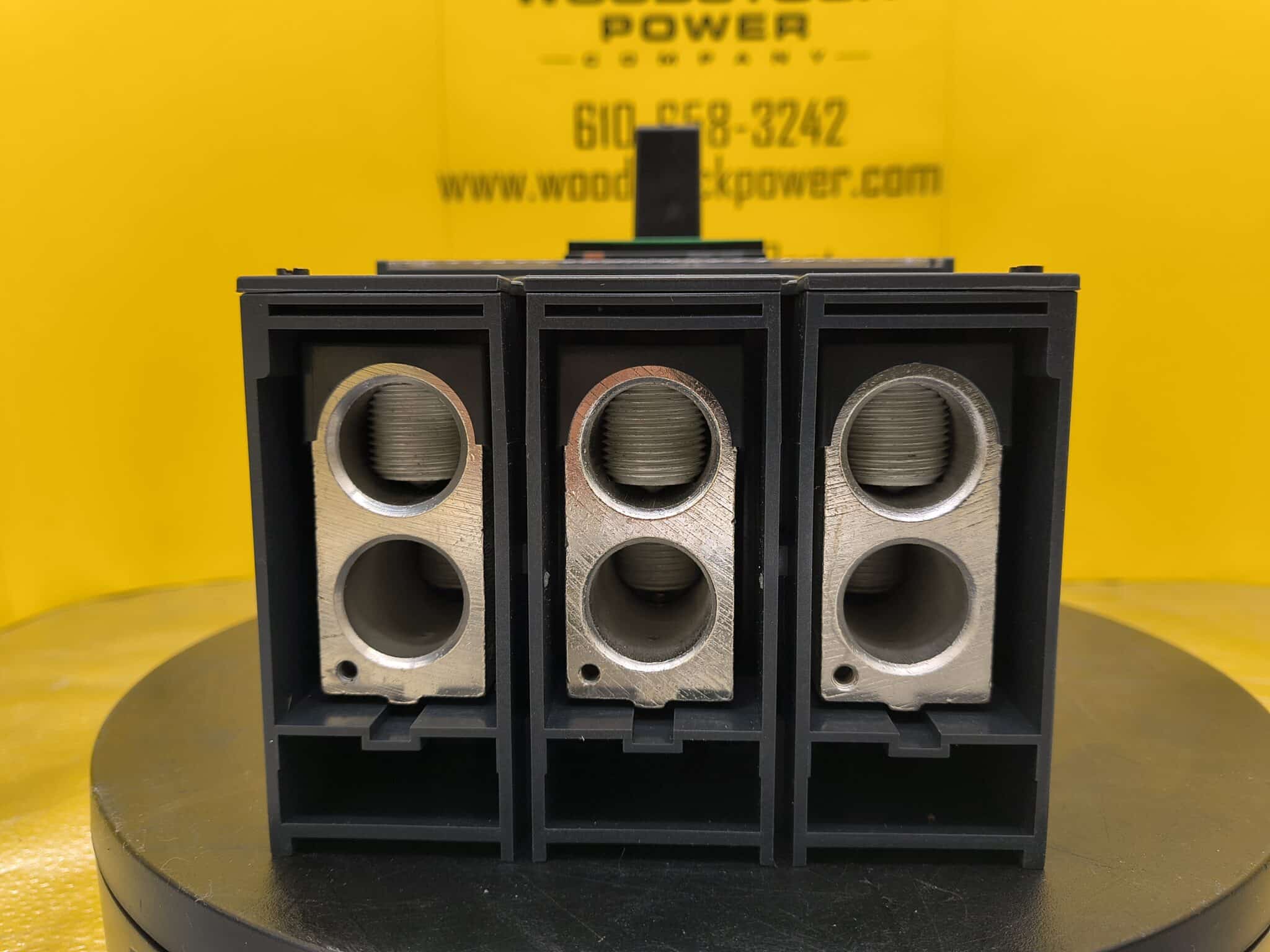

AWG gauge	2 x AWG 2/0…500 kcmil aluminium/copper
Local signalling	Ready 1 LED green) Alarm 1 LED 90 % Ir orange) Alarm LED 105 % Ir red) Switched off (OFF) 1 trip indicator green)
Mounting mode	Unit mount lug)
Mounting Support	Lug

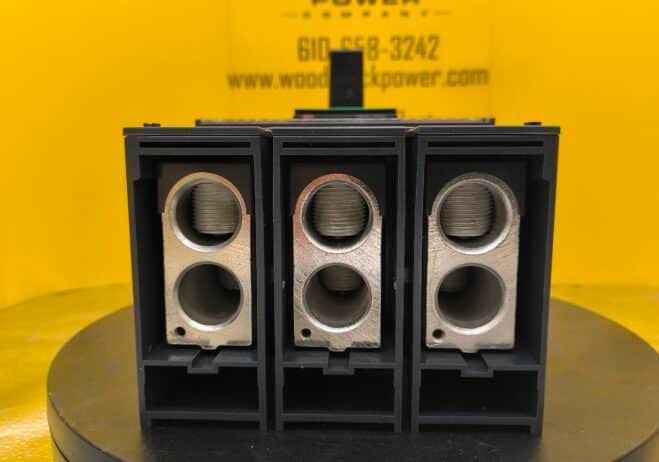

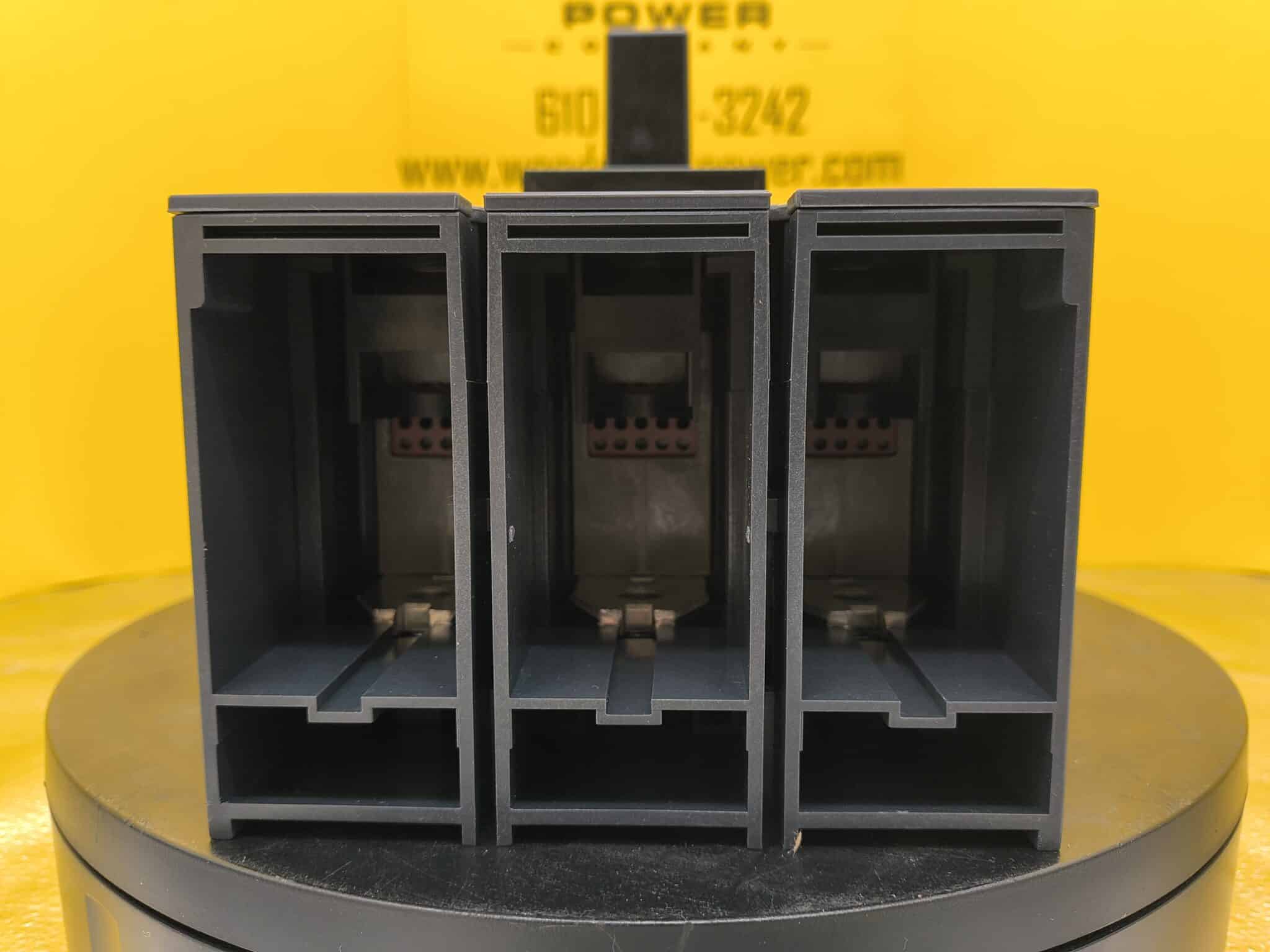

Electrical connection	Terminal nut line Lugs load

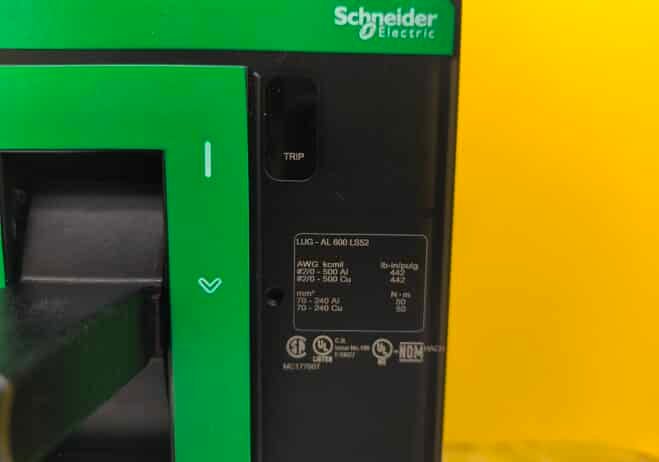

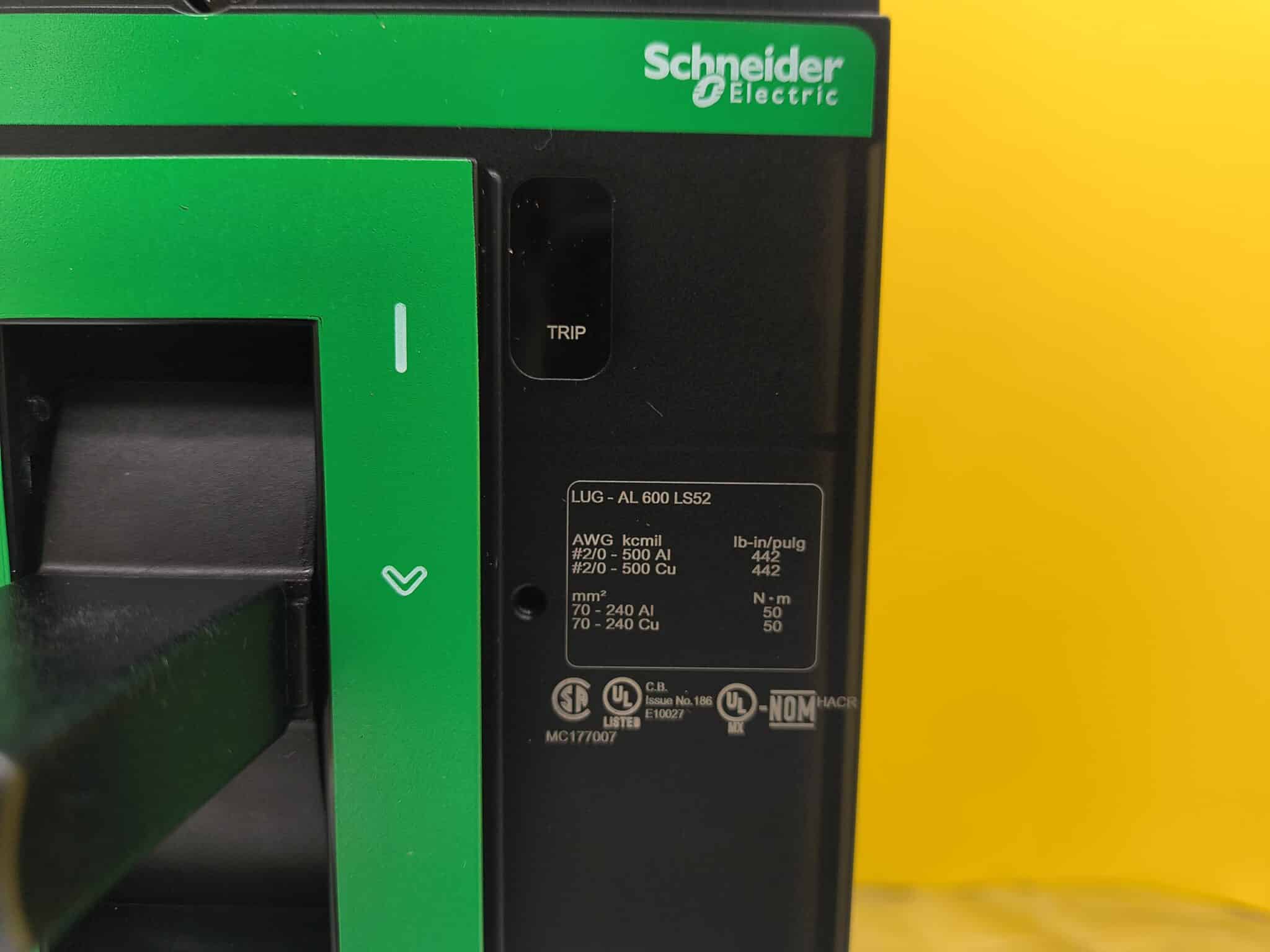

Terminal identifier	AL600LS52K3
long time pick-up adjustment range	0.25…1 x In
Tightening torque	442.54 lbf.in (50 N.m) 0.11…0.37 in² (70…240 mm²) (AWG 2/0…500 kcmil)
Number of slots	2 auxiliary switch OF plug-in) 1 alarm switch SD plug-in) 1 overcurrent trip switch SDE plug-in) 1 voltage release MN or MX plug-in)
Power wire stripping length	1.22 in (31 mm) 2.40 in (61 mm)
Color	Black
Height	13.39 in (340 mm)
Width	5.51 in (140 mm)
Depth	4.33 in (110 mm)
Net Weight	13.67 lb(US) (6.2 kg)
Communication interface	Modbus Ethernet
Circuit breaker application	HACR rated

Environment
standards	UL CSA NEMA NOM-003-SCFI-2000 IEC 60947-2
Product certifications	UL CSA NOM
IP degree of protection	Front cover IP40
Pollution degree	3 IEC 60947-1
Ambient Air Temperature for Operation	28…158 °F (-2…70 °C)
Ambient Air Temperature for Storage	-58…185 °F (-50…85 °C)
Operating altitude	< 6561.68 ft (2000 m) without derating 5000 m with derating

Ordering and shipping details
Category	01116-L ELEC TRIP UNIT MOUNT BREAKER/SW
Discount Schedule	DE2
GTIN	785901723530
Returnability	Yes
Country of origin	US

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	8.75 in (22.225 cm)
Package 1 Width	10.75 in (27.305 cm)
Package 1 Length	19.50 in (49.53 cm)
Package 1 Weight	15.00 lb(US) (6.804 kg)
