| Specifications | |
|---|---|
| Manufacturer | ASCO |

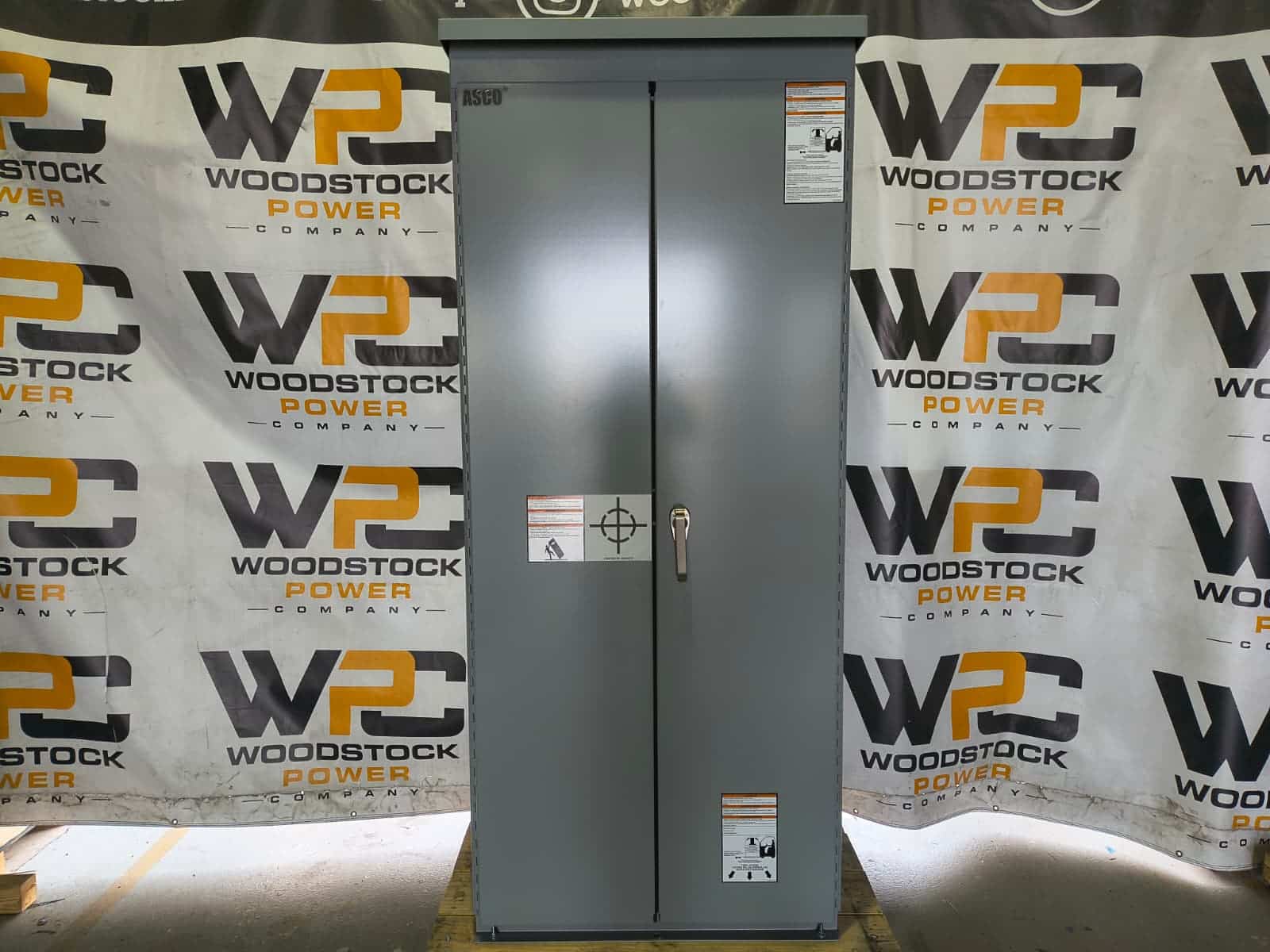

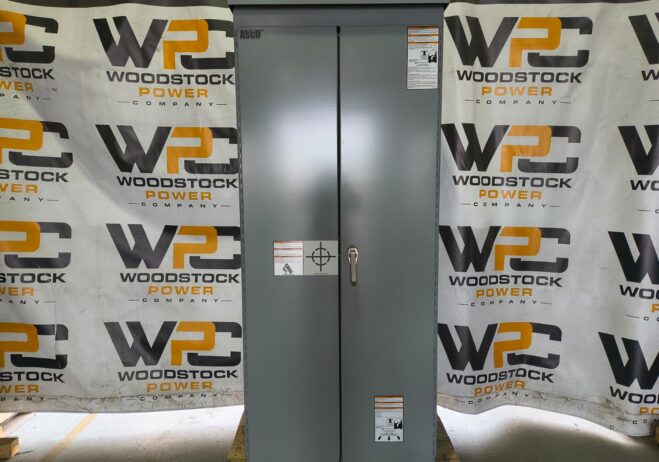

| Type | NEMA 3R |
| Voltage | 480V |
| Amps | 800 |
| Service Entrance Rated | Yes |

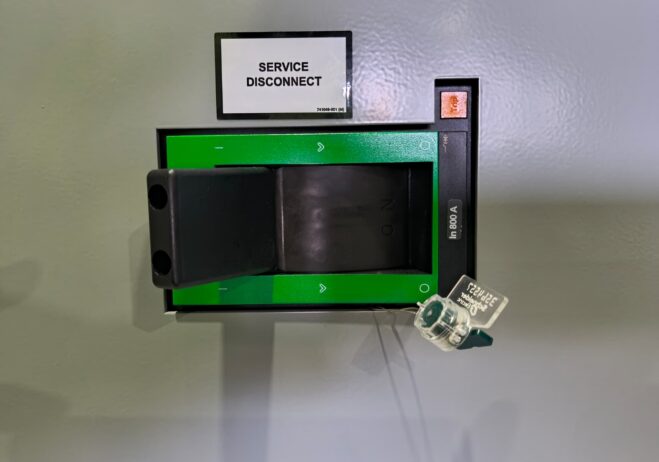

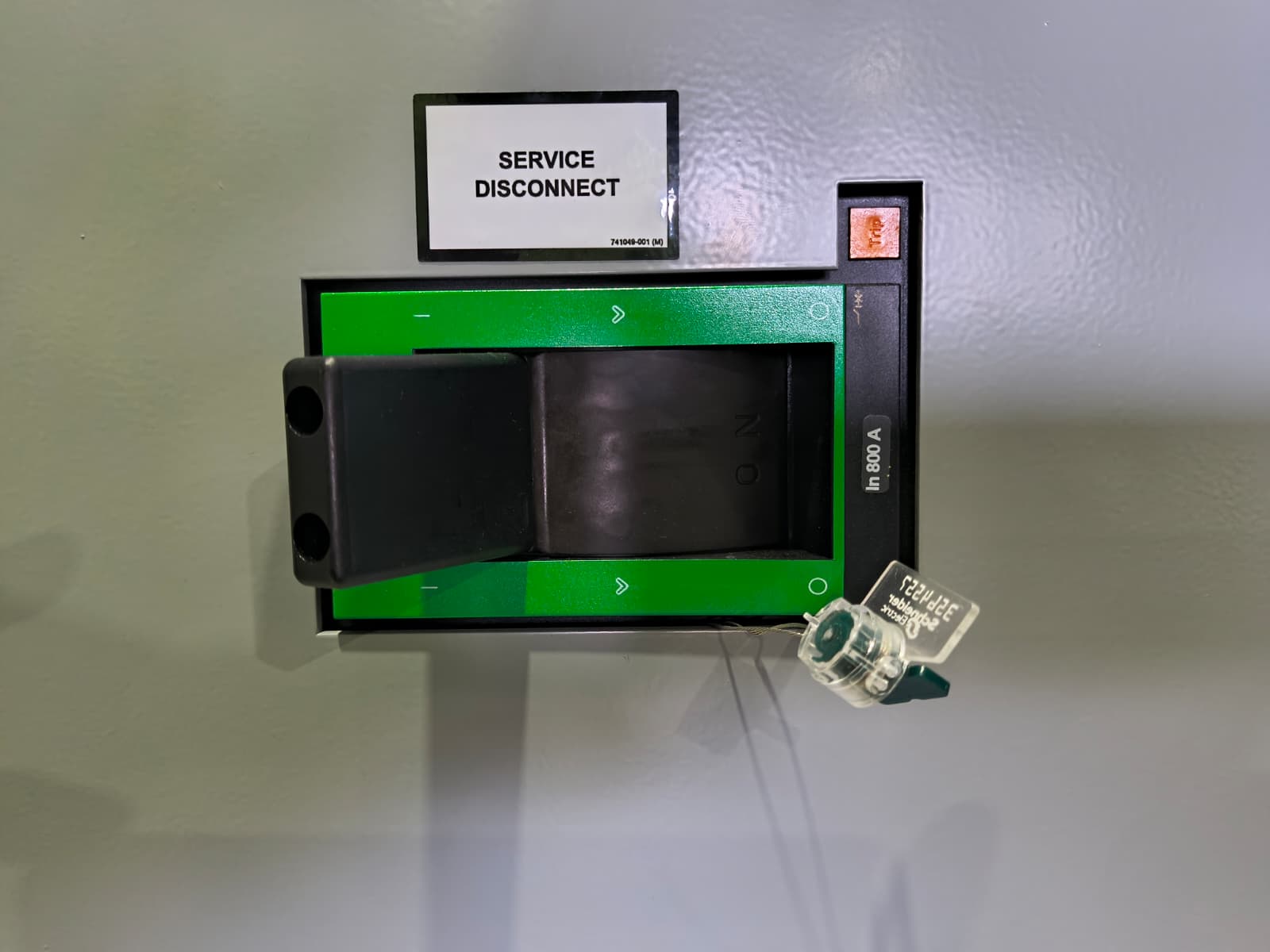

| Breaker Size | 800 Amp |
| Frequency | 60 Hz |

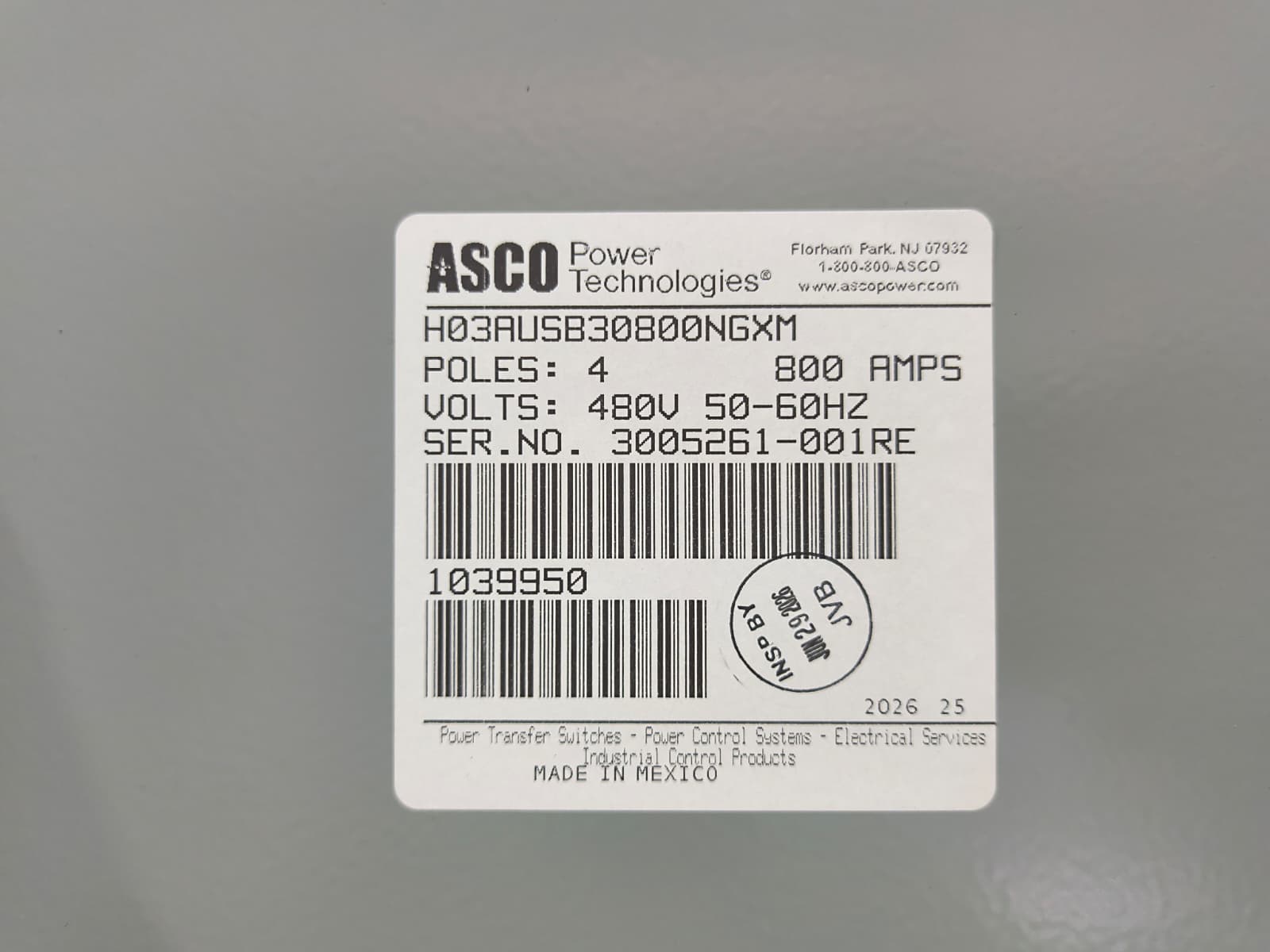

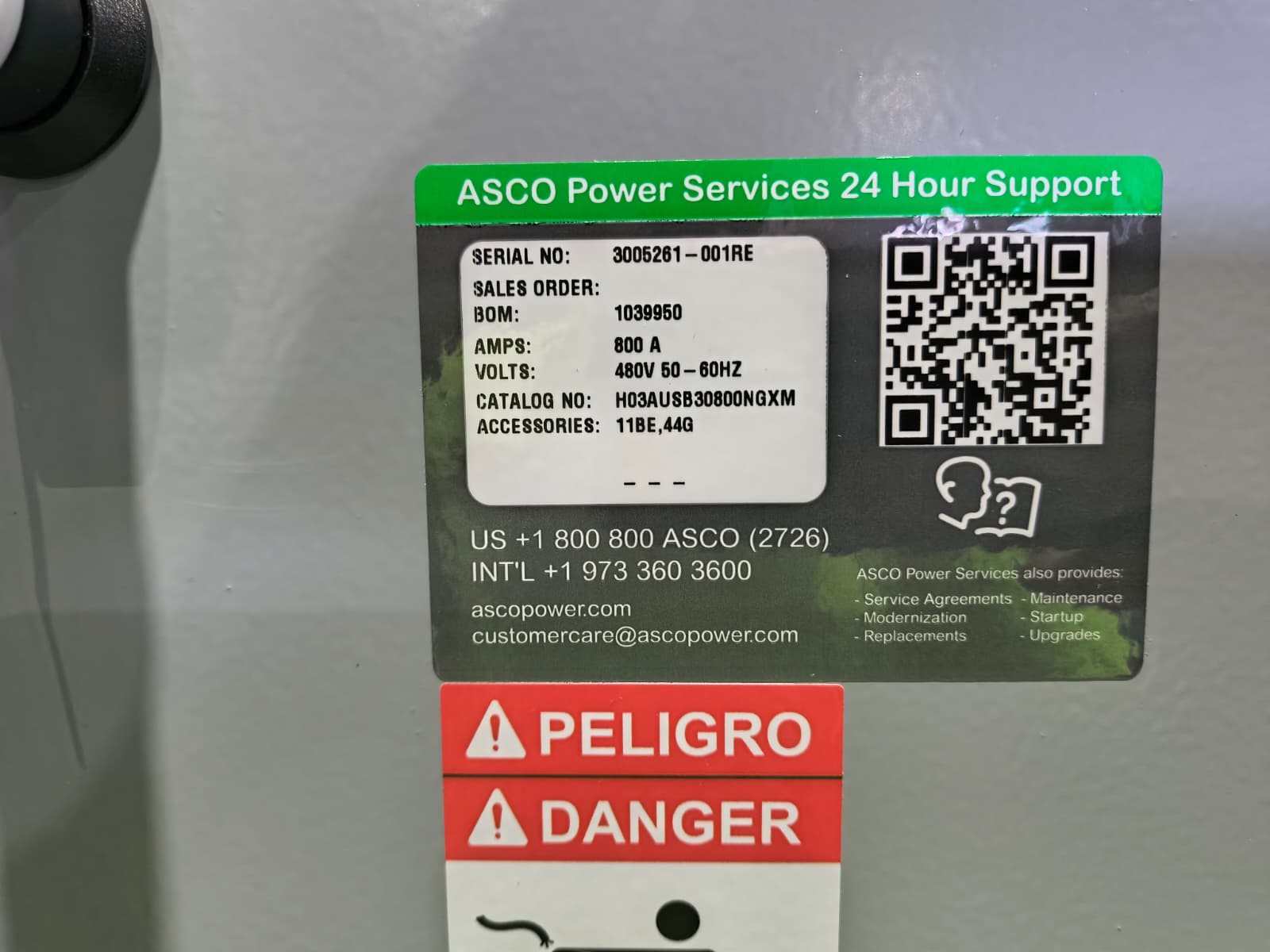

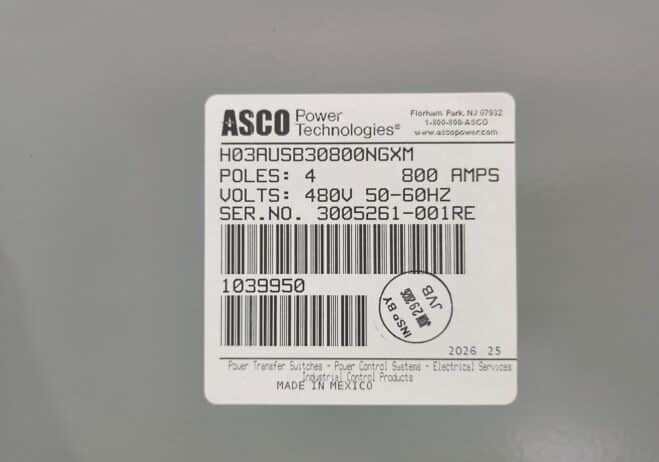

| ATS Model | H03AUSB30800NGXM |
| Overall Dimensions | 41" x 33" x 95.5" | 1,350 lbs |
| Condition | New |
| Status | Coming In |

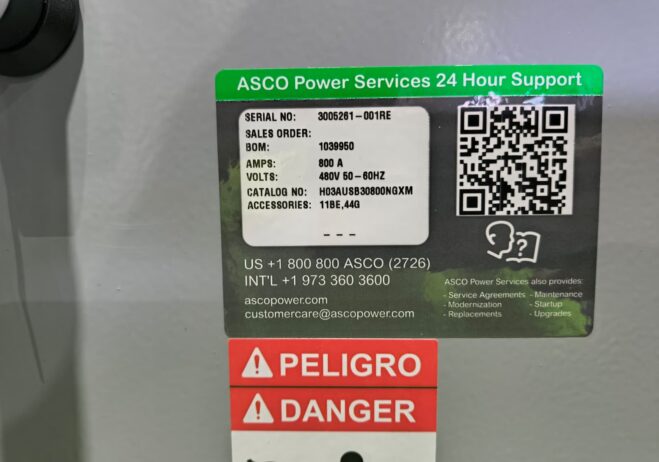

| Accessories | 11BE, 44G |
|
Additional Features

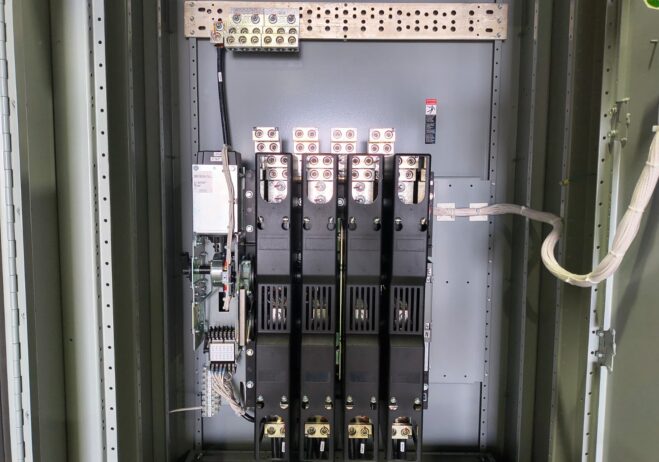

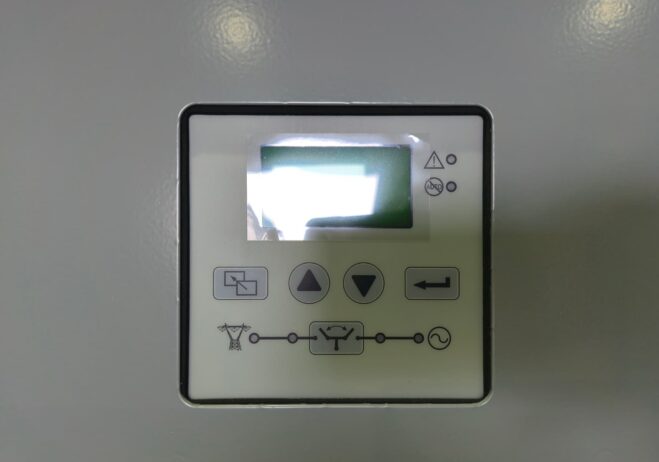

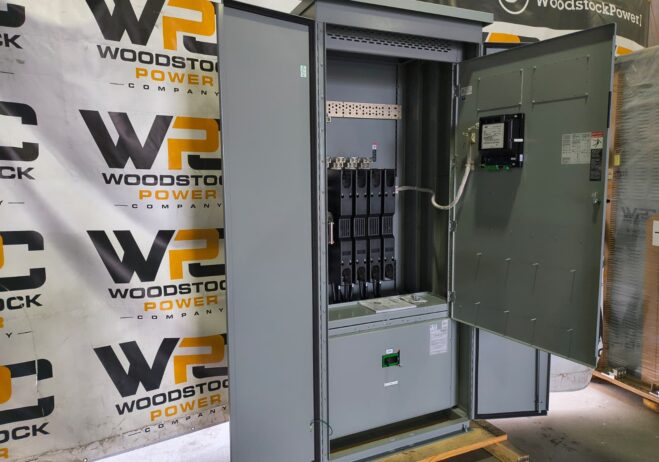

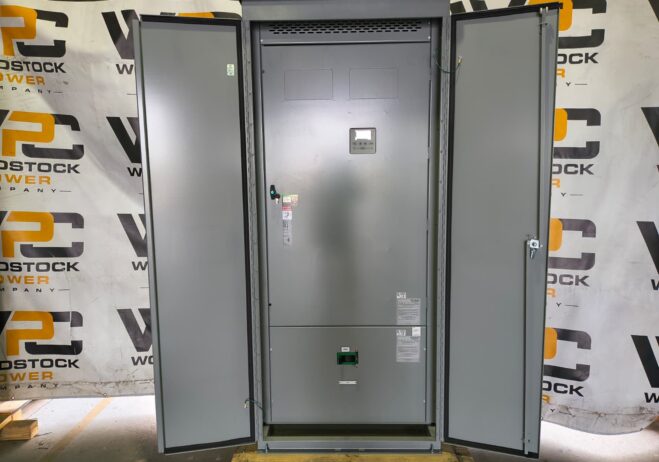

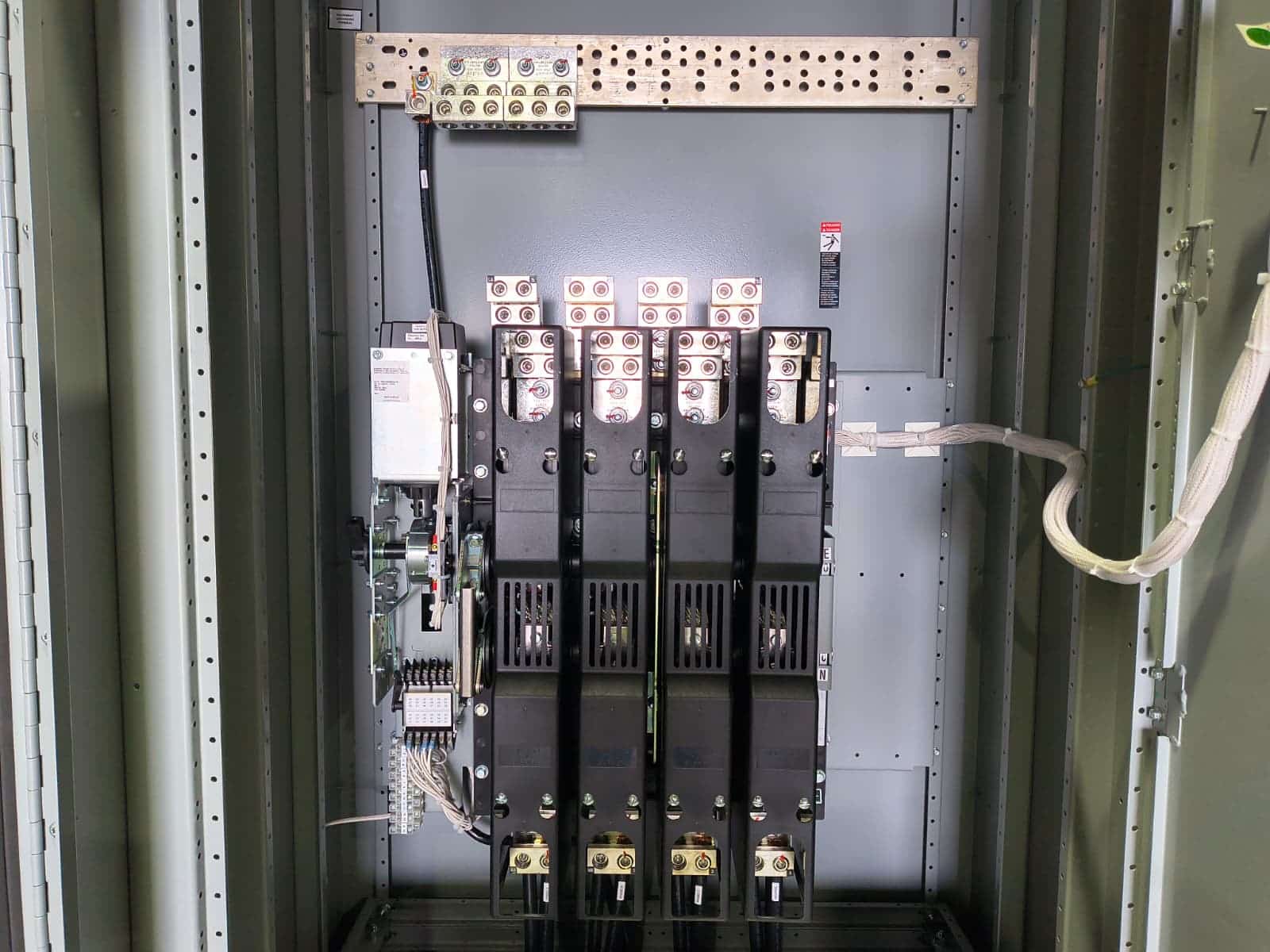

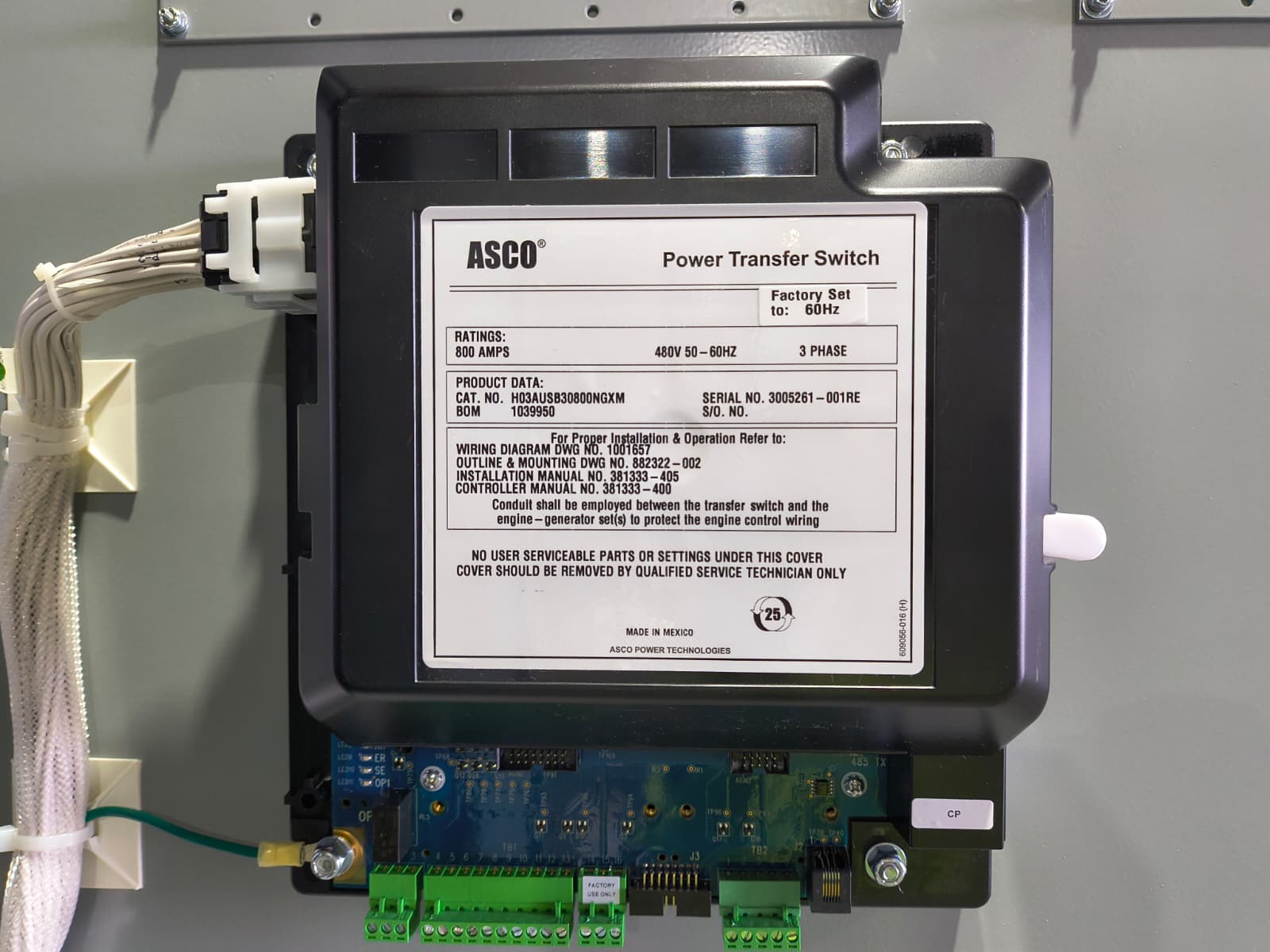

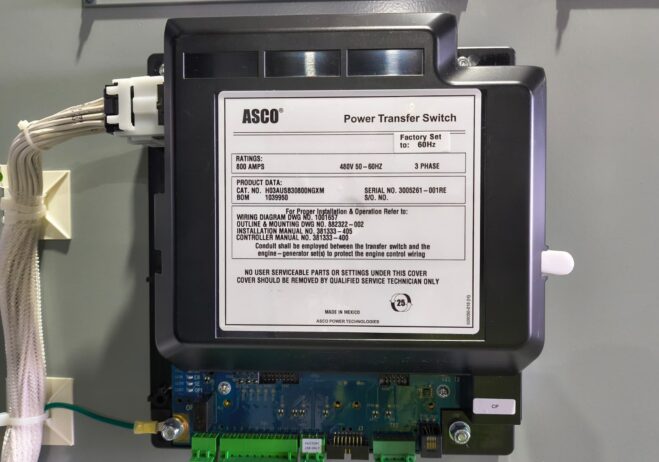

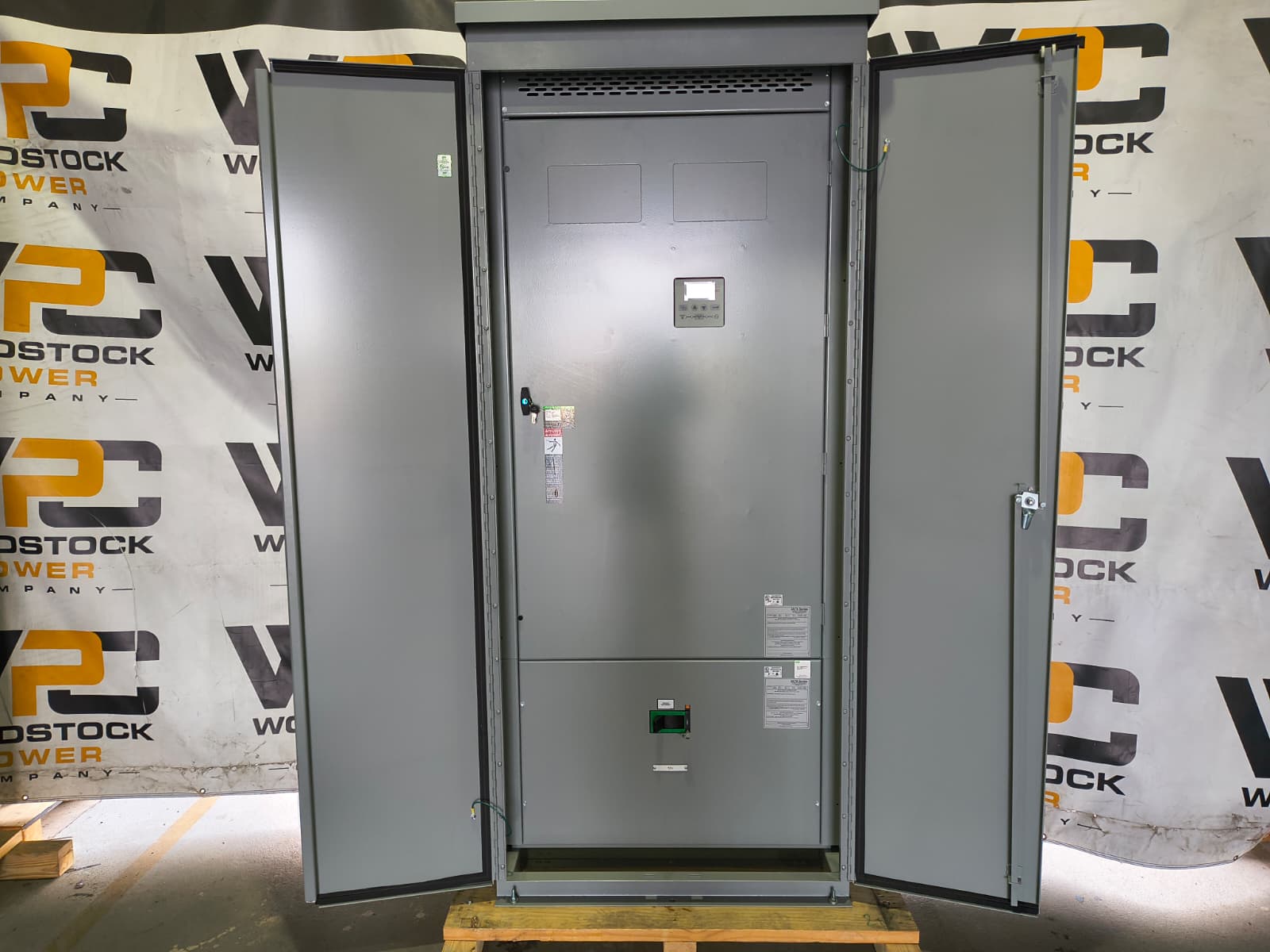

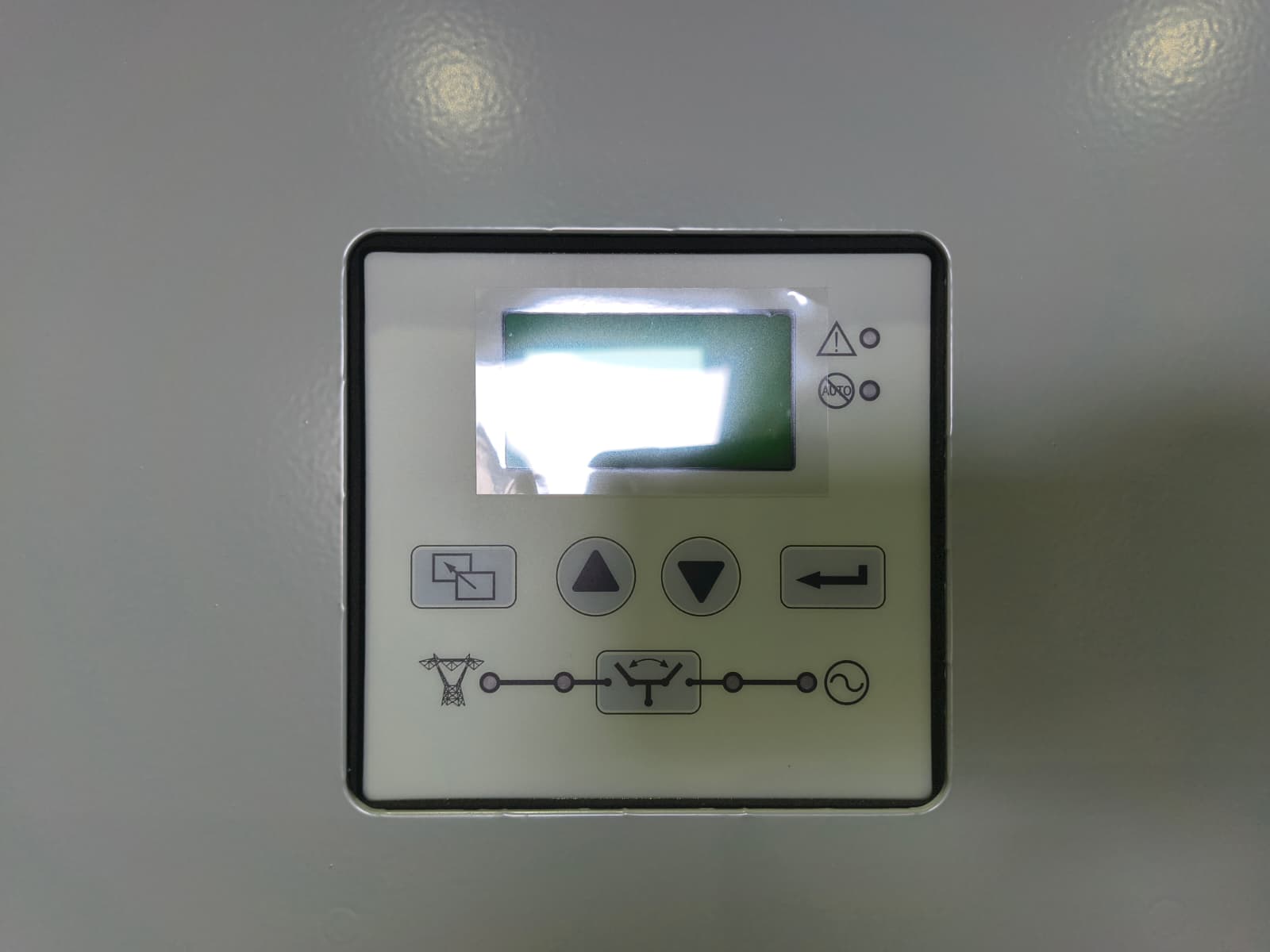

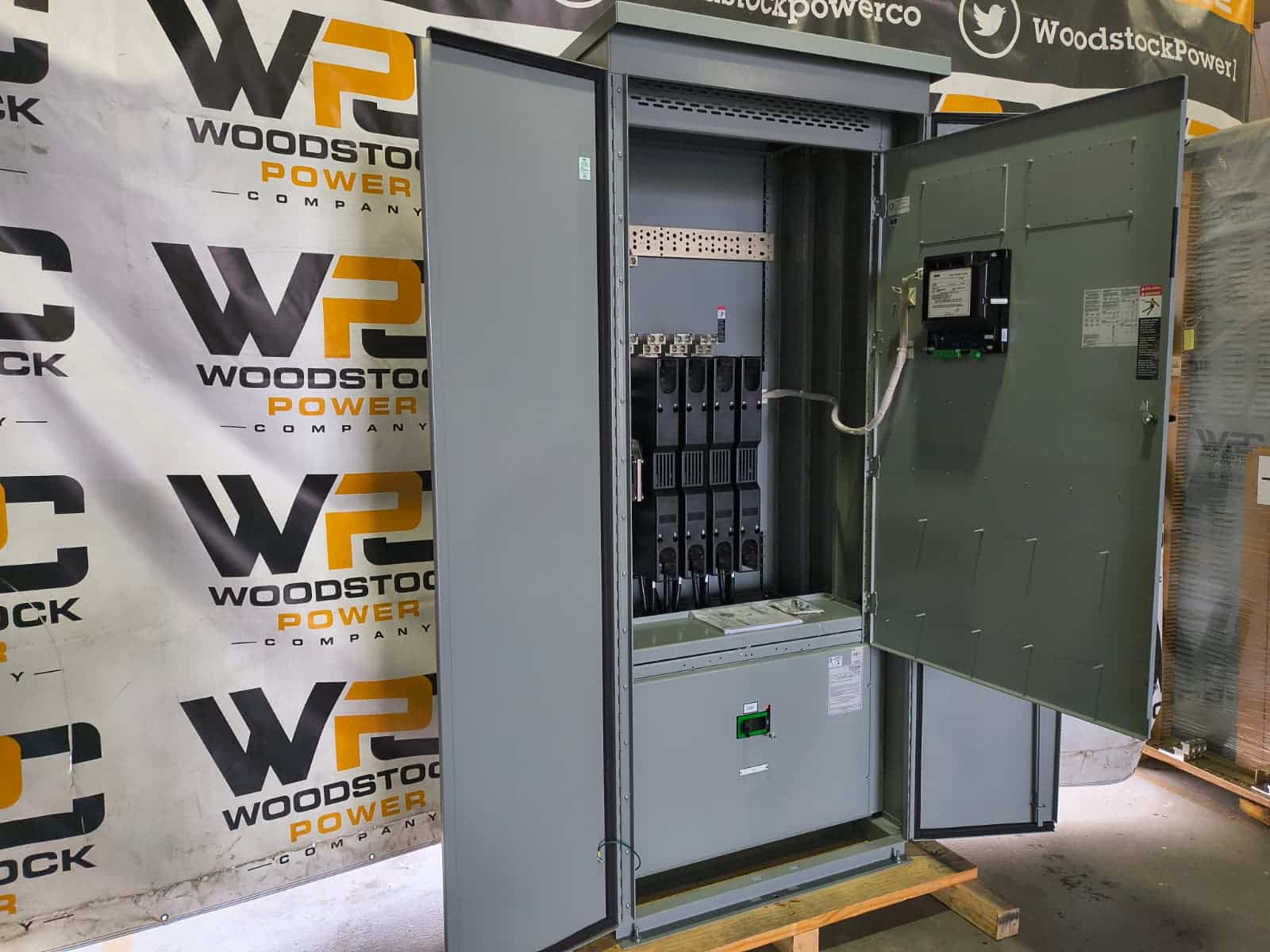

New 800 Amp ASCO Series 300 H03AUSB30800NGXM Automatic Transfer Switch 800 amp automatic transfer switch Service Entrance Rated 480V NEMA 3R 4-Pole 3-Phase 4-Wire 60 Hz Switched [B] neutral configuration 11BE – Adds the following features to the Group G controller: (1) Serial RS-485 Modbus Communications (2) Multi-Schedule Engine Exerciser (3) a 300 Entry Event Log and (4) a common alarm output function. When applied on 3-Phase systems it also enables: (1) 3-Phase Emergency Source VLL sensing (2) Phase Rotation Monitoring (3) Emergency Source VLL Unbalance Monitoring 44G – Strip heater w/ thermostat, wired to load terminals: 208-600 volts |
|
