| Specifications | |
|---|---|
| Manufacturer | ASCO |
| Type | NEMA 1 |
| Voltage | 208V |
| Amps | 800 |
| Service Entrance Rated | No |
| Transition Type | Solid |
| Frequency | 60 Hz |

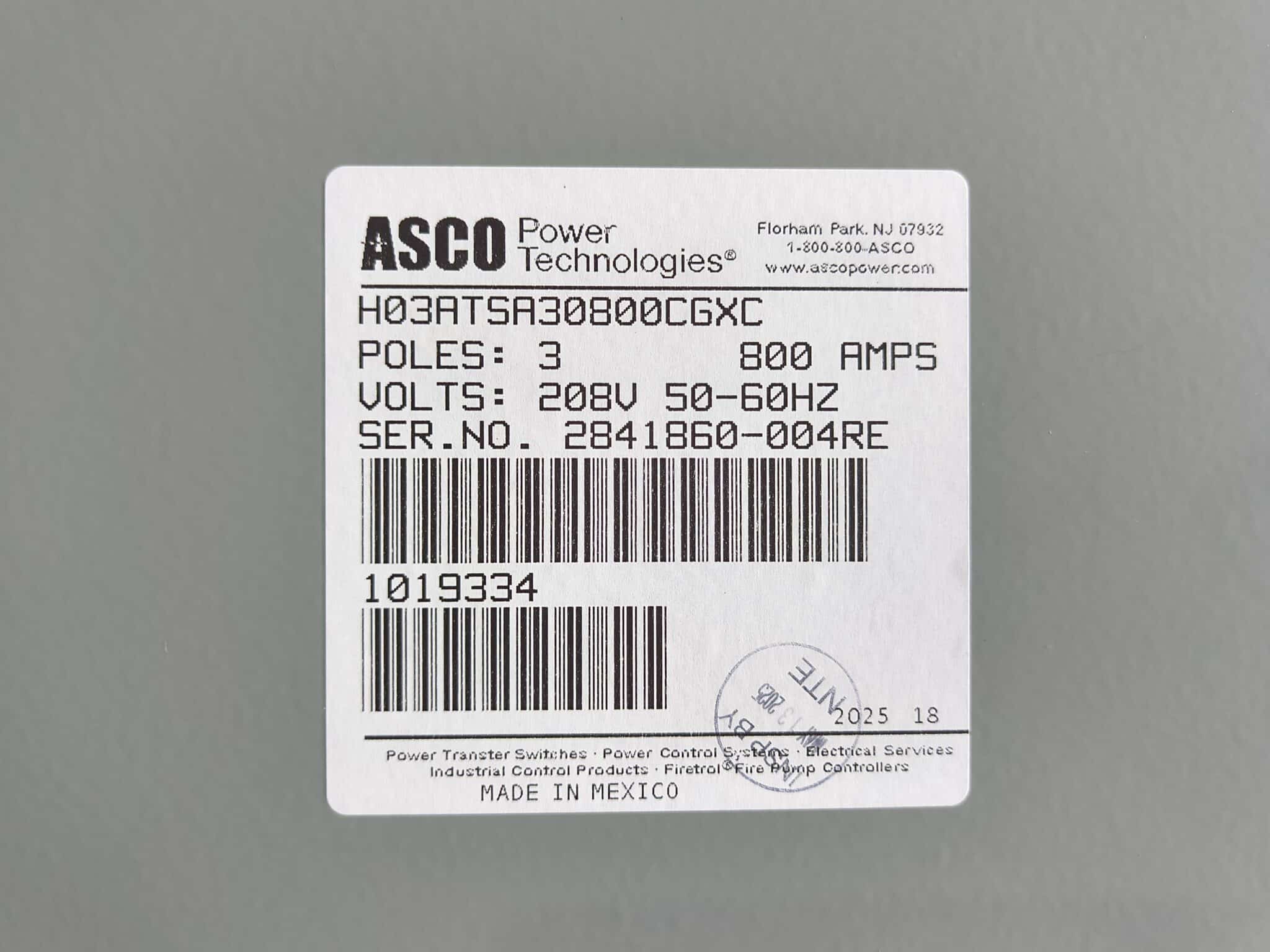

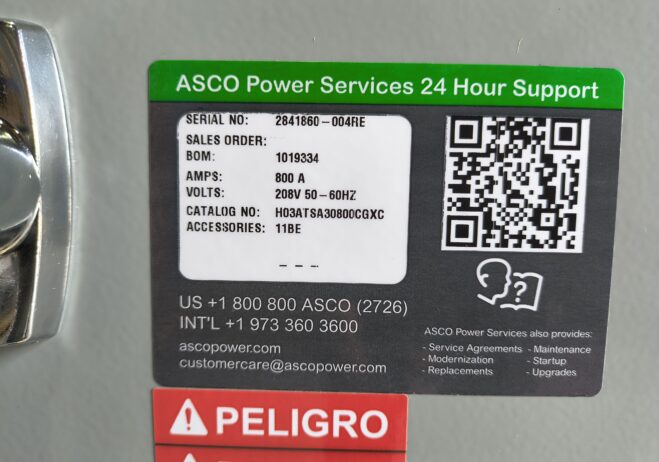

| ATS Model | H03ATSA30800CGXC |
| Overall Dimensions | 34" x 20" x 72" | 442 lbs |
| Condition | New |
| Status | Available |

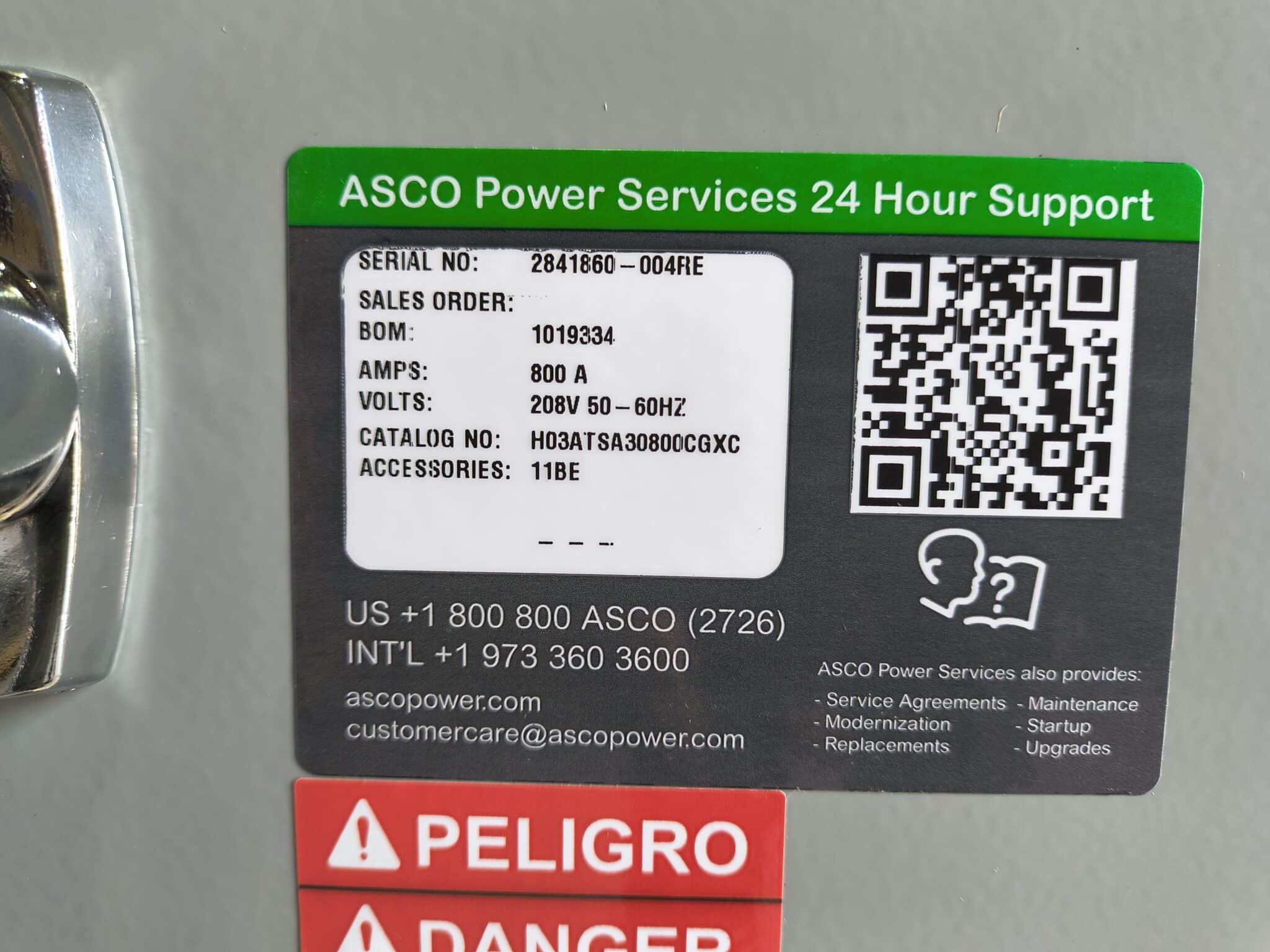

| Accessories | 11BE |
|
Additional Features

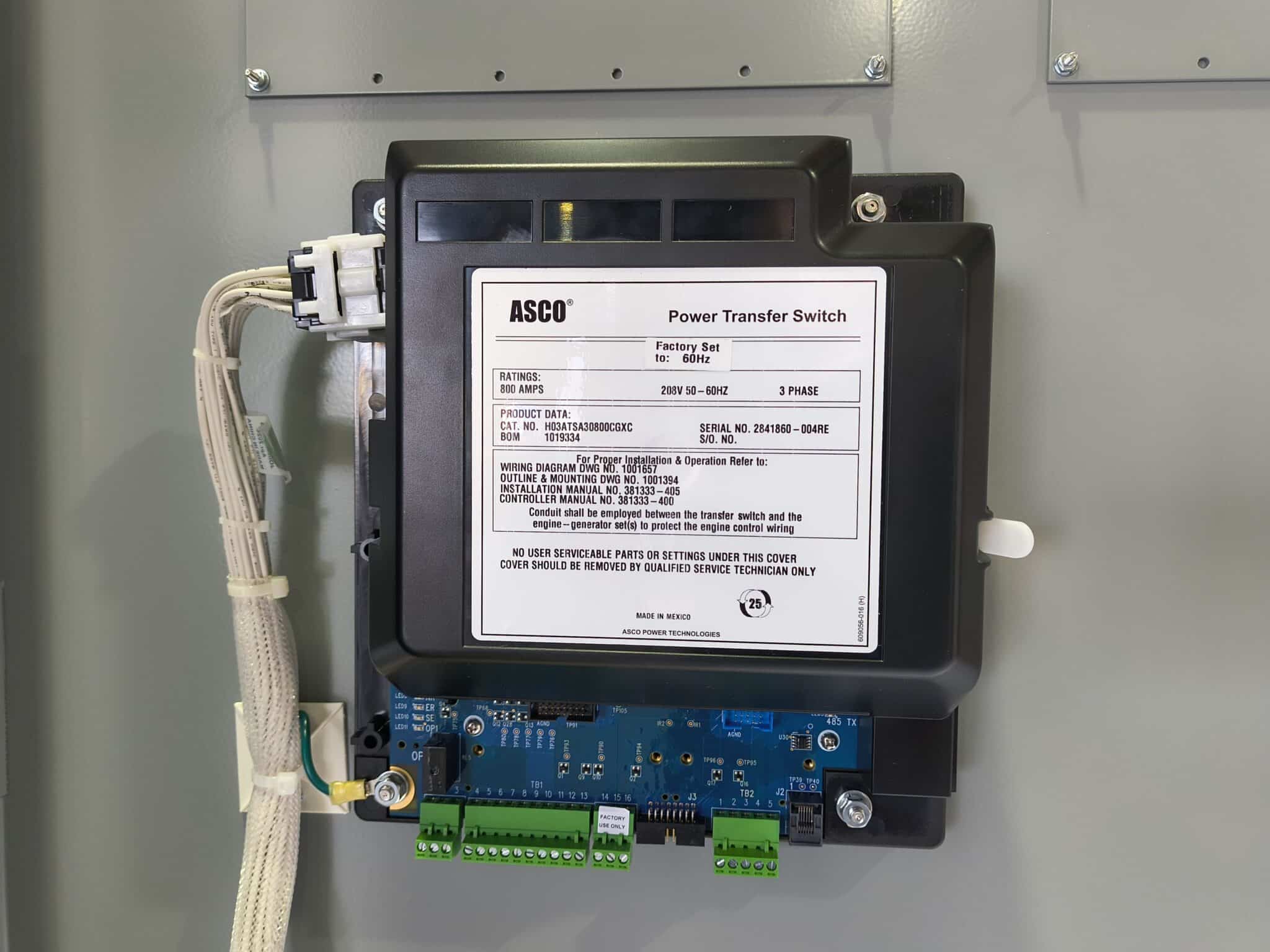

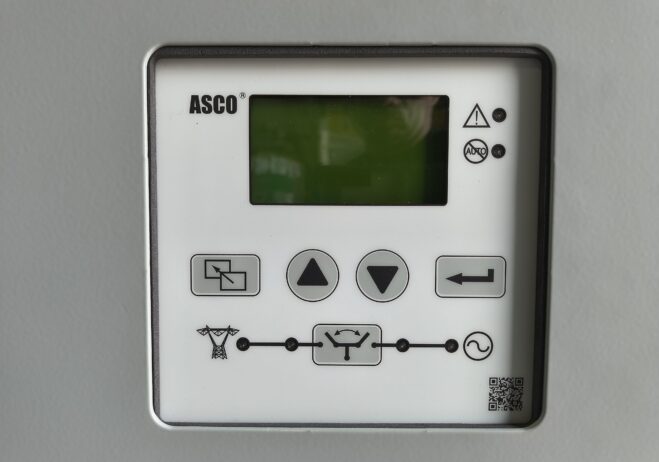

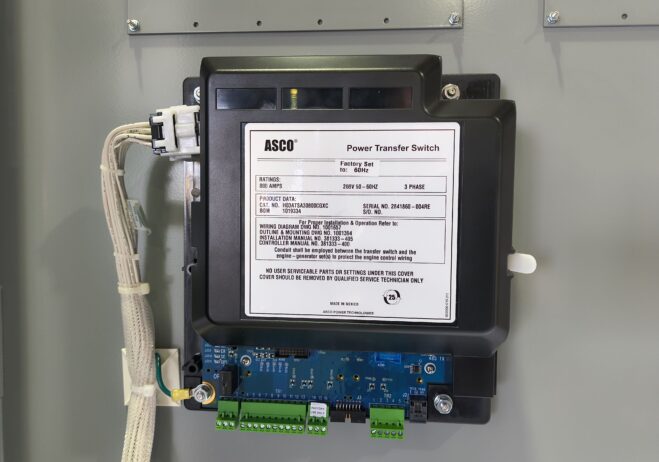

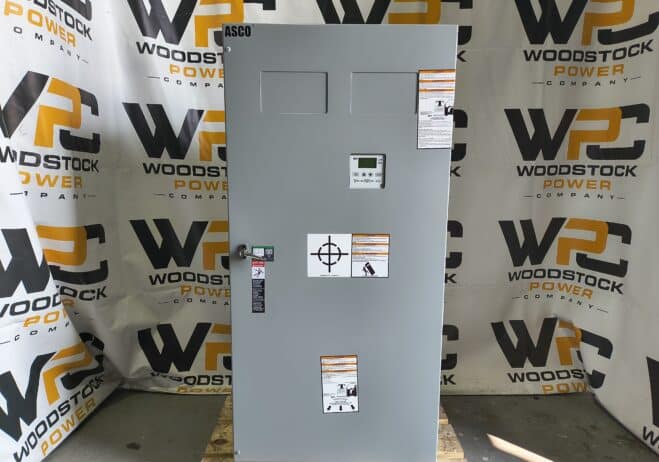

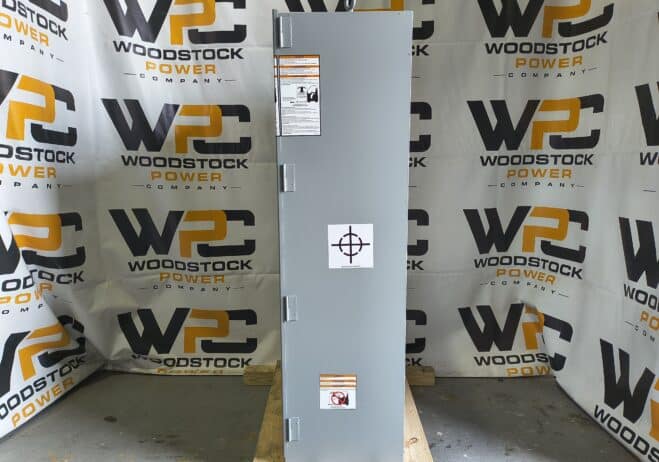

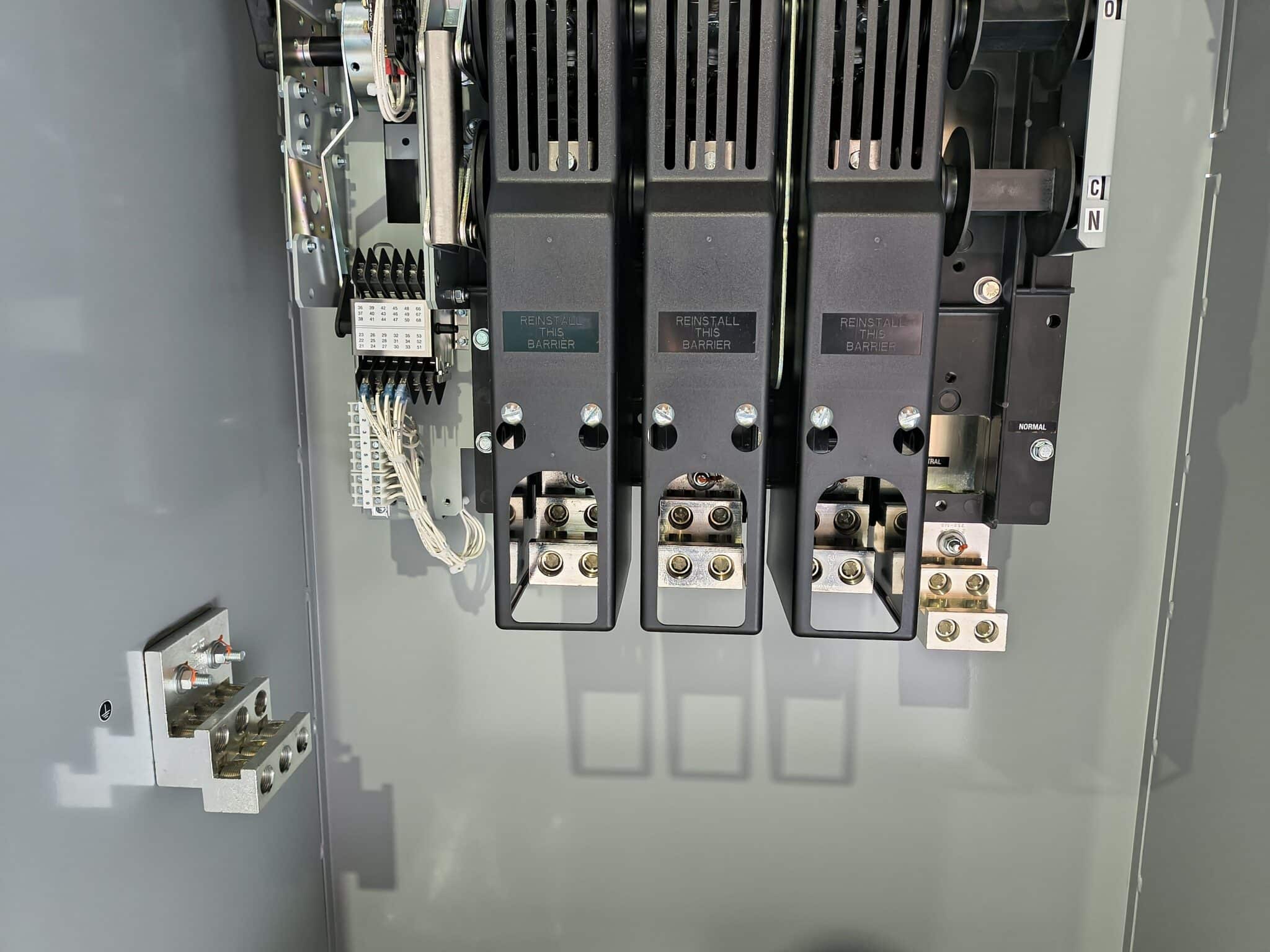

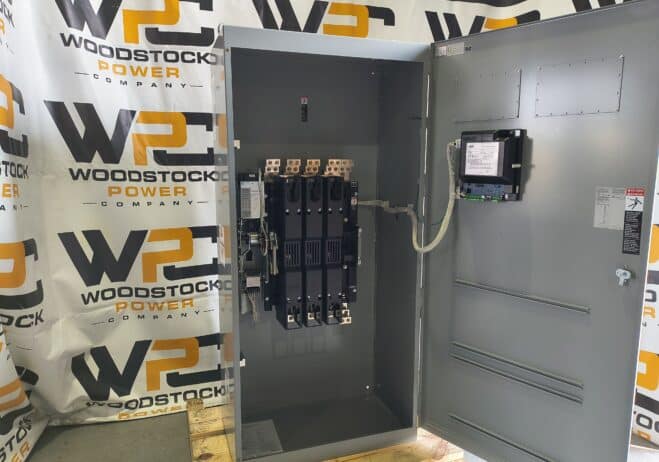

New 800 Amp ASCO Series 300 H03ATSA30800CGXC Automatic Transfer Switch 800 Amp Automatic Transfer Switch NEMA 1 208V 3-Phase 3-Pole 4-Wire 60 Hz Solid [A] neutral configuration Optional accessories: 11BE – Adds the following features to the Group G controller: (1) Serial RS-485 Modbus Communications (2) Multi-Schedule Engine Exerciser (3) a 300 Entry Event Log and (4) a common alarm output function. When applied on 3-Phase systems it also enables: (1) 3-Phase Emergency Source VLL sensing (2) Phase Rotation Monitoring (3) Emergency Source VLL Unbalance Monitoring |
|
