| Specifications | |
|---|---|
| Manufacturer | ASCO |

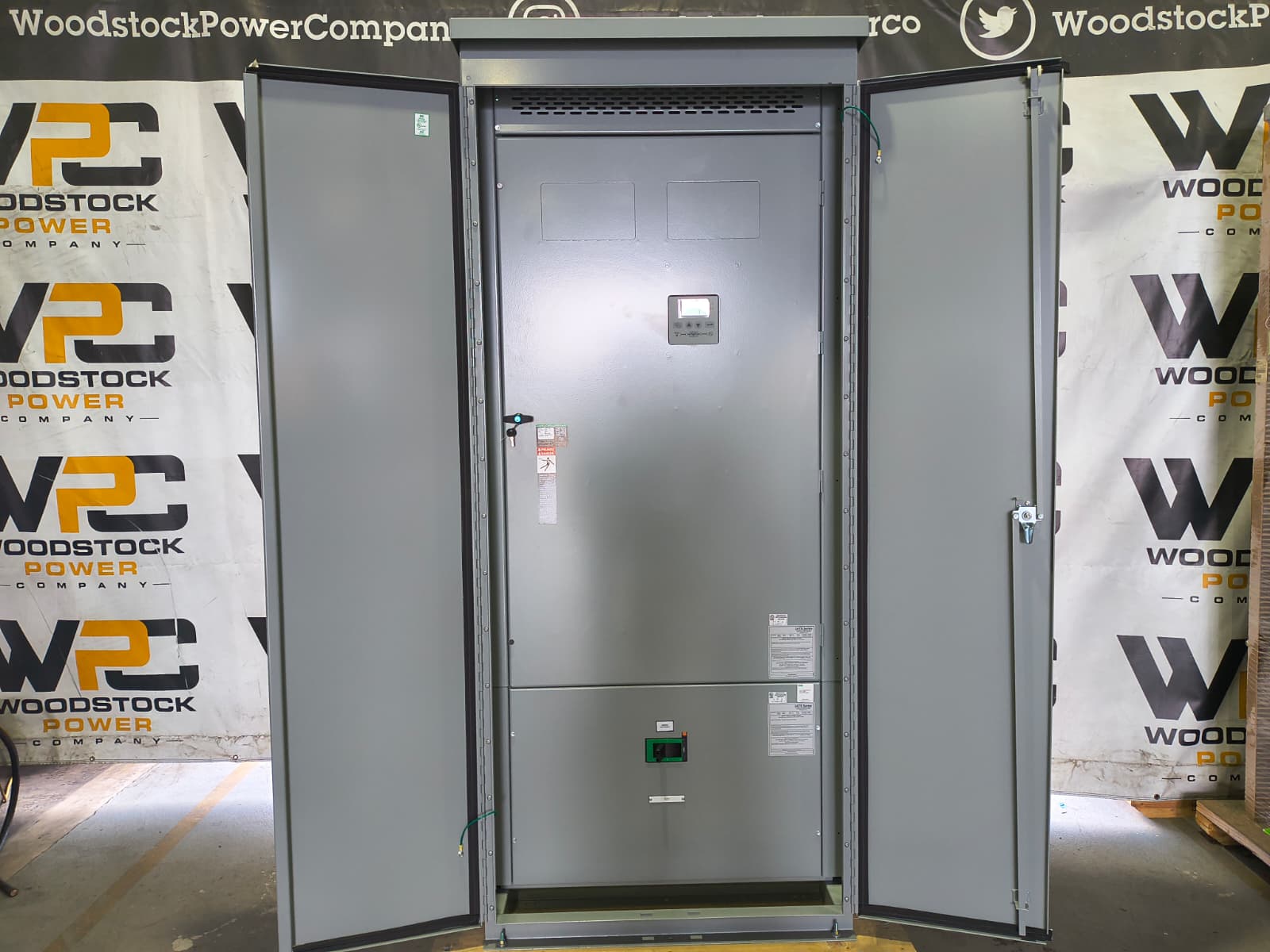

| Type | NEMA 3R |
| Voltage | 208V |
| Amps | 800 |

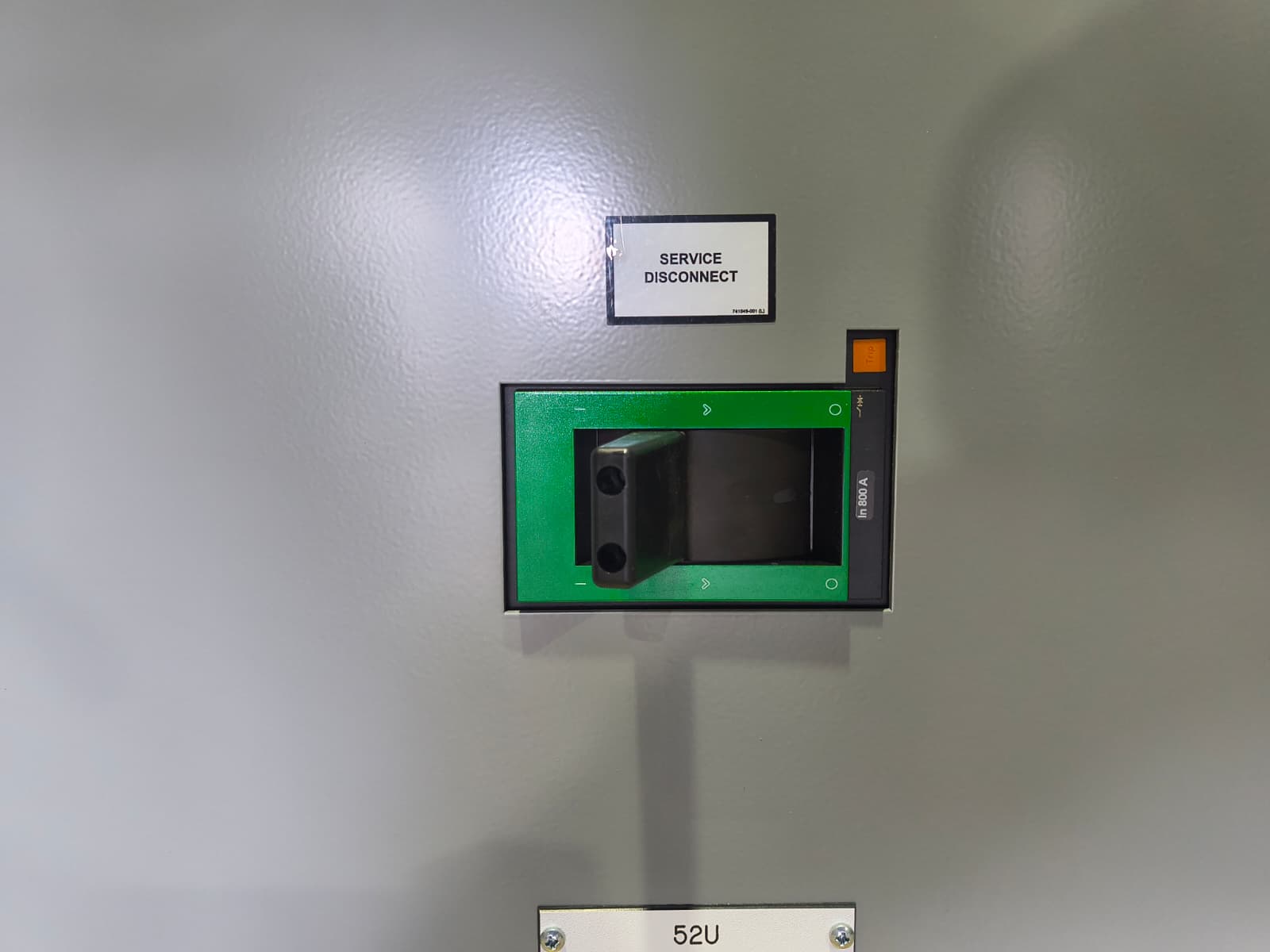

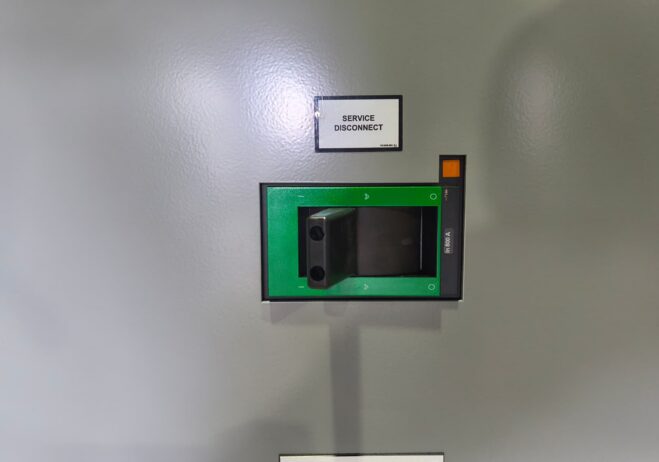

| Service Entrance Rated | Yes |
| Frequency | 60 Hz |

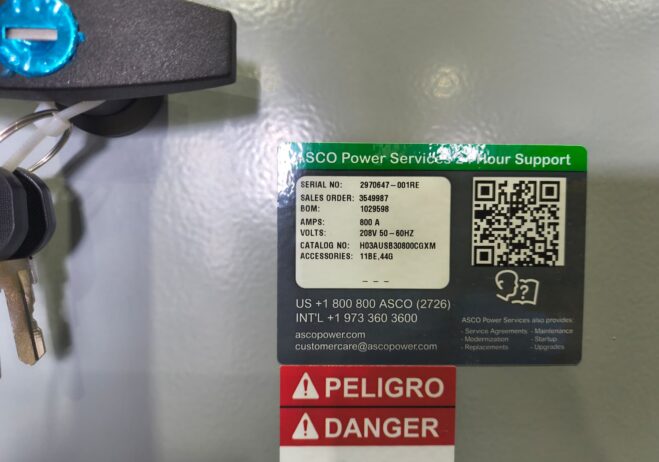

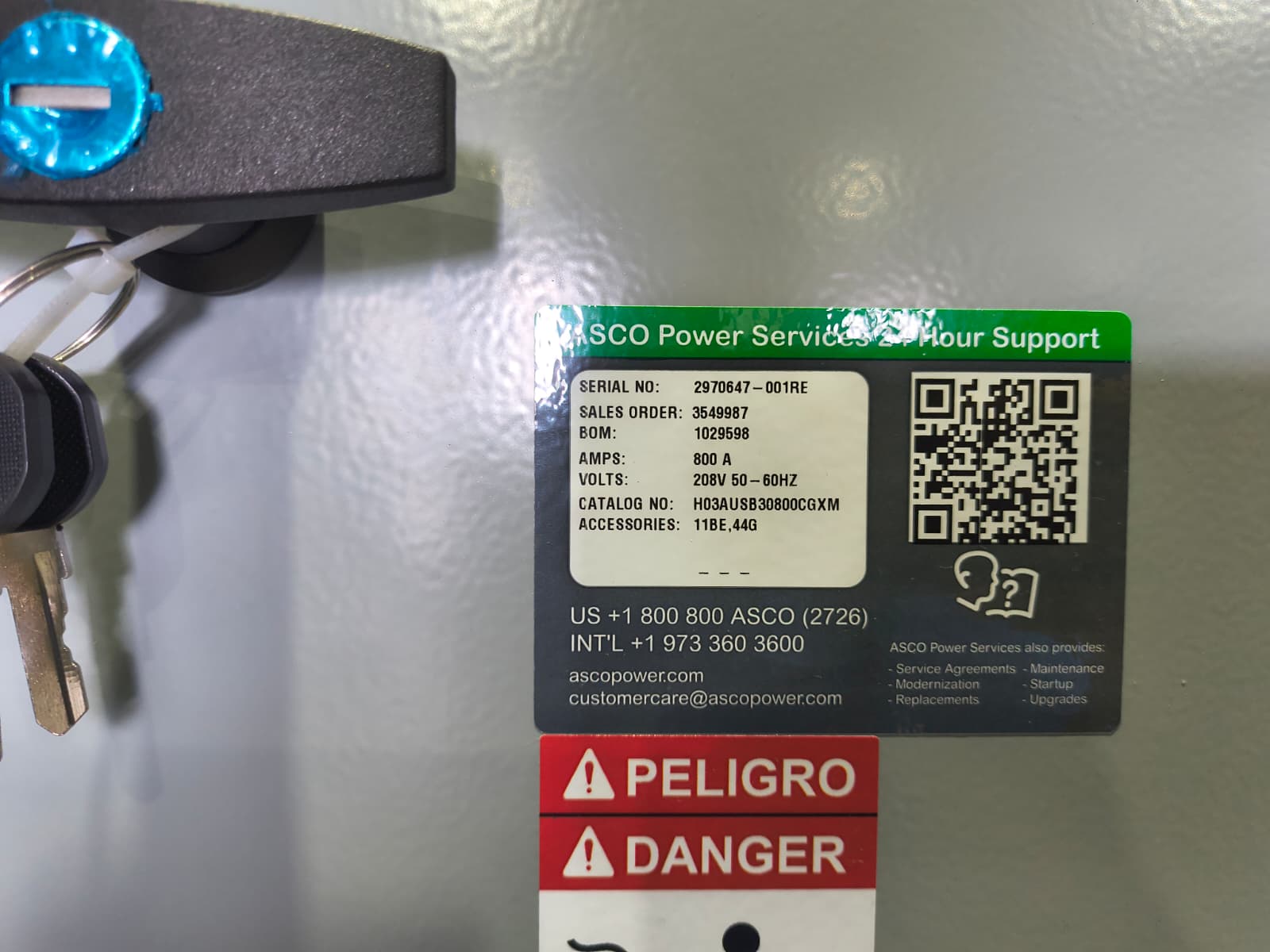

| ATS Model | H03AUSB30800CGXM |
| Overall Dimensions | 41" x 33" x 95.5" | 1,350 lbs |
| Condition | New |
| Status | Coming In |
| Accessories | 11BE, 44G |
|
Additional Features

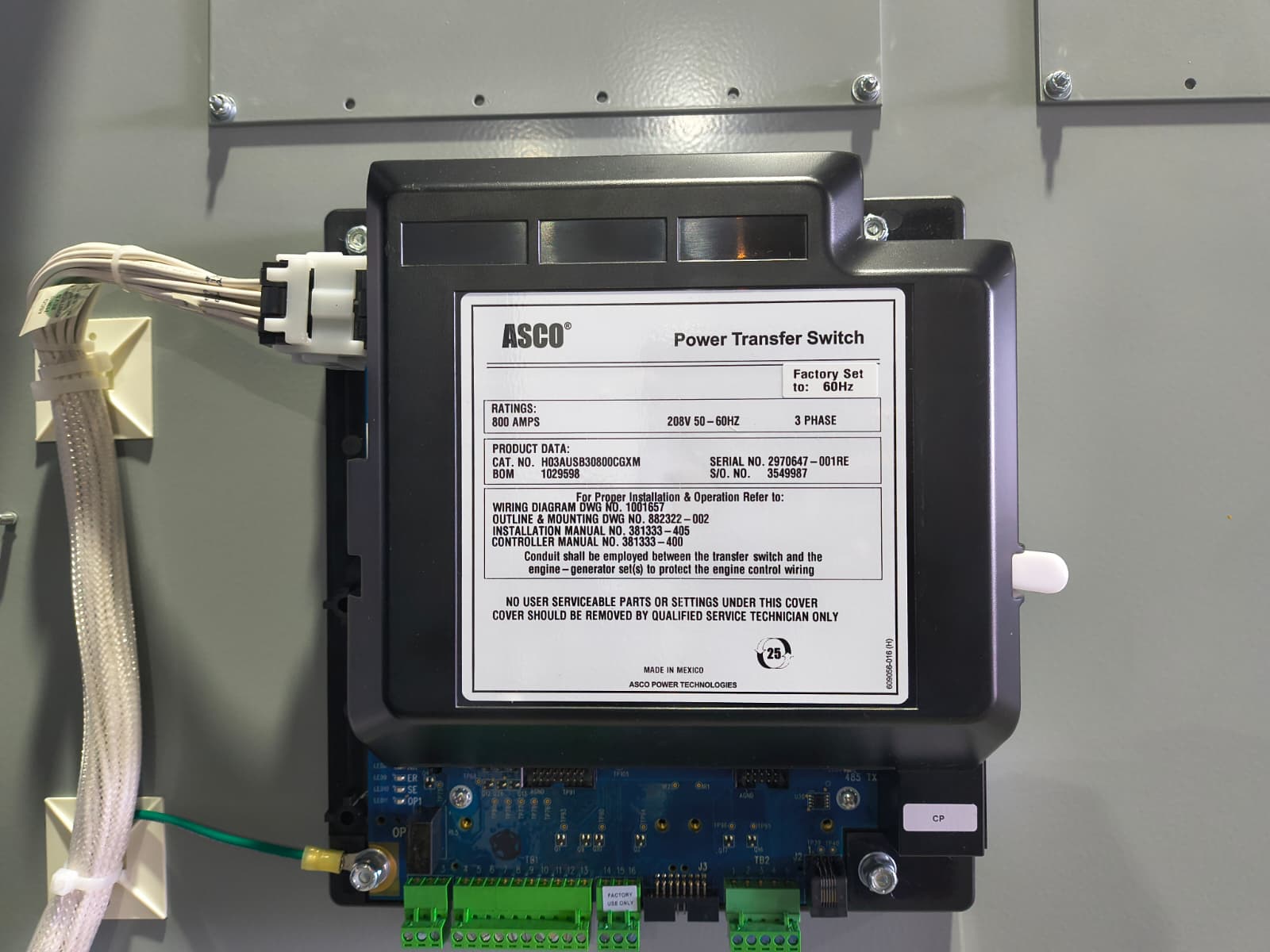

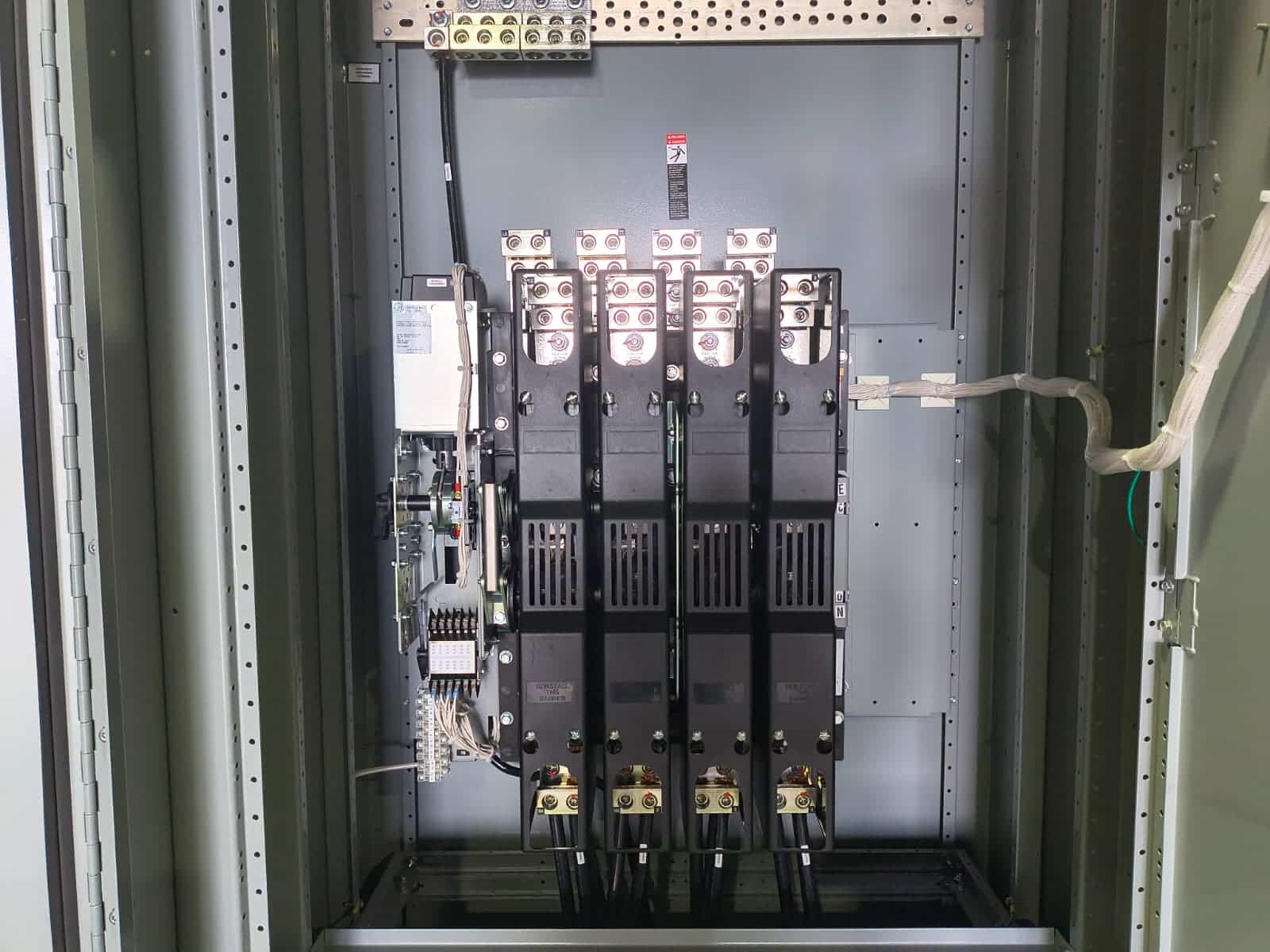

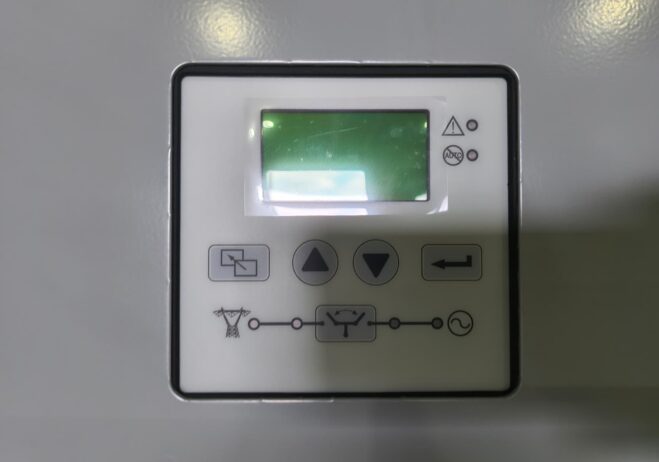

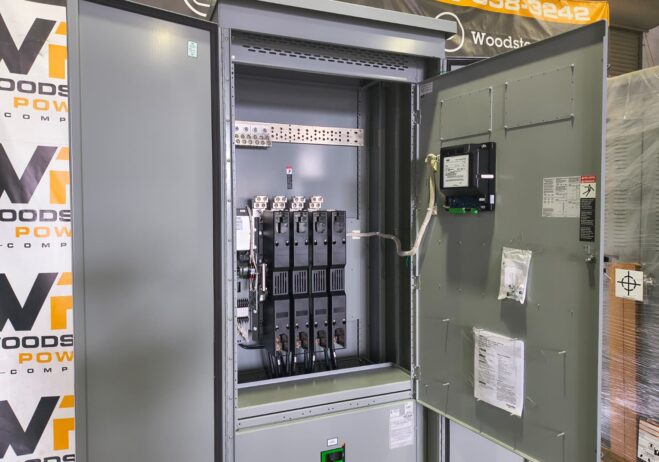

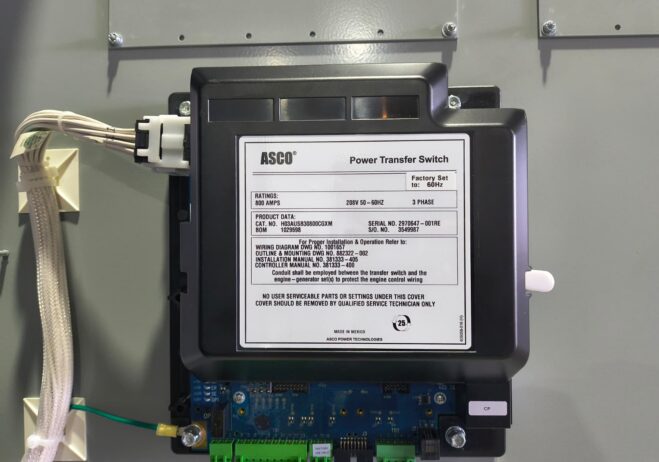

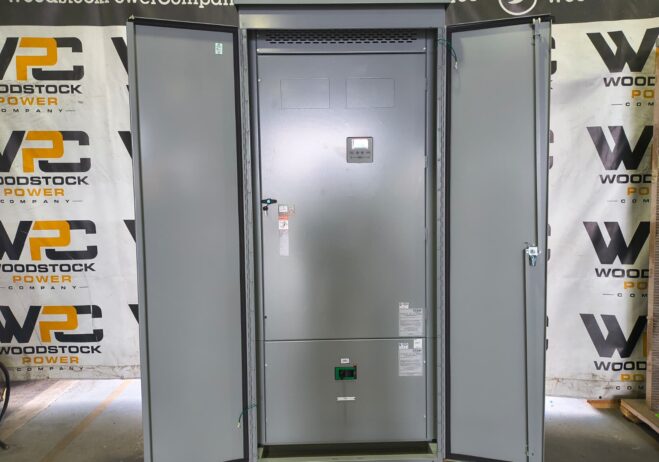

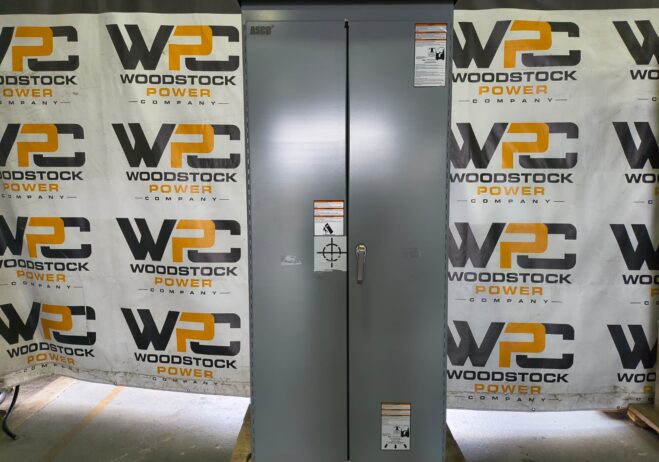

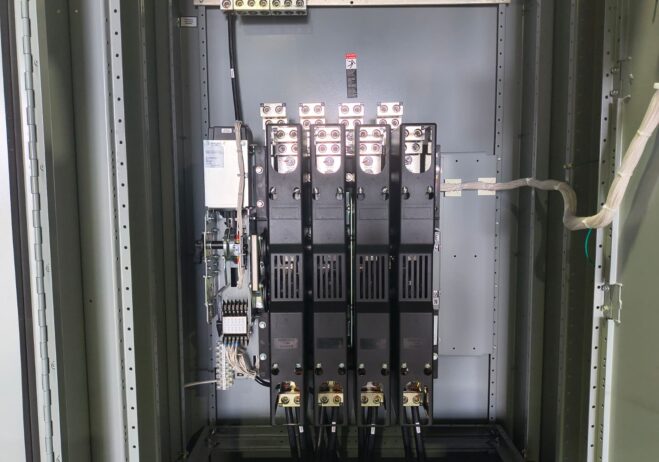

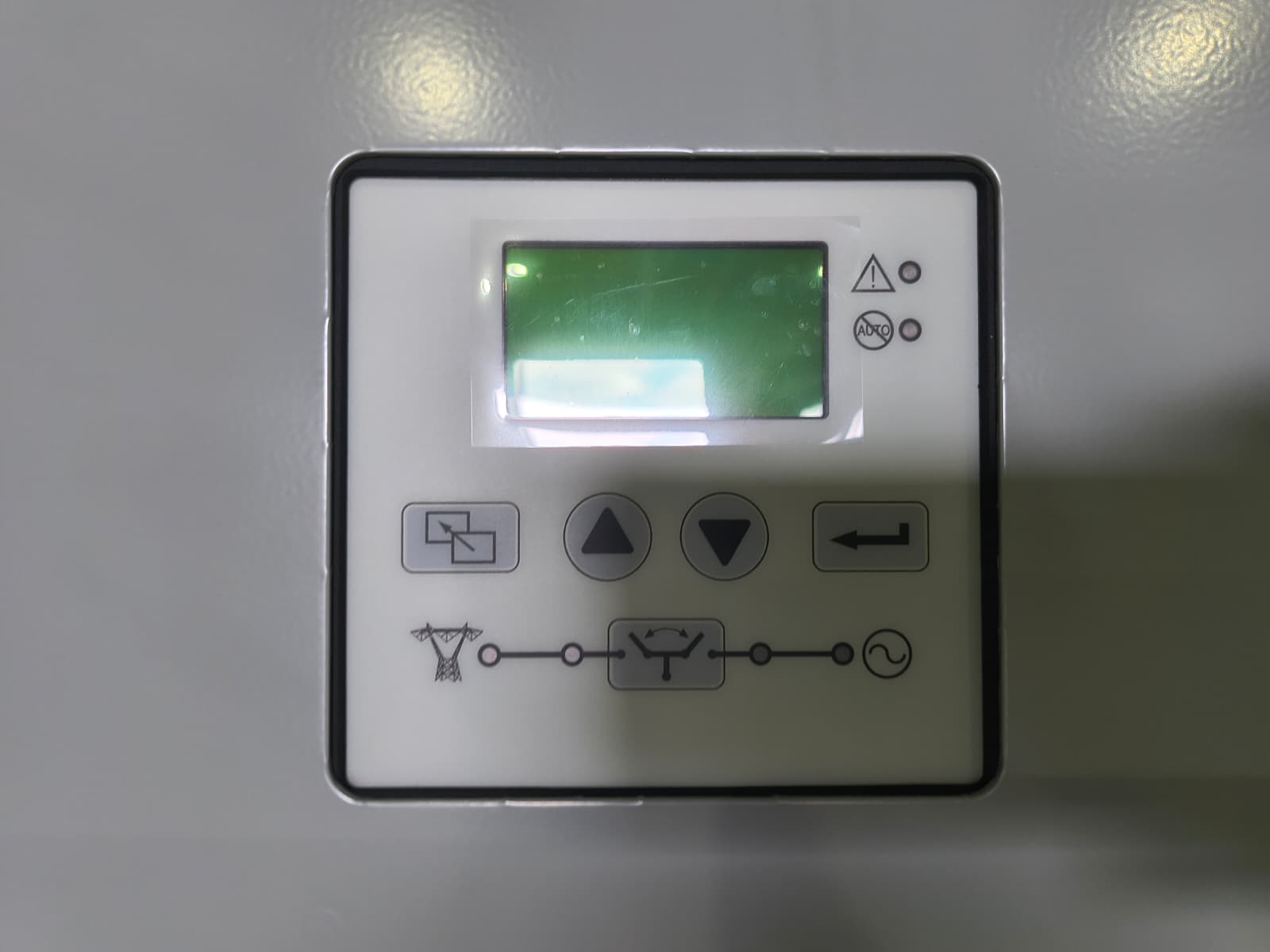

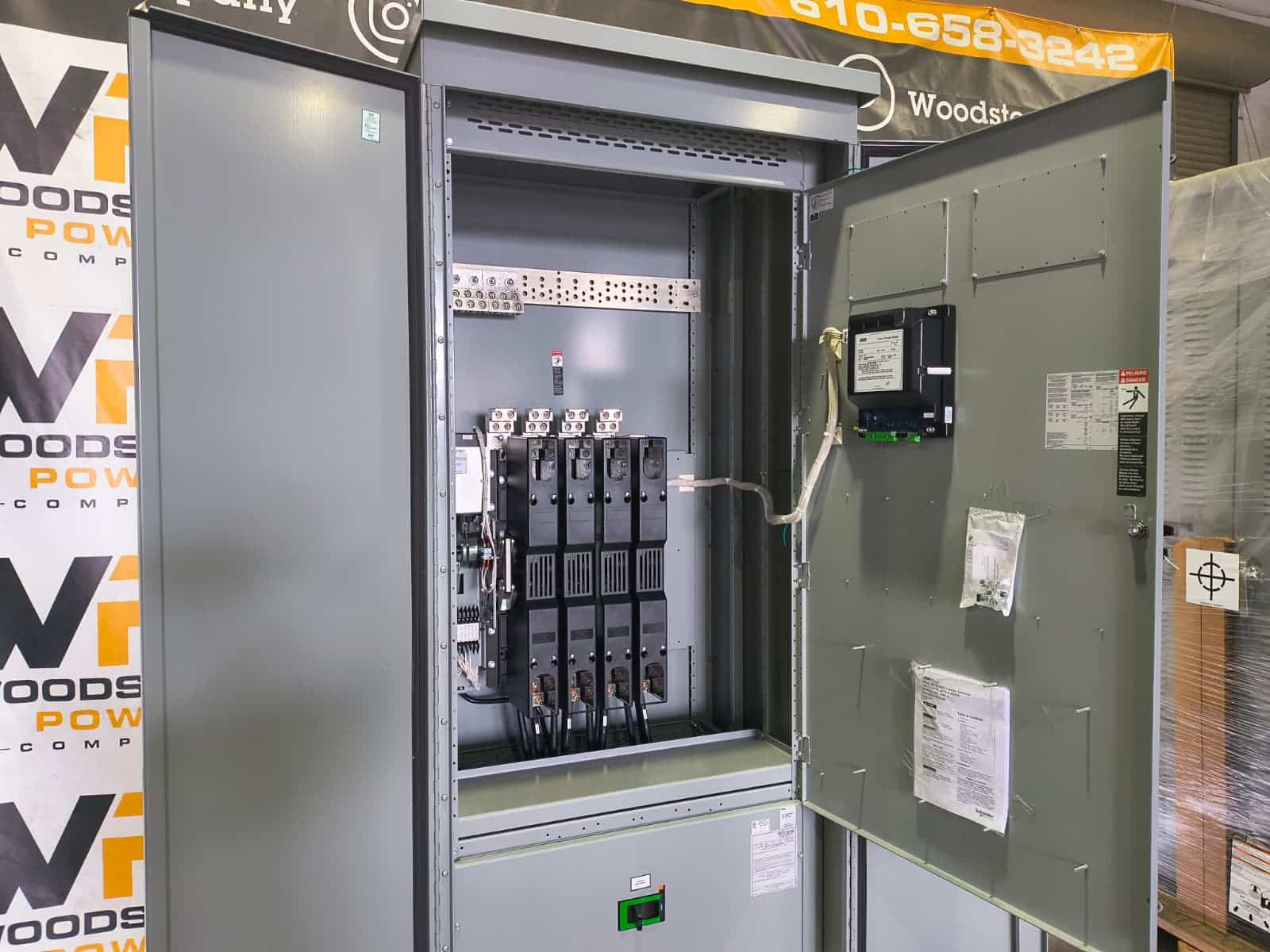

New 800 Amp ASCO H03AUSB30800CGXM Service Entrance Rated Automatic Transfer Switch 800 amp automatic transfer switch Service Entrance Rated 208V 4-Pole 4-Wire 3-Phase 60 Hz Switched neutral [B] configuration Optional Accessories: 11BE – Adds the following features to the Group G controller: (1) Serial RS-485 Modbus Communications (2) Multi-Schedule Engine Exerciser (3) a 300 Entry Event Log and (4) a common alarm output function. When applied on 3-Phase systems it also enables: (1) 3-Phase Emergency Source VLL sensing (2) Phase Rotation Monitoring (3) Emergency Source VLL Unbalance Monitoring 44G – Strip heater w/ thermostat, wired to load terminals: 208-600 volts |
|
