| Specifications | |
|---|---|
| Manufacturer | ASCO |
| Type | NEMA 3R |
| Voltage | 208V |
| Amps | 400 |

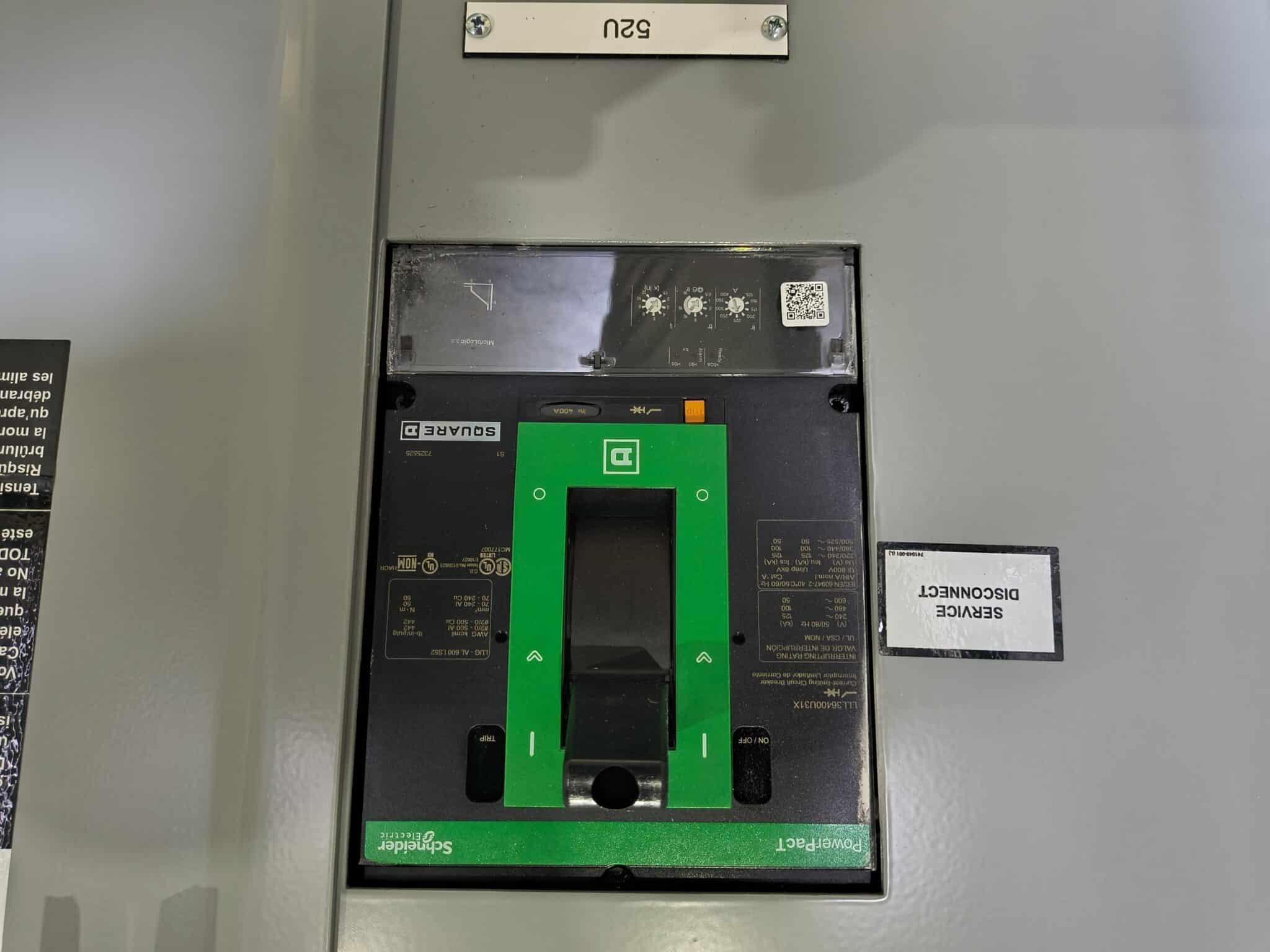

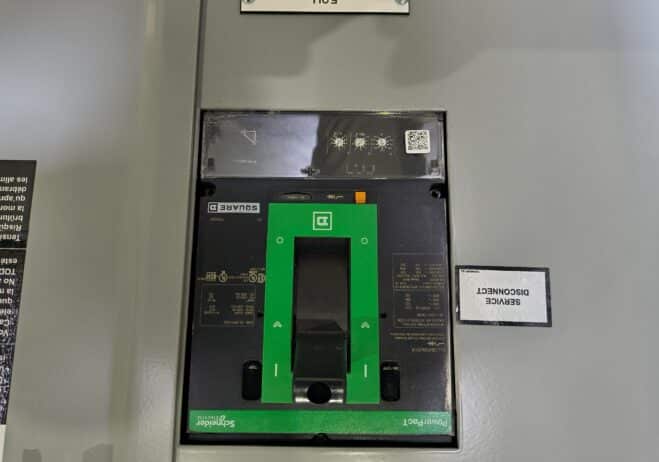

| Service Entrance Rated | Yes |
| Frequency | 60 Hz |

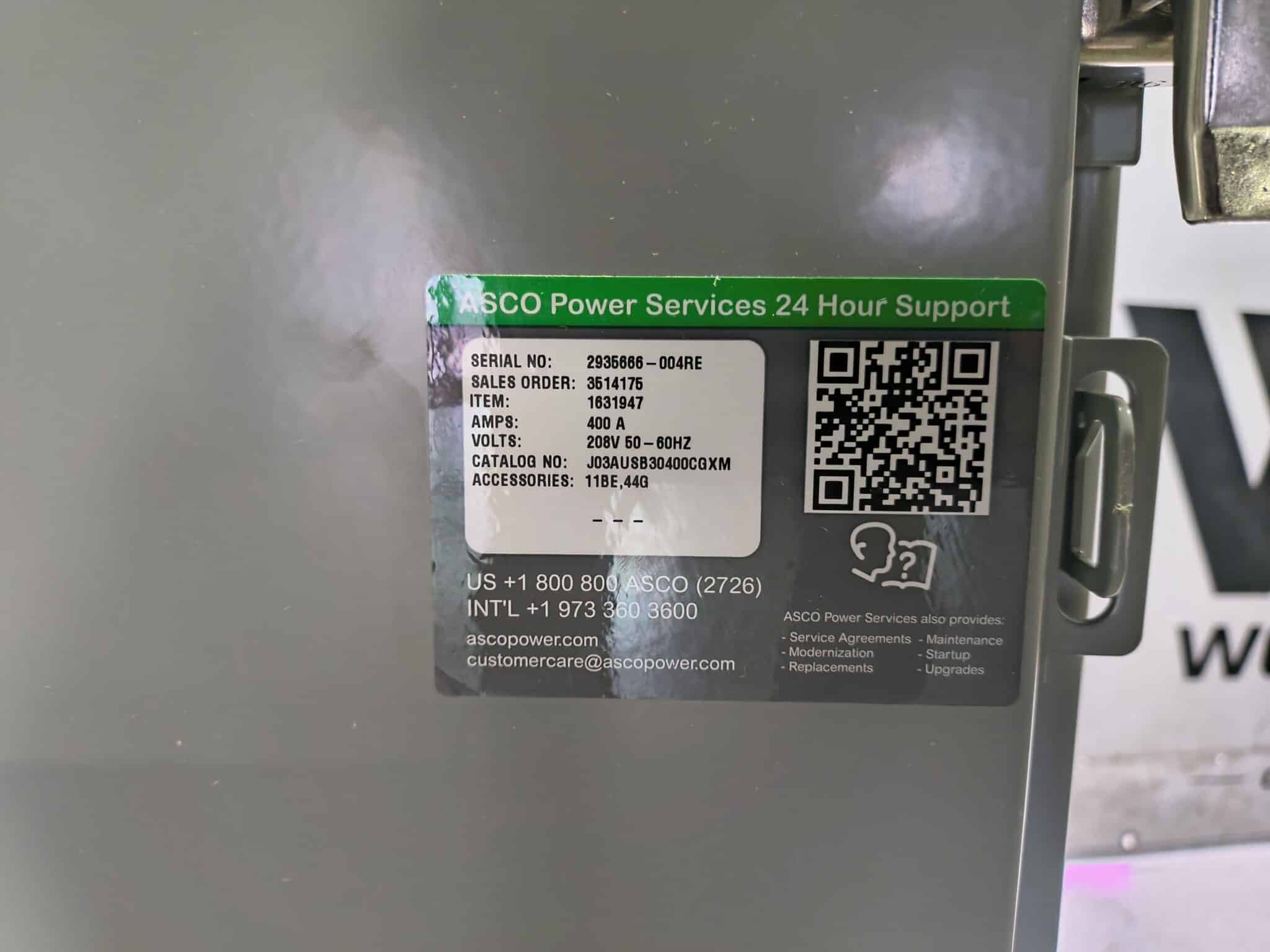

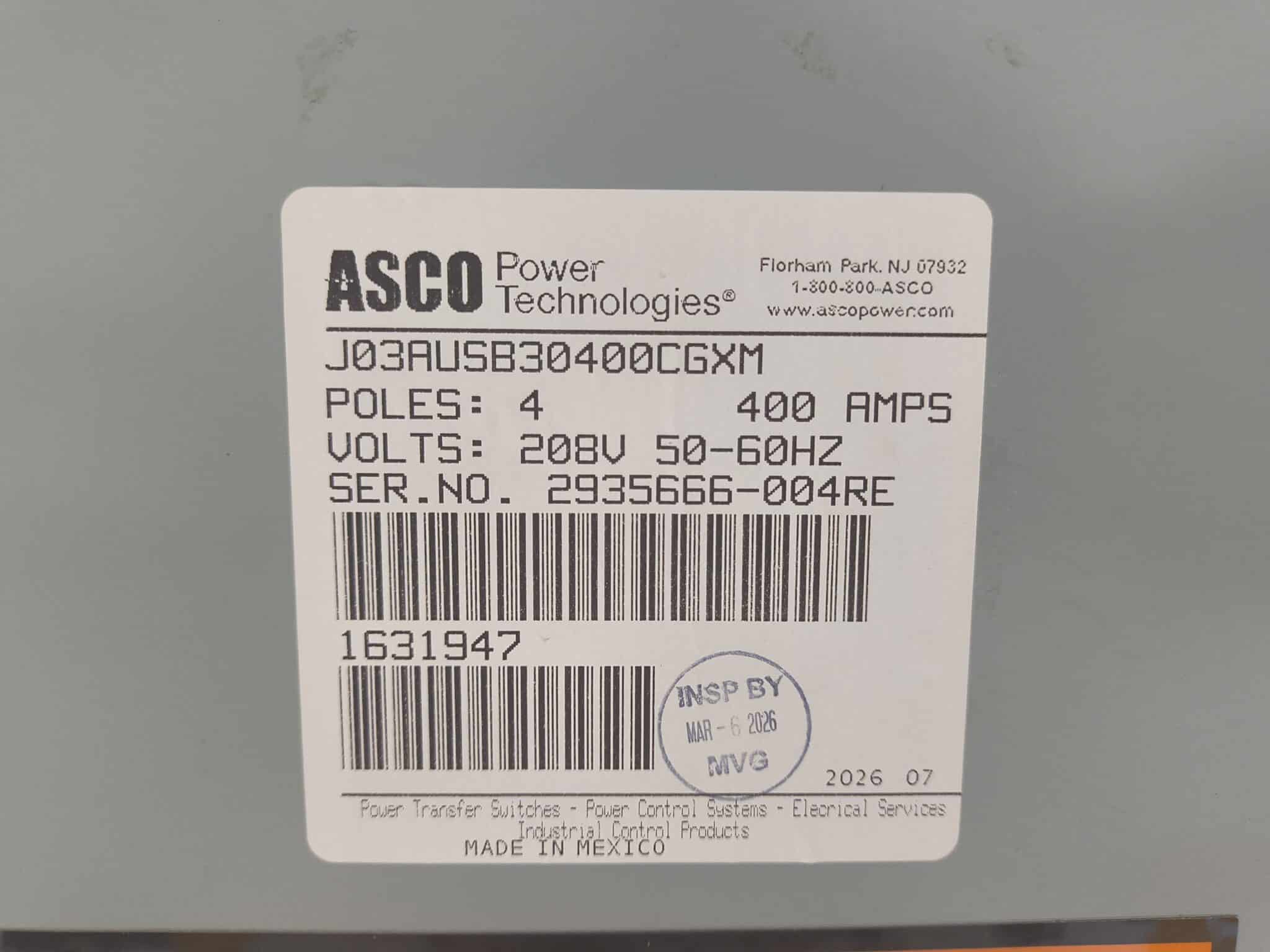

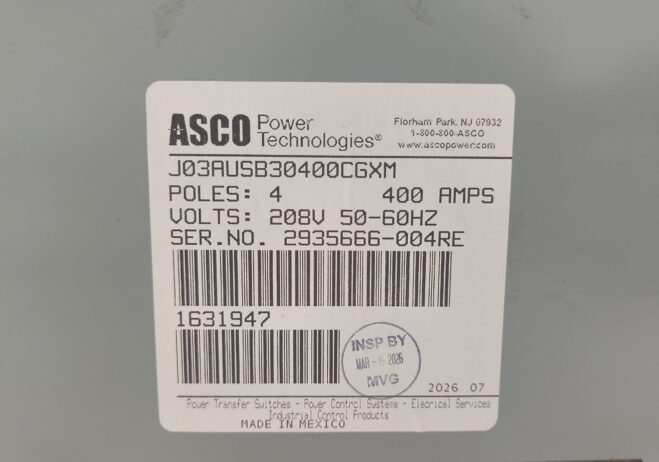

| ATS Model | J03AUSB30400CGXM |
| Overall Dimensions | 42" x 18" x 48" | 502 lbs |
| Condition | New |
| Status | Coming In |

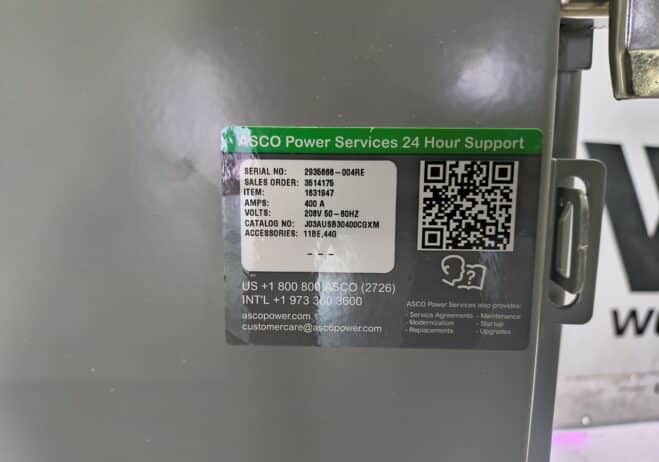

| Accessories | 11BE, 44G |
|
Additional Features

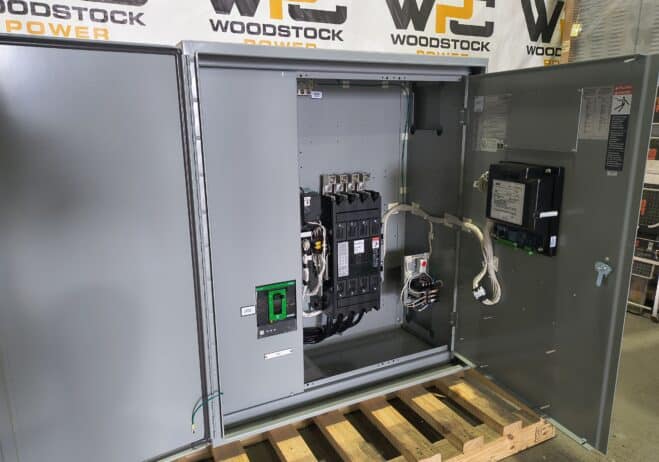

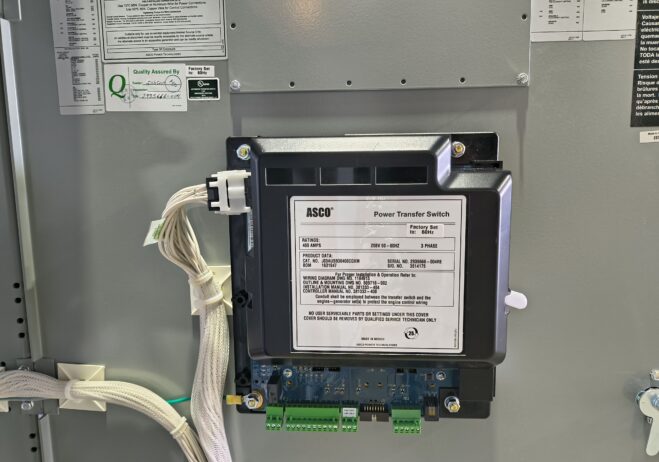

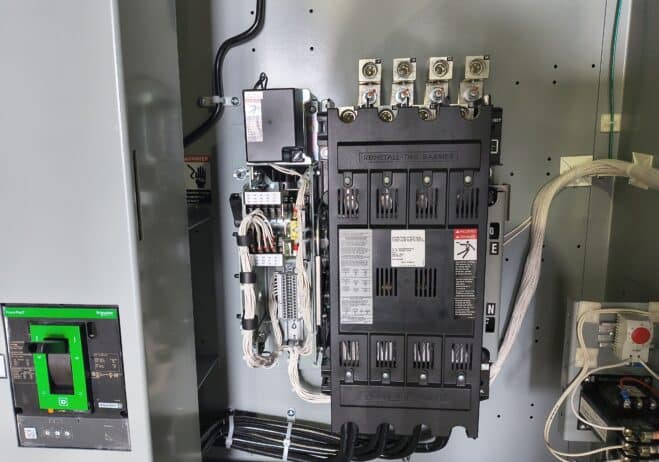

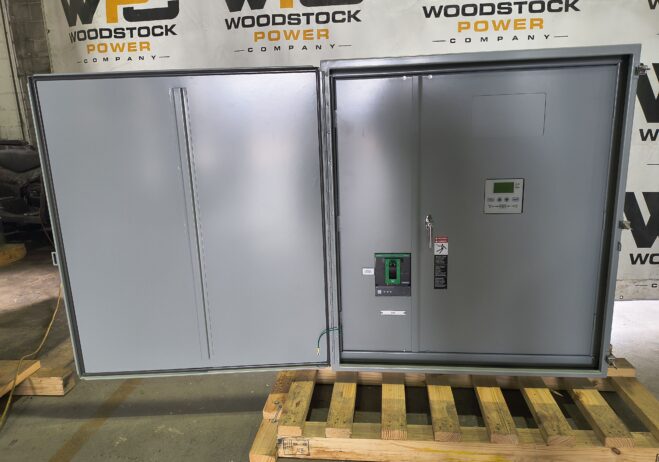

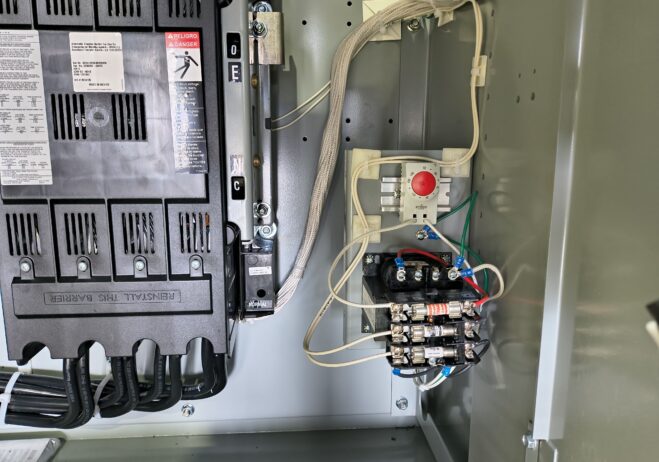

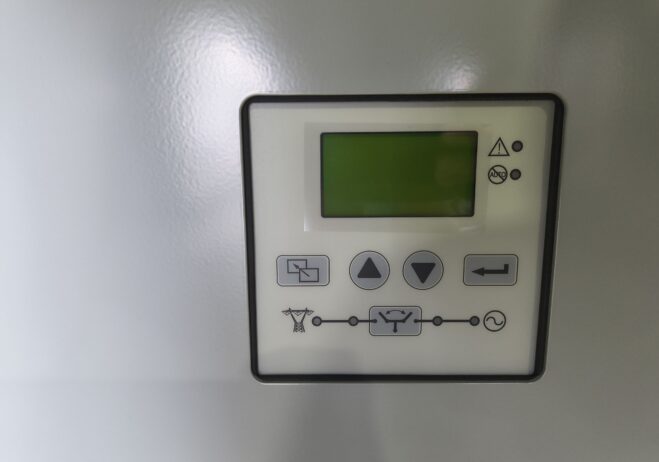

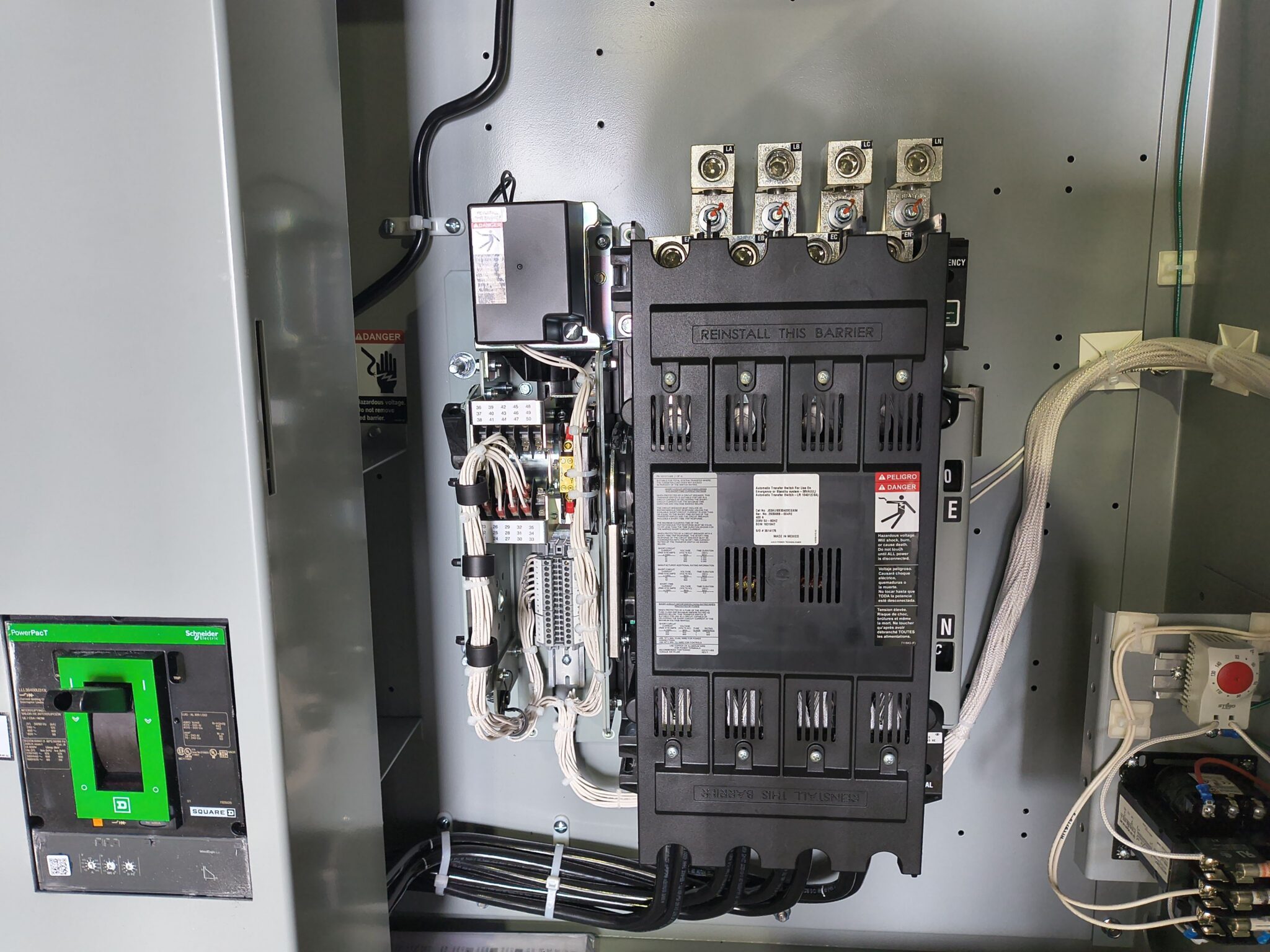

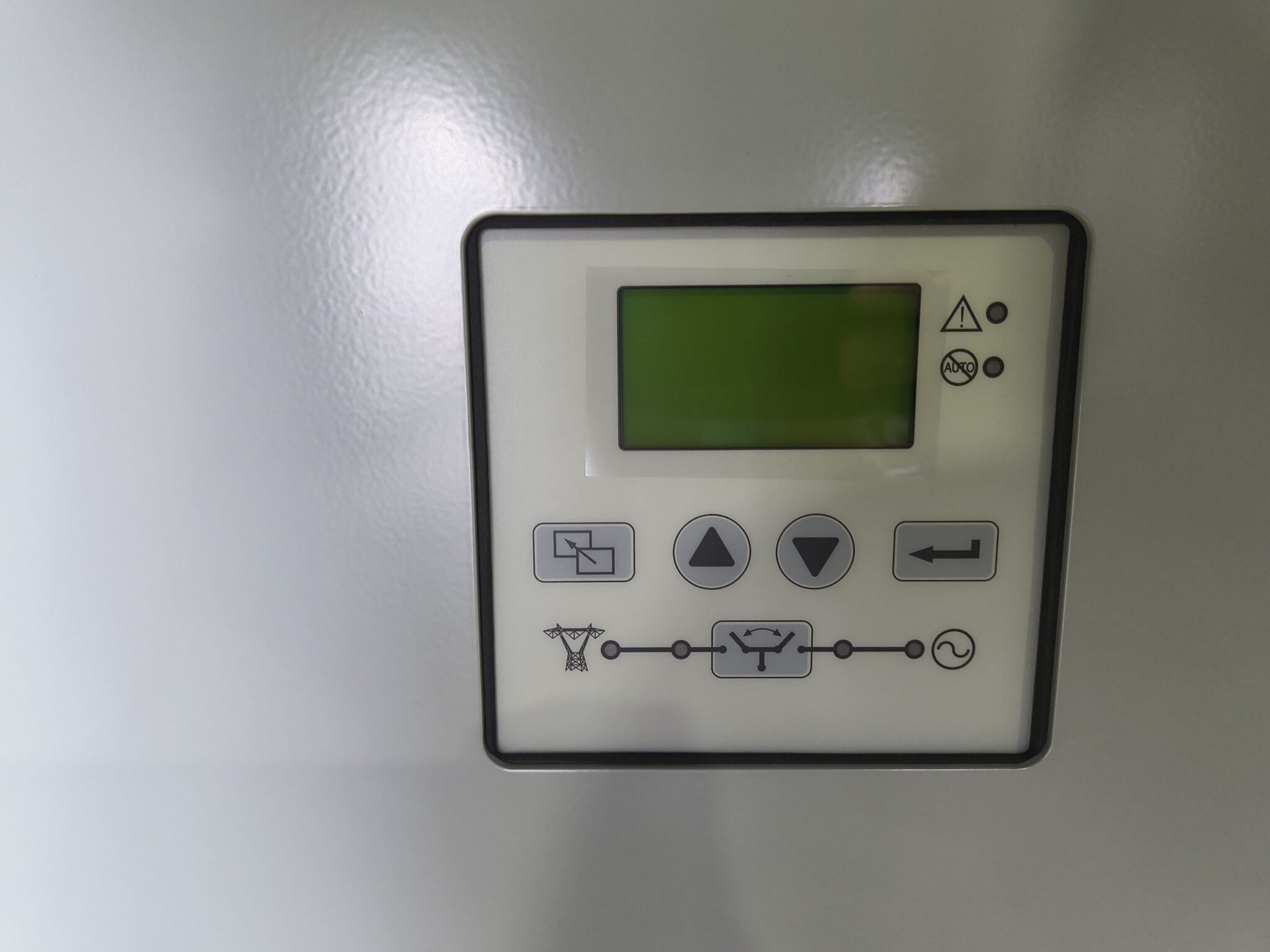

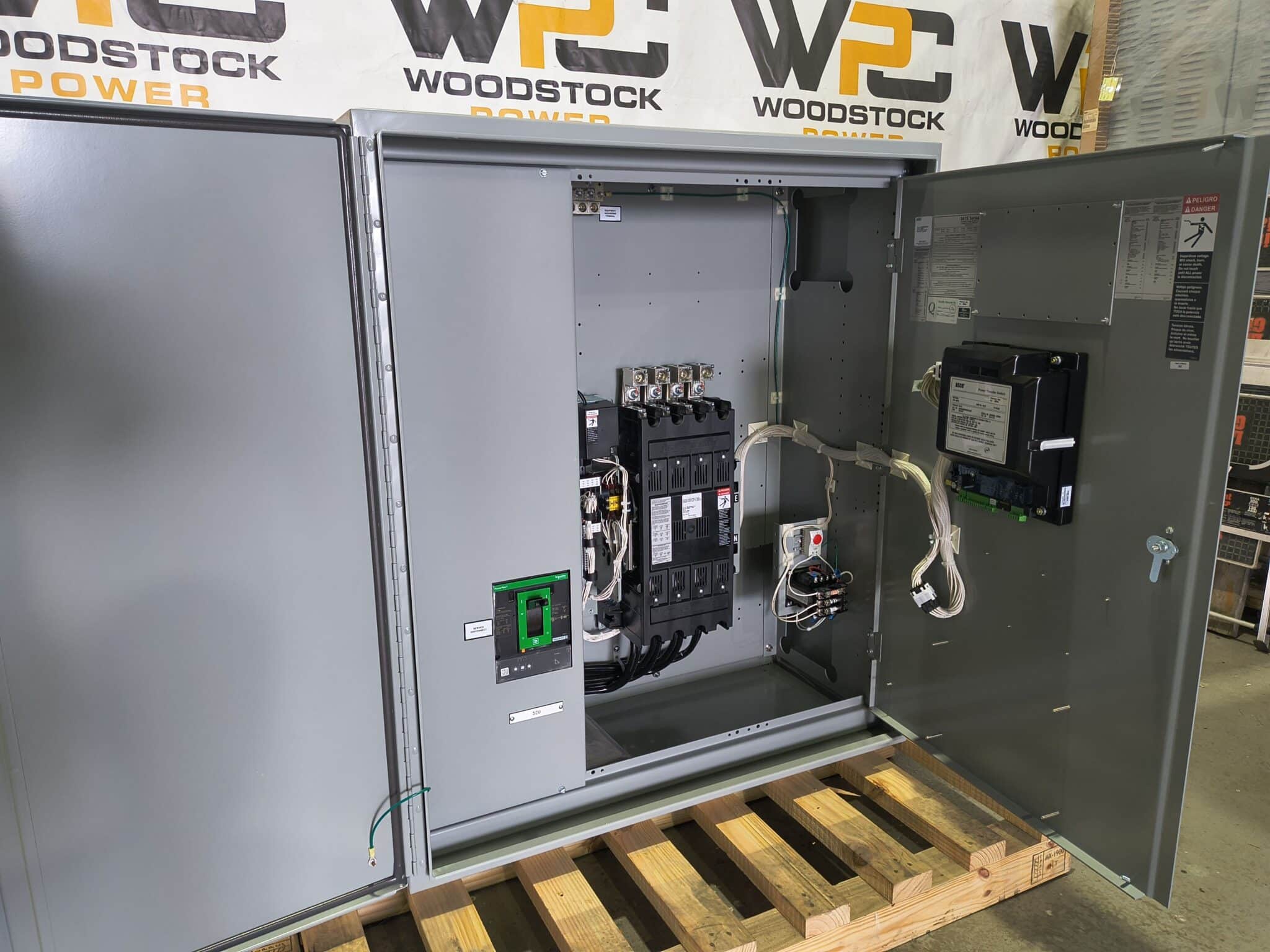

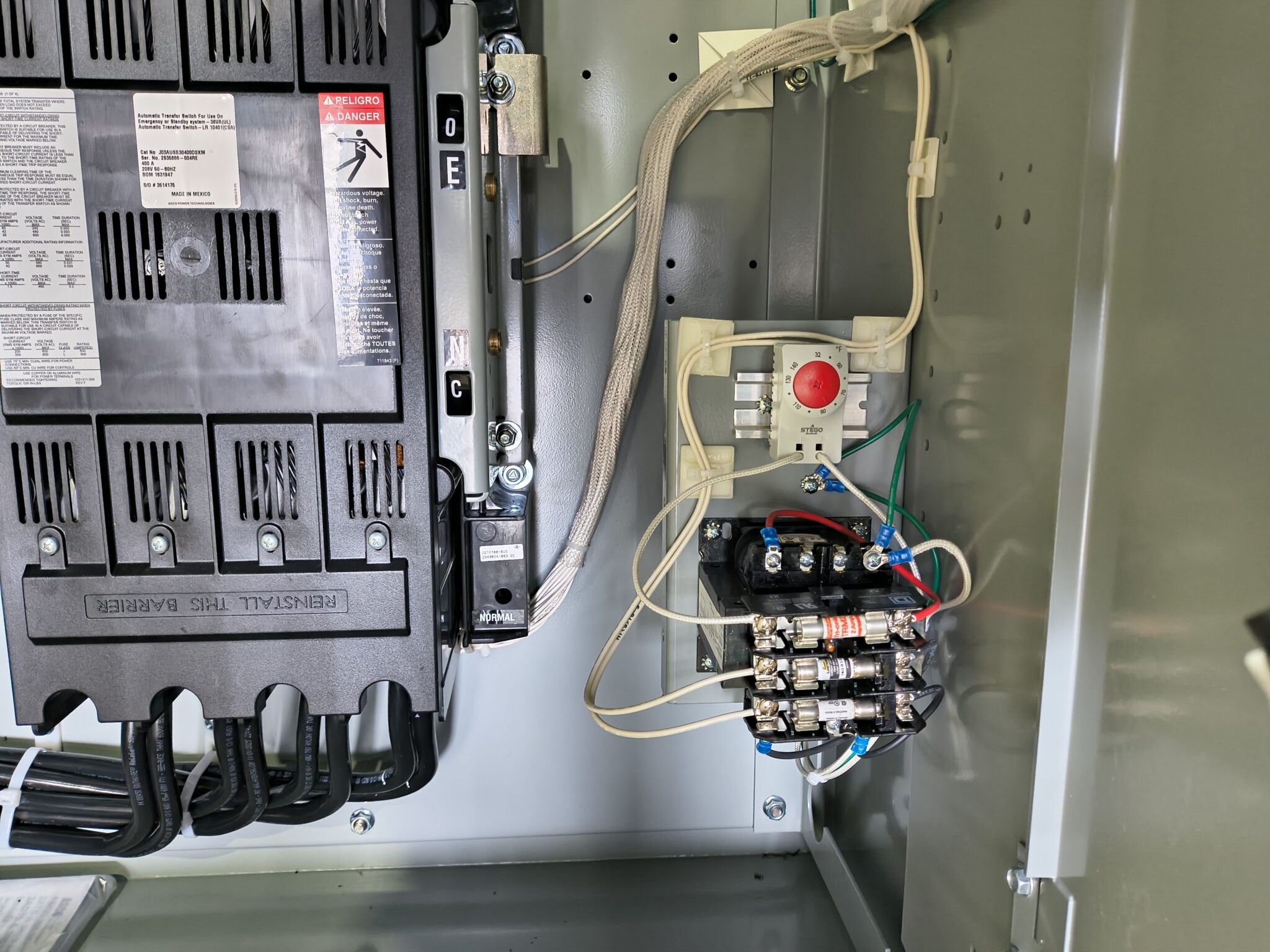

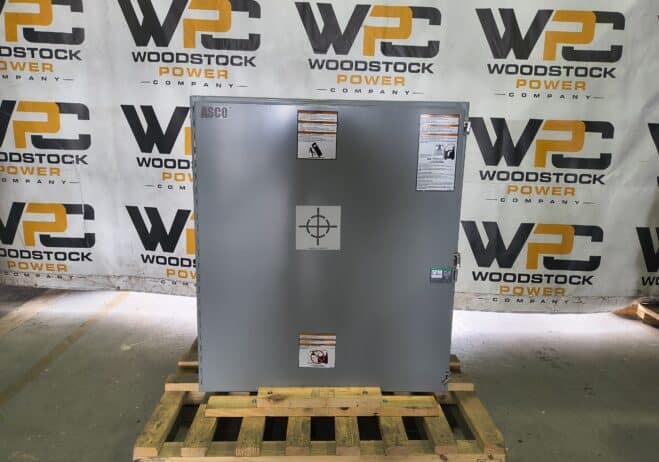

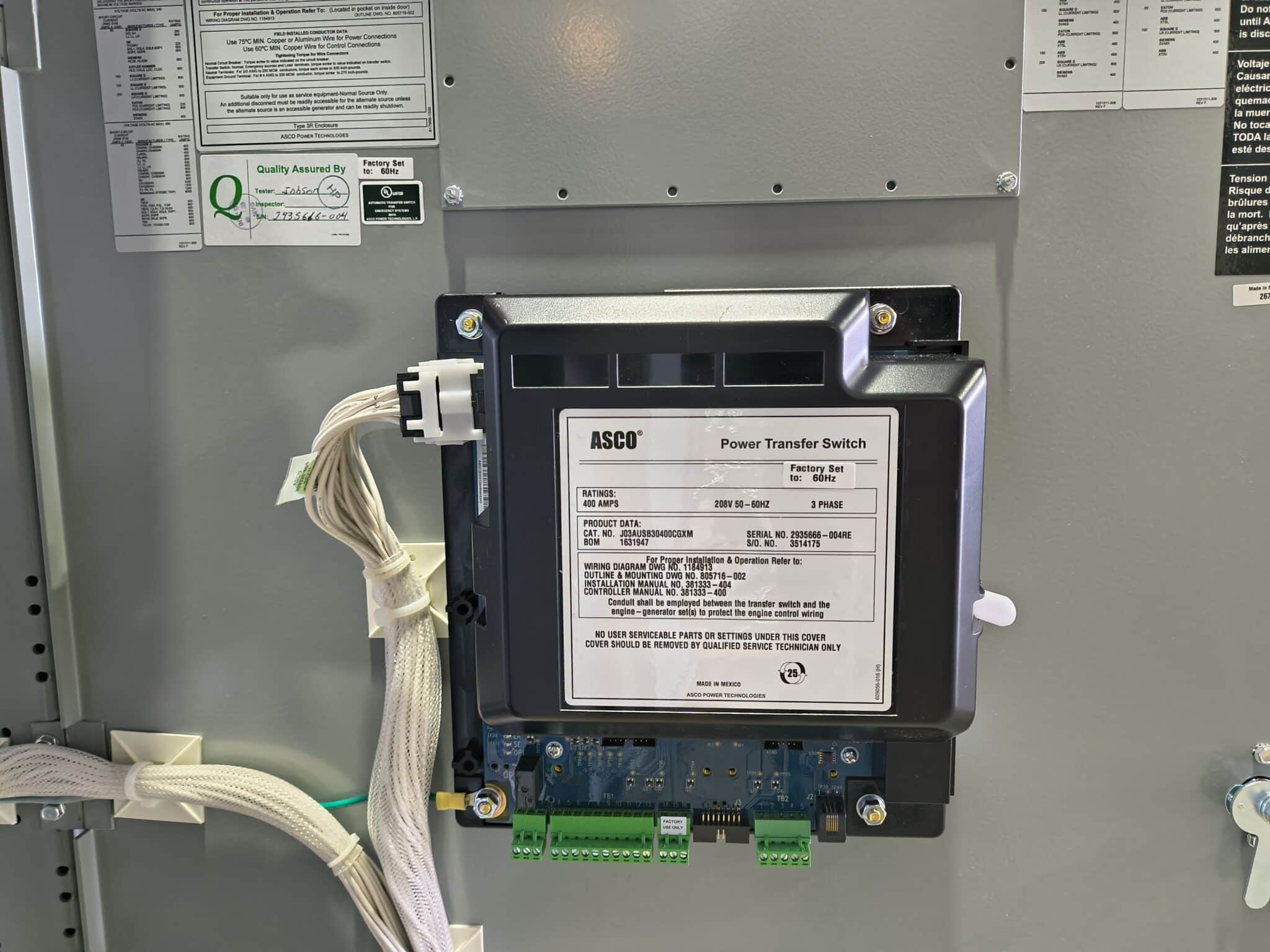

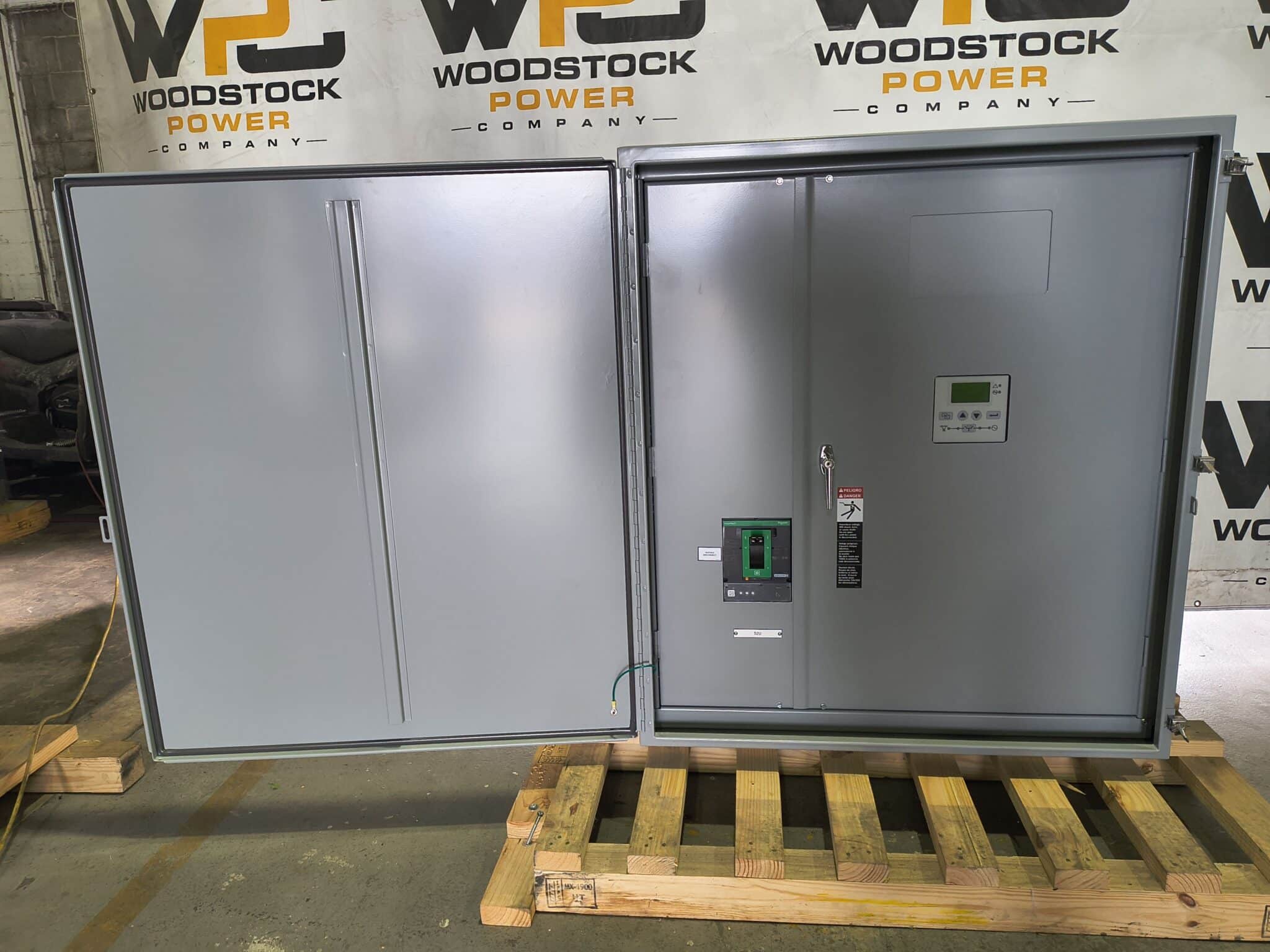

New 400 Amp ASCO Series 300 J03AUSB30400CGXM Service Entrance Rated Automatic Transfer Switch 400 amp automatic transfer switch Service Entrance Rated NEMA 3R 208V 3-Phase 4-Pole 4-Wire Switched [B] neutral configuration Optional accessories: 11BE: Adds the following feature to the Group C controller: (1) Serial RS-485 Modbus Communications (2) Multi-Schedule Engine Exerciser (3) a 300 Entry Event Log and (4) a common alarm output function. When applied on 3-Phase systems it also enables: (1) 3-Phase Emergency Source VLL sensing (2) Phase Rotation Monitoring (3) Emergency Source VLL Unbalance Monitoring. 44G: Strip heater with thermostat, wired to load terminals 208-600 volts. |
|
