| Specifications | |
|---|---|
| Manufacturer | ASCO |

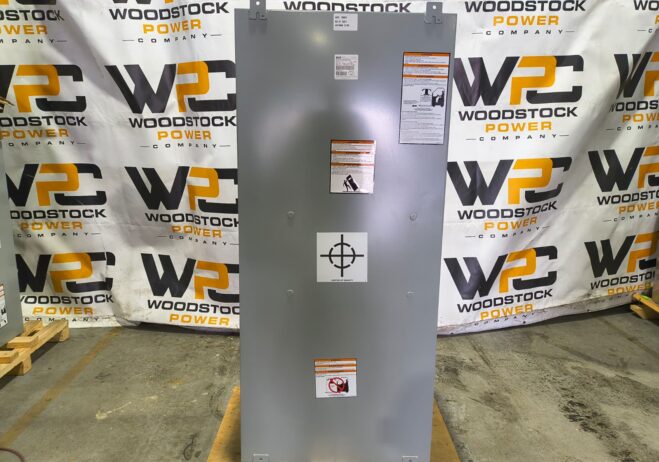

| Type | NEMA 3R |
| Voltage | 240V |
| Amps | 400 |
| Transition Type | Open |
| Frequency | 60 Hz |

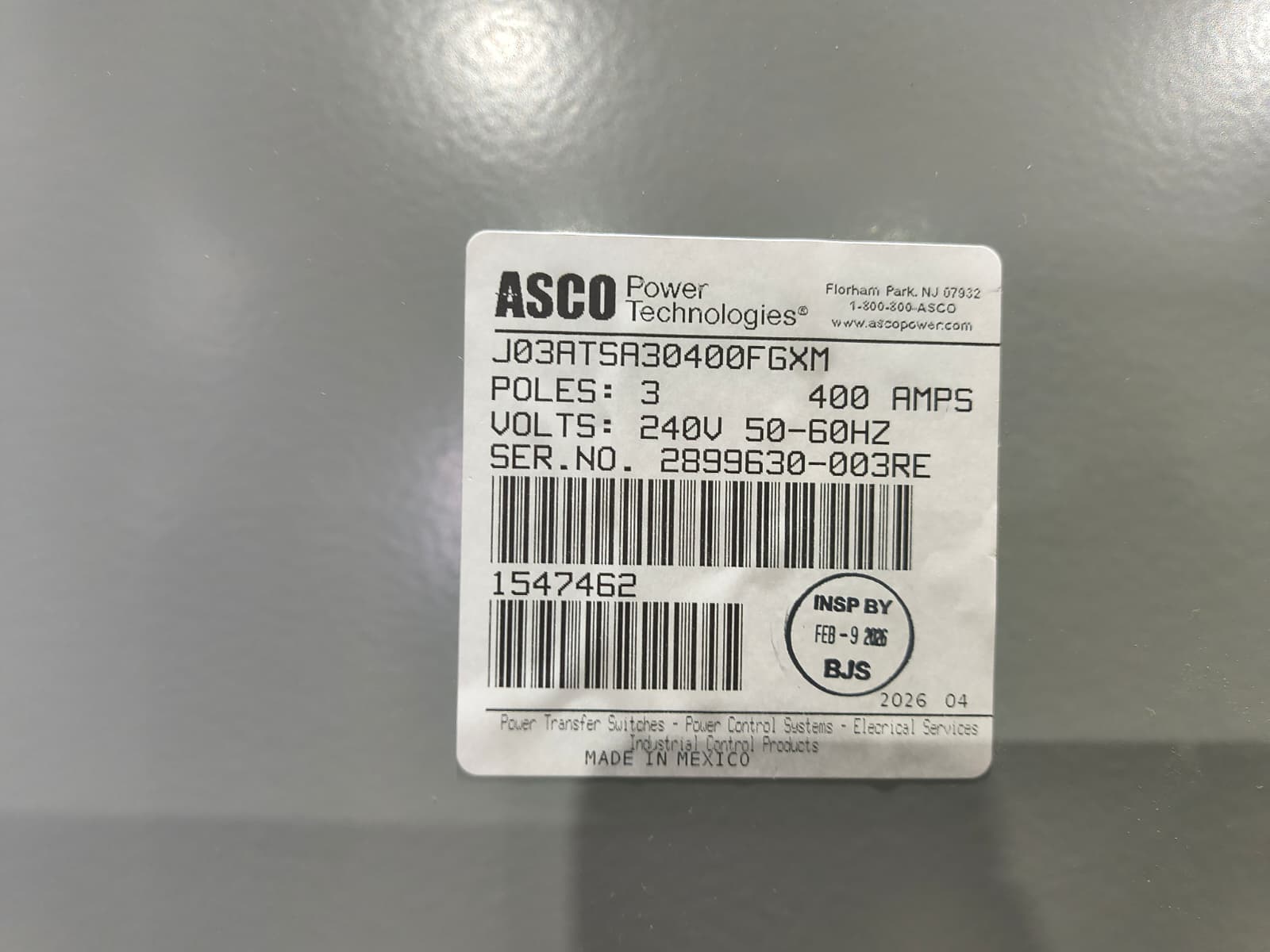

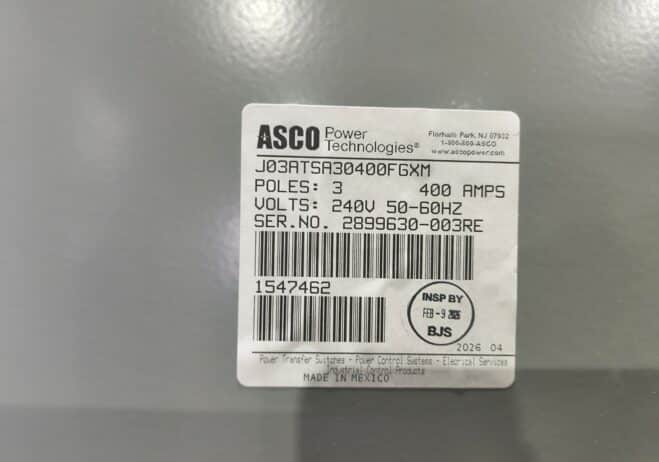

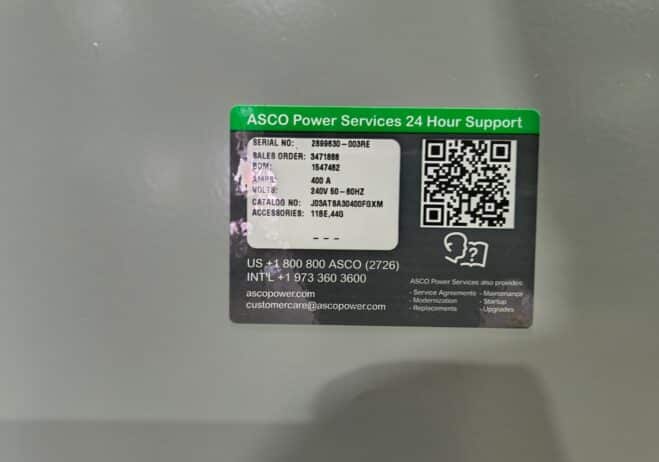

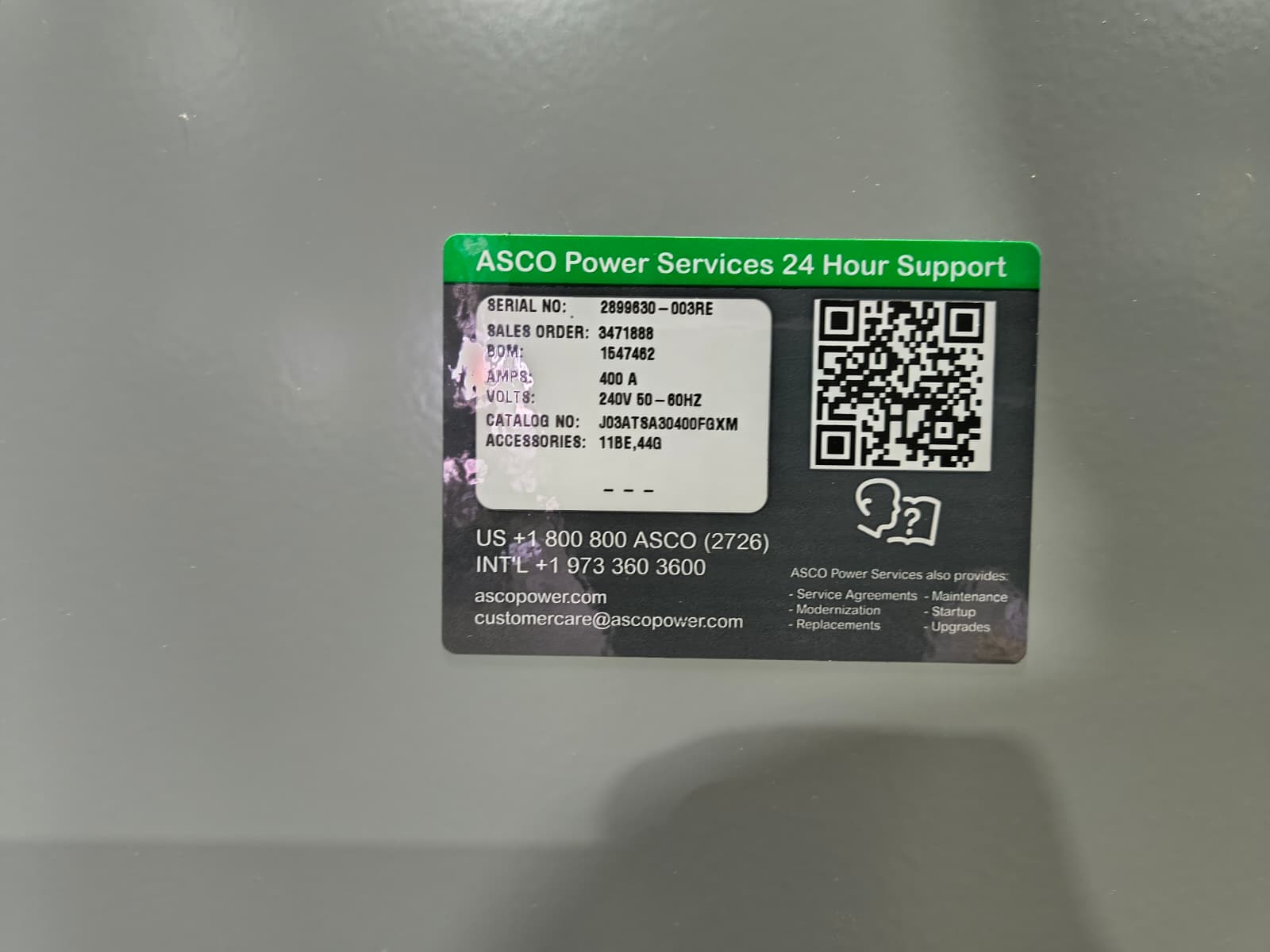

| ATS Model | J03ATSA30400FGXM |
| Overall Dimensions | 21.34" x 28" x 68.66" | 496 lbs |
| Condition | New |
| Status | Available |
| Accessories | 6DL, 11BE, 31Z, 44G |
|
Additional Features

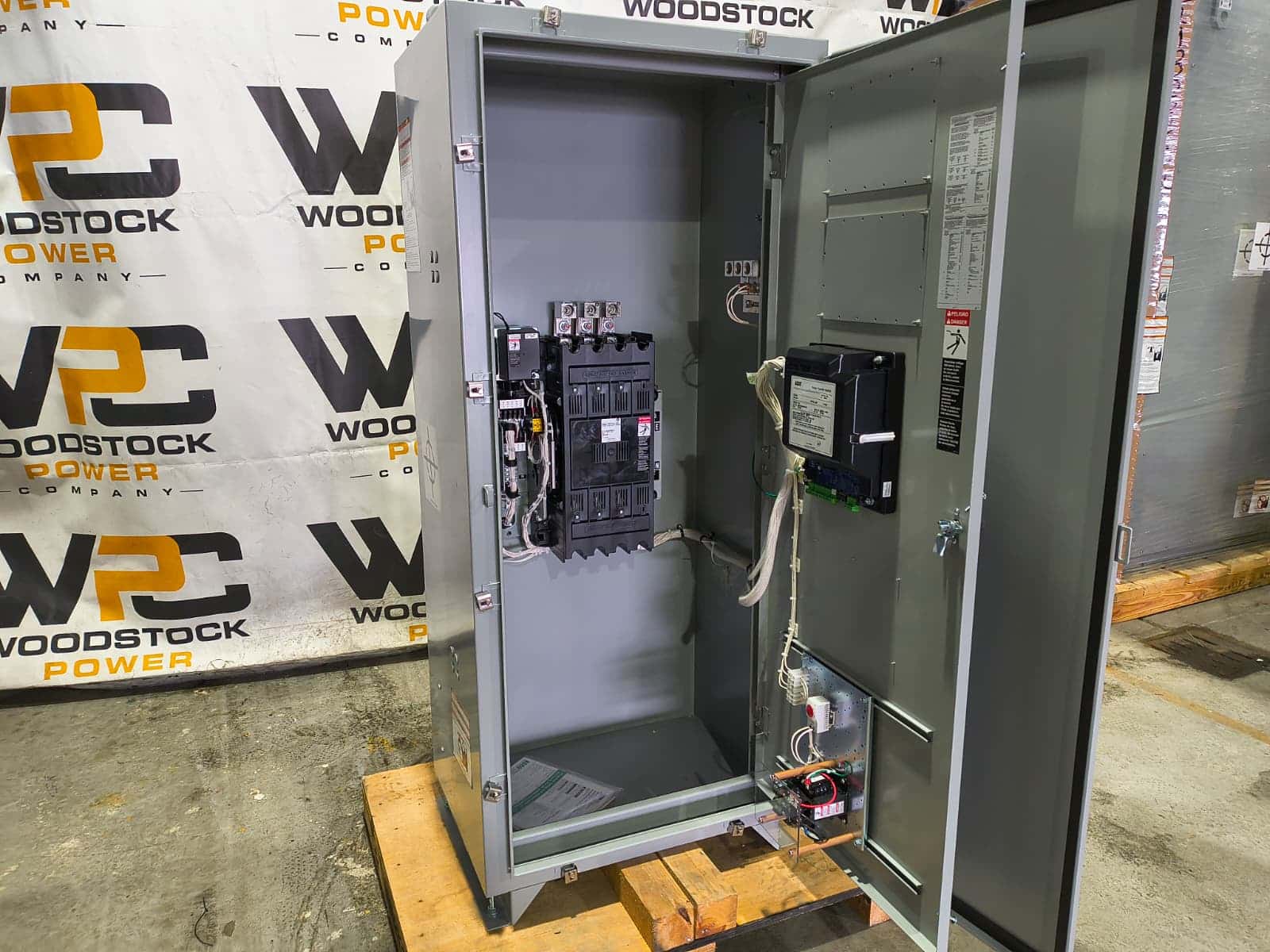

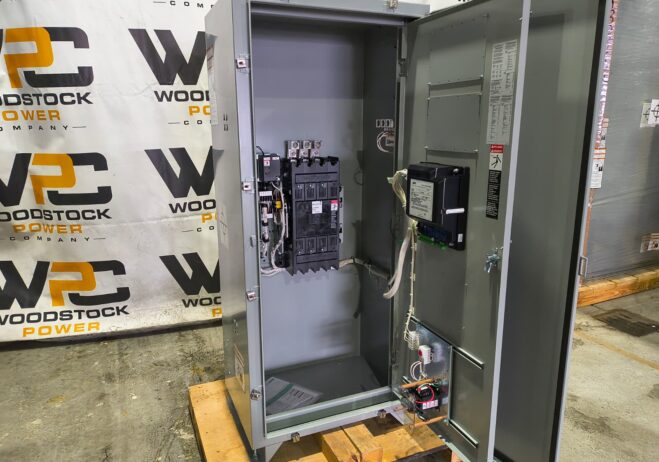

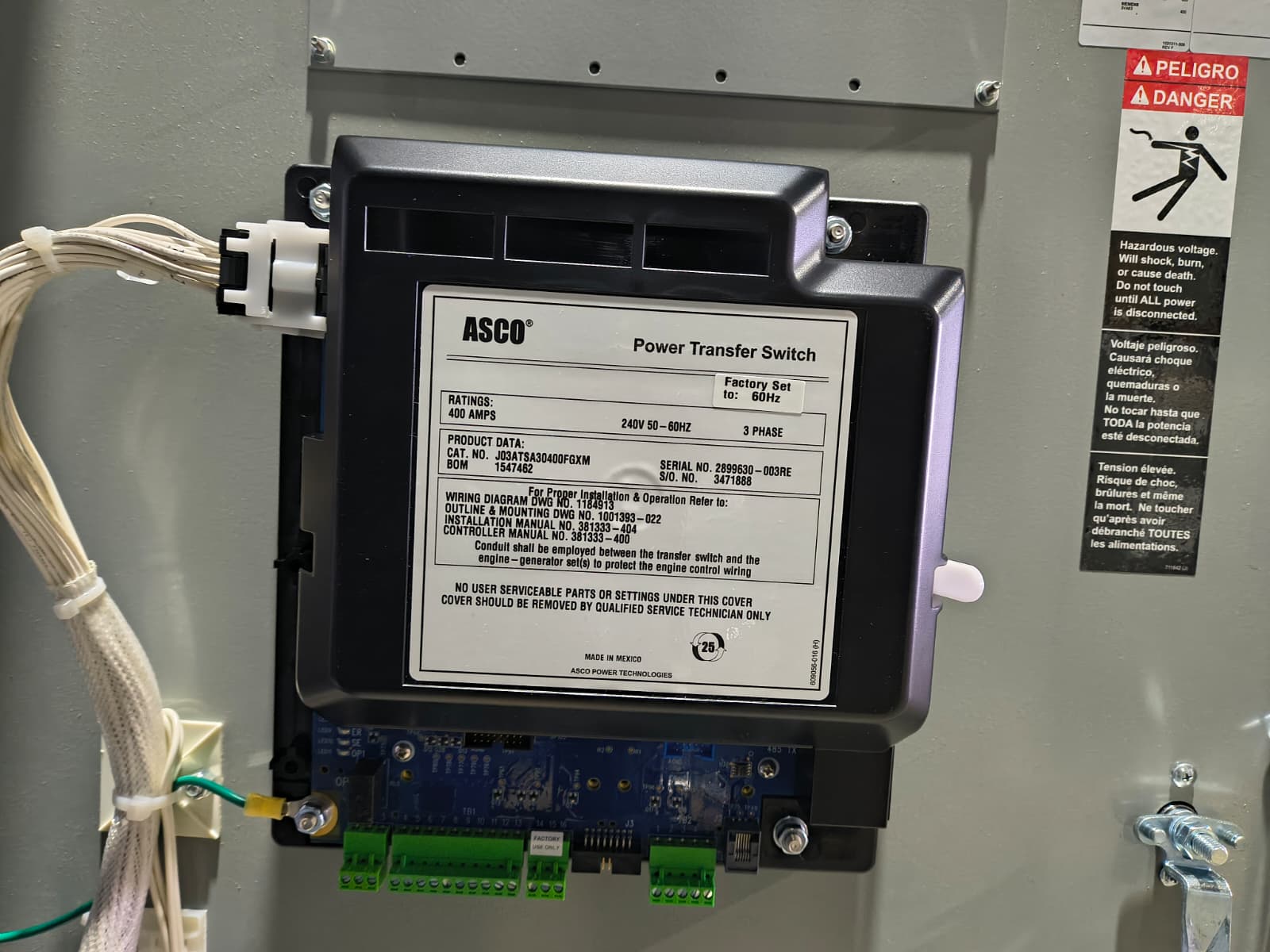

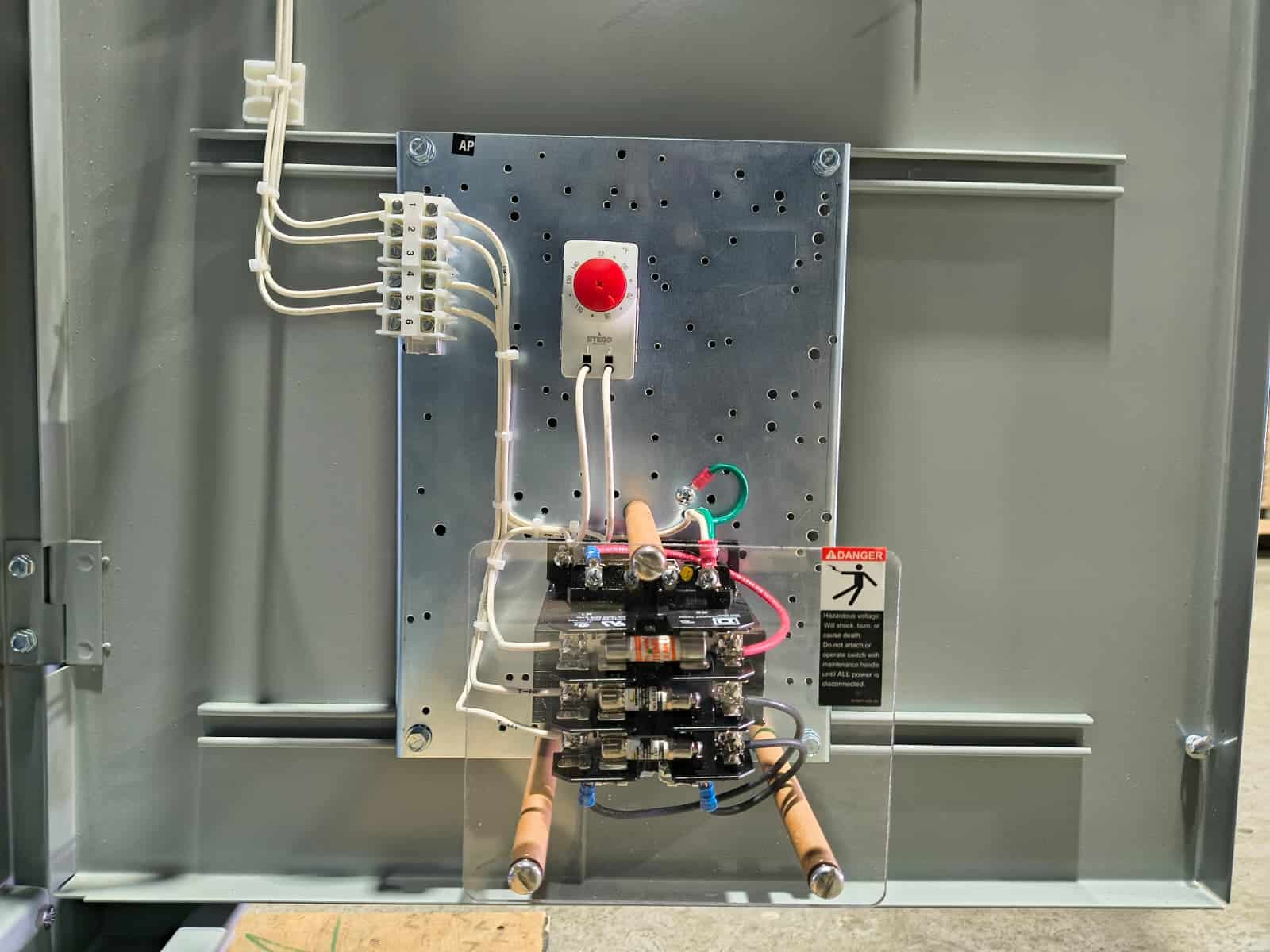

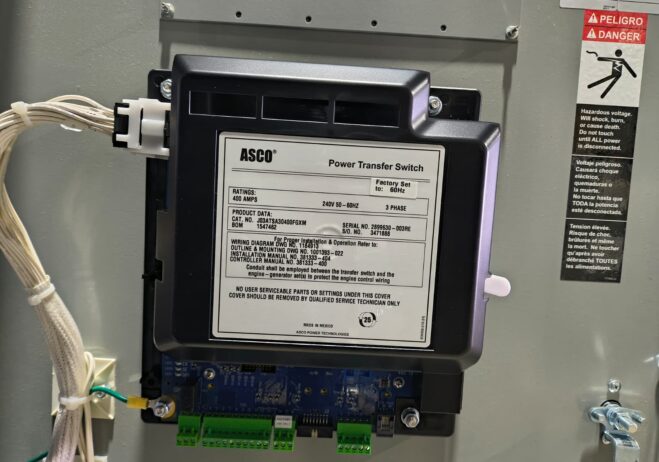

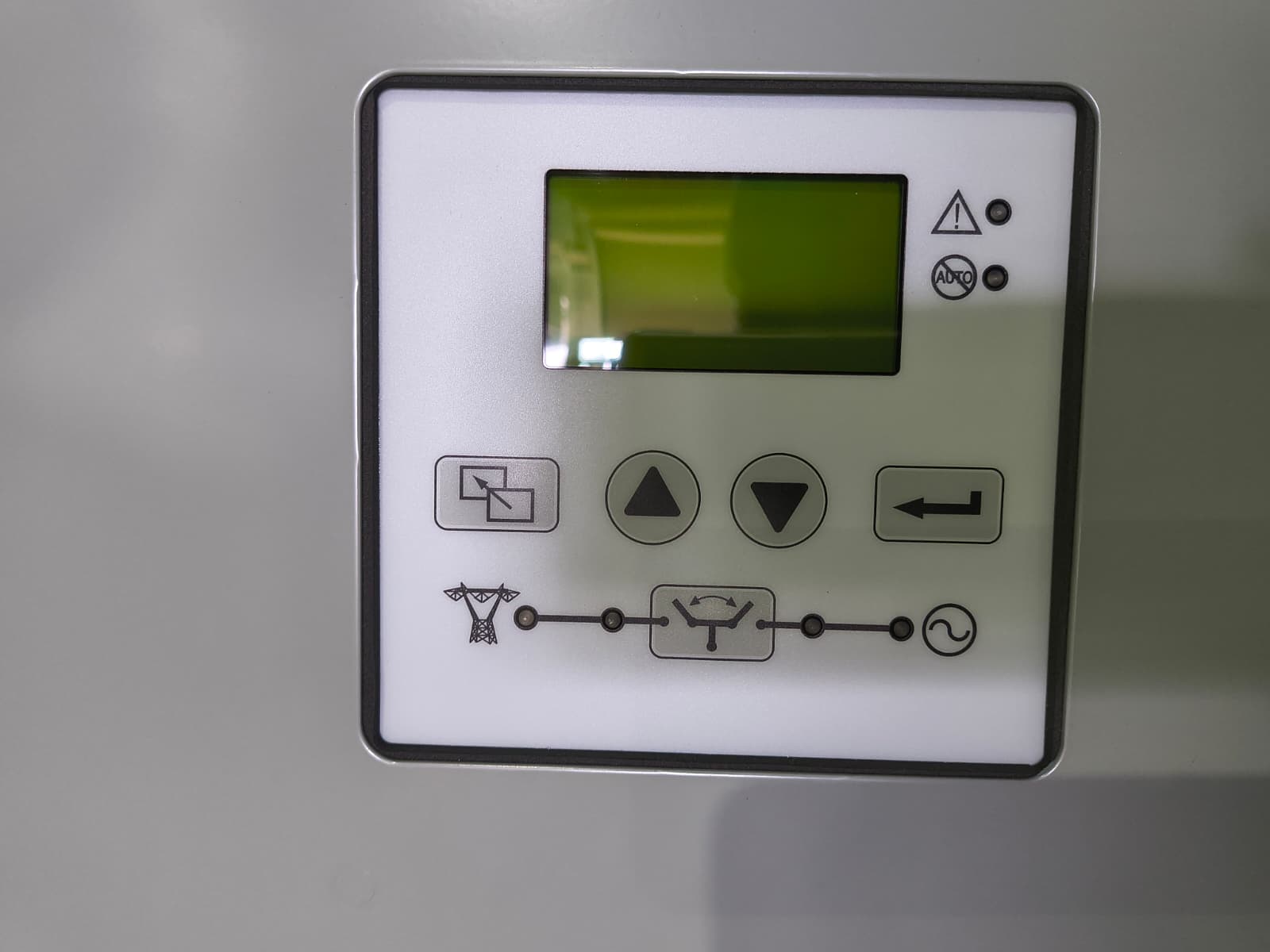

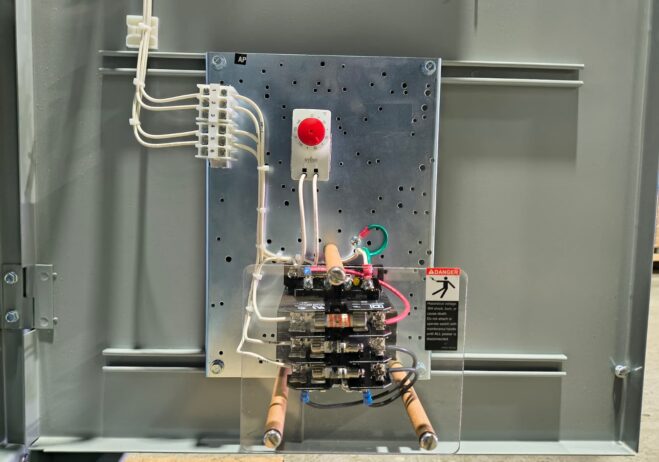

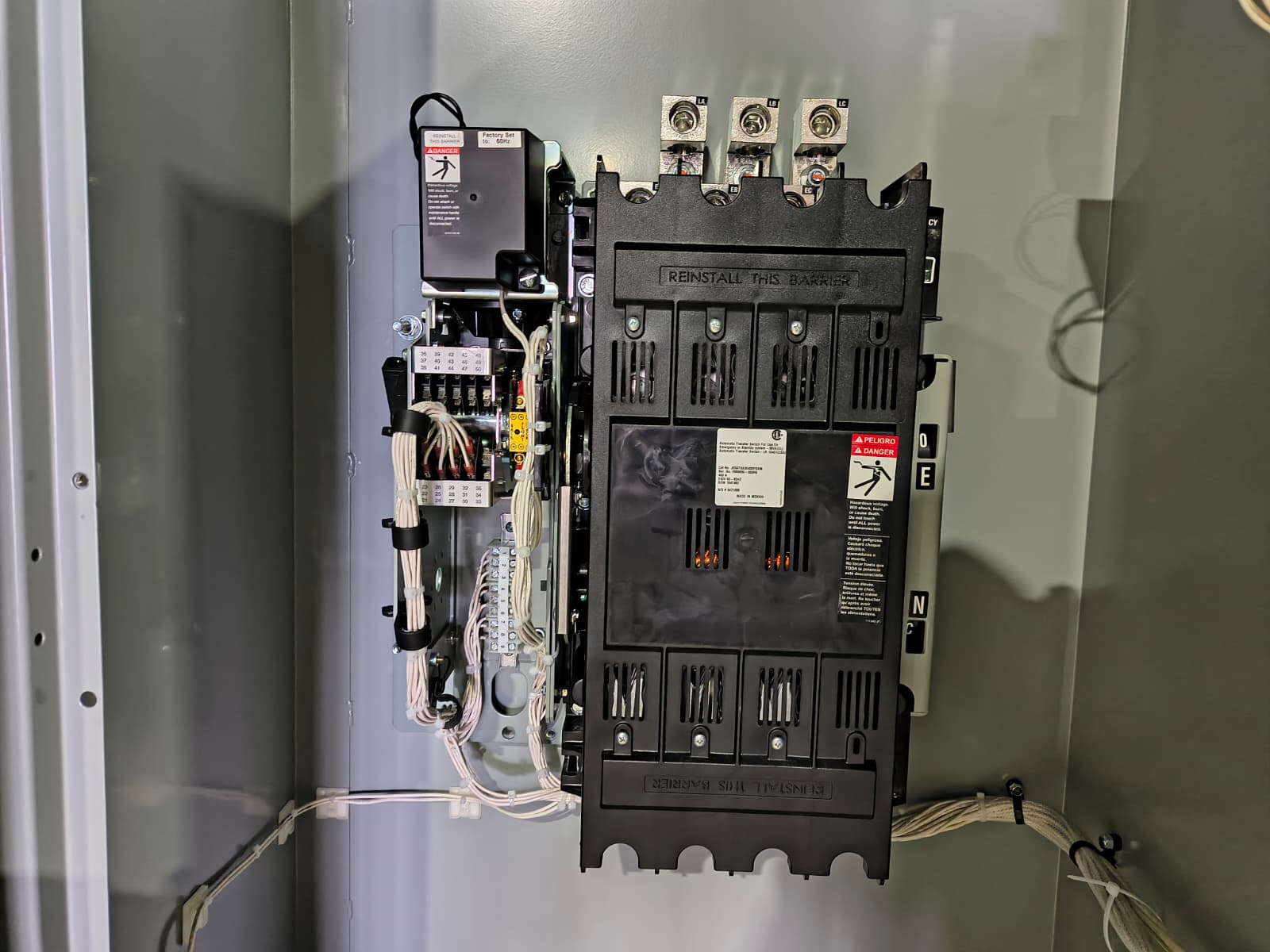

New 400 Amp ASCO J03ATSA30400FGXM Automatic Transfer Switch 400 amp automatic transfer switch 240V NEMA 3R 3-Pole 3-Phase 4-Wire 60 Hz Open transition Solid [A] neutral configuration 6DL – Retransfer to normal mode selector. Maintained two position selector switch permits selection of manual or automatic retransfer. Manual retransfer requires a second selector switch 6B or 6C be momentarily closed to initiate a retransfer to the normal source. While in manual retransfer mode if an emergency source failure should occur and the normal source is still available manual retransfer will be automatically bypassed. A pilot light indicates manual retransfer mode. 11BE – Adds the following features to the Group G controller: (1) Serial RS-485 Modbus Communications (2) Multi-Schedule Engine Exerciser (3) a 300 Entry Event Log and (4) a common alarm output function. When applied on 3-Phase systems it also enables: (1) 3-Phase Emergency Source VLL sensing (2) Phase Rotation Monitoring (3) Emergency Source VLL Unbalance Monitoring 31Z – Load disconnect contacts, with time delay which operate before/after transfer 44G – Strip heater w/ thermostat, wired to load terminals: 208-600 volts |
|
