| Specifications | |
|---|---|
| Manufacturer | ASCO |
| Type | NEMA 3R |
| Voltage | 480V |
| Amps | 3000 |
| Service Entrance Rated | No |
| Transition Type | Open |
| Frequency | 60 Hz |

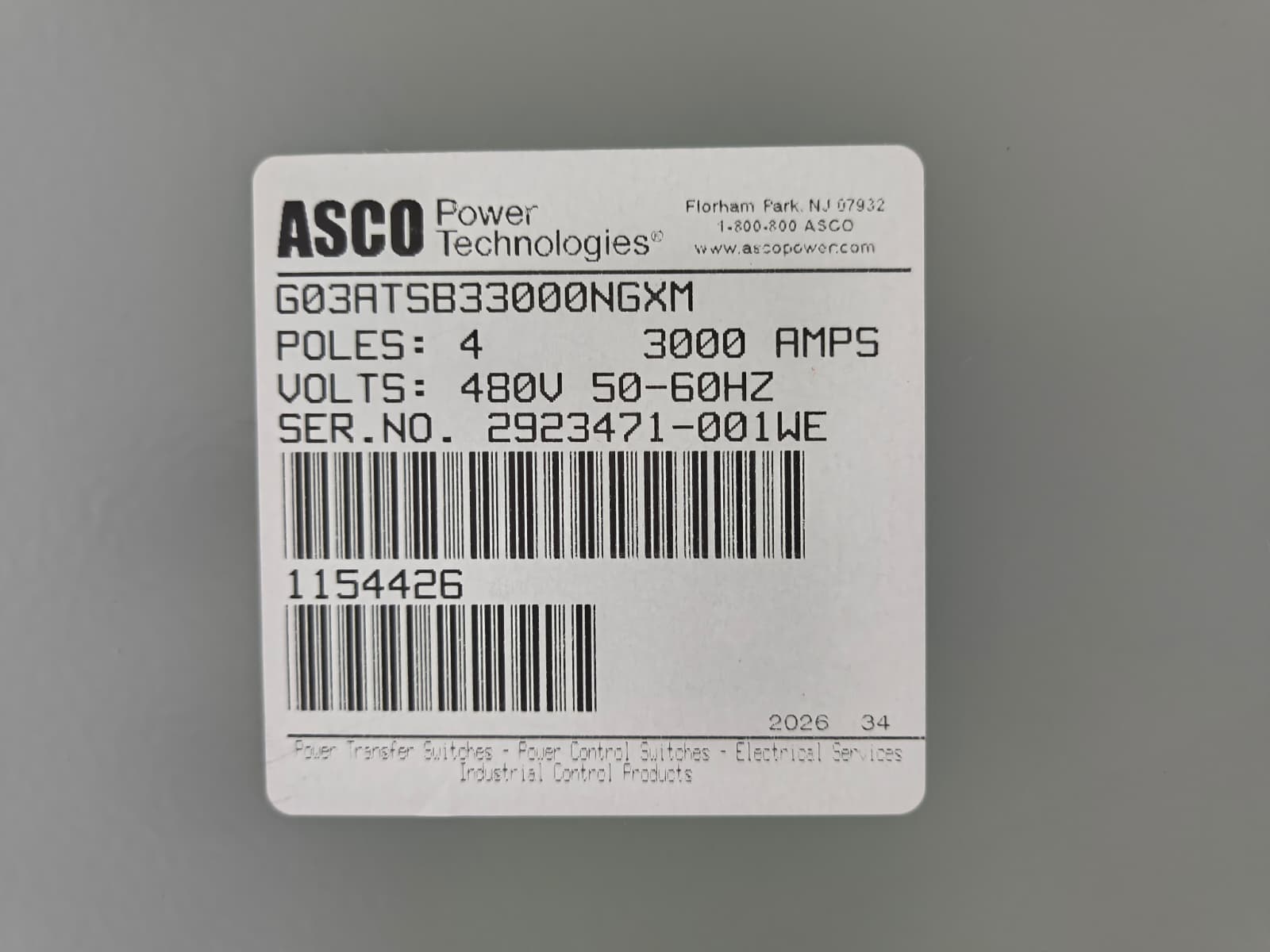

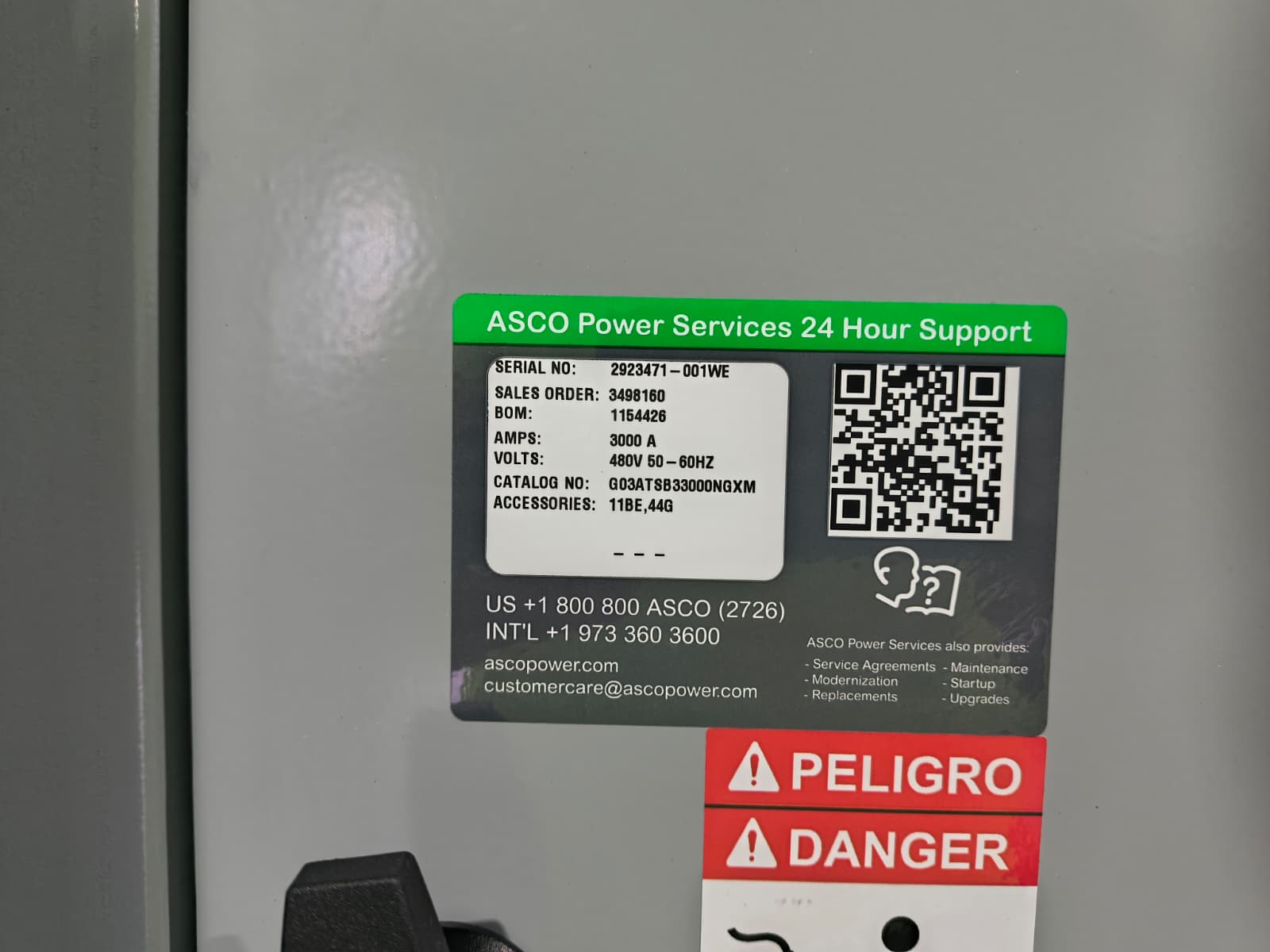

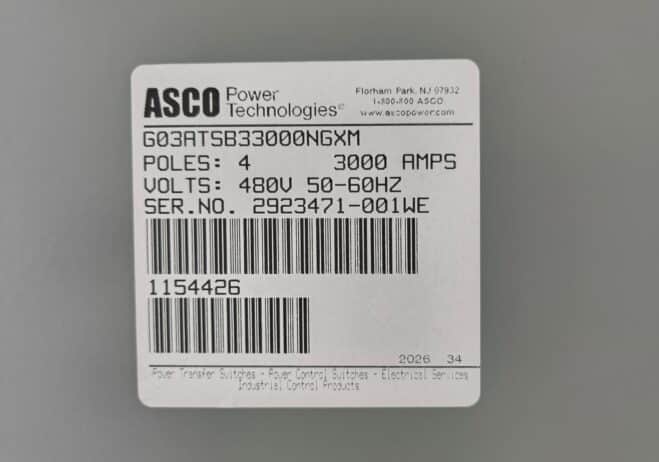

| ATS Model | G03ATSB33000NGXM |
| Overall Dimensions | 74" x 41" x 95.36" | 2,230 lbs |
| Condition | New |
| Status | Coming In |
| Accessories | 11BE, 44G |
|
Additional Features

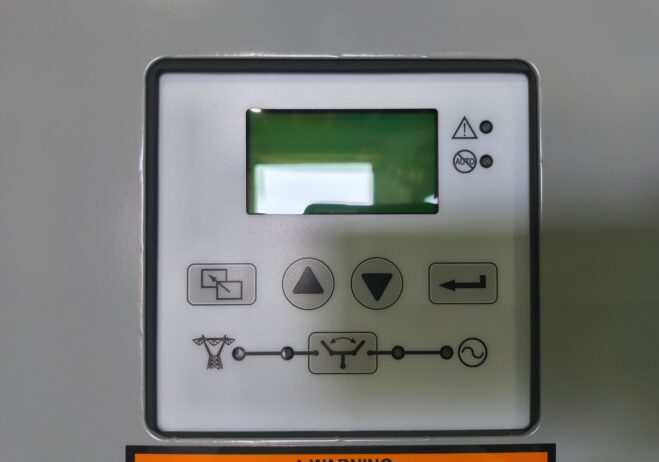

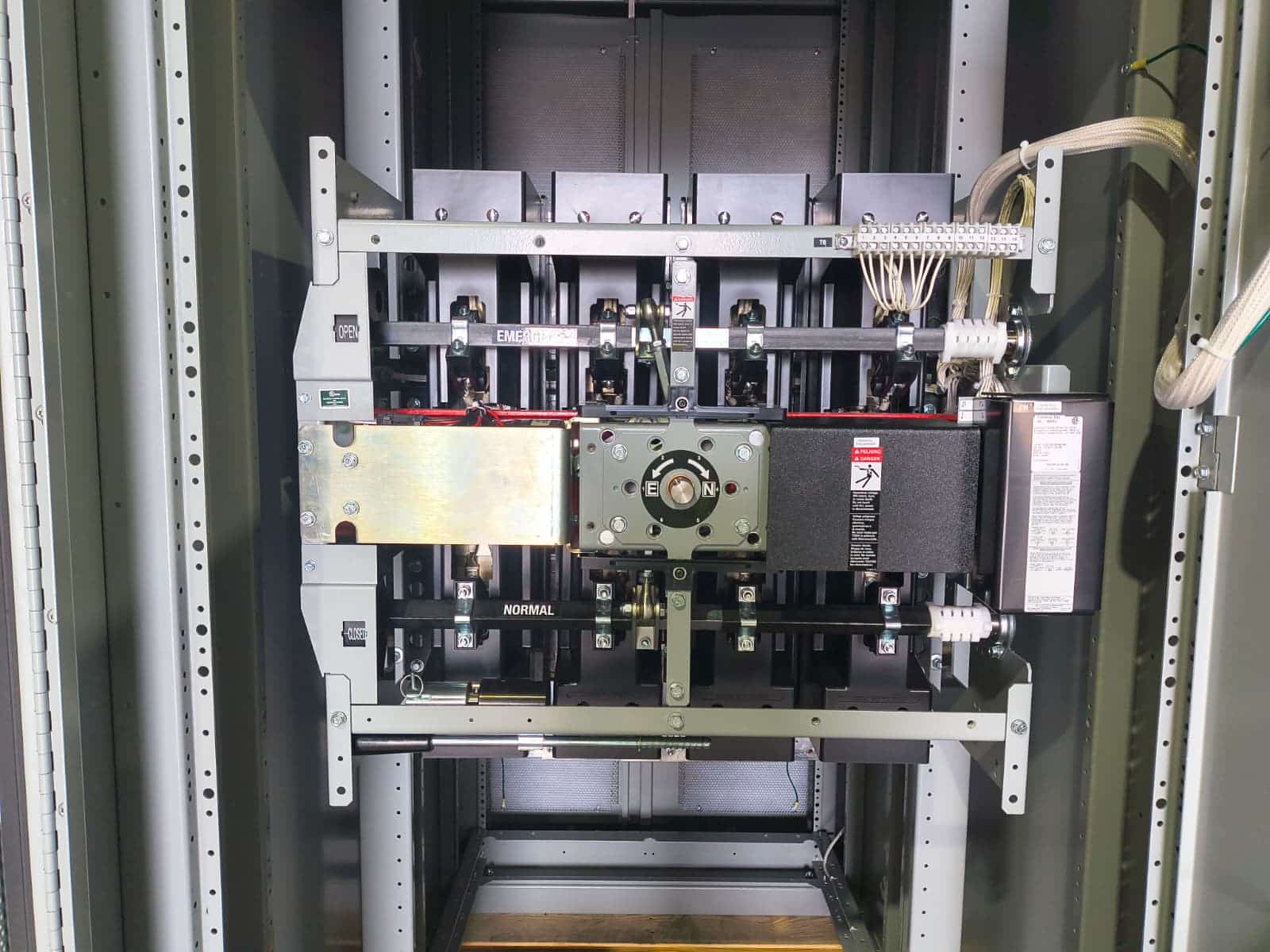

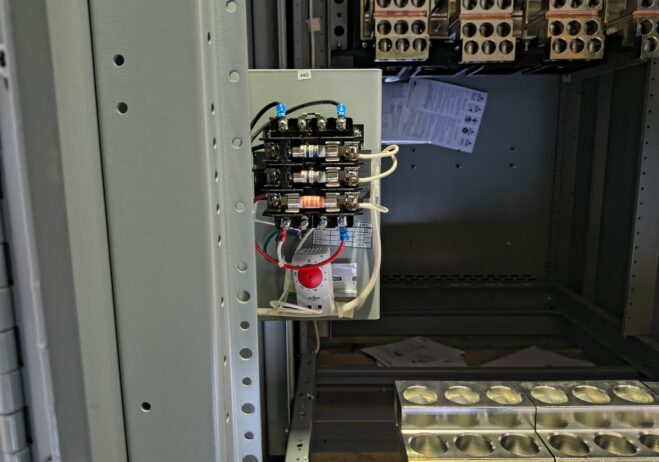

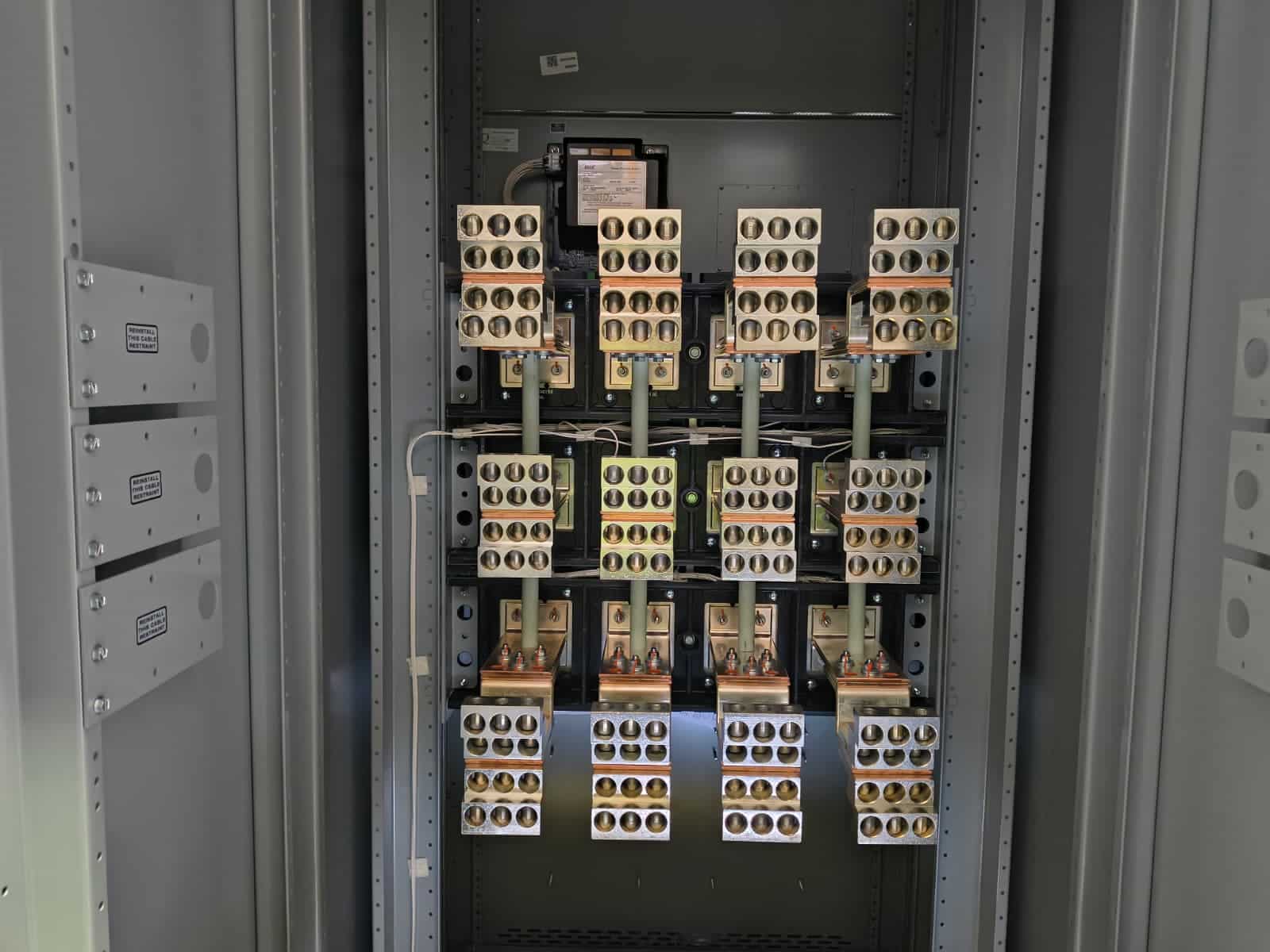

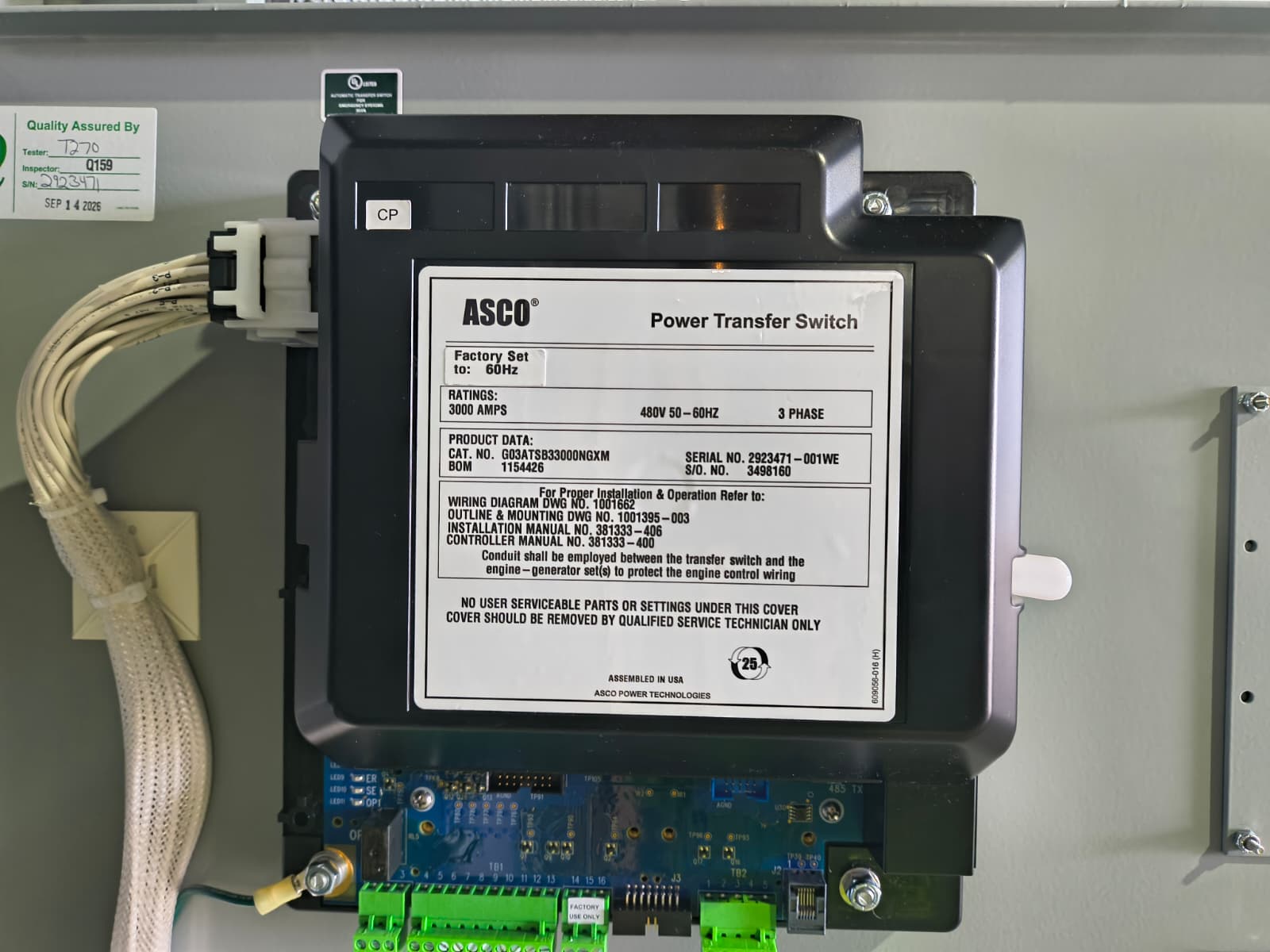

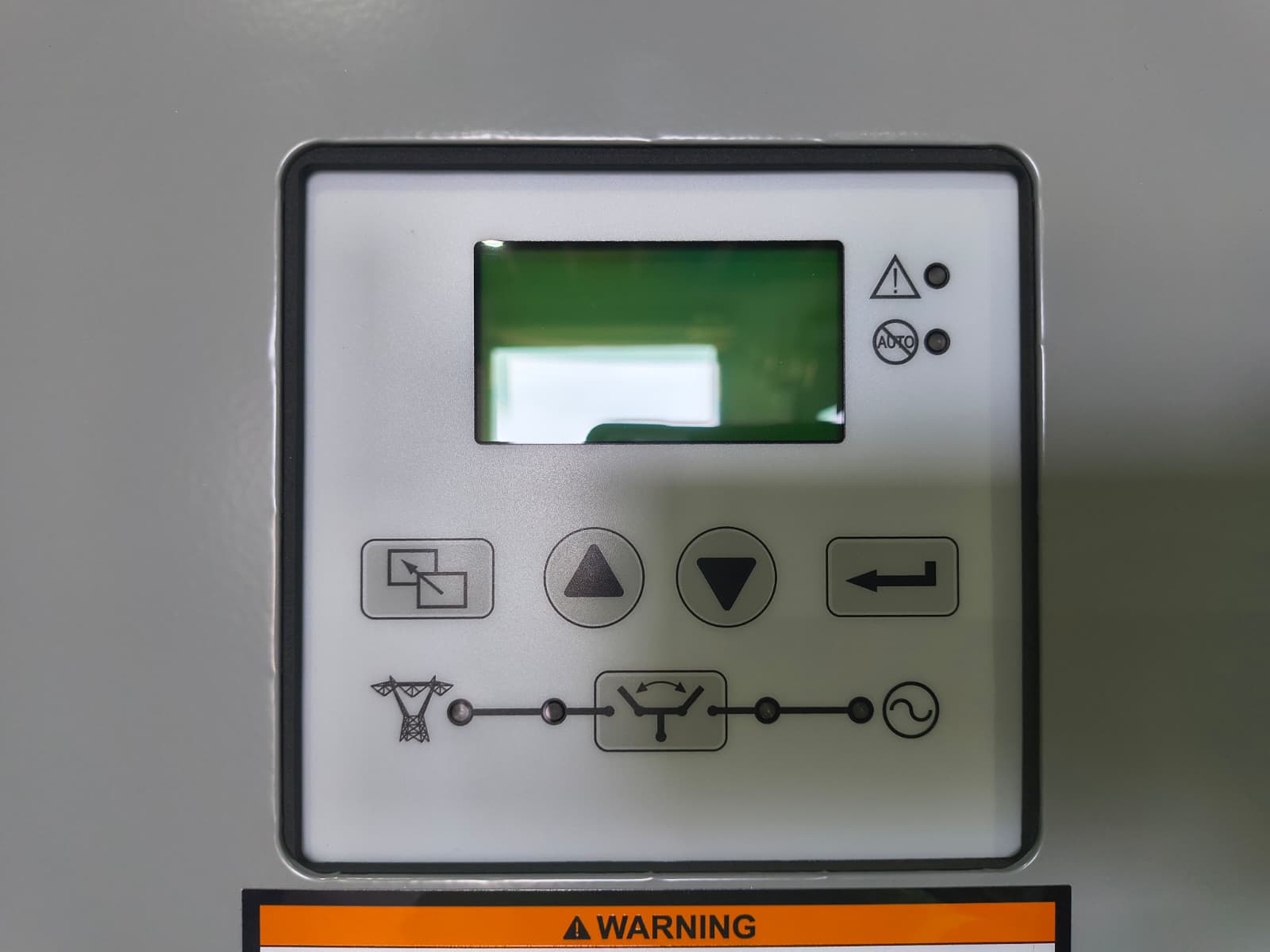

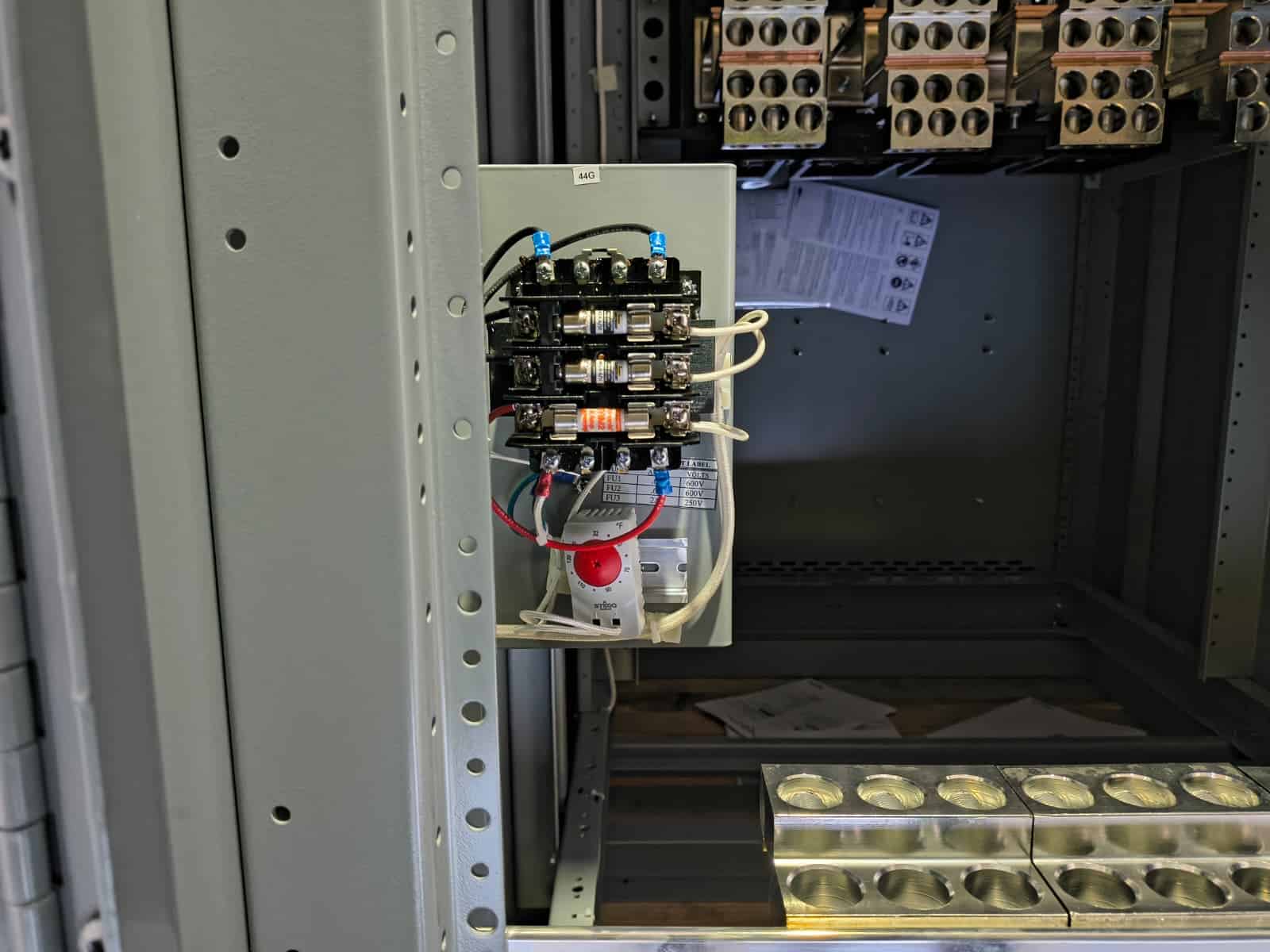

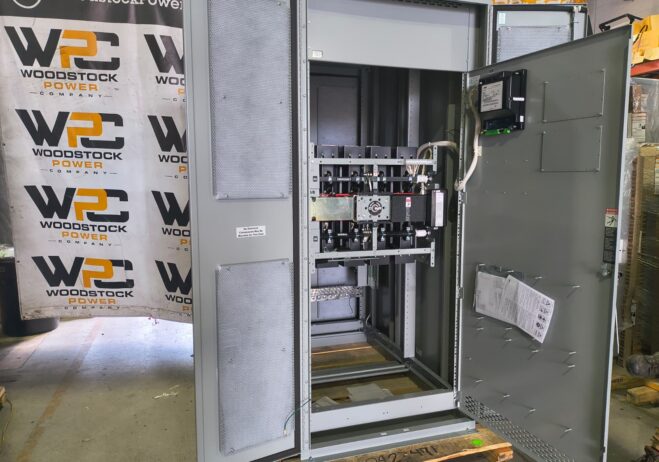

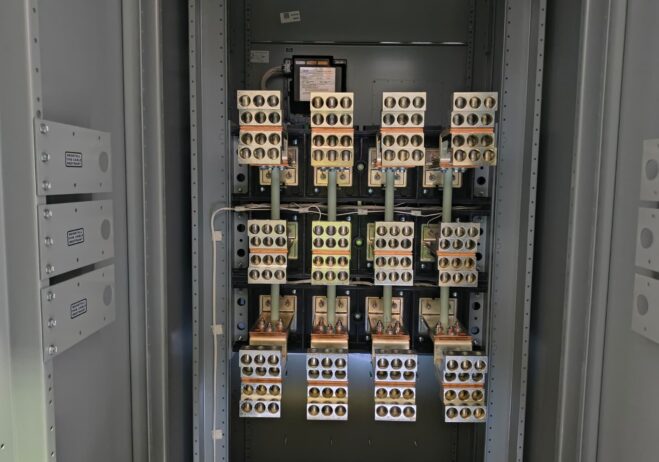

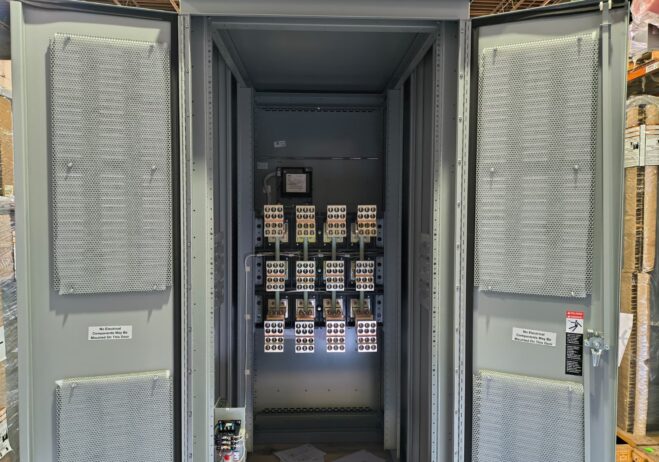

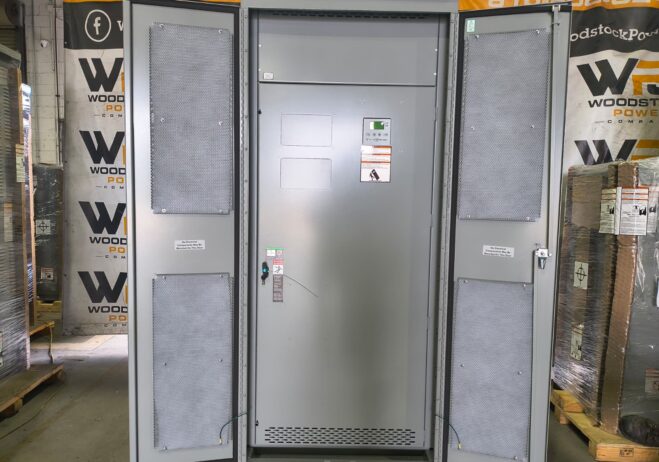

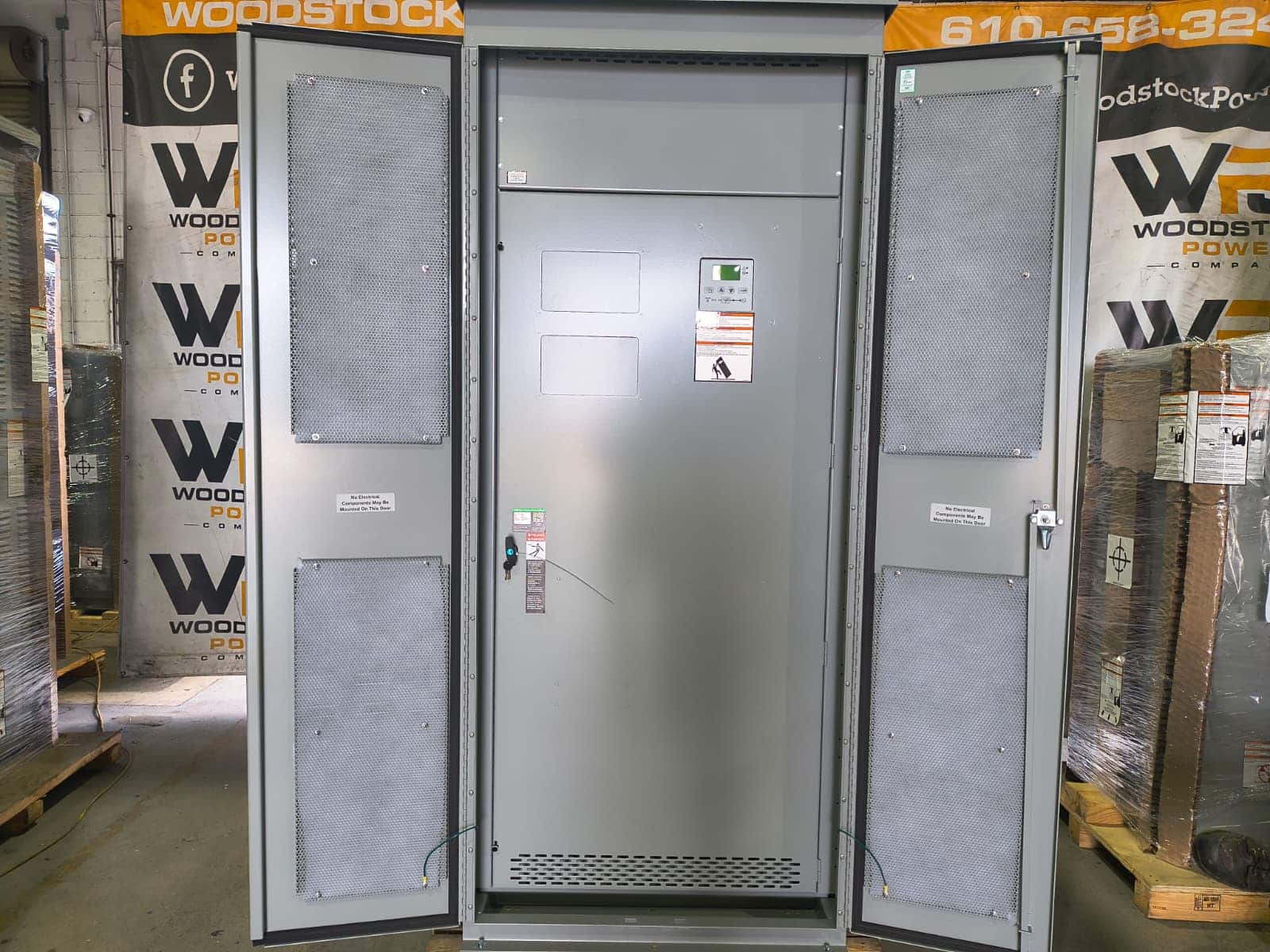

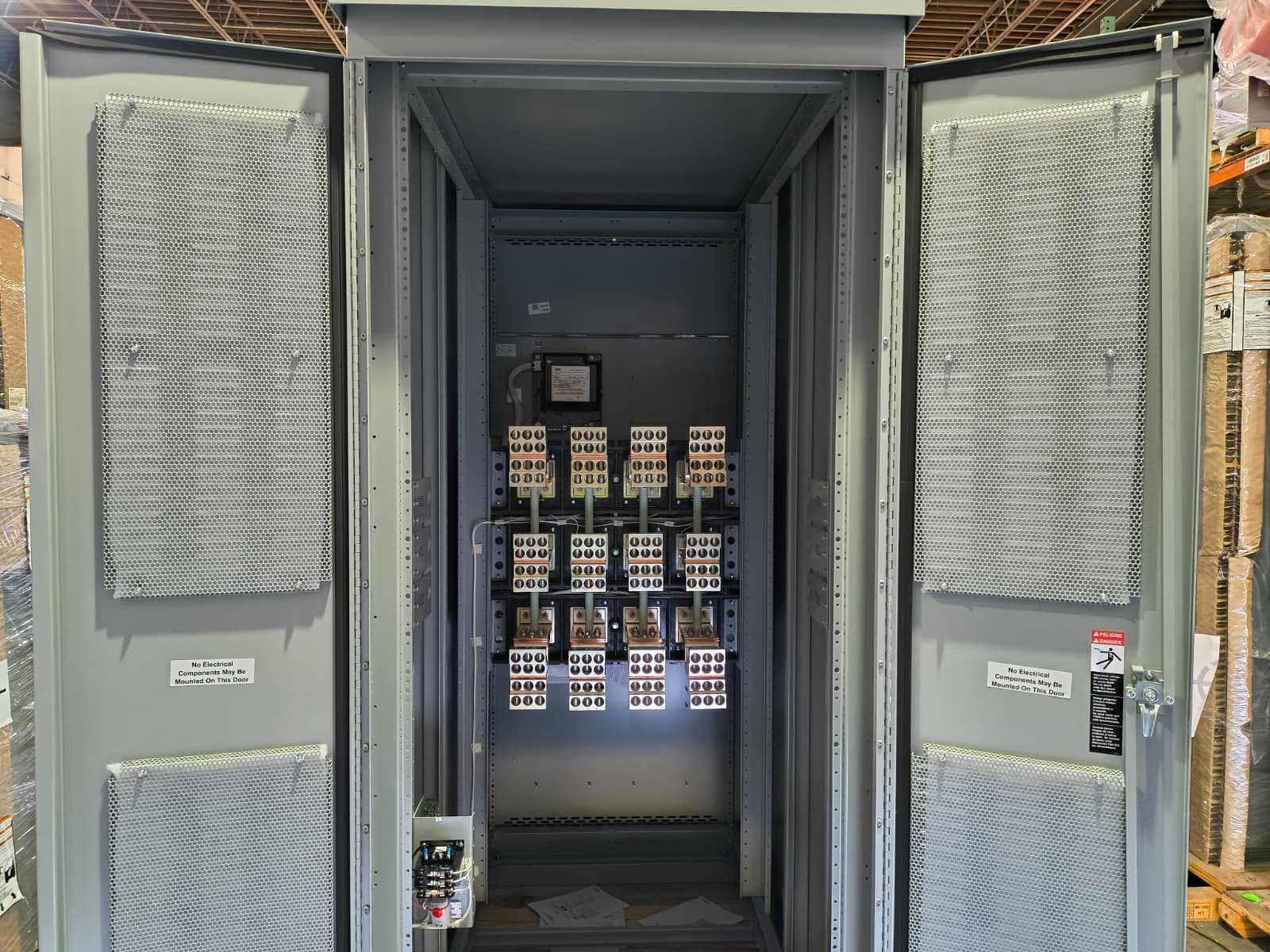

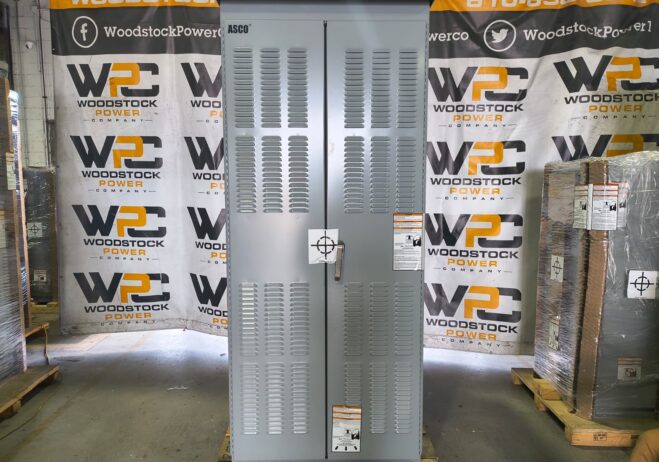

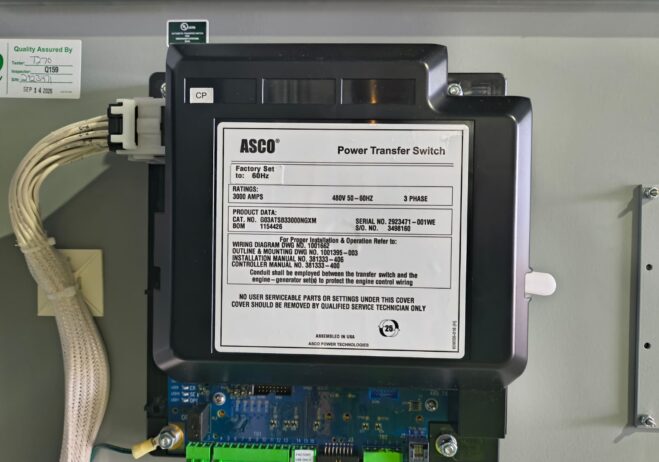

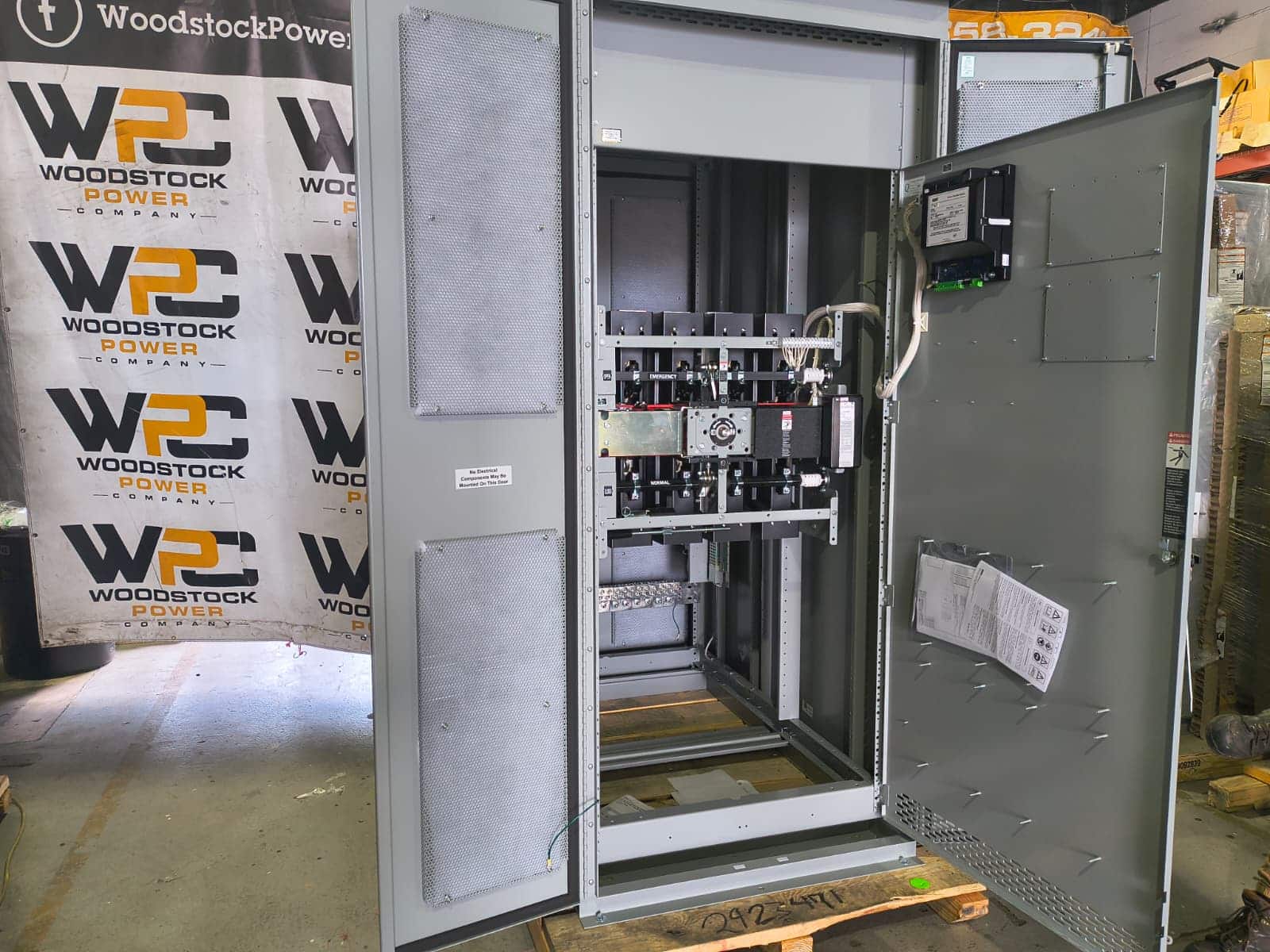

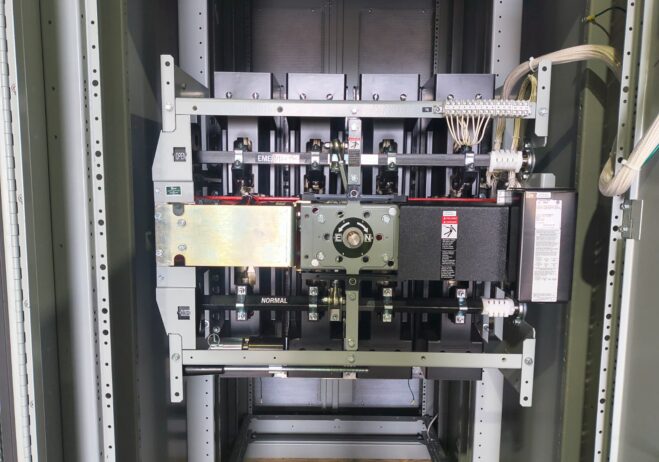

New 3000 Amp ASCO Series 300 G03ATSB33000NGXM Automatic Transfer Switch 3000 amp automatic transifer switch NEMA 3R 480V 3-Pole 3-Phase 4-Wire Open transition Switched [B] neutral configuration Optional accessories: 11BE – Adds the following features to the Group G controller: (1) Serial RS-485 Modbus Communications (2) Multi-Schedule Engine Exerciser (3) a 300 Entry Event Log and (4) a common alarm output function. When applied on 3-Phase systems it also enables: (1) 3-Phase Emergency Source VLL sensing (2) Phase Rotation Monitoring (3) Emergency Source VLL Unbalance Monitoring 44G – Strip heater w/ thermostat, wired to load terminals: 208-600 volts |
|
