| Specifications | |
|---|---|
| Manufacturer | ASCO |
| Type | NEMA 1 |
| Voltage | 480V |
| Amps | 260 |
| Service Entrance Rated | No |
| Transition Type | Open |
| Frequency | 60 Hz |

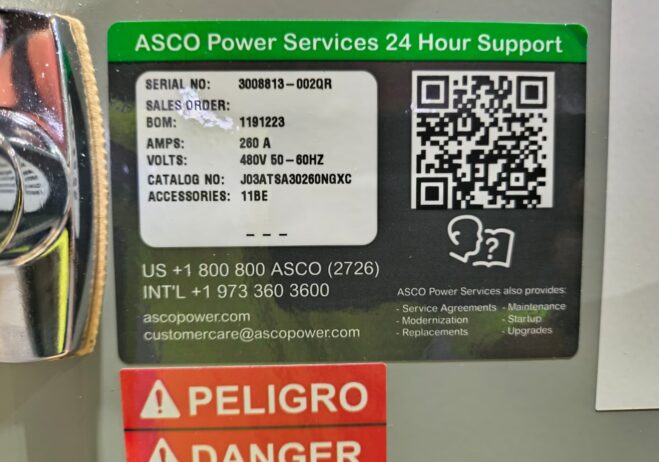

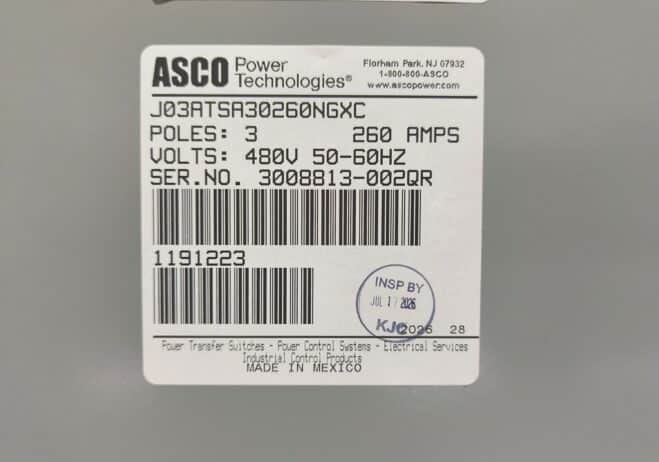

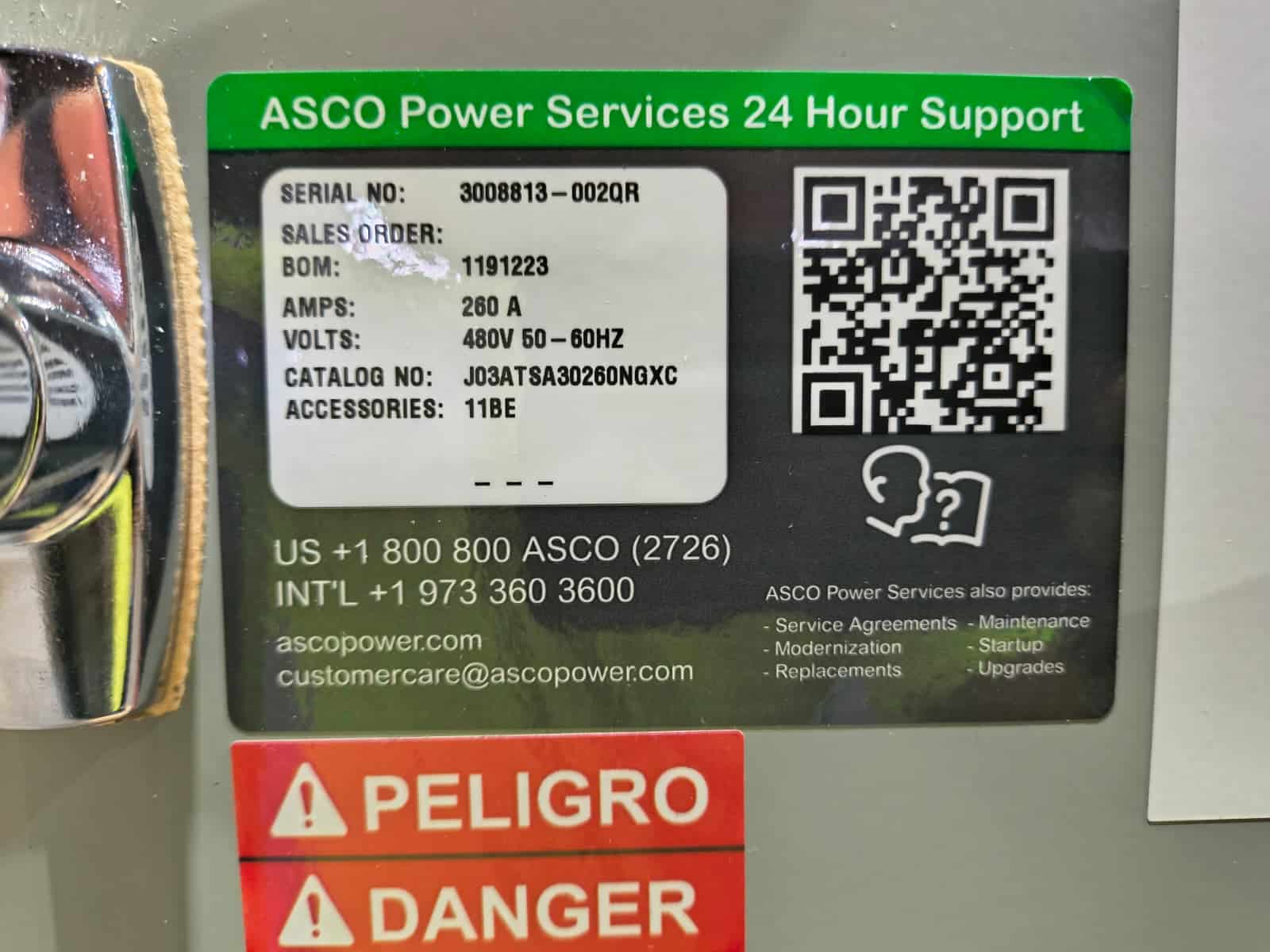

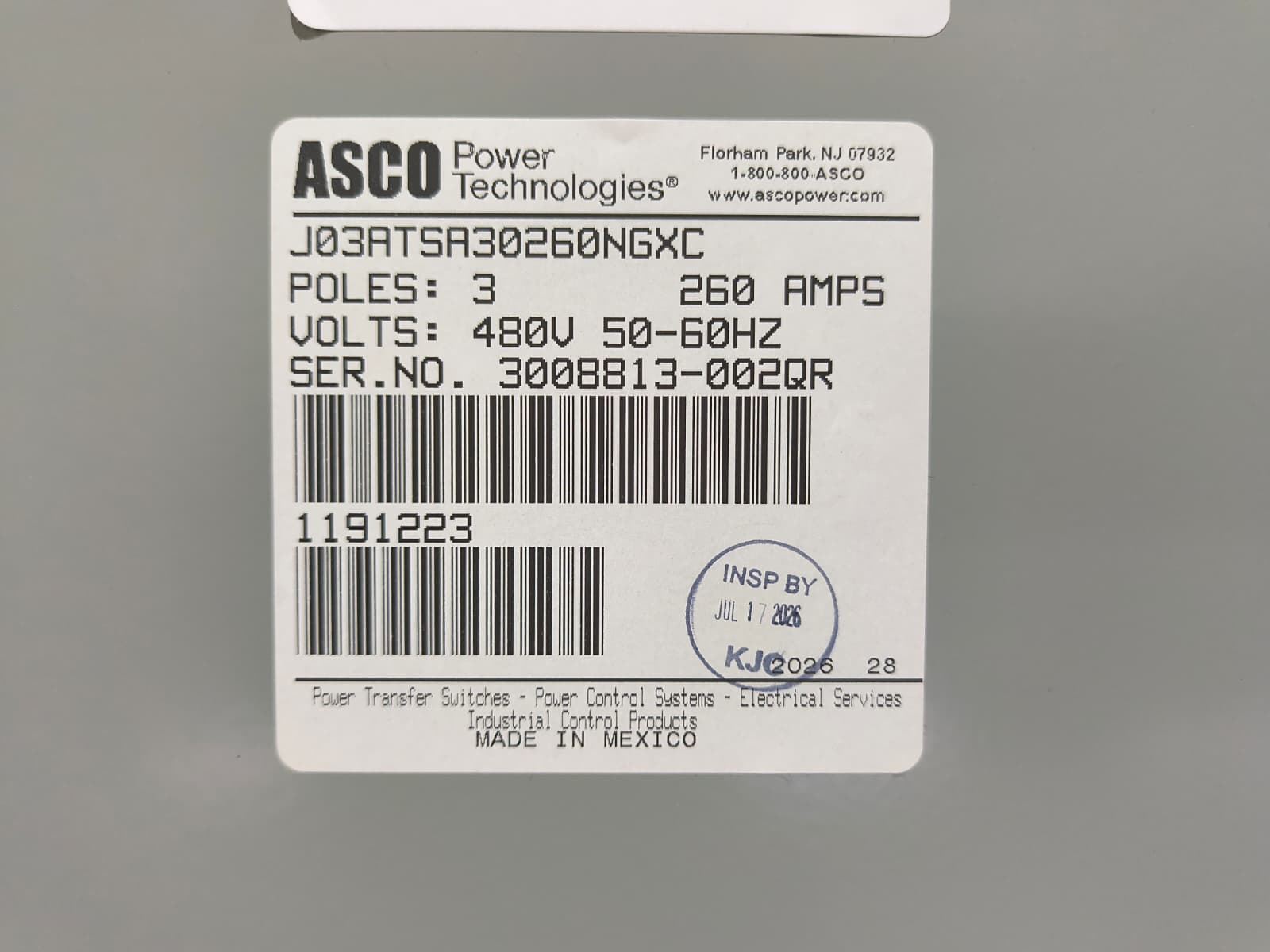

| ATS Model | J03ATSA30260NGXC |
| Overall Dimensions | 24" x 14.25" x 56" | 186 lbs |
| Condition | New |
| Status | Coming In |
| Accessories | 11BE |
|
Additional Features

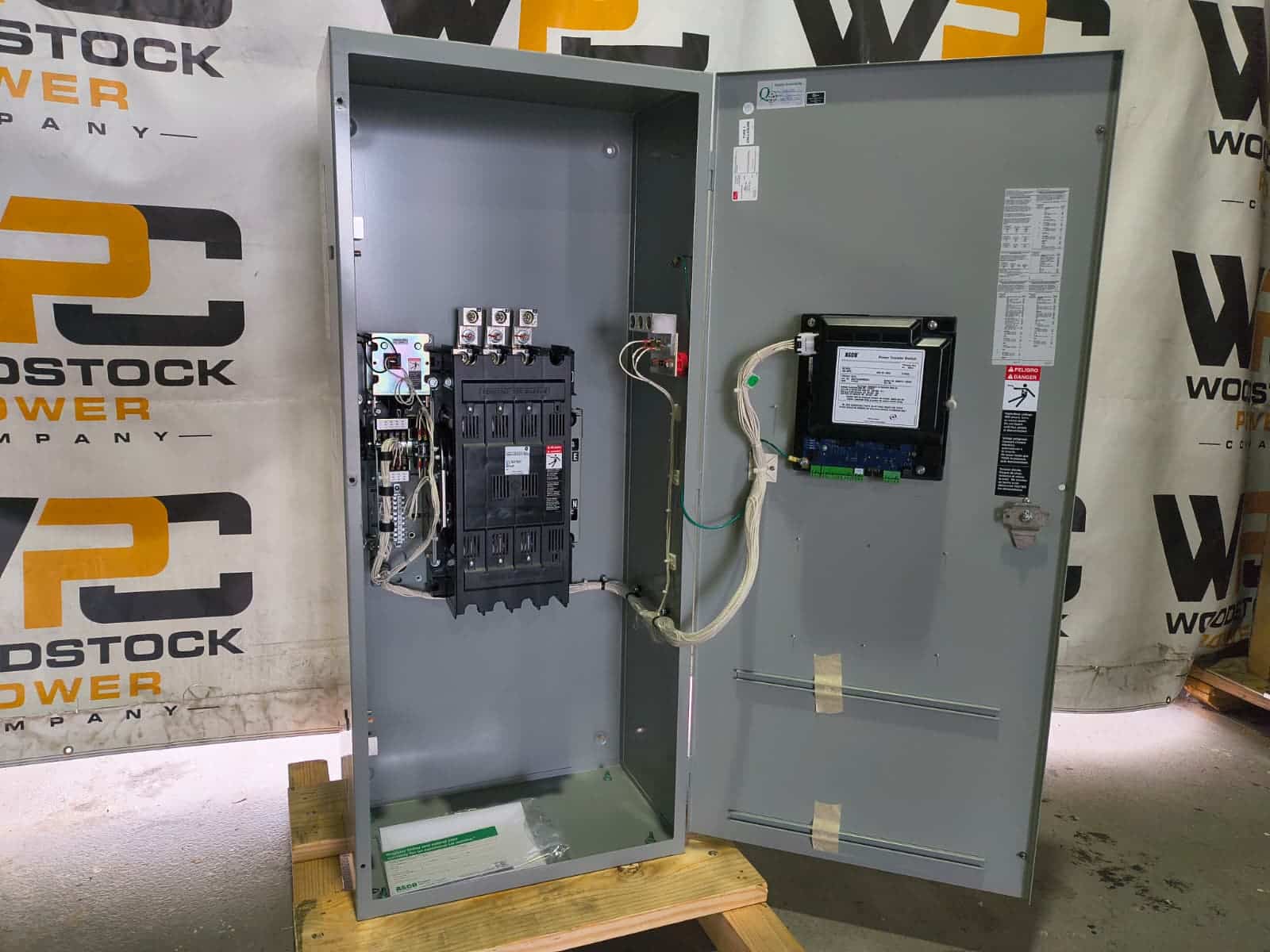

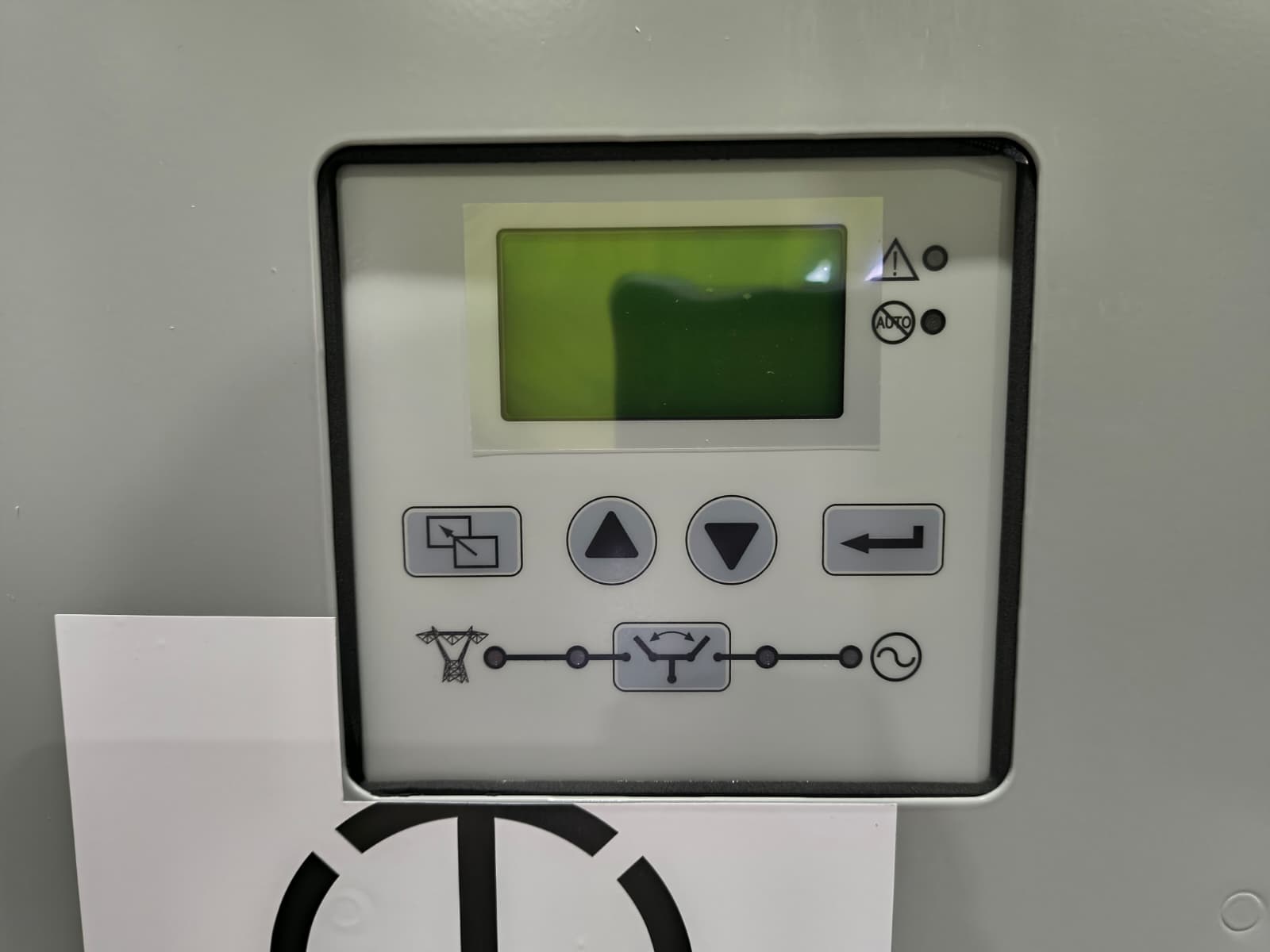

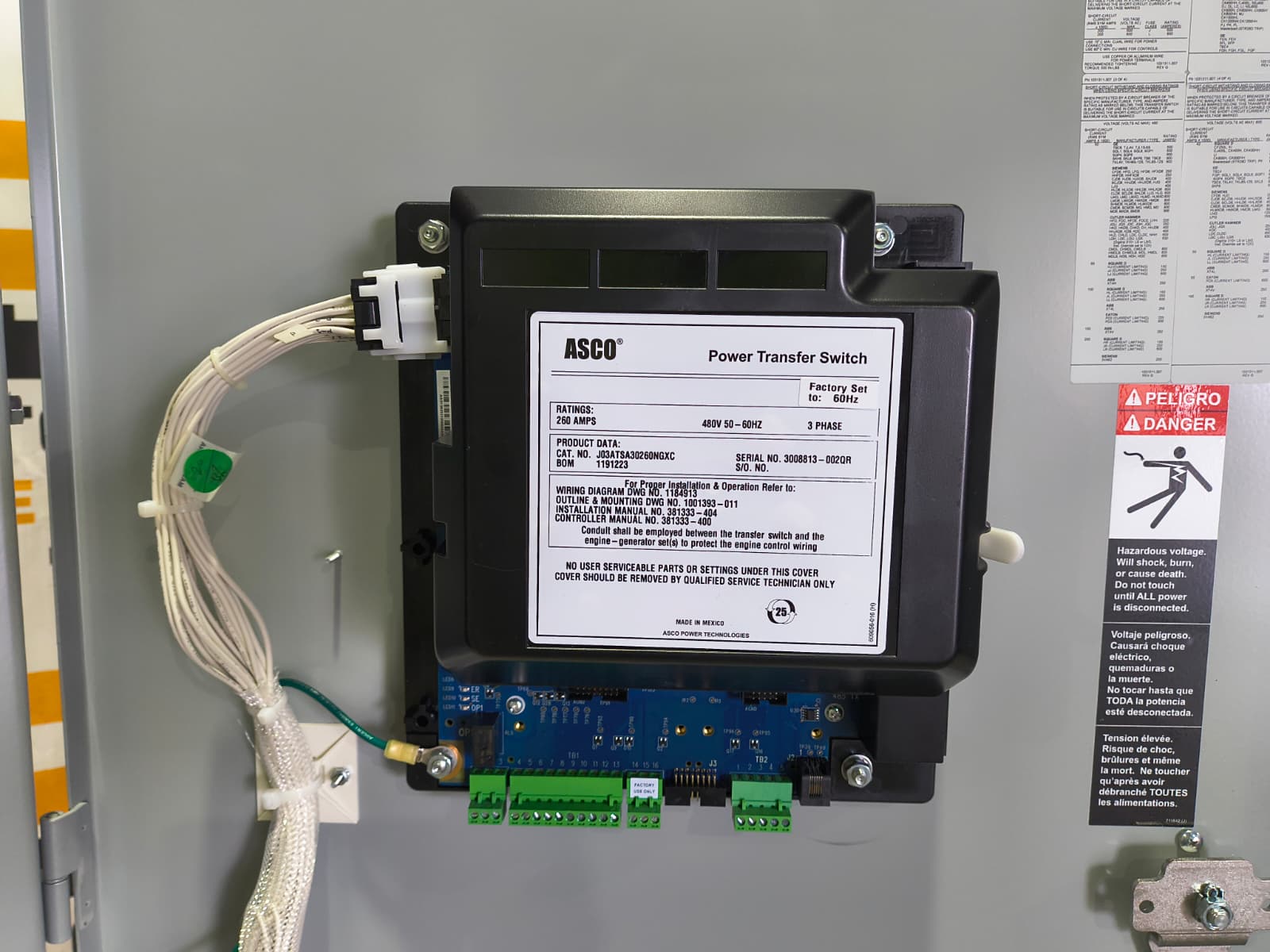

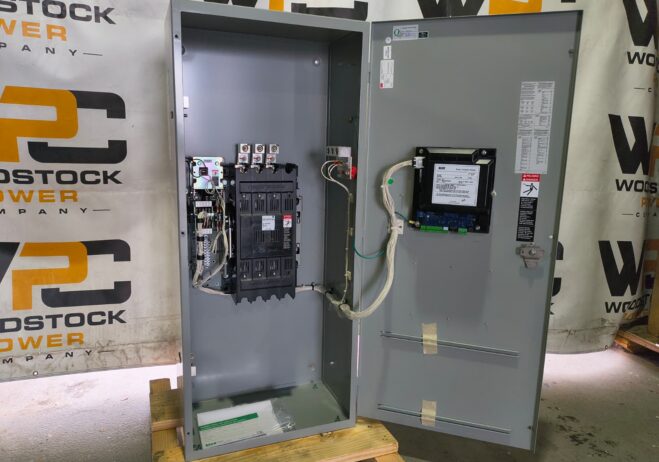

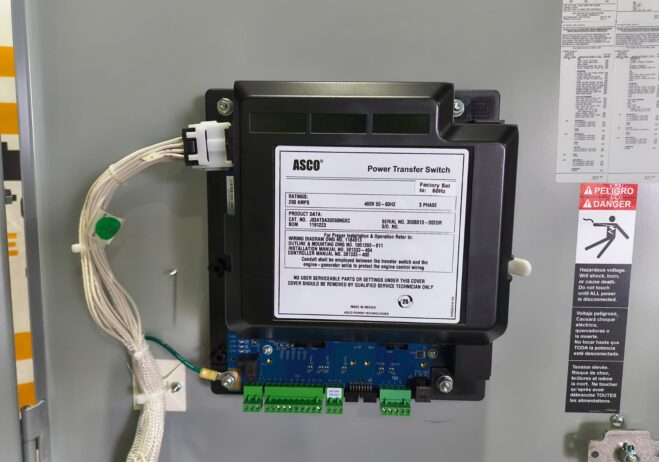

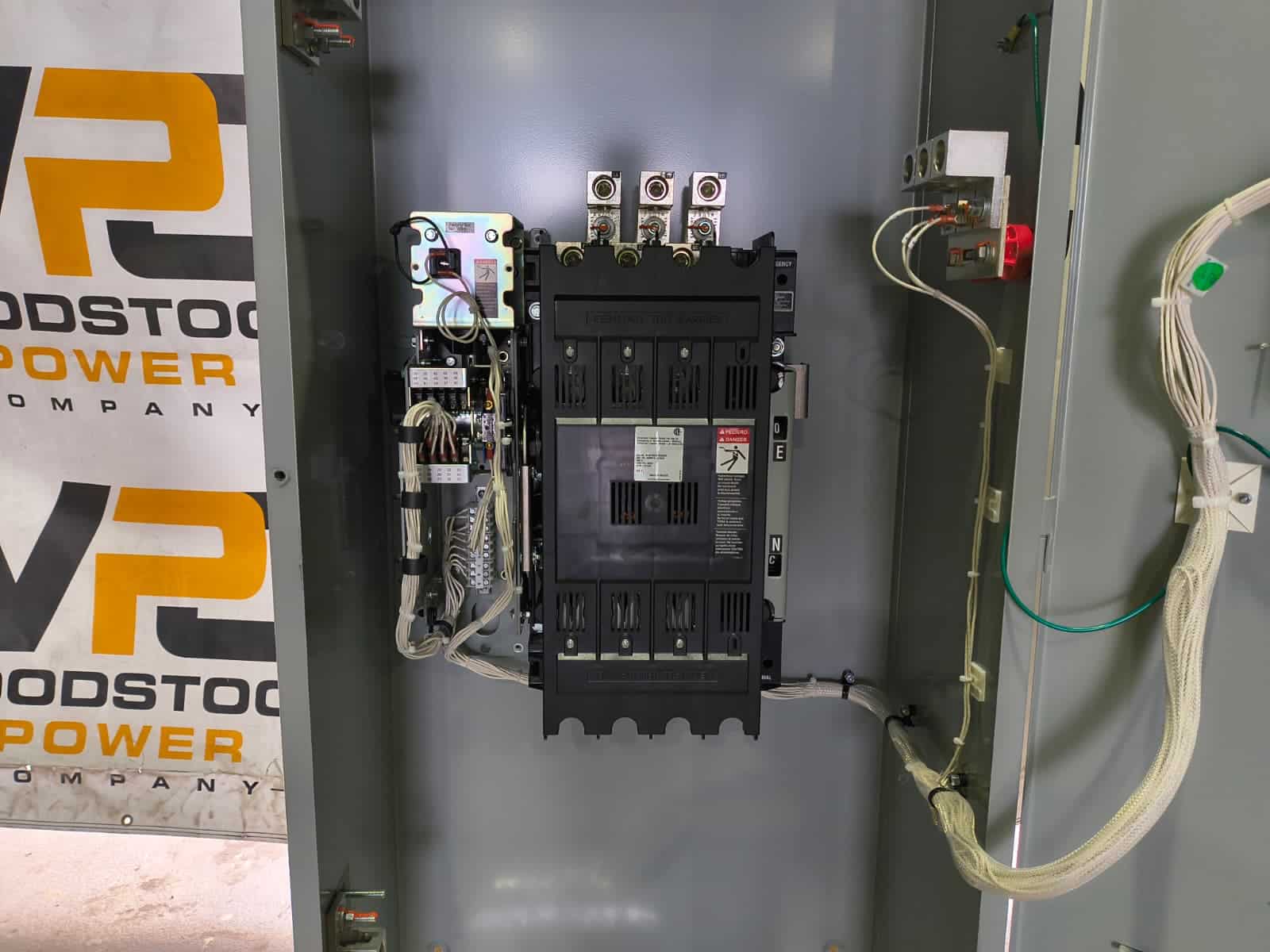

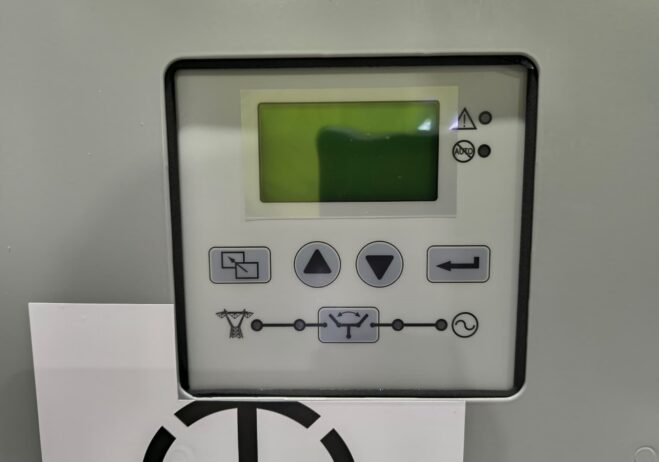

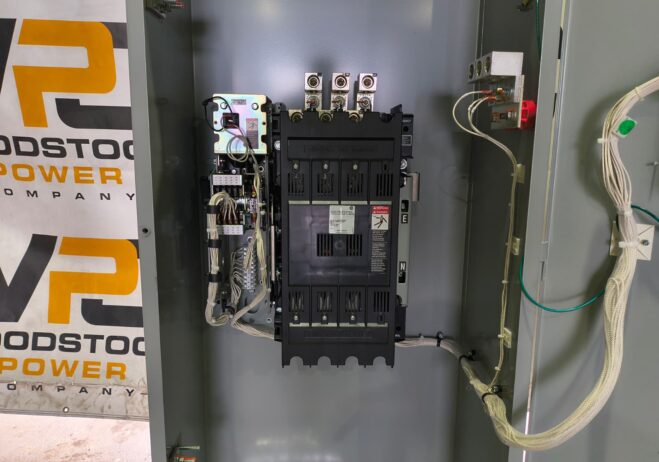

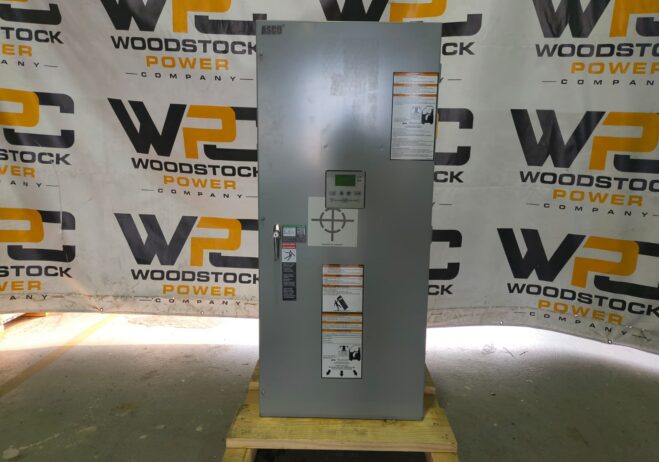

New 260 Amp ASCO J03ATSA30260NGXC Automatic Transfer Switch 260 amp automatic transfer switch NEMA 1 3-Pole 3-Phase 4-Wire Open transition Solid [A] neutral configuration Optional accessories: 11BE – Adds the following features to the Group G controller: (1) Serial RS-485 Modbus Communications (2) Multi-Schedule Engine Exerciser (3) a 300 Entry Event Log and (4) a common alarm output function. When applied on 3-Phase systems it also enables: (1) 3-Phase Emergency Source VLL sensing (2) Phase Rotation Monitoring (3) Emergency Source VLL Unbalance Monitoring |
|
