| Specifications | |
|---|---|
| Manufacturer | ASCO |
| Type | NEMA 3R |
| Voltage | 480V |
| Amps | 200 |
| Service Entrance Rated | No |
| Transition Type | Open |
| Frequency | 60 Hz |

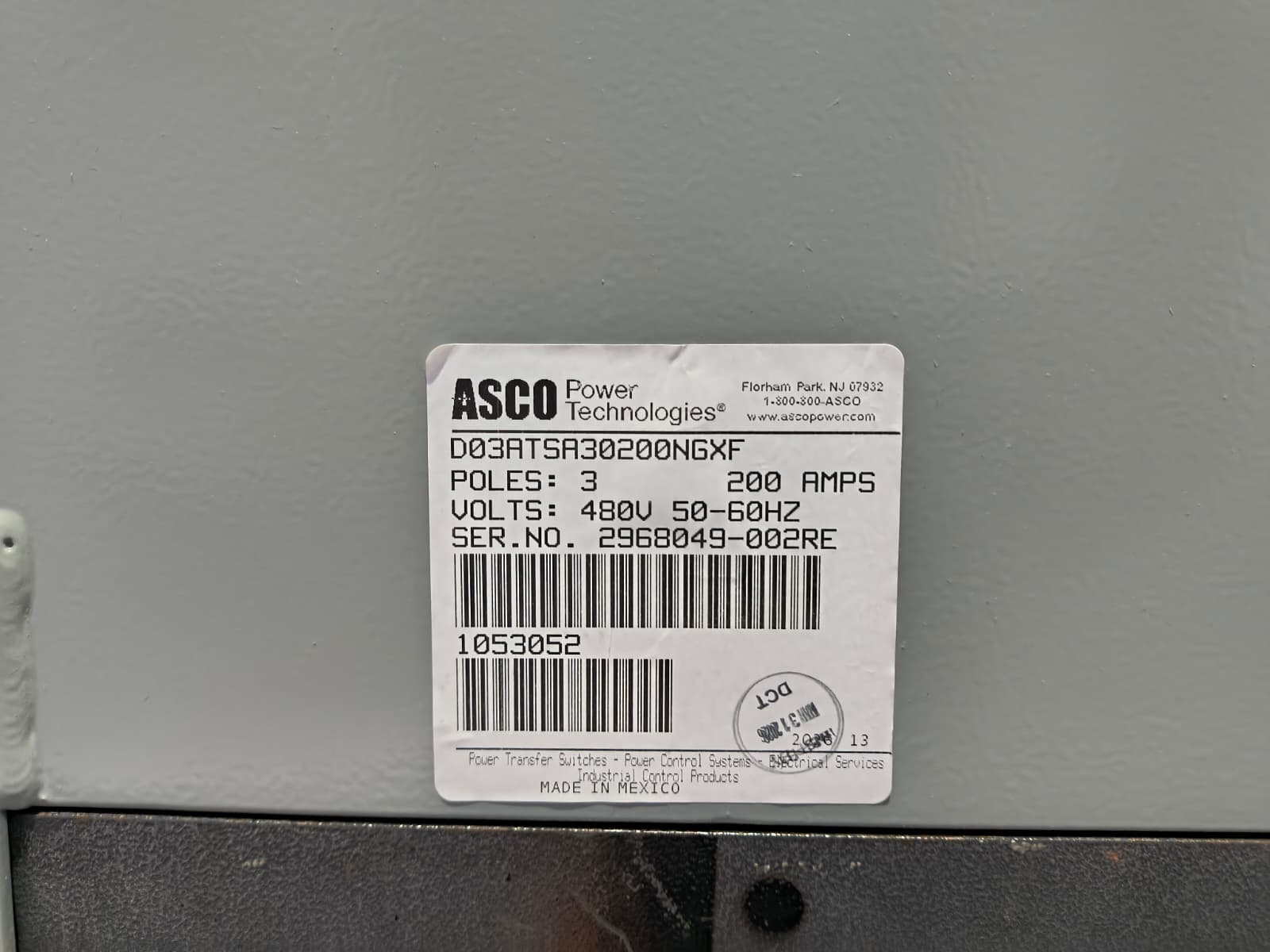

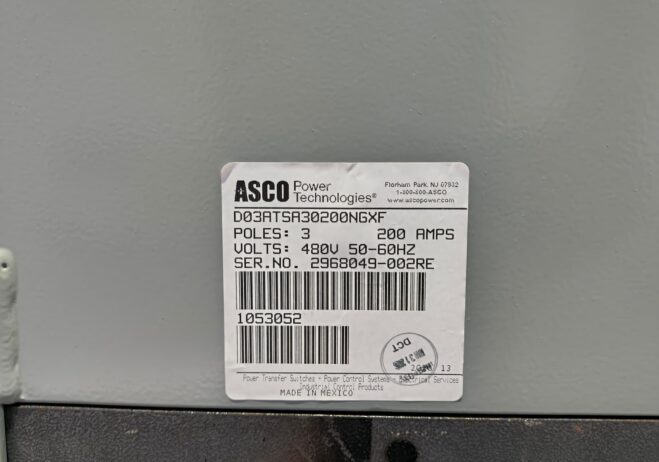

| ATS Model | D03ATSA30200NGXF |
| Condition | New |
| Status | Available |

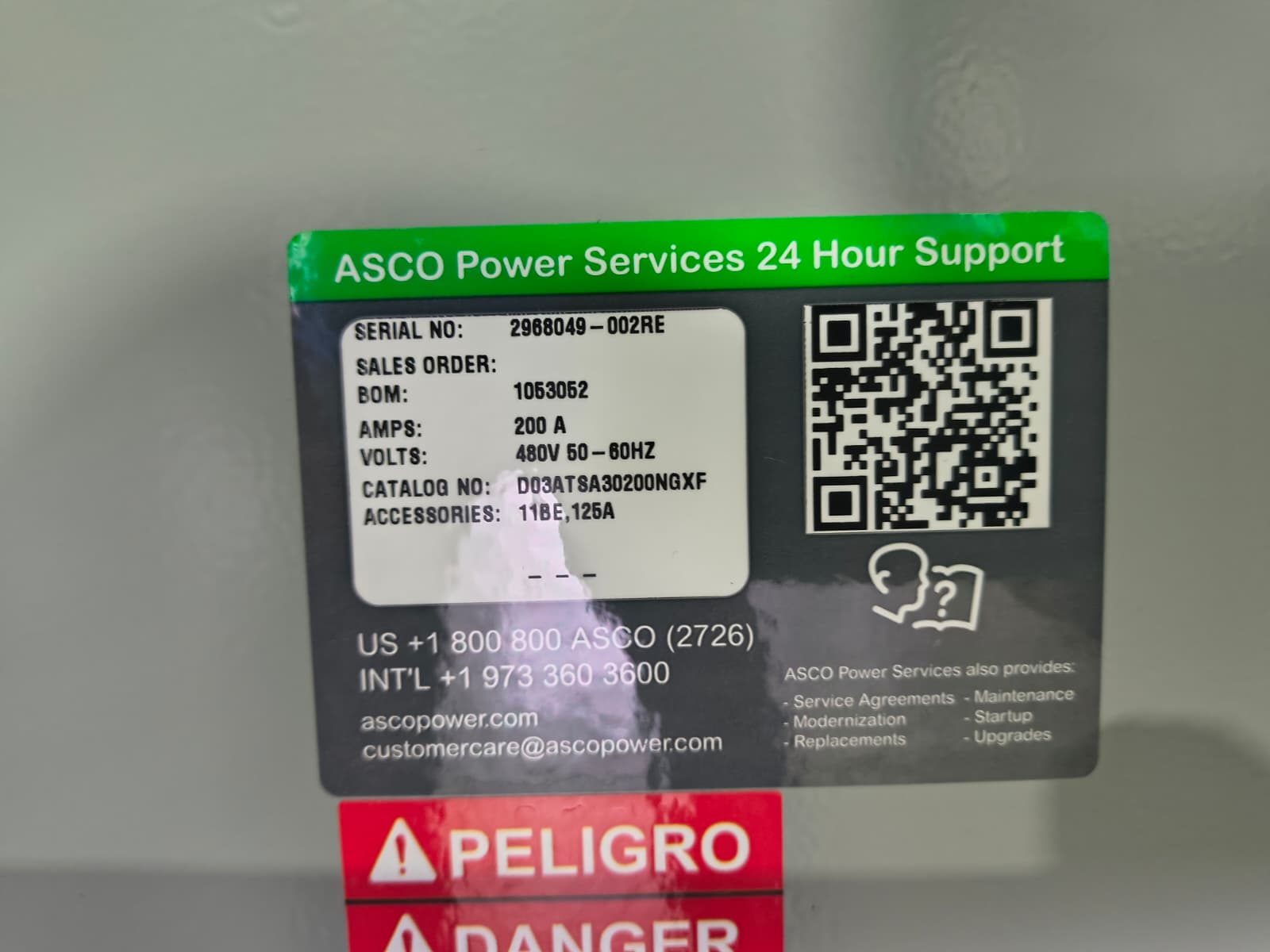

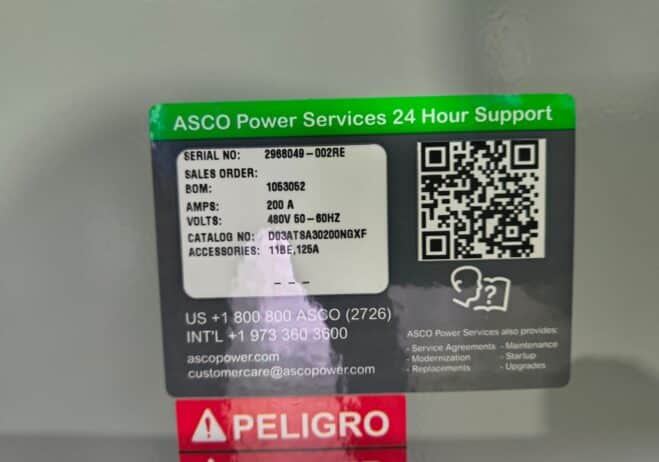

| Accessories | 11BE, 125A |
|
Additional Features

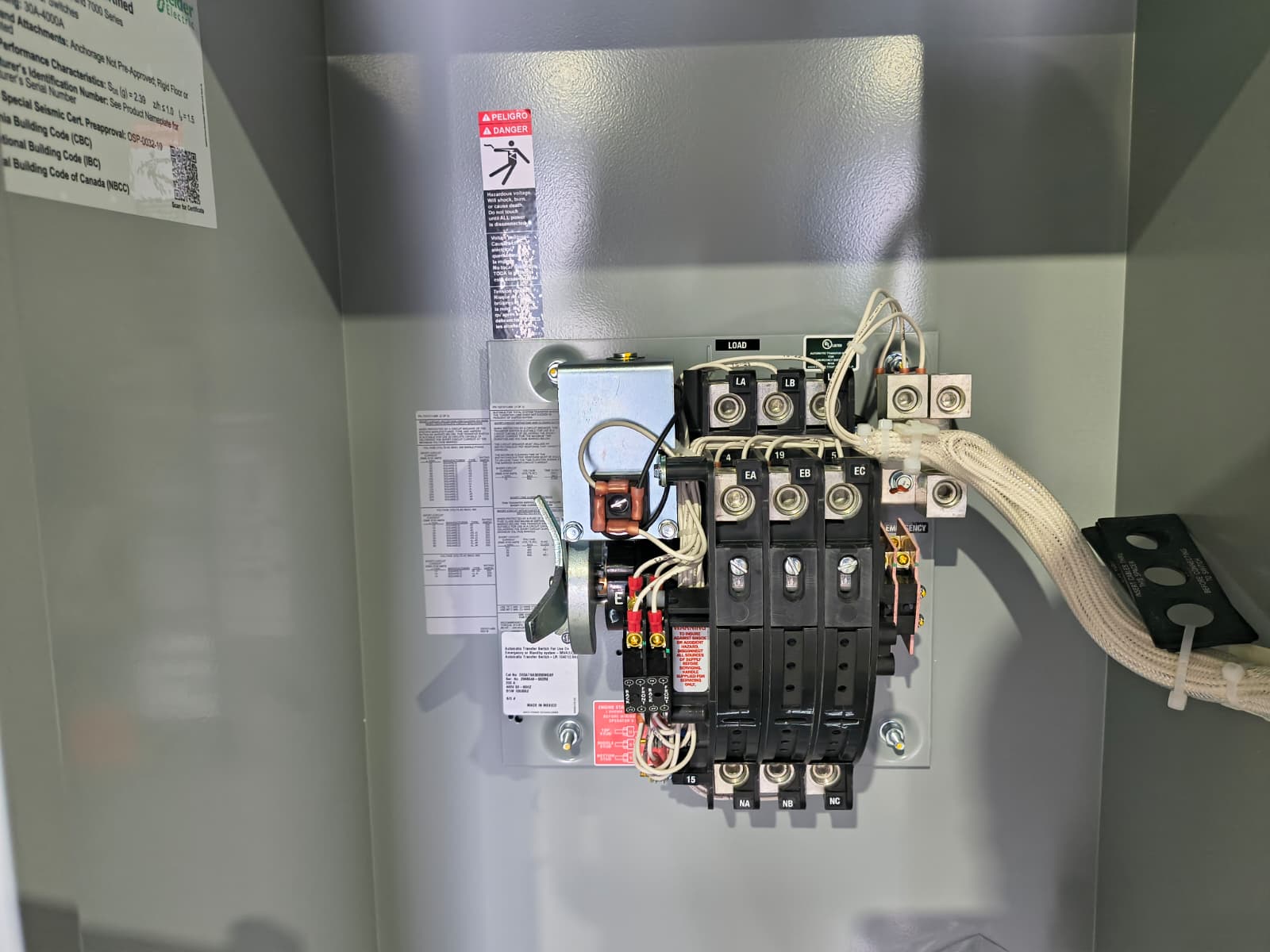

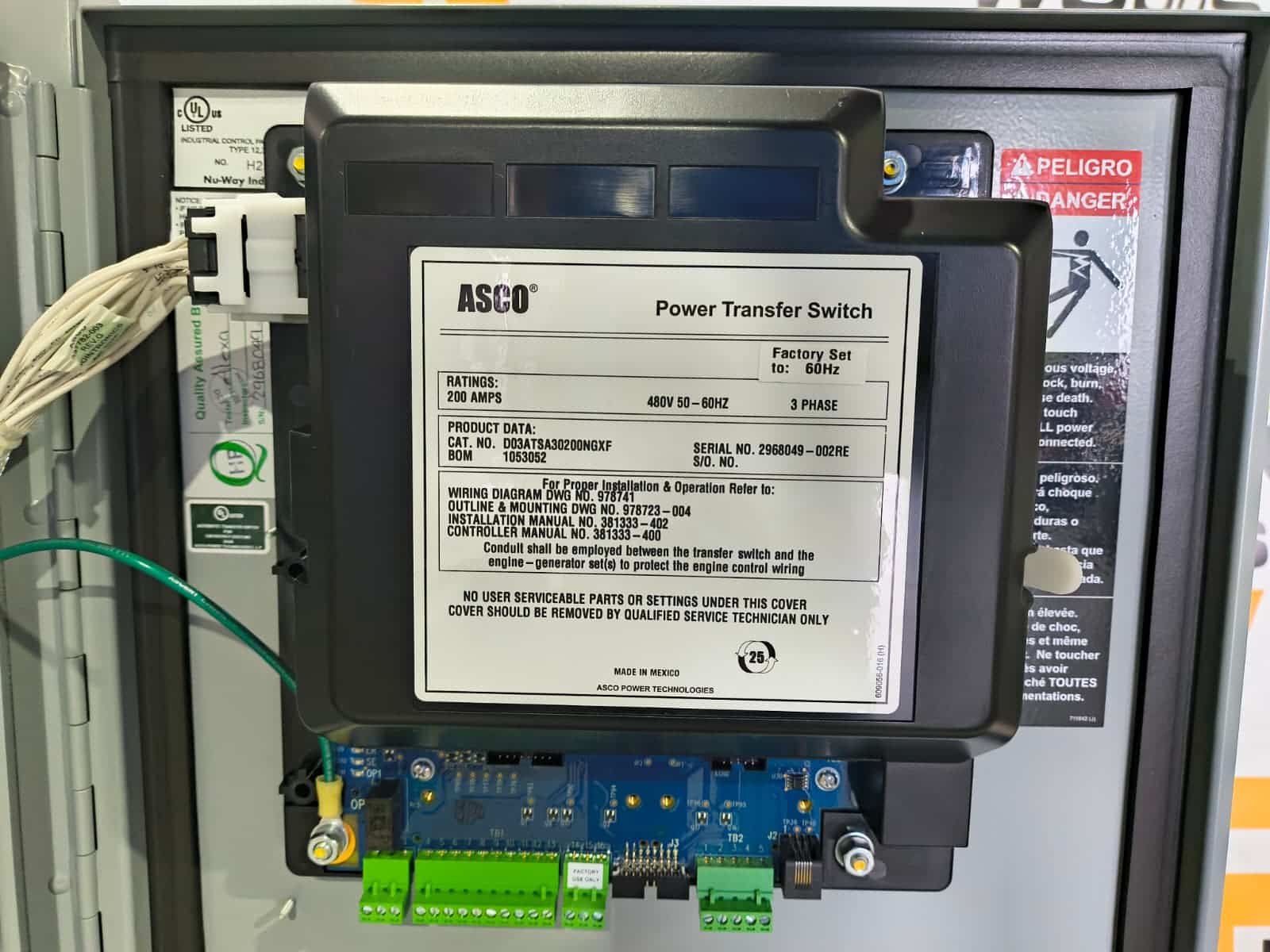

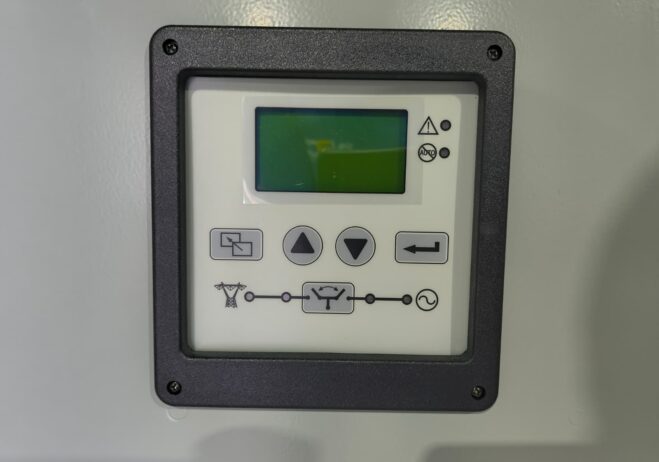

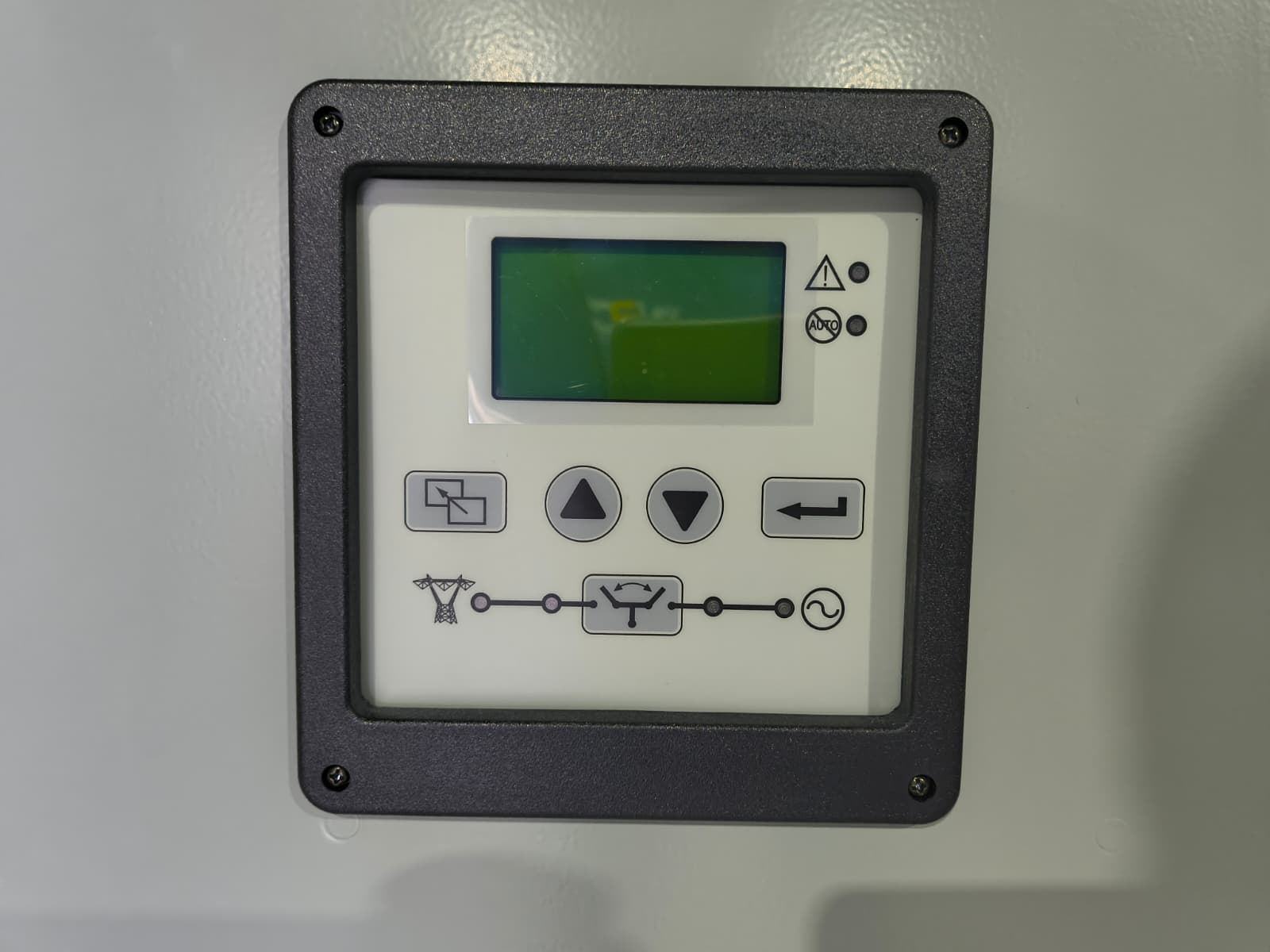

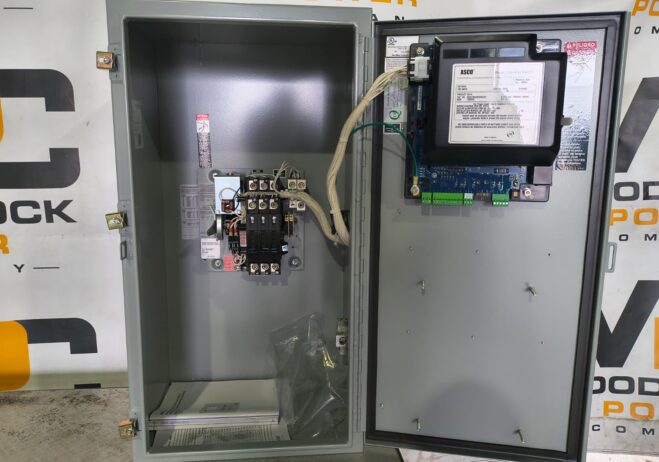

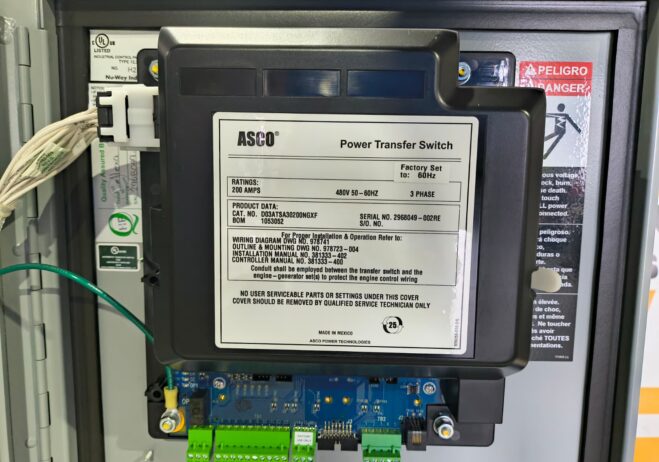

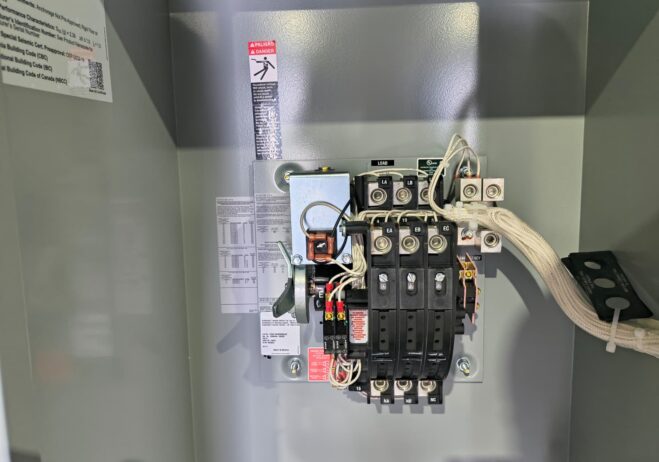

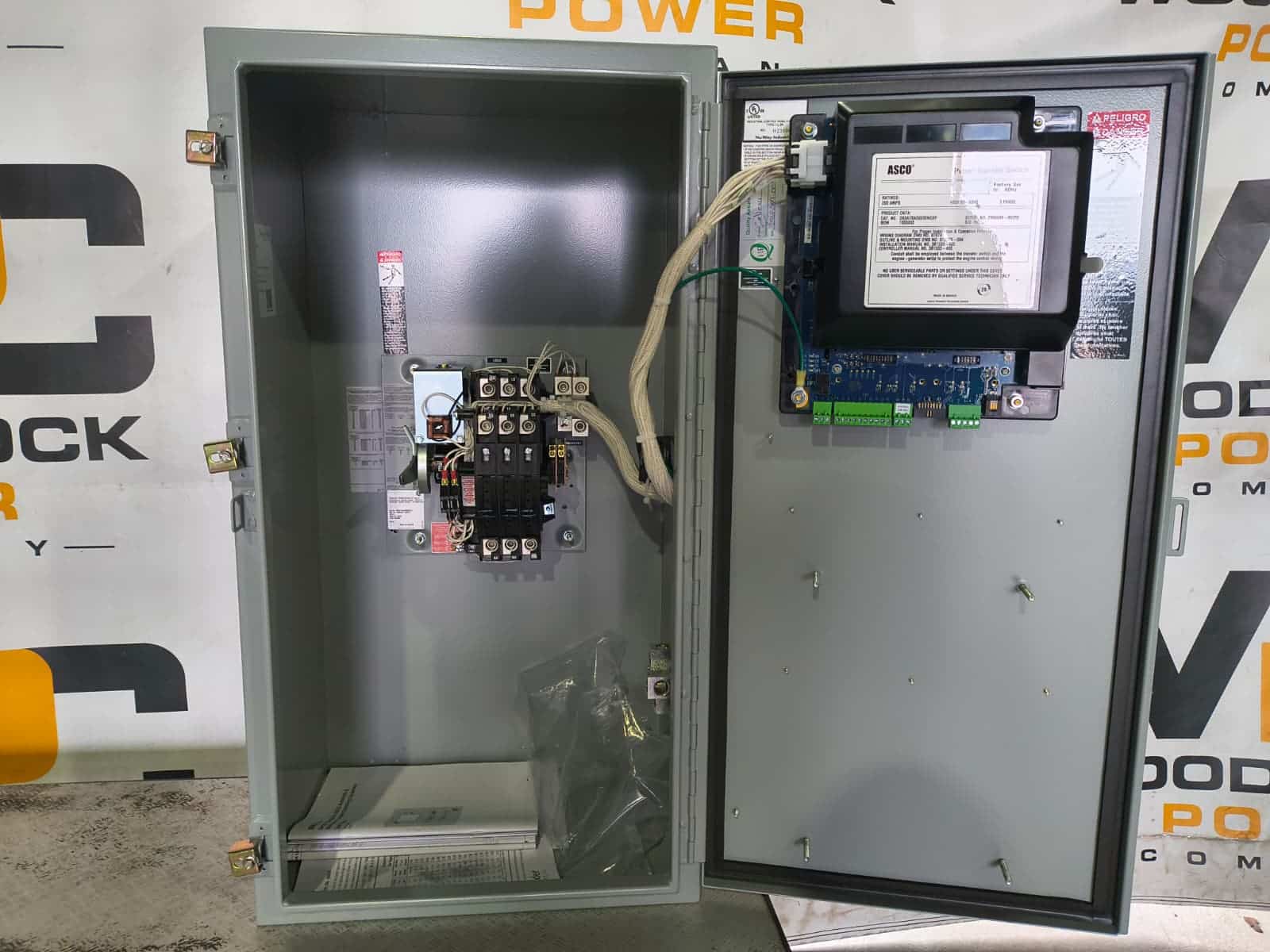

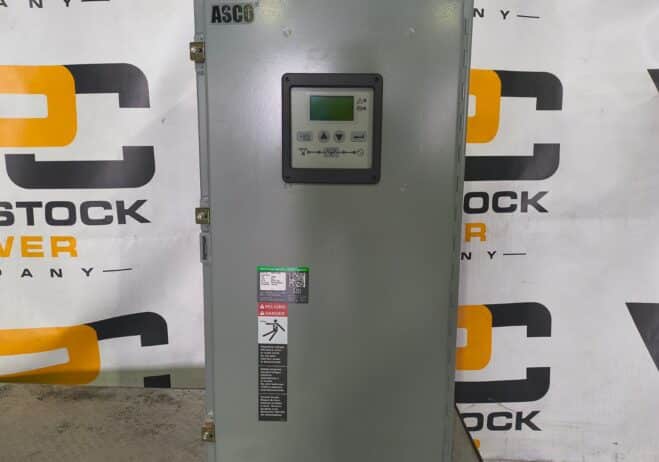

New 200 Amp ASCO Series 300 D03ATSA30200NGXF Automatic Transfer Switch 200 amp automatic transfer switch NEMA 3R 480V 3-Phase 3-Pole 4-Wire Open transition Solid [A] neutral configuration Optional accessories: 11BE – Adds the following features to the Group G controller: (1) Serial RS-485 Modbus Communications (2) Multi-Schedule Engine Exerciser (3) a 300 Entry Event Log and (4) a common alarm output function. When applied on 3-Phase systems it also enables: (1) 3-Phase Emergency Source VLL sensing (2) Phase Rotation Monitoring (3) Emergency Source VLL Unbalance Monitoring 125A – This Product Meets or Exceeds The Requirement Of The International Building Code For Importance Factor 1.5 Electrical Equipment. For Use In Zone 4 Or Less Severe Seismic Regions. Consult ASCO for details. |
|
