| Specifications | |
|---|---|
| Manufacturer | ASCO |
| Type | NEMA 3R |
| Voltage | 480V |
| Amps | 1200 |
| Service Entrance Rated | No |
| Transition Type | Open |
| Frequency | 60 Hz |

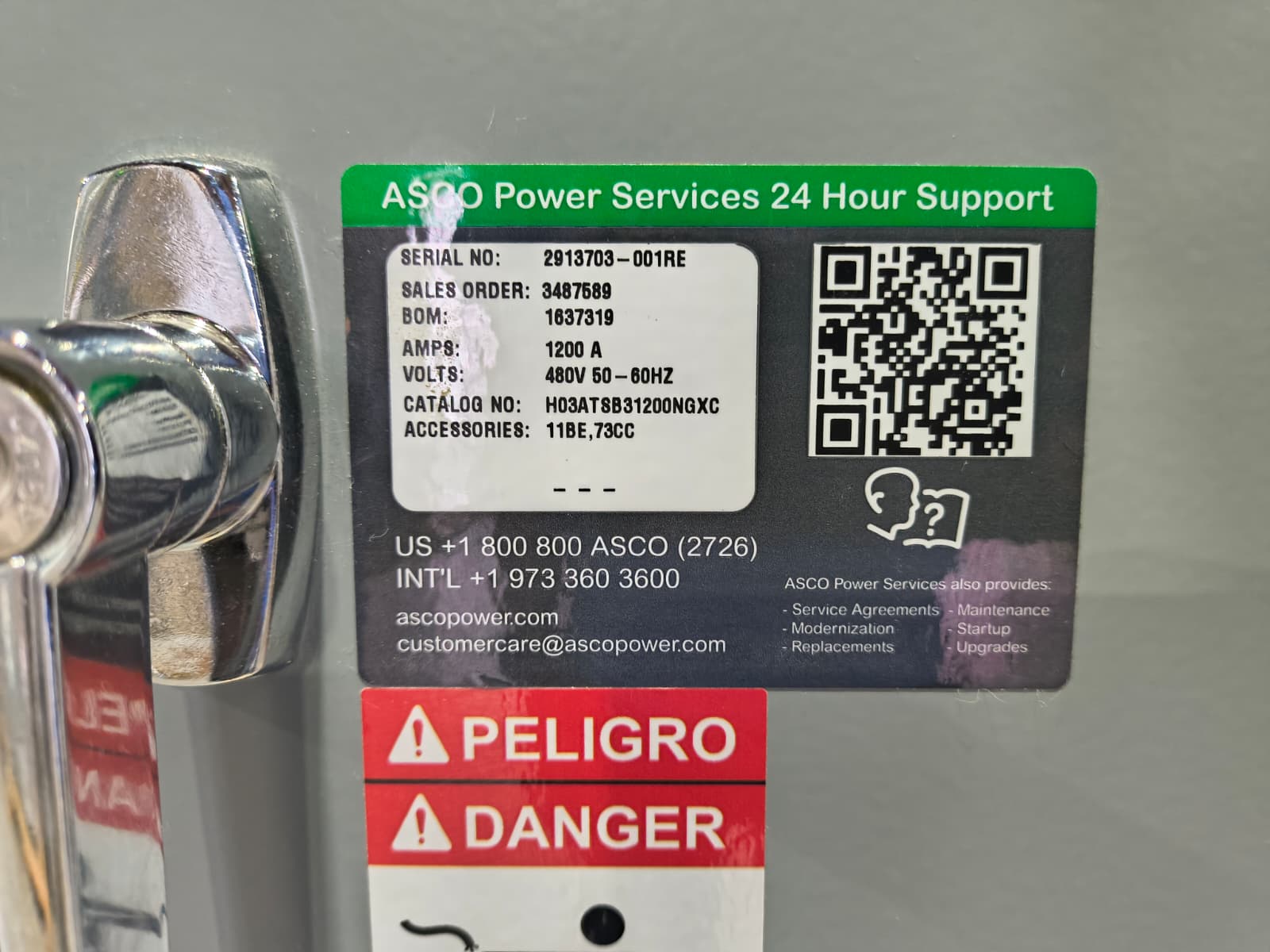

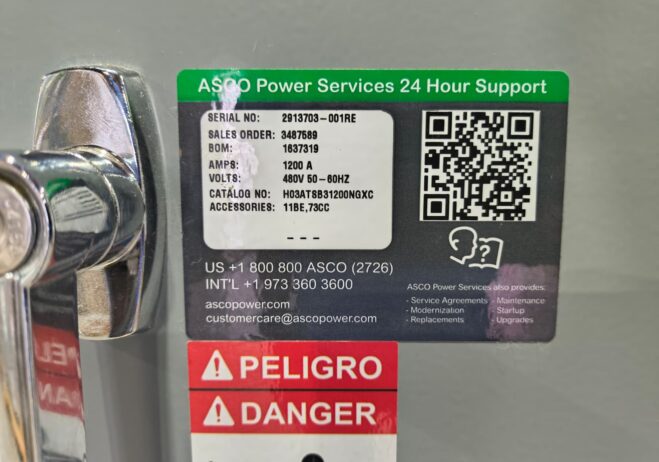

| ATS Model | H03ATSB31200NGXC |
| Overall Dimensions | 41" x 33" x 96" | 1,290 lbs |
| Condition | New |
| Status | Available |
| Accessories | 11BE, 73CC |
|
Additional Features

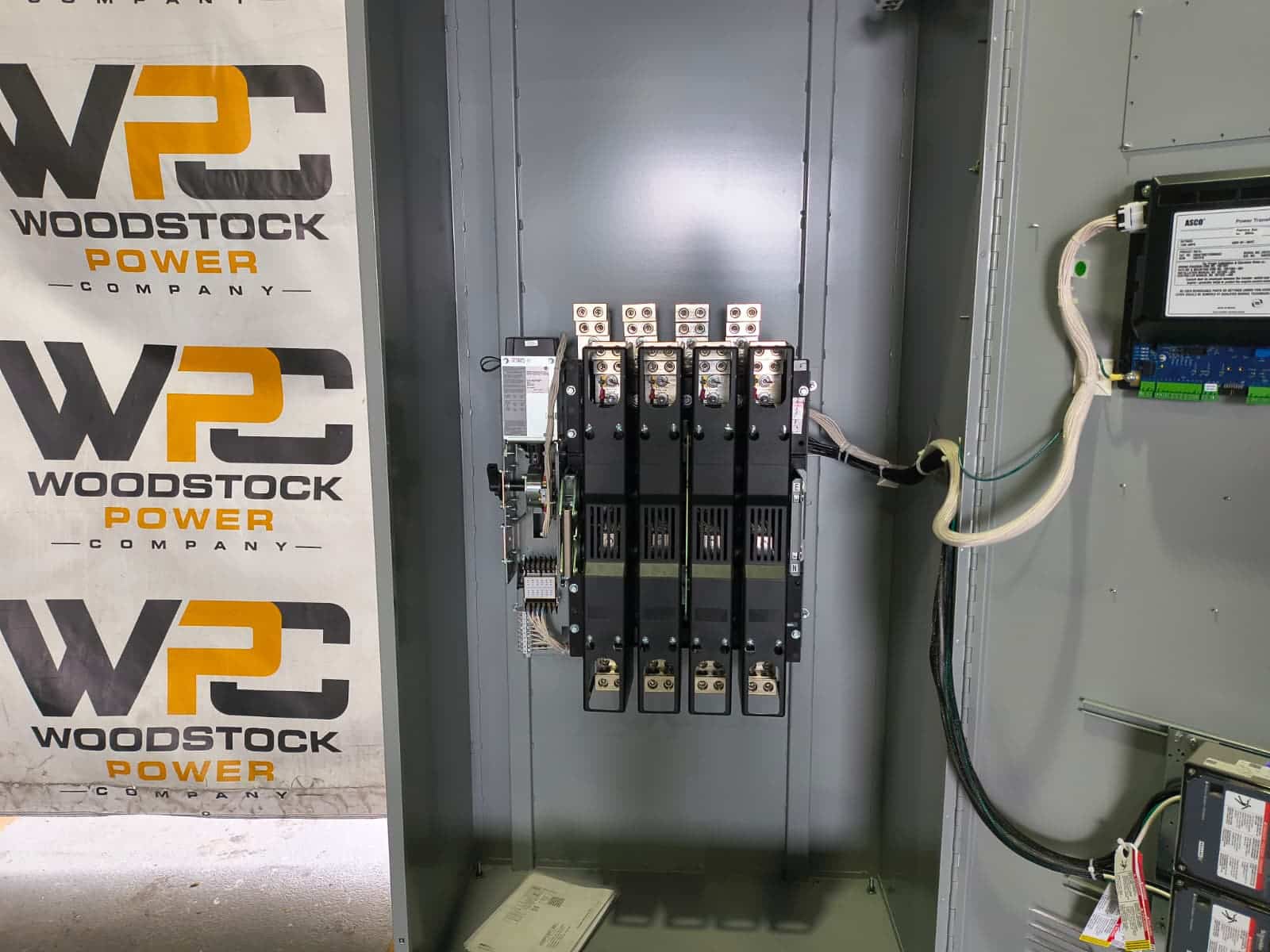

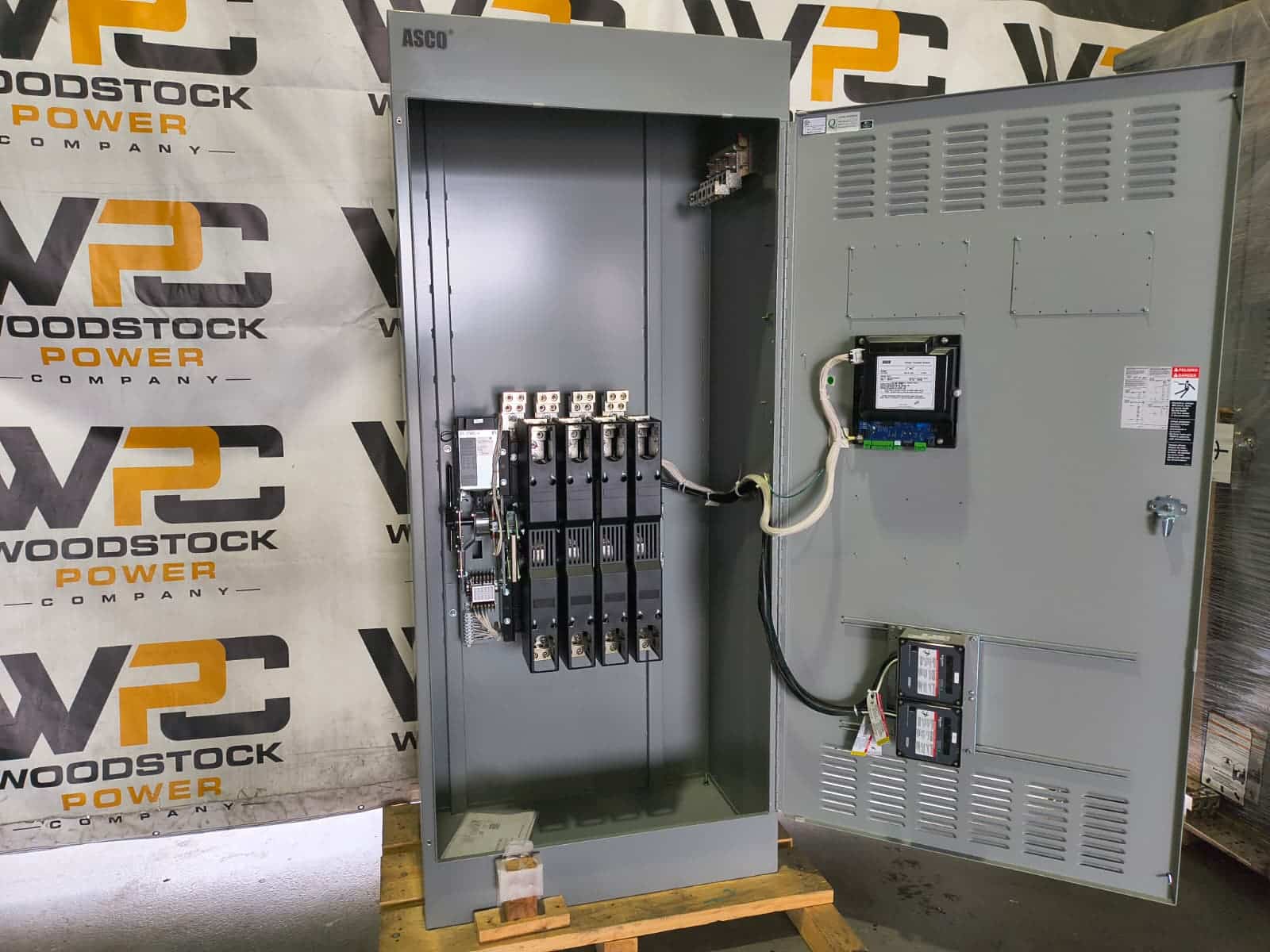

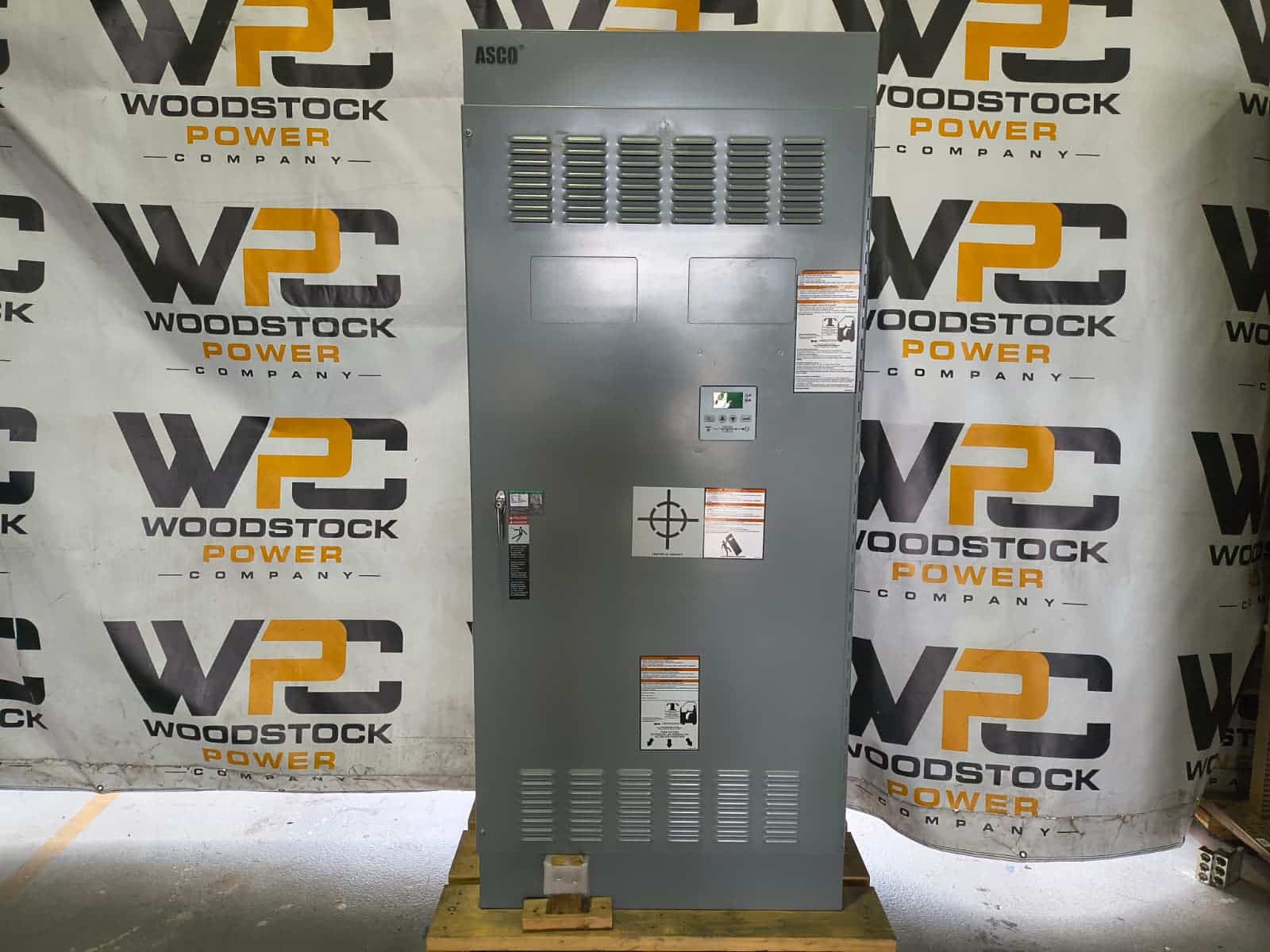

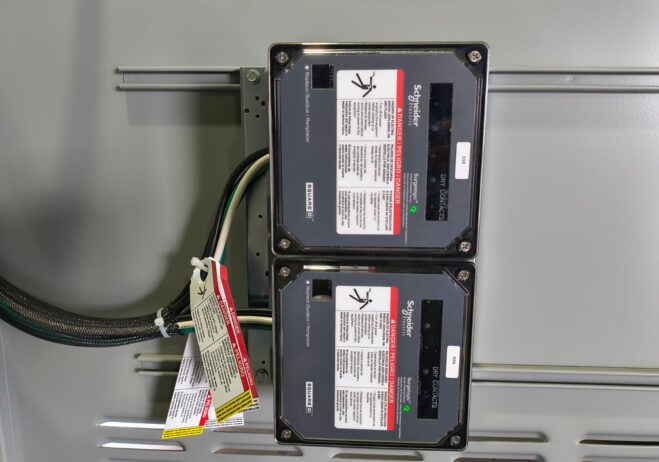

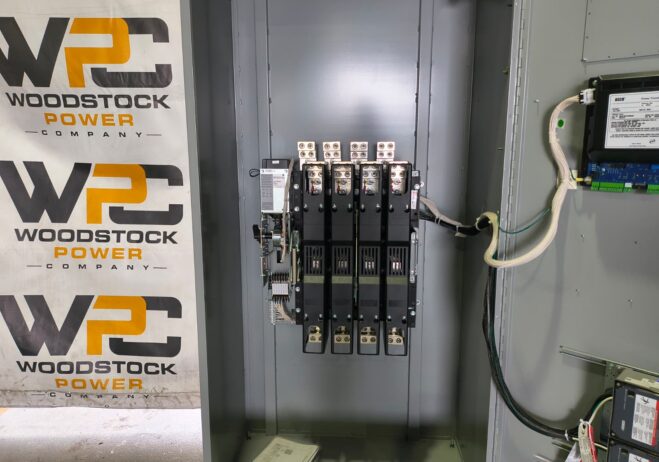

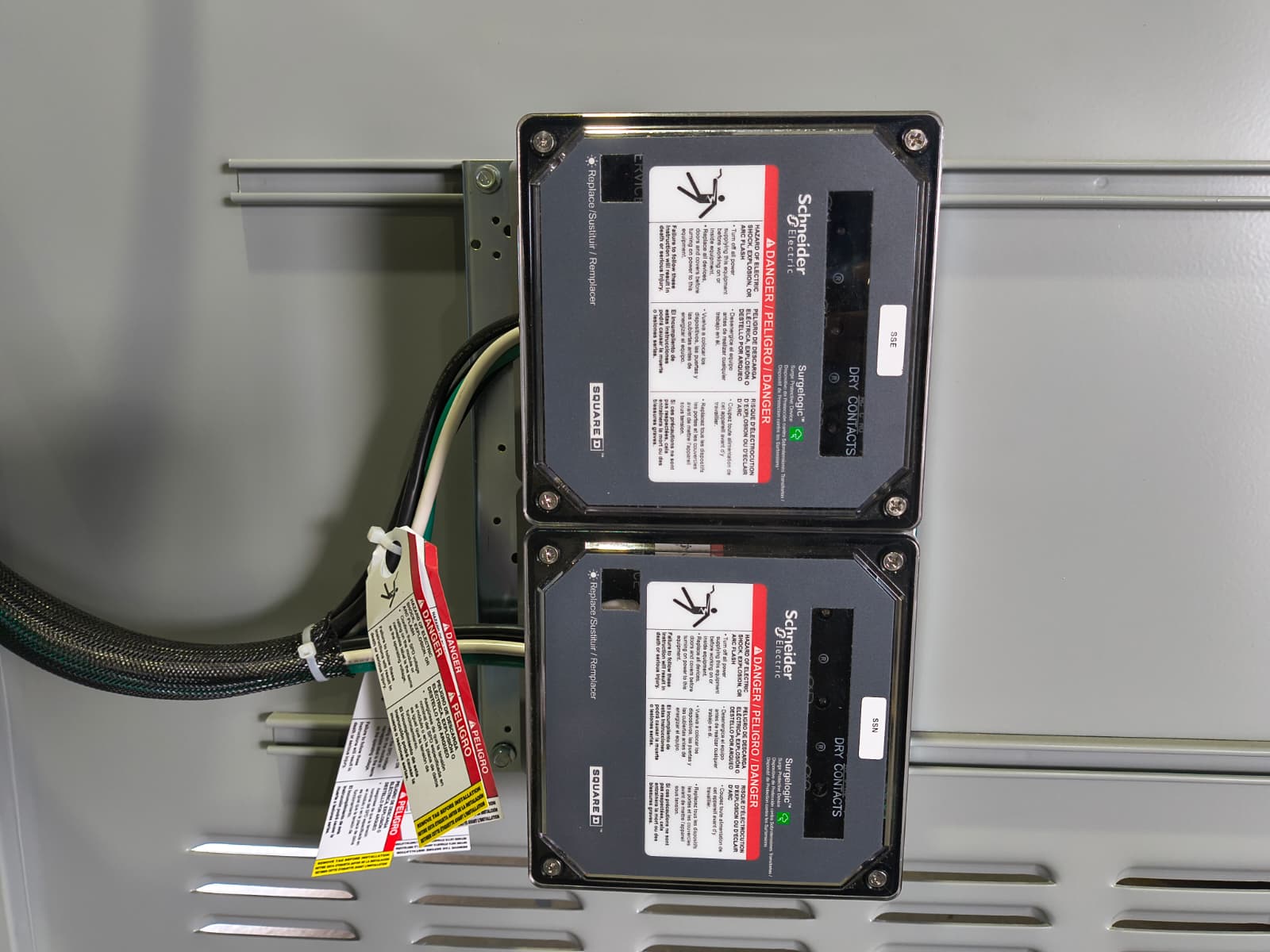

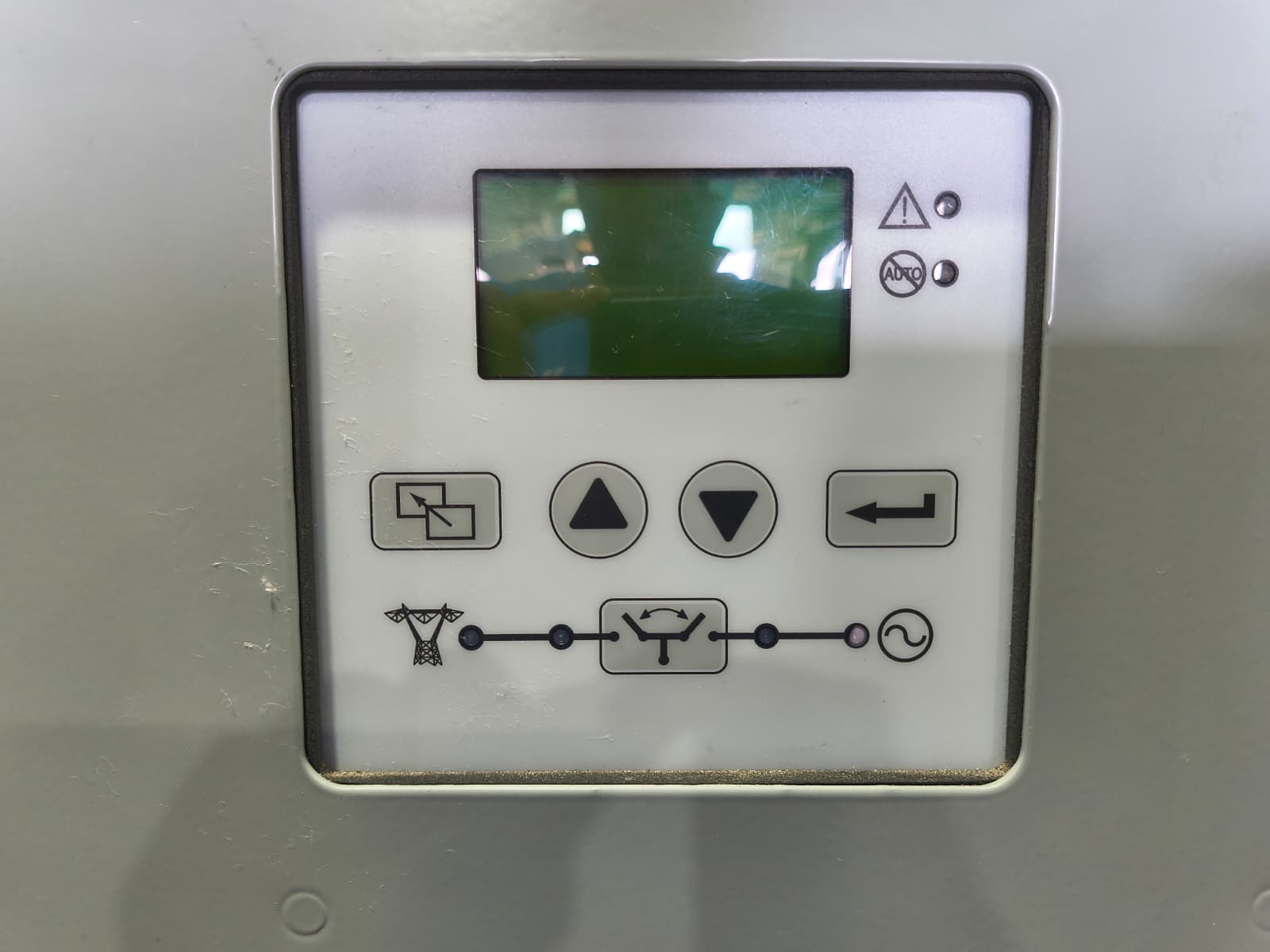

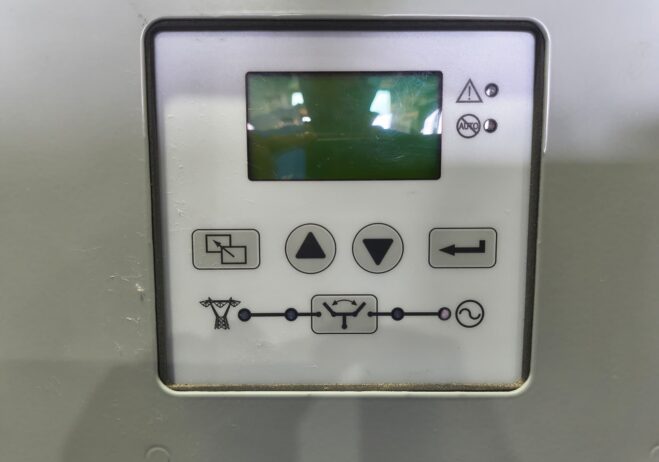

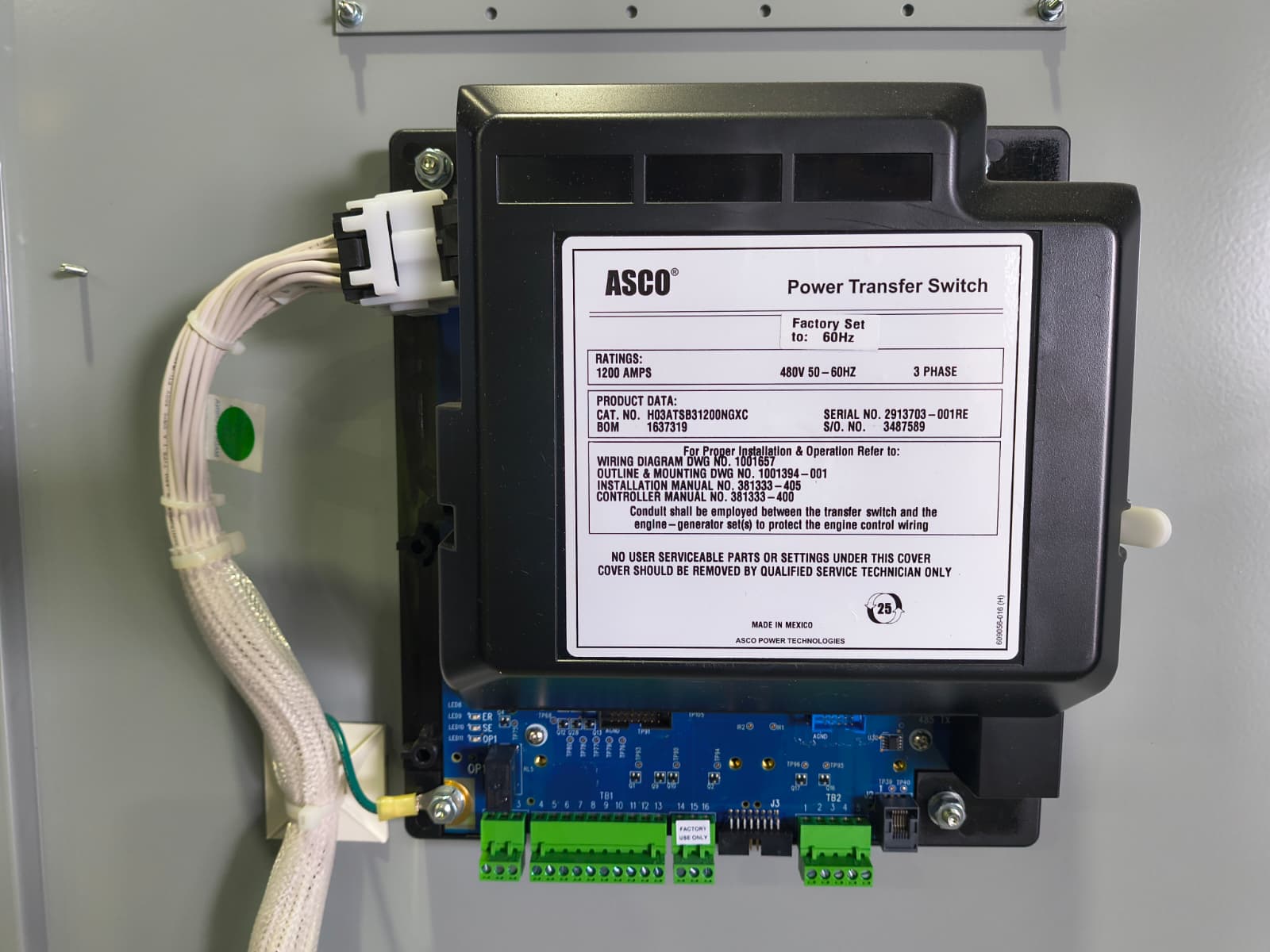

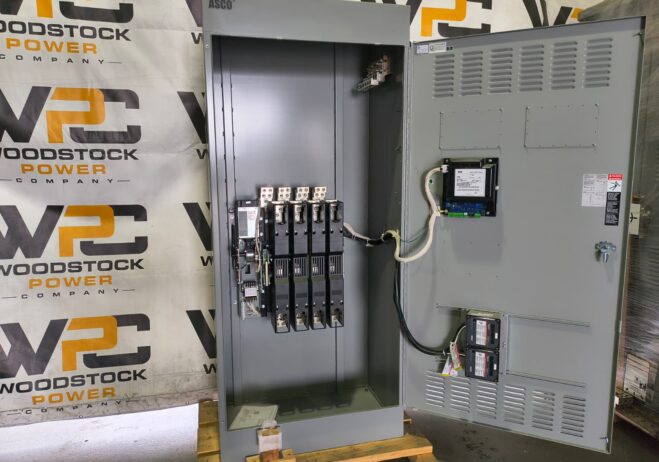

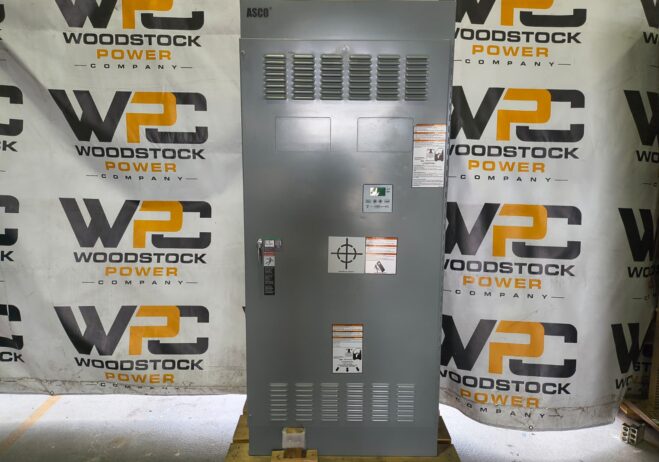

New 1200 Amp ASCO H03ATSB31200NGXM Automatic Transfer Switch 1200 amp automatic transfer switch NEMA 3R 480V 3-Phase 4-Pole 4-Wire Switched [B] neutral configuration Open transition Option accessories: 11BE – Adds the following features to the Group G controller: (1) Serial RS-485 Modbus Communications (2) Multi-Schedule Engine Exerciser (3) a 300 Entry Event Log and (4) a common alarm output function. When applied on 3-Phase systems it also enables: (1) 3-Phase Emergency Source VLL sensing (2) Phase Rotation Monitoring (3) Emergency Source VLL Unbalance Monitoring 73CC – 100KA—-SE XDSE Series surge suppressor, 100kA per mode. Connected to Normal and Emergency only 3 Phase 4 Wire Wye |
|
