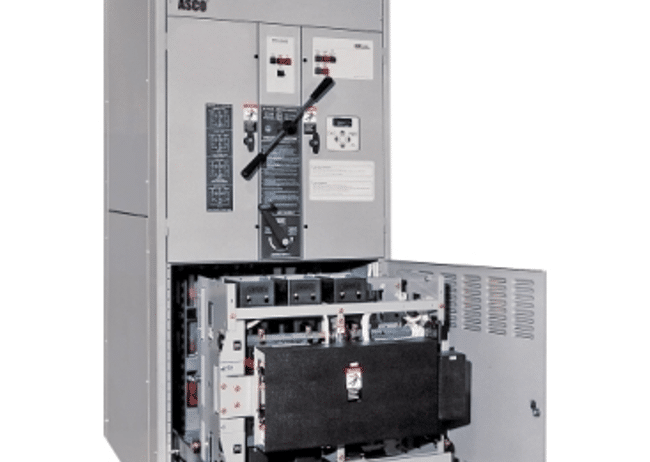

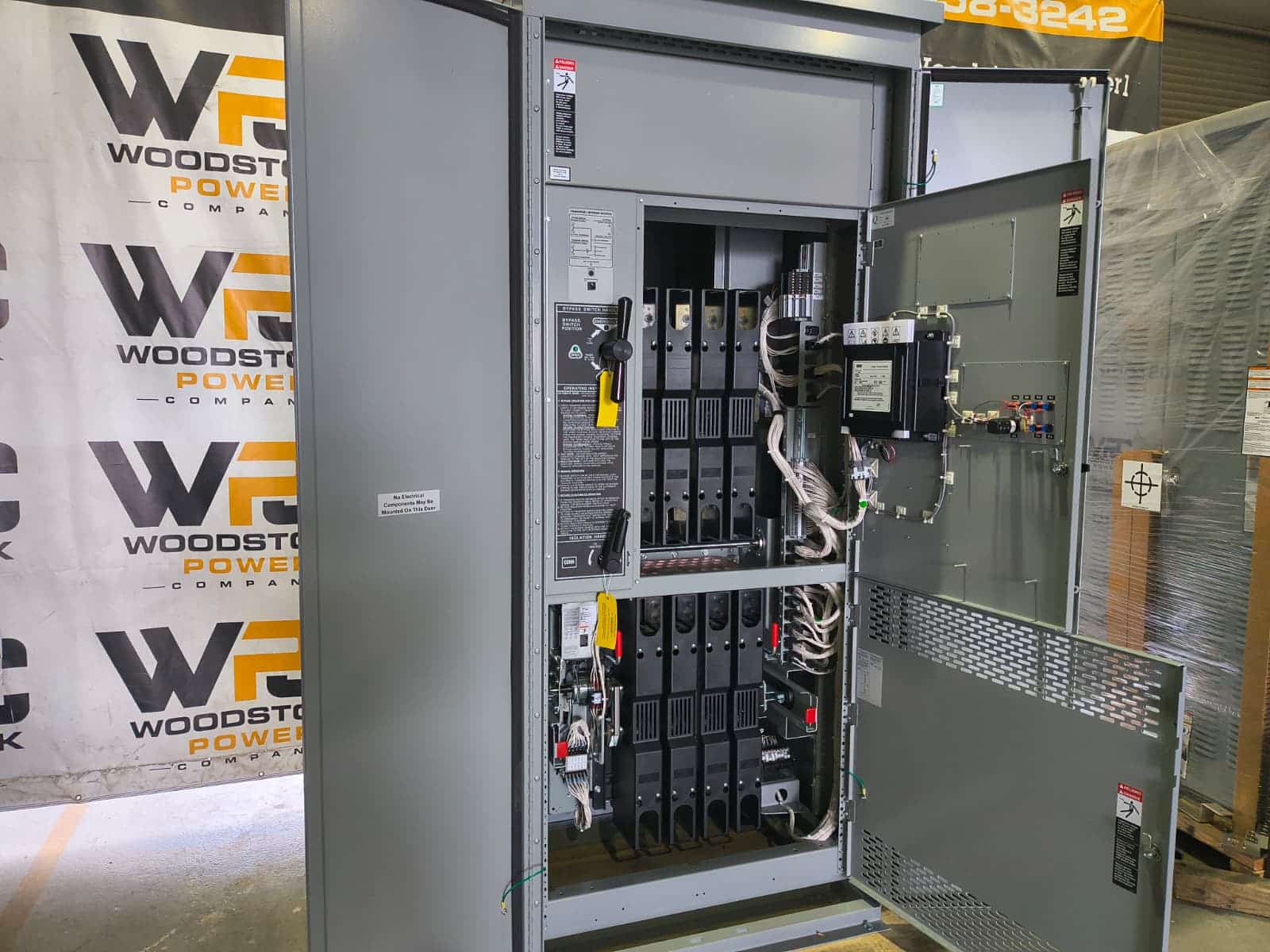

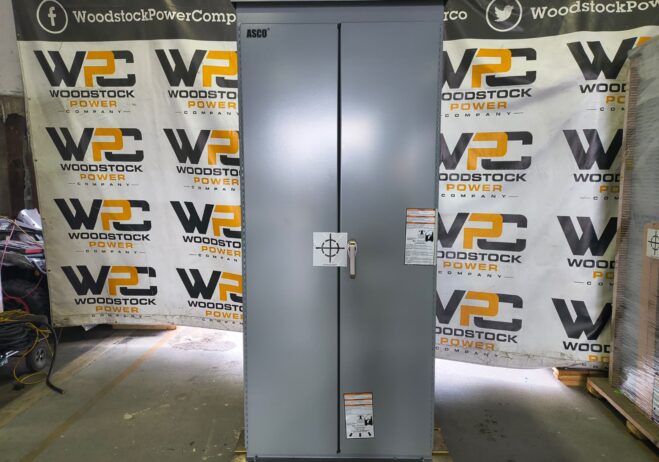

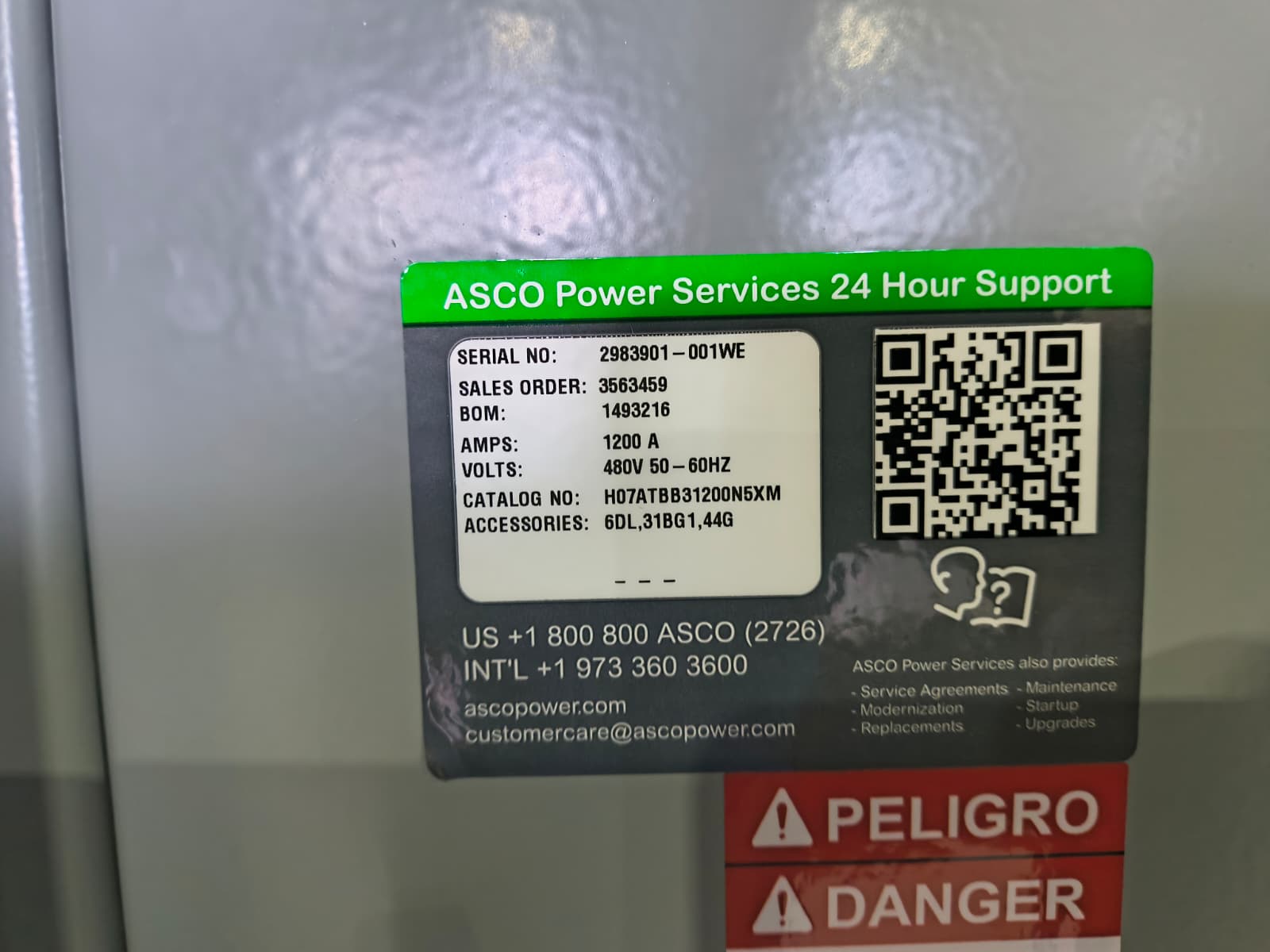

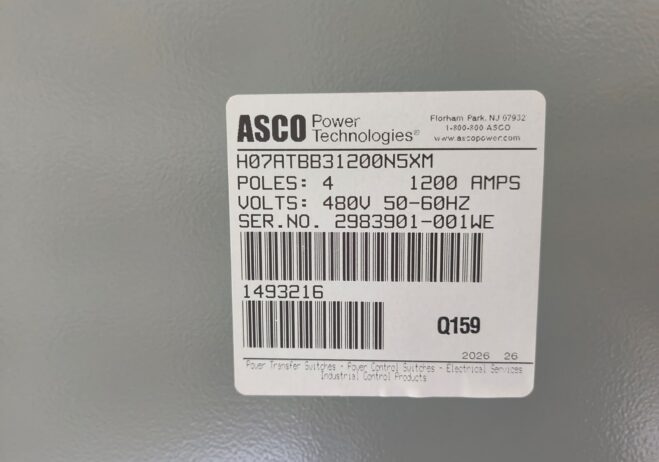

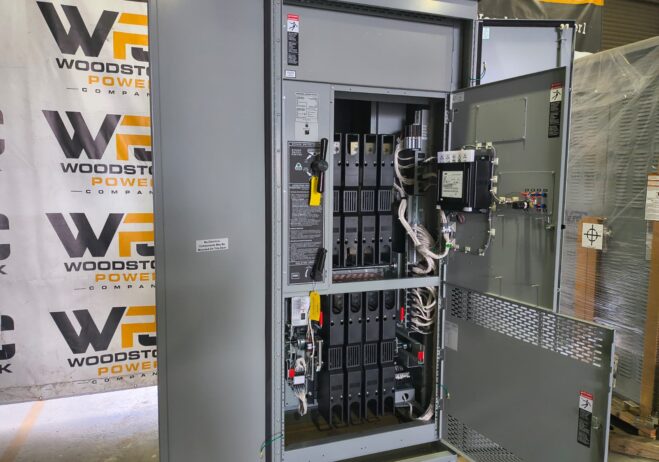

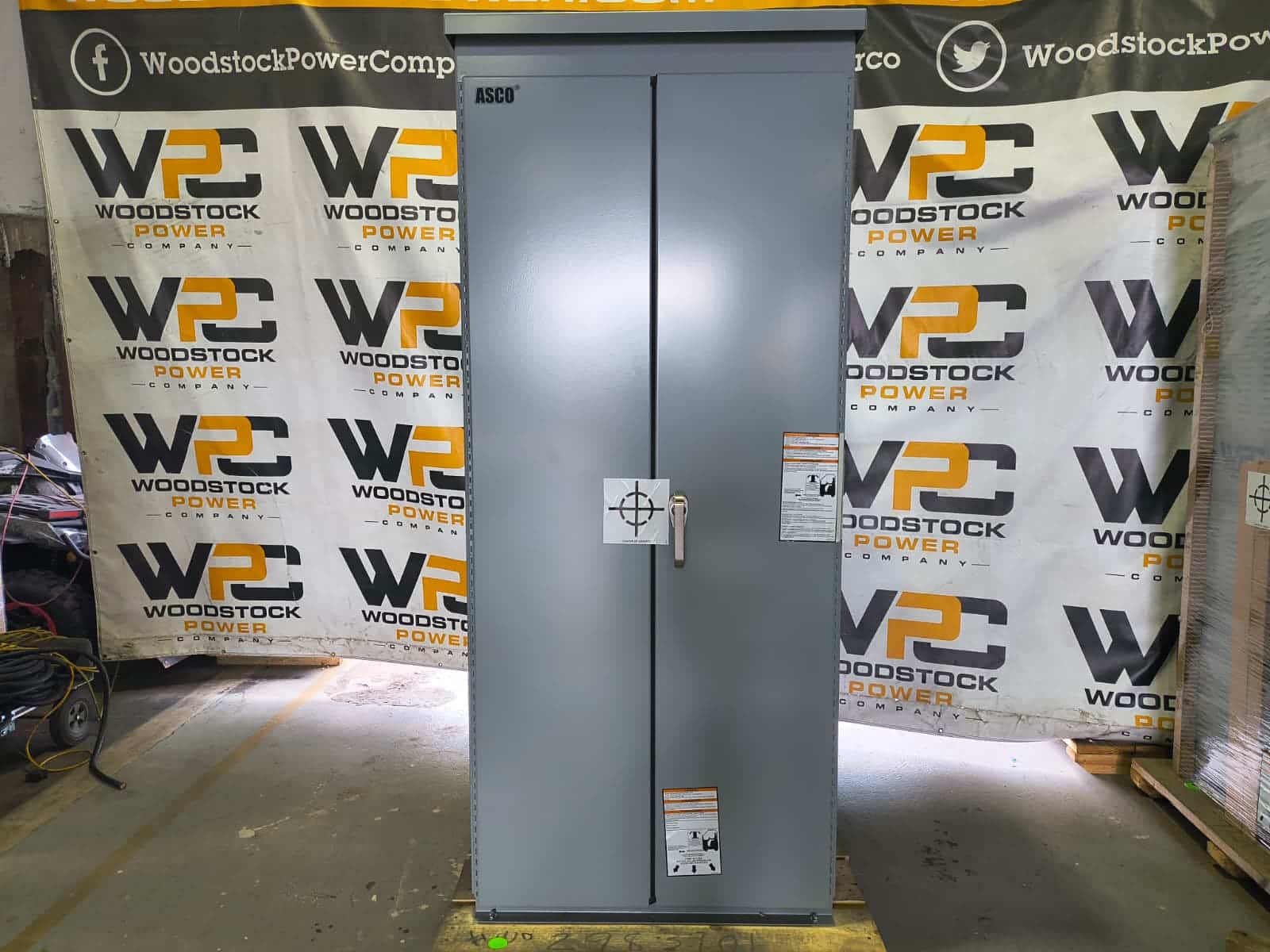

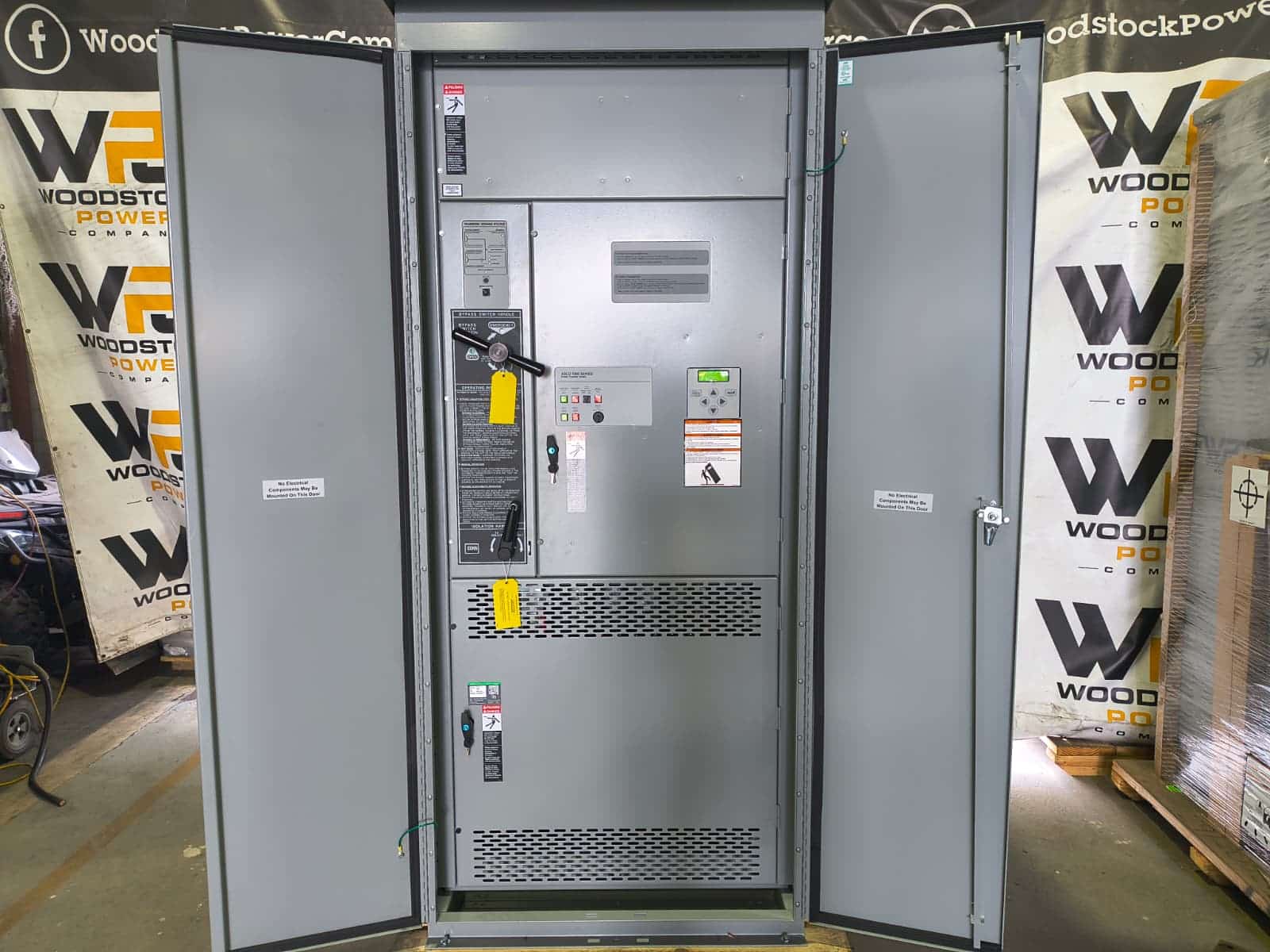

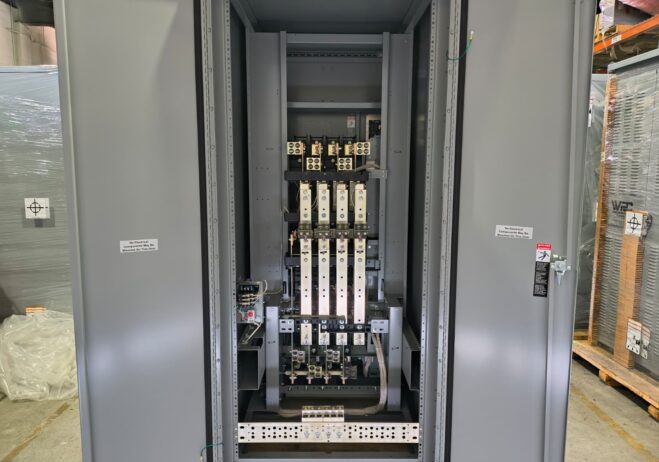

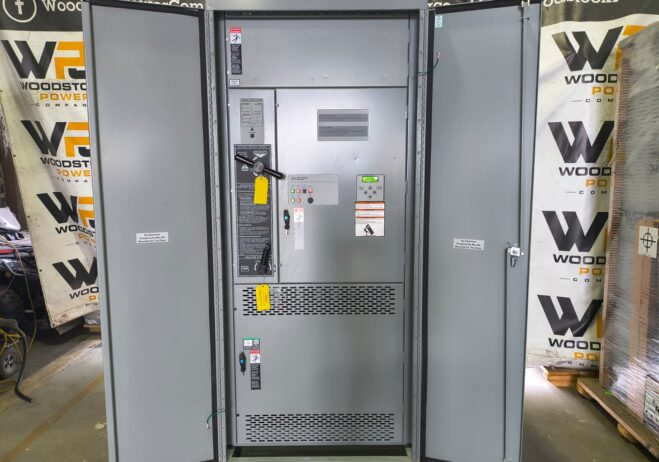

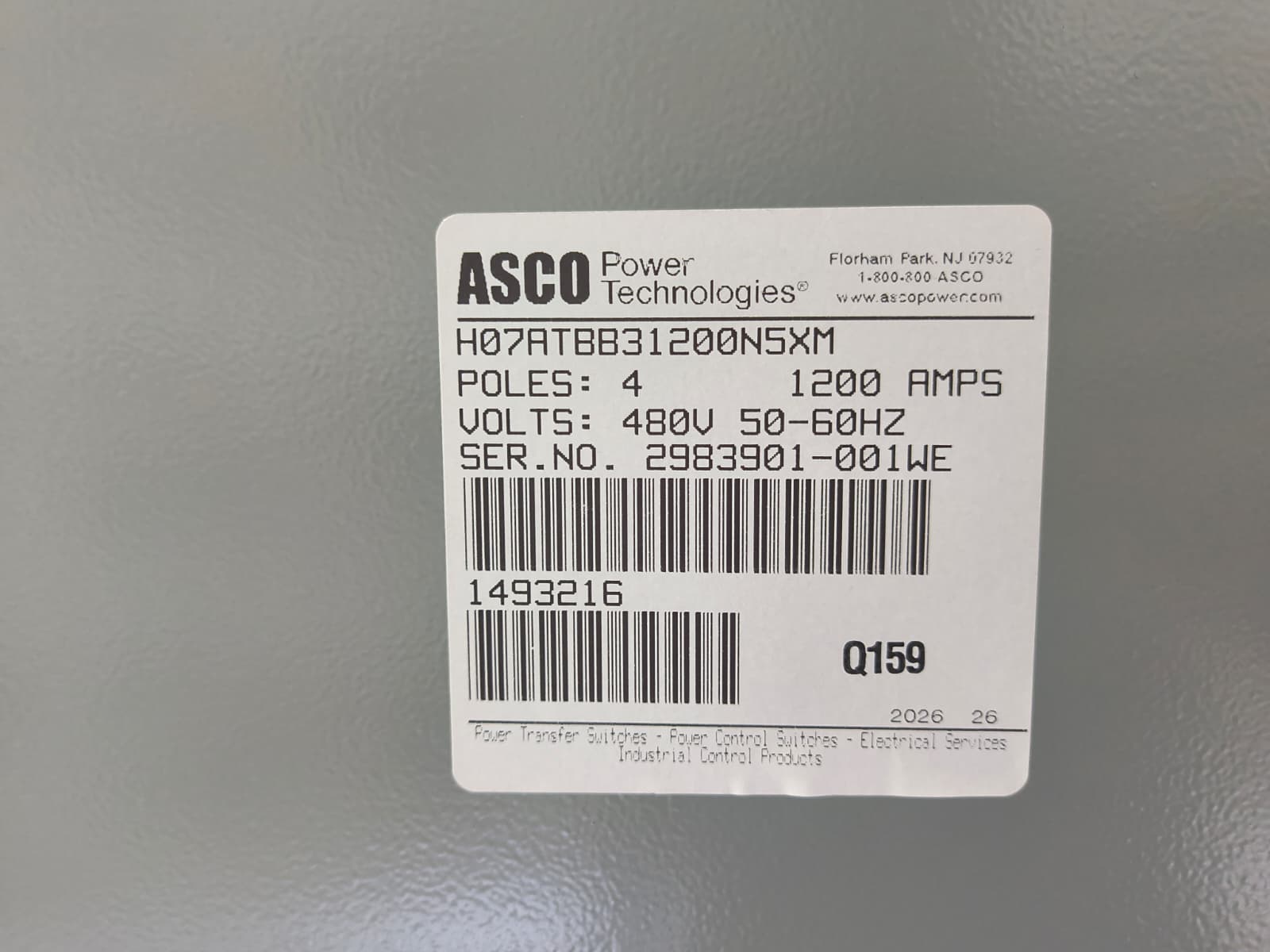

New 1200 Amp ASCO H07ATBB31200N5XM Bypass Isolation Switch

1200 amp bypass isolation switch

NEMA 3R

480V

3-Phase

4-Pole

4-Wire

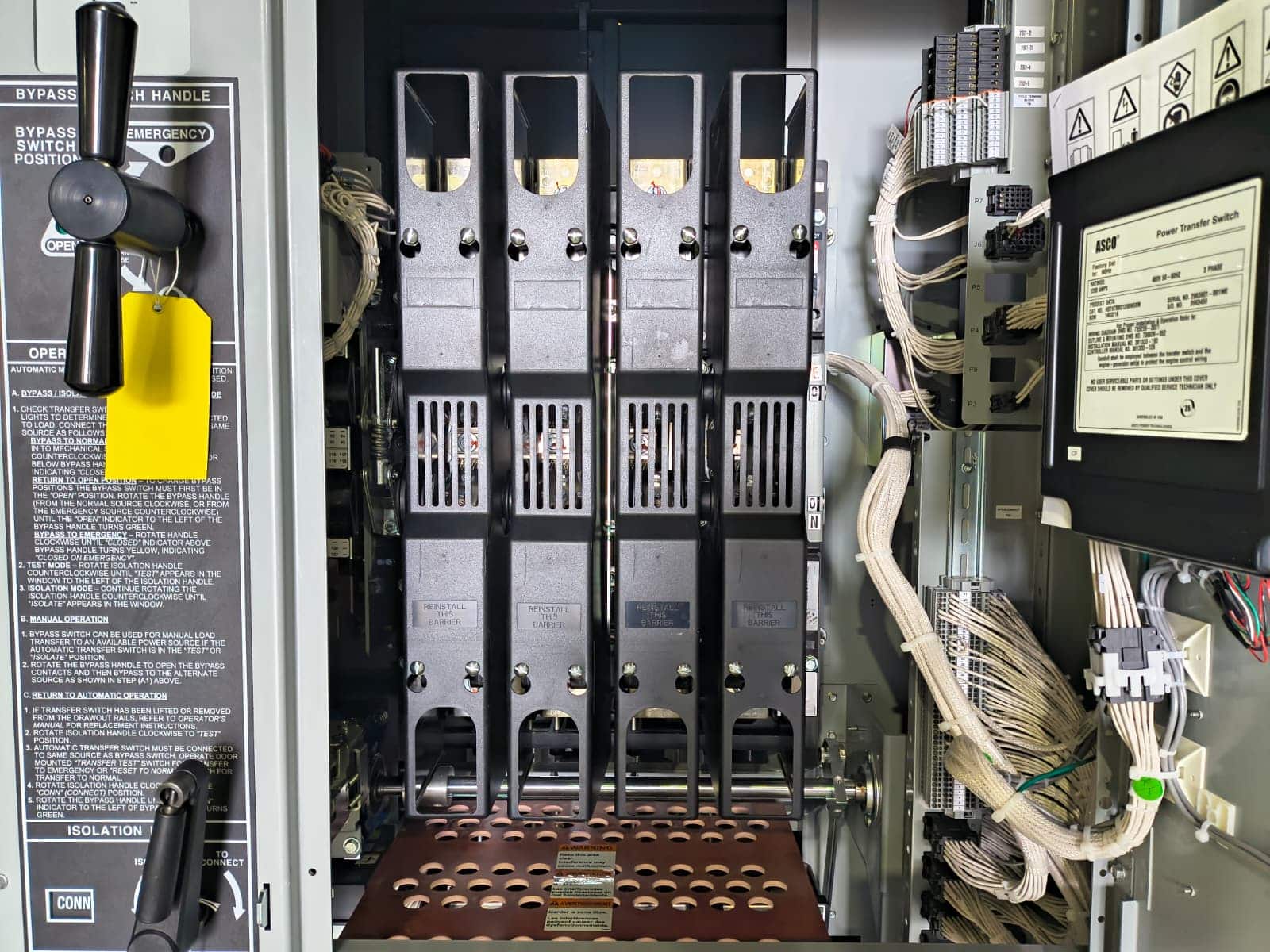

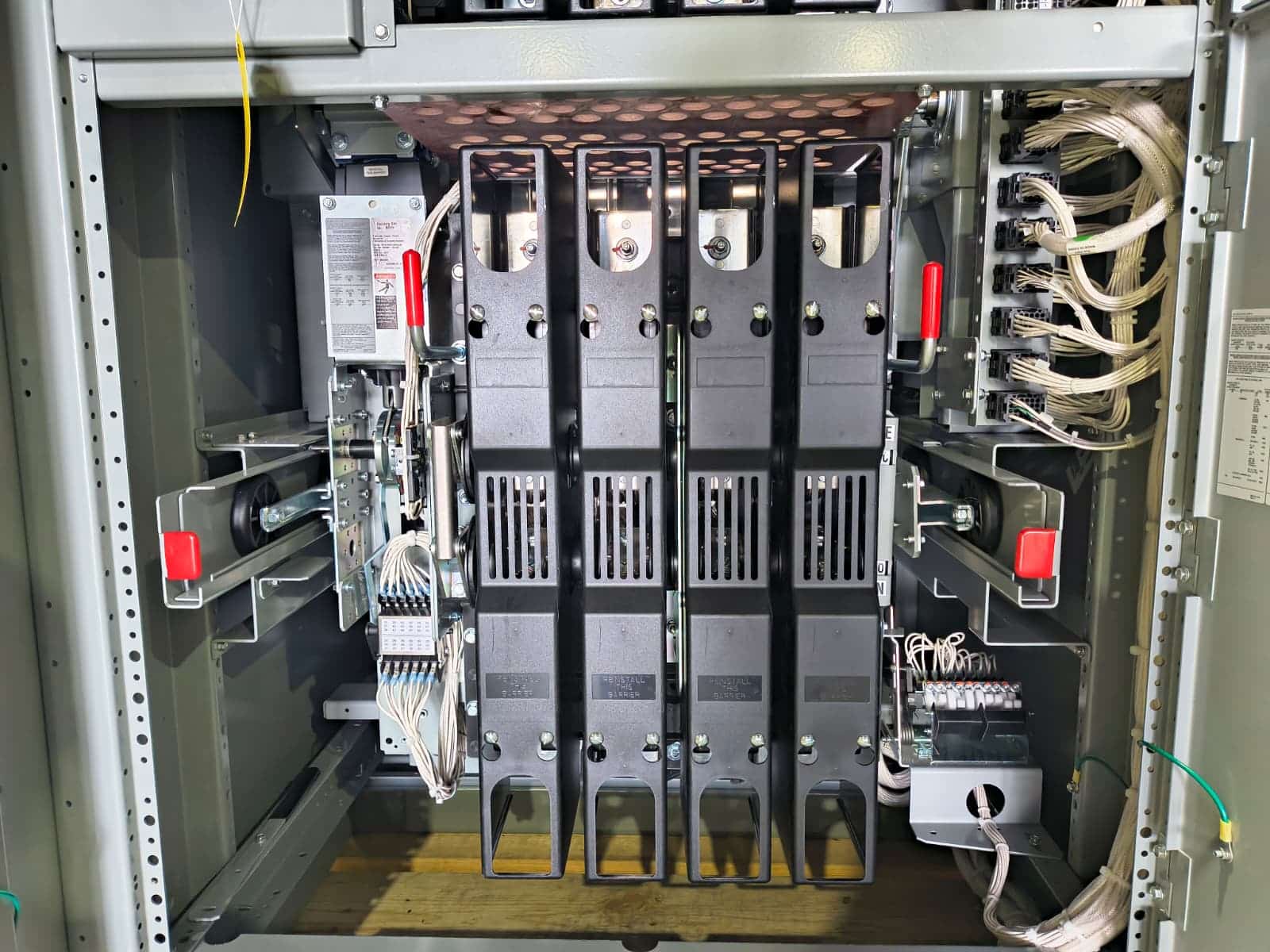

Automatic open transition bypass switch

Switched [B] neutral configuration

5 year extended warranty

Optional accessories:

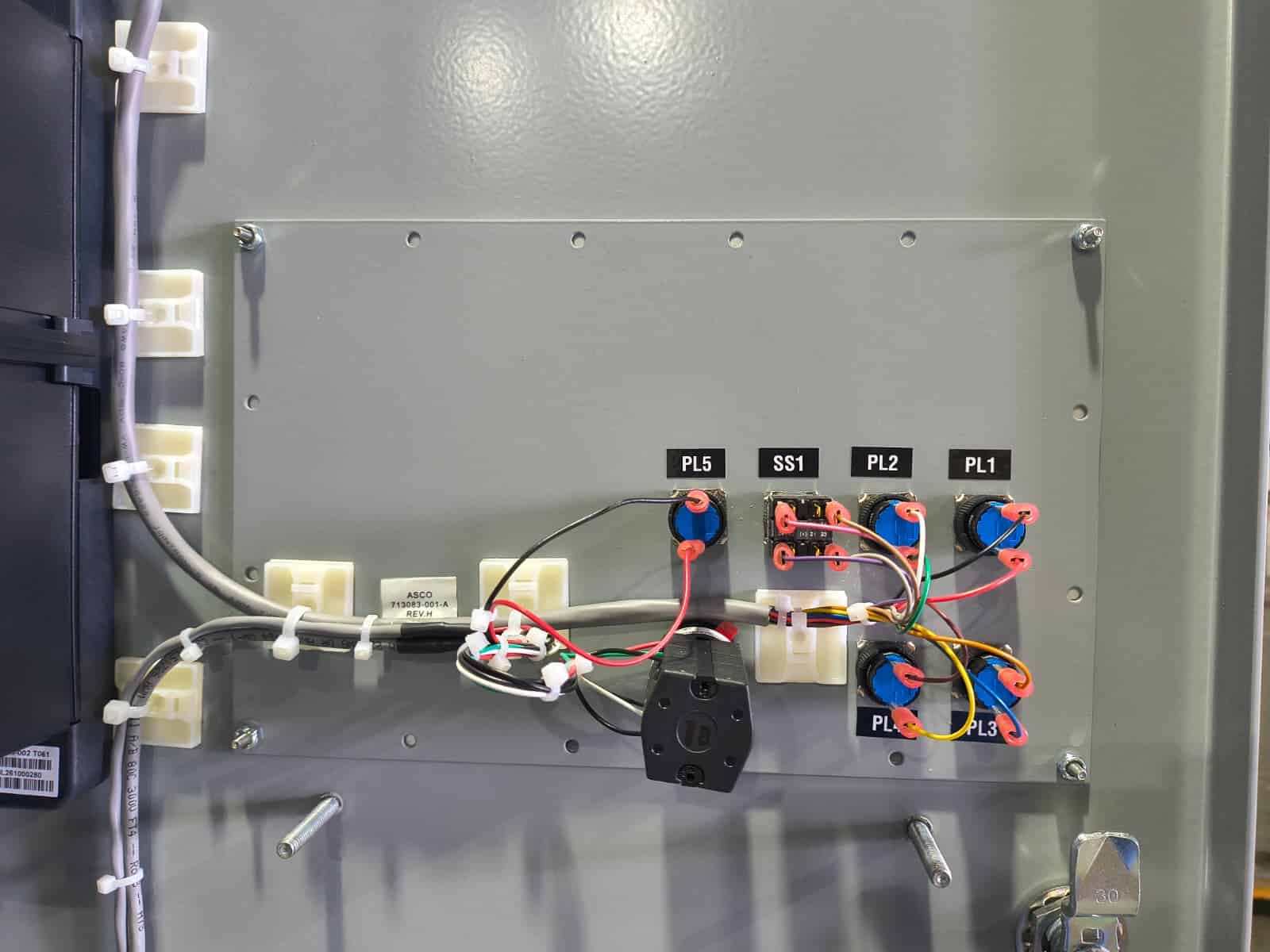

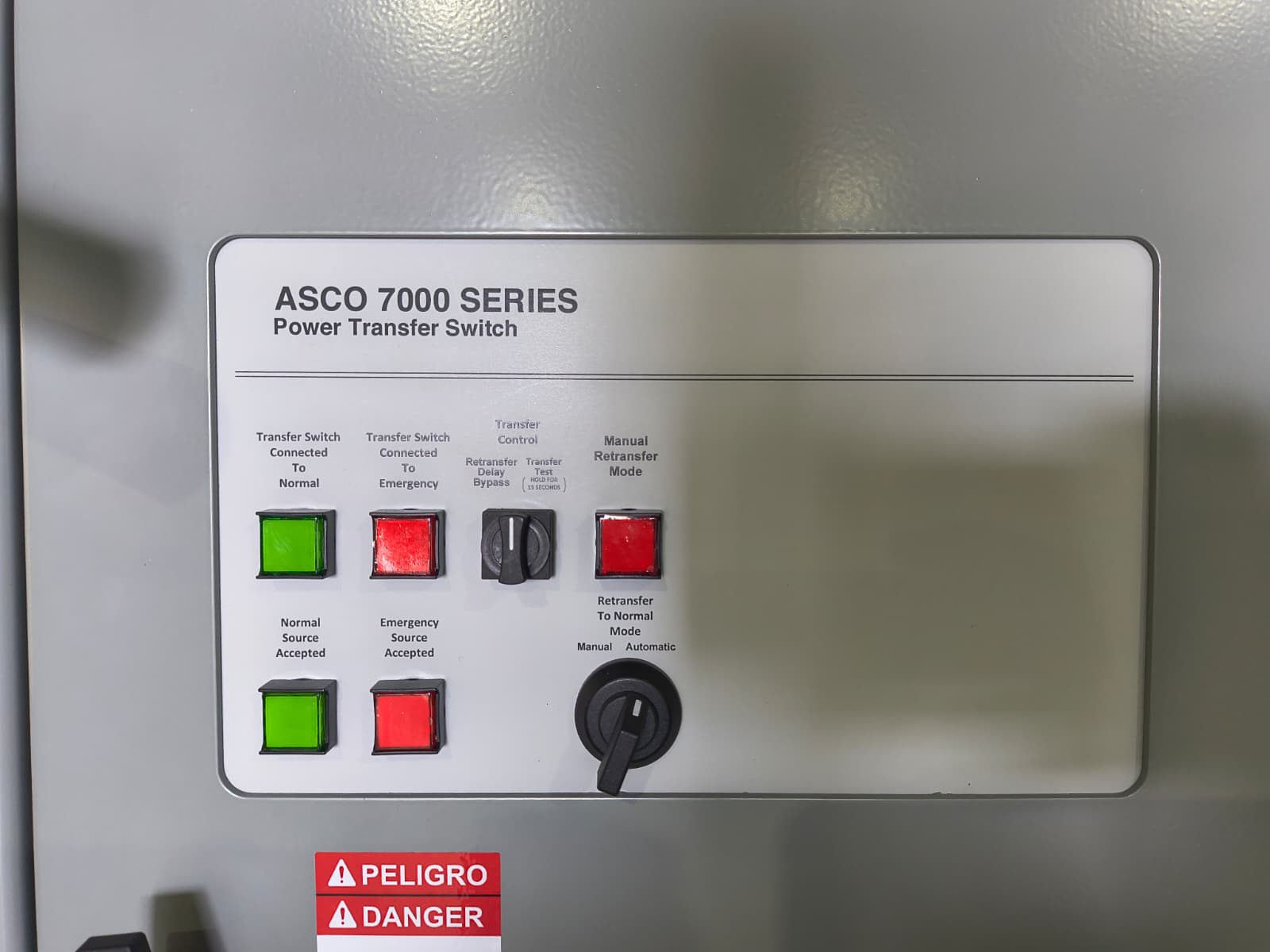

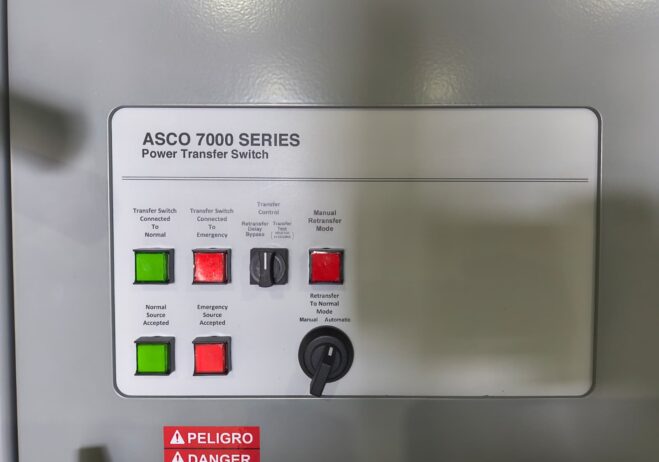

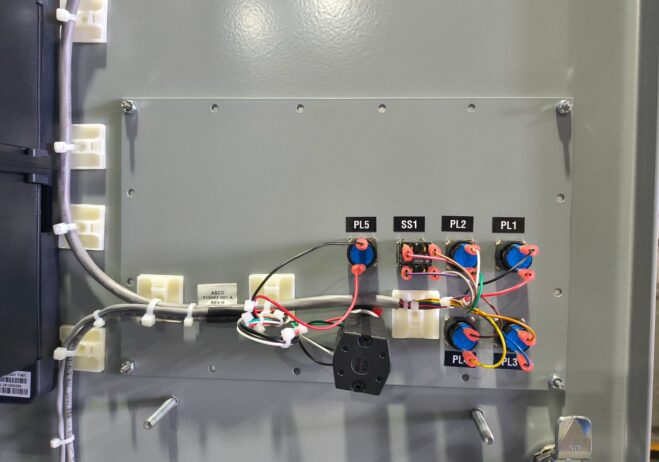

6J – This Accessory makes the switch Non-Automatic and it will be labeled as such. Selector switch for the selection of automatic or manual transfer to normal and emergency. Transfer mode: Selections automatic or manual operation. Manual mode control: selects transfer to normal or emergency.

31BG – Status Relay Bundle – Provides 1 relay (3 total) for each of the following statuses, Normal Source Acceptability, Emergency Source Acceptability, Pre & Post Transfer Signal. Each relay has 2 NO/NC (Form C) sets of contacts rated for 6A at 120Vac, 250Vac Max.

40LY4 – Left Side Pull Box Type 3R, cannot ship loose, 1200A H Frame only

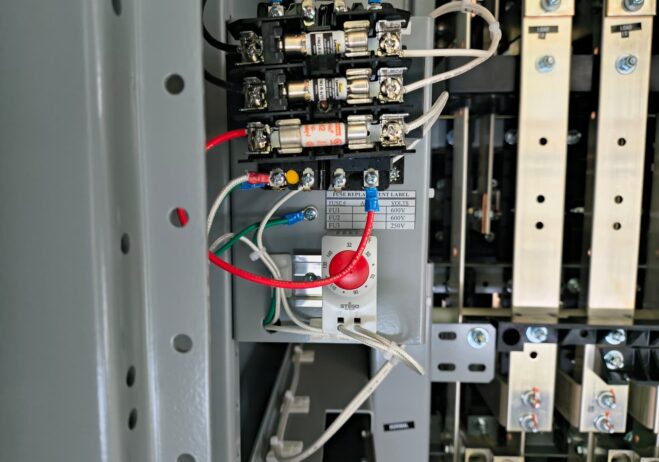

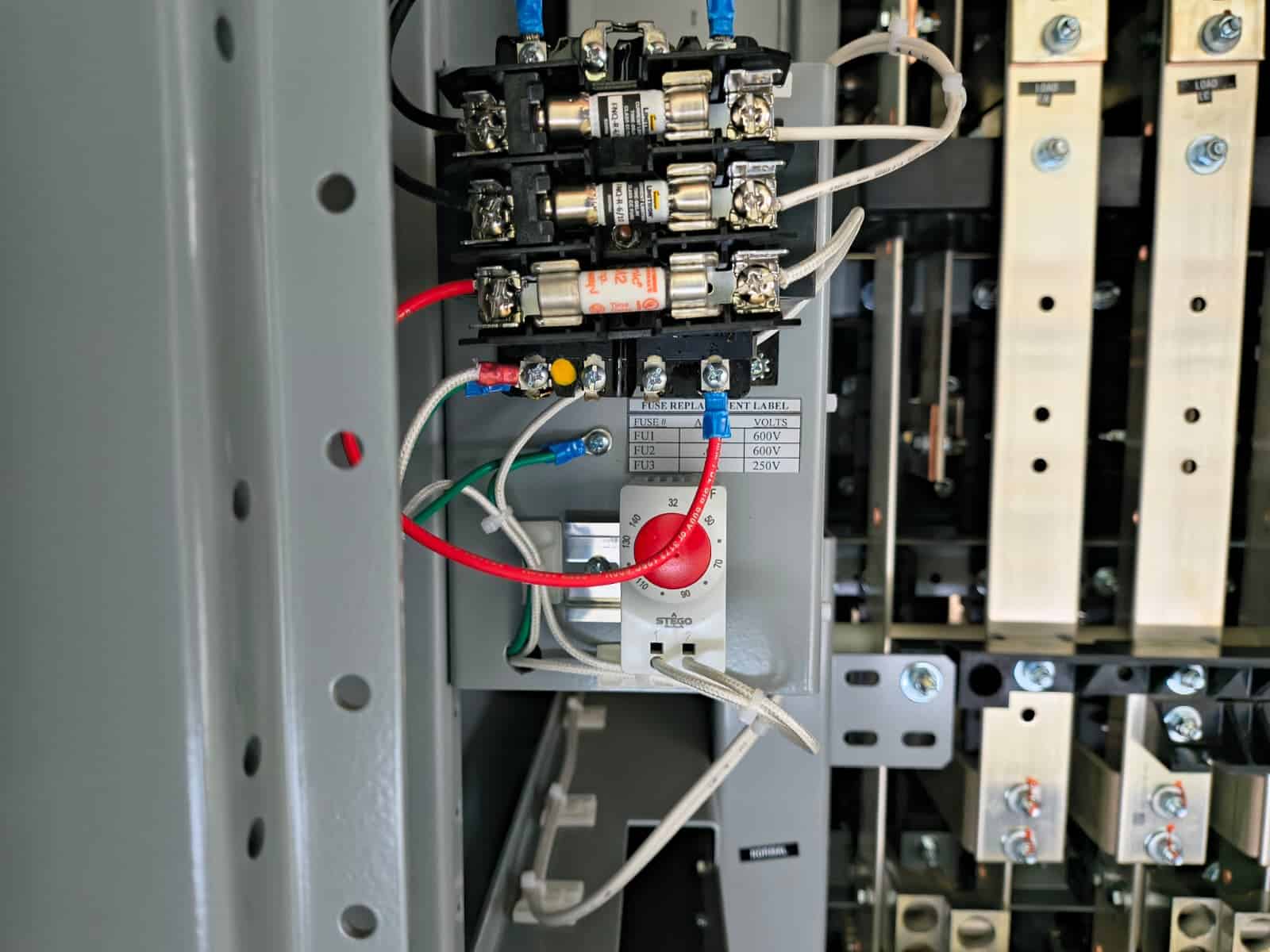

44G – Strip heater w/ thermostat, wired to load terminals: 208-600 volts

125A – This Product Meets or Exceeds The Requirement Of The International Building Code For Importance Factor 1.5 Electrical Equipment. For Use In Zone 4 Or Less Severe Seismic Regions. Consult ASCO for details.

150B – Group-5: Tech Bundle – Includes the following: 5210 Power Meter monitoring load side, Ethernet Comm Module, Extended 25sec ride through via internal buffer module, Provisions for customer supplied 24Vdc backup power, Bypass/ISO status wired to IO module for external communication (Contains acc 135SB, 1PS1, & 72EE2). PowerLogic Source Controller: Tech Bundle – Includes the following: PM 5000 Power Meter monitoring load side, Ethernet Comm Module, Extended 24sec ride through via internal buffer
