| Specifications | |
|---|---|
| Manufacturer | ASCO |
| Type | NEMA 3R |
| Voltage | 480V |
| Amps | 2000 |
| Transition Type | Open |
| Frequency | 60 Hz |

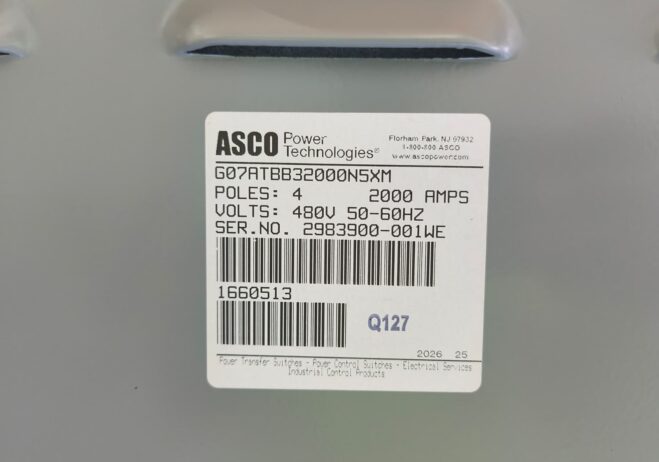

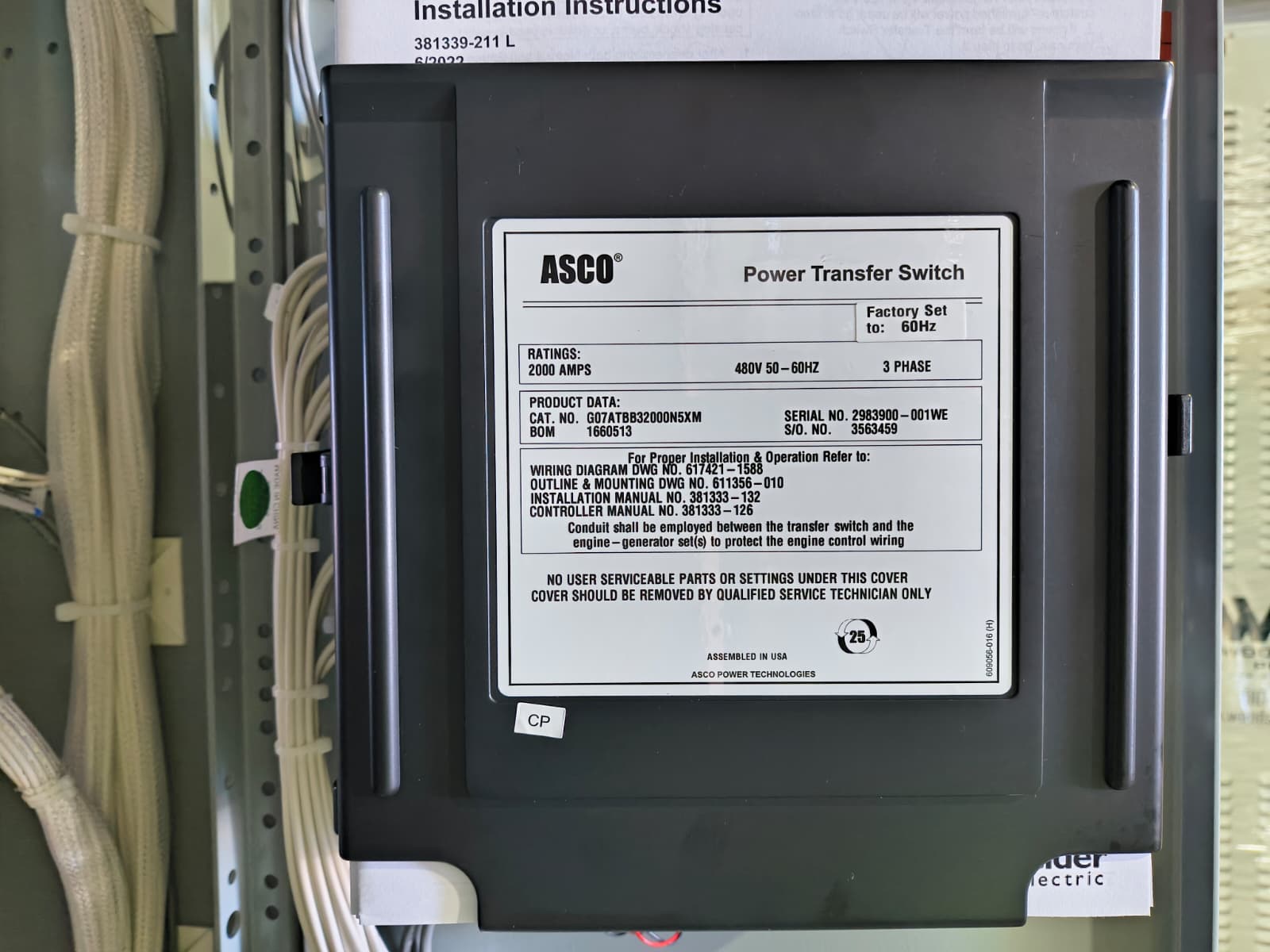

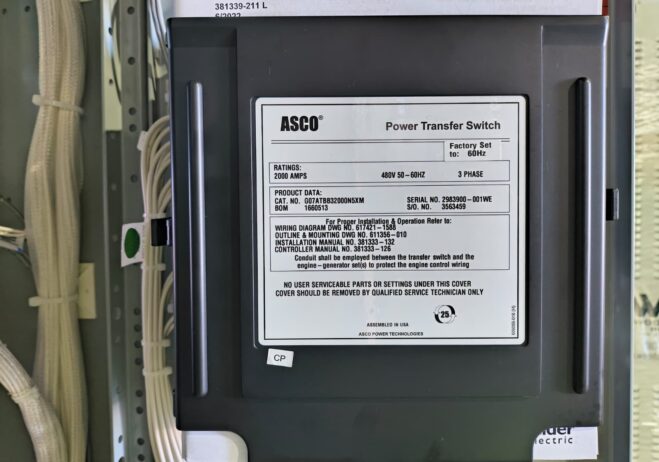

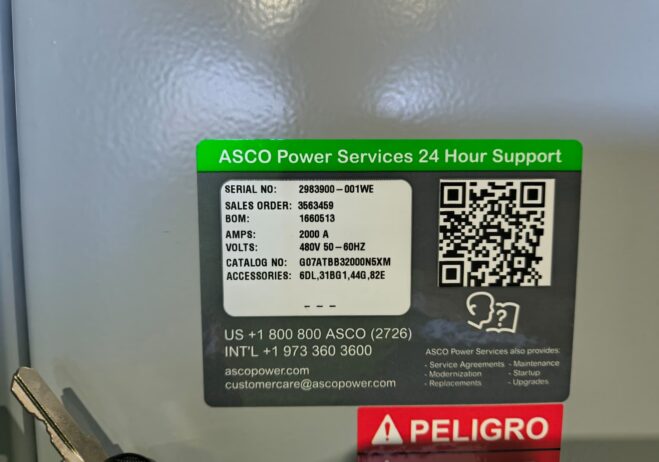

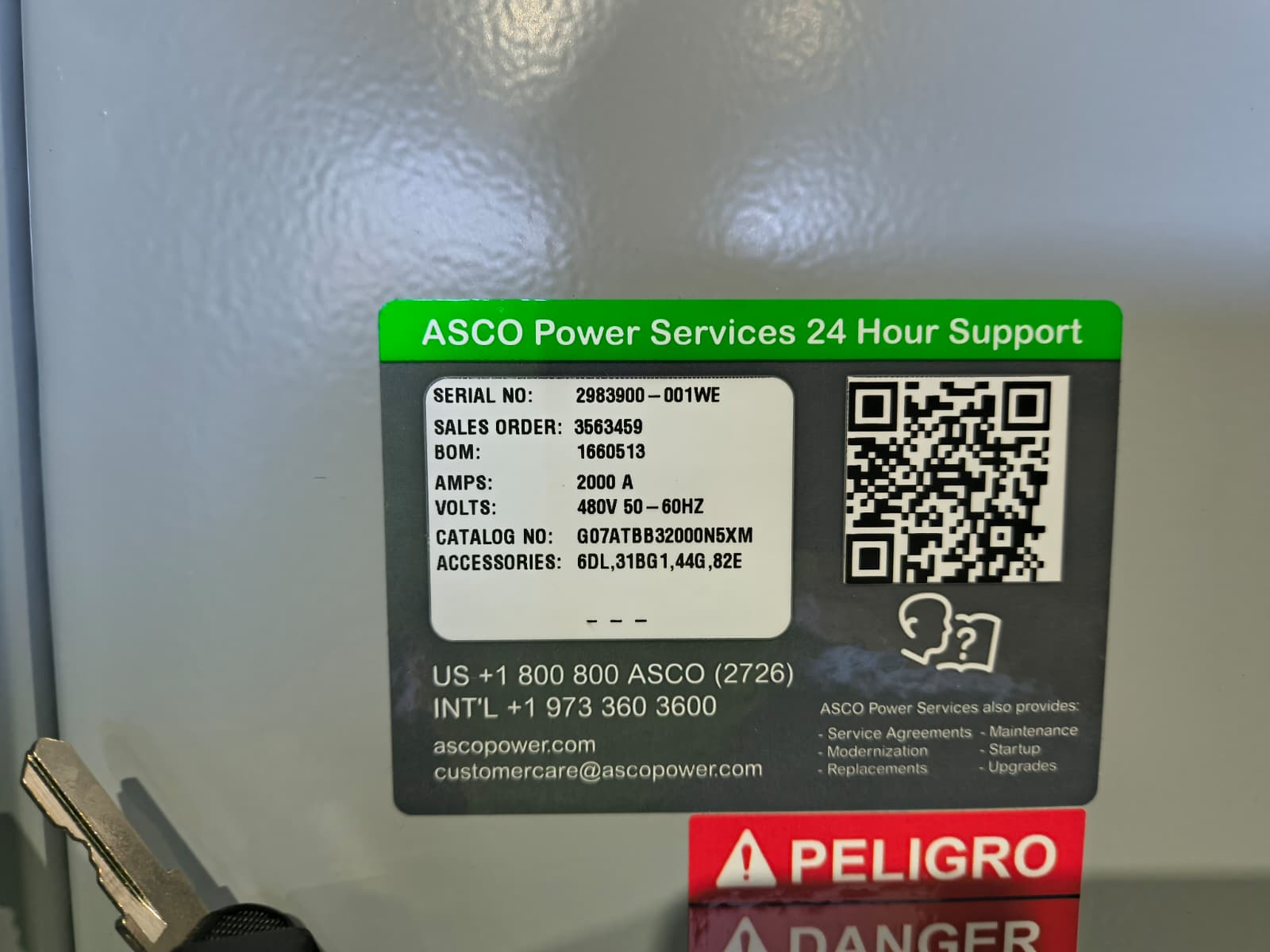

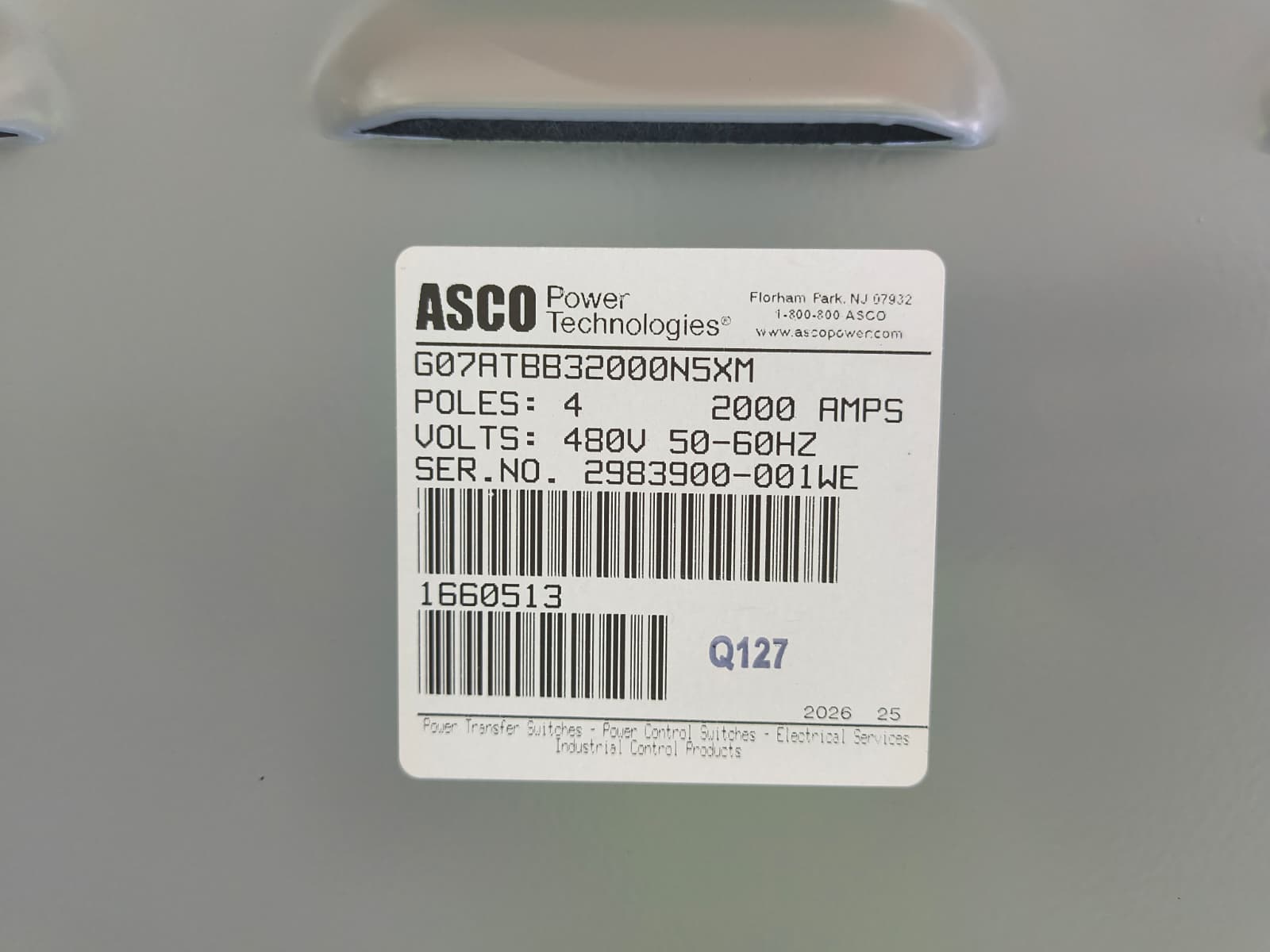

| ATS Model | G7ATBB32000N5XM |

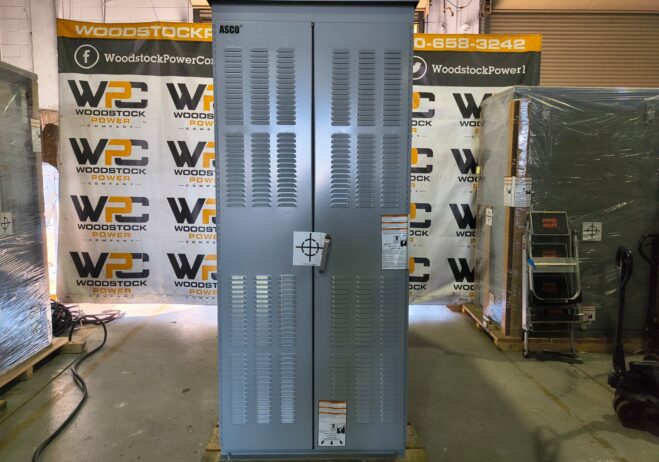

| Overall Dimensions | 41" x 74" x 96" | 3.300 lbs |
| Condition | New |
| Status | Available |
| Accessories | 6DL, 31BG1, 44G, 82E |
|
Additional Features

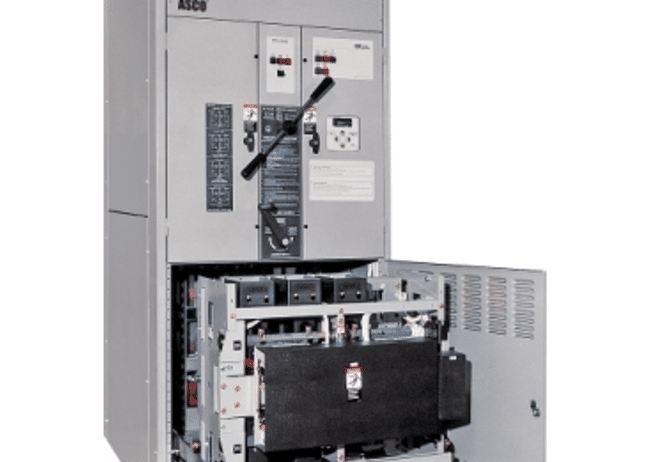

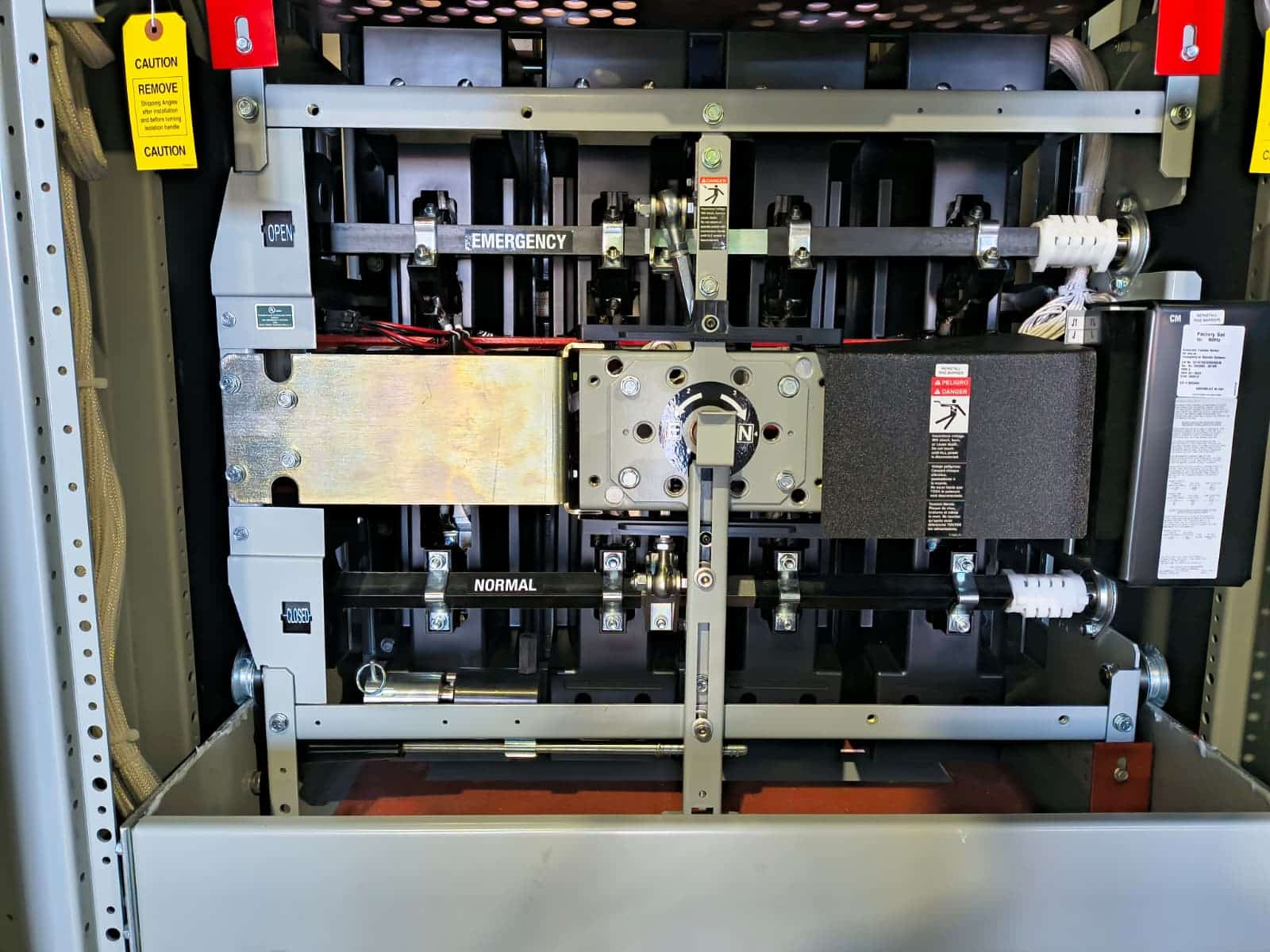

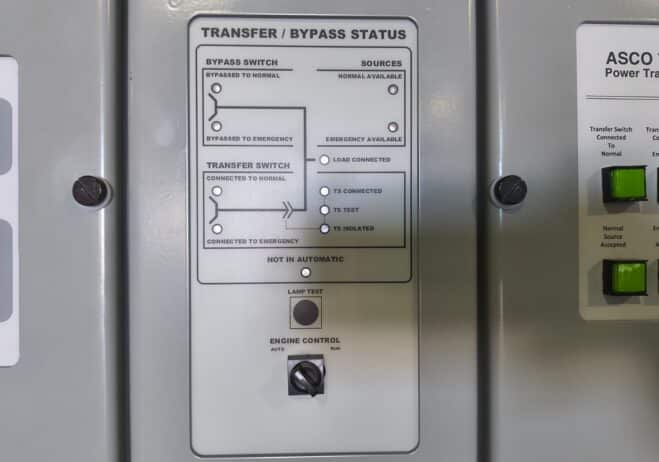

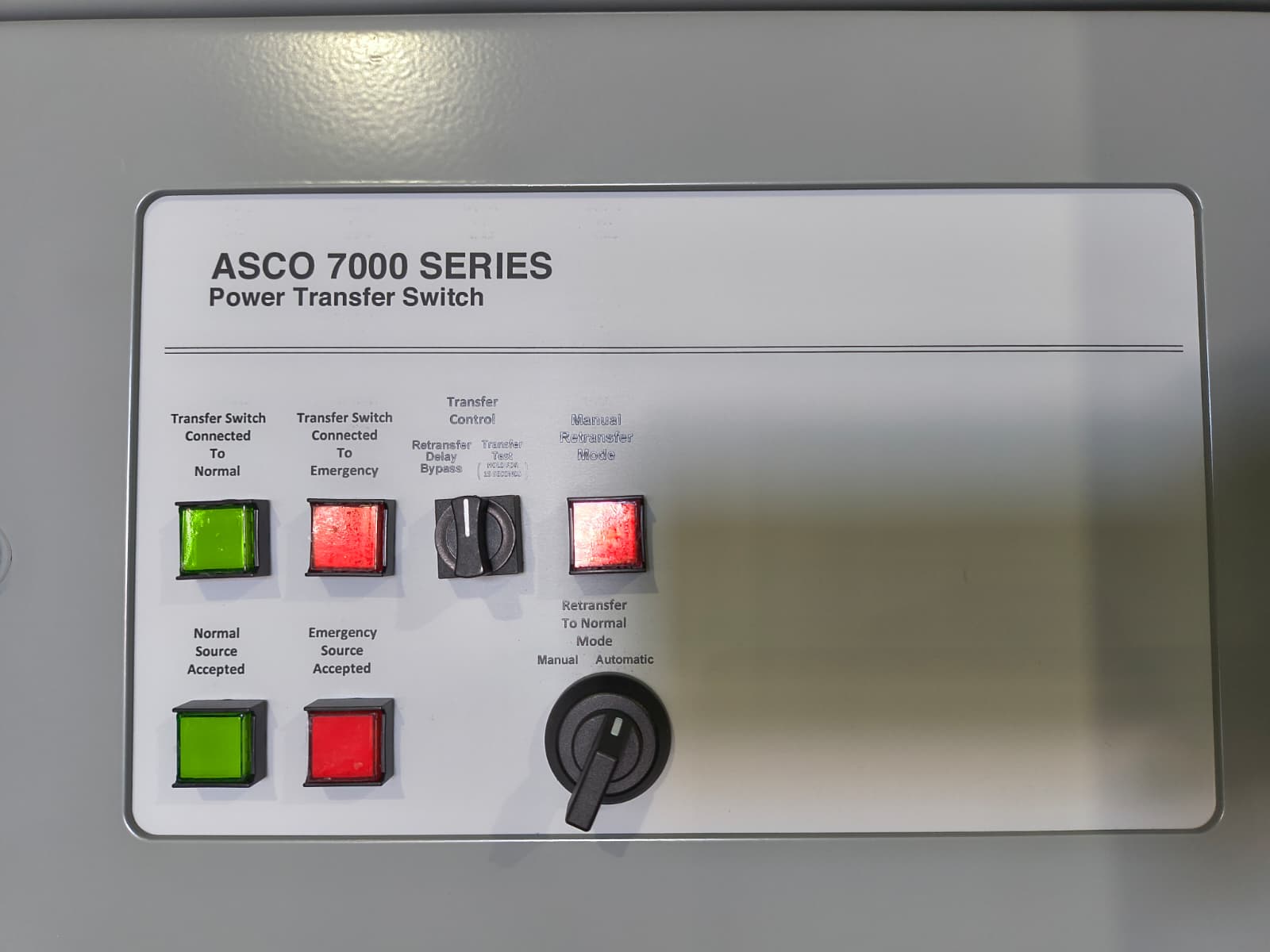

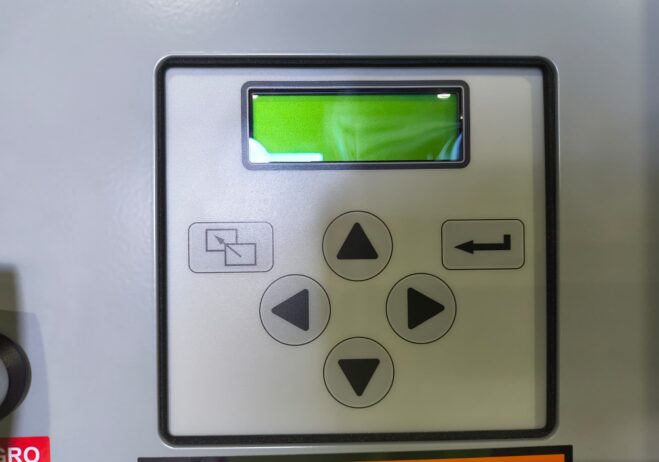

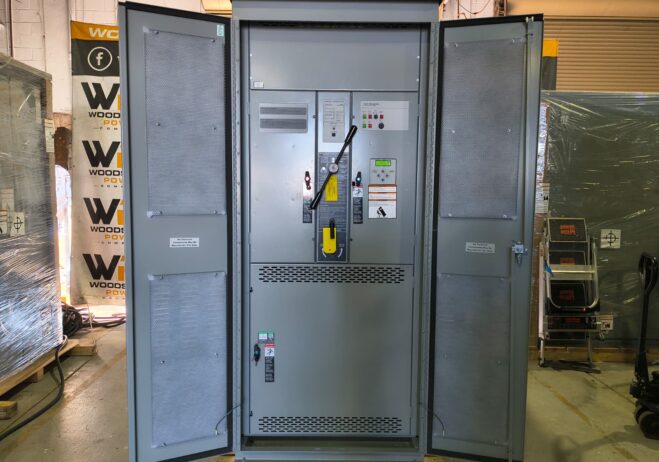

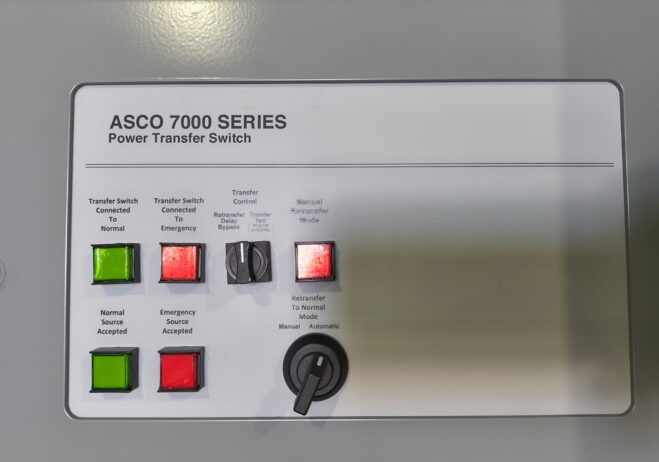

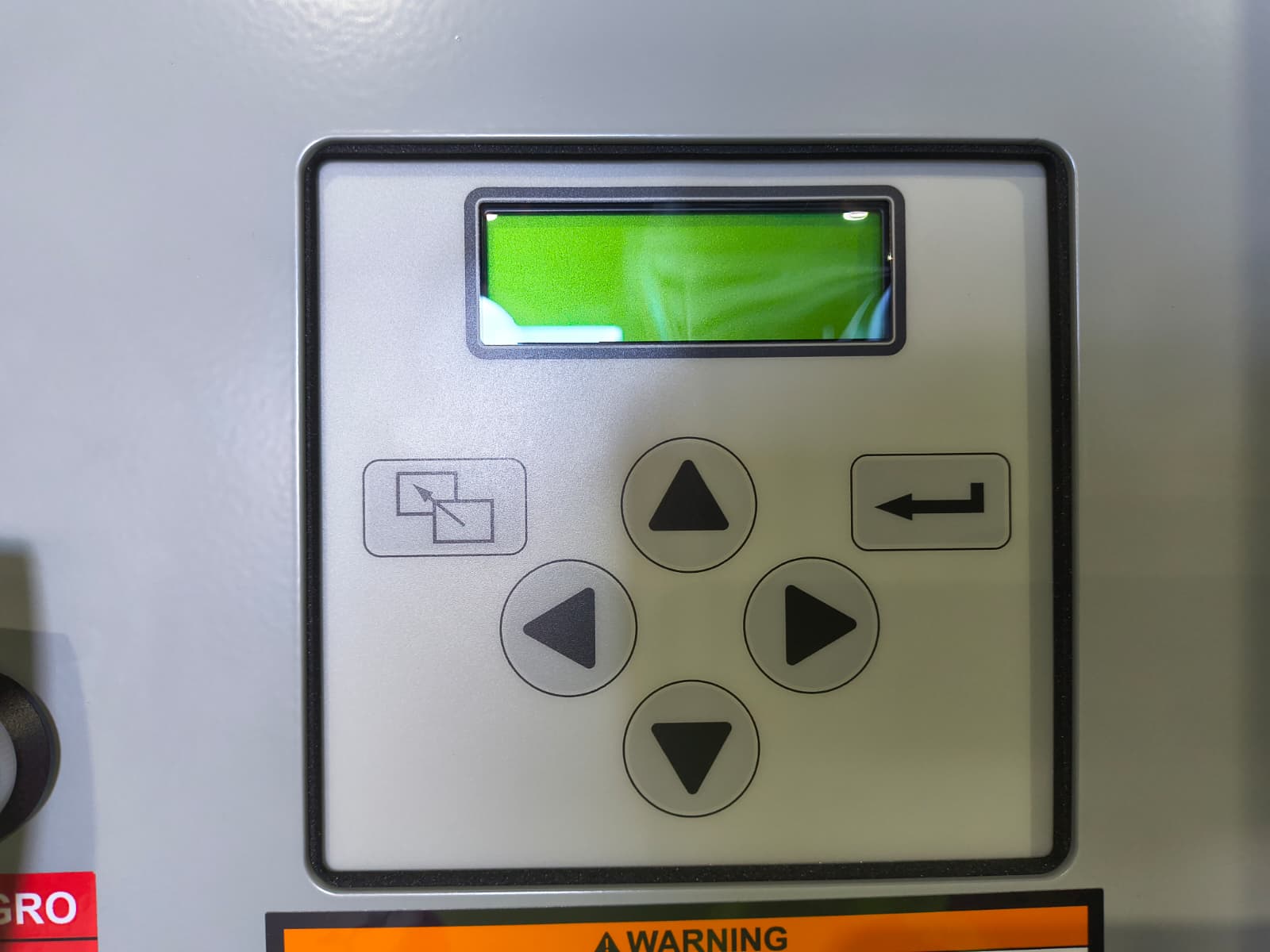

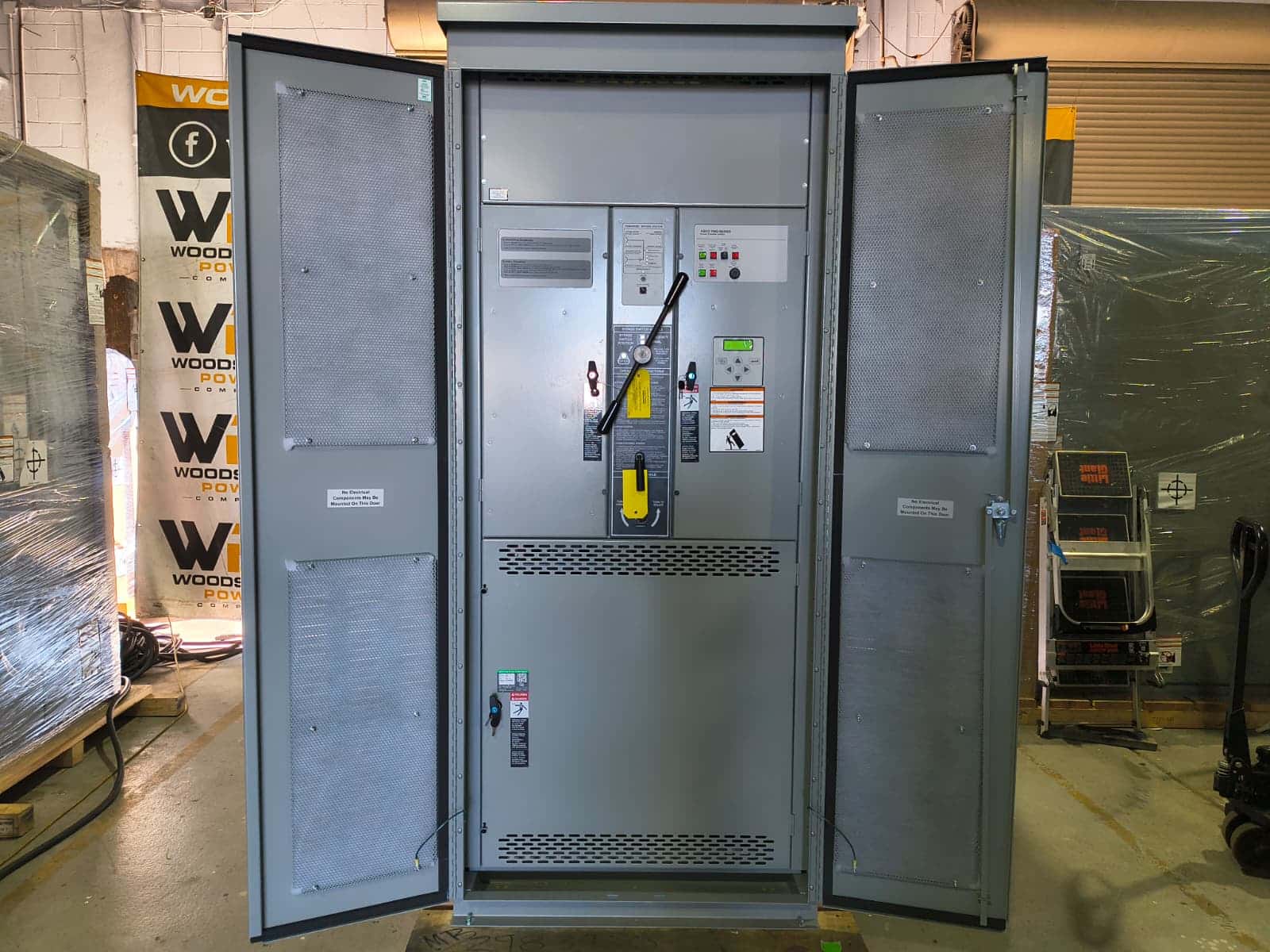

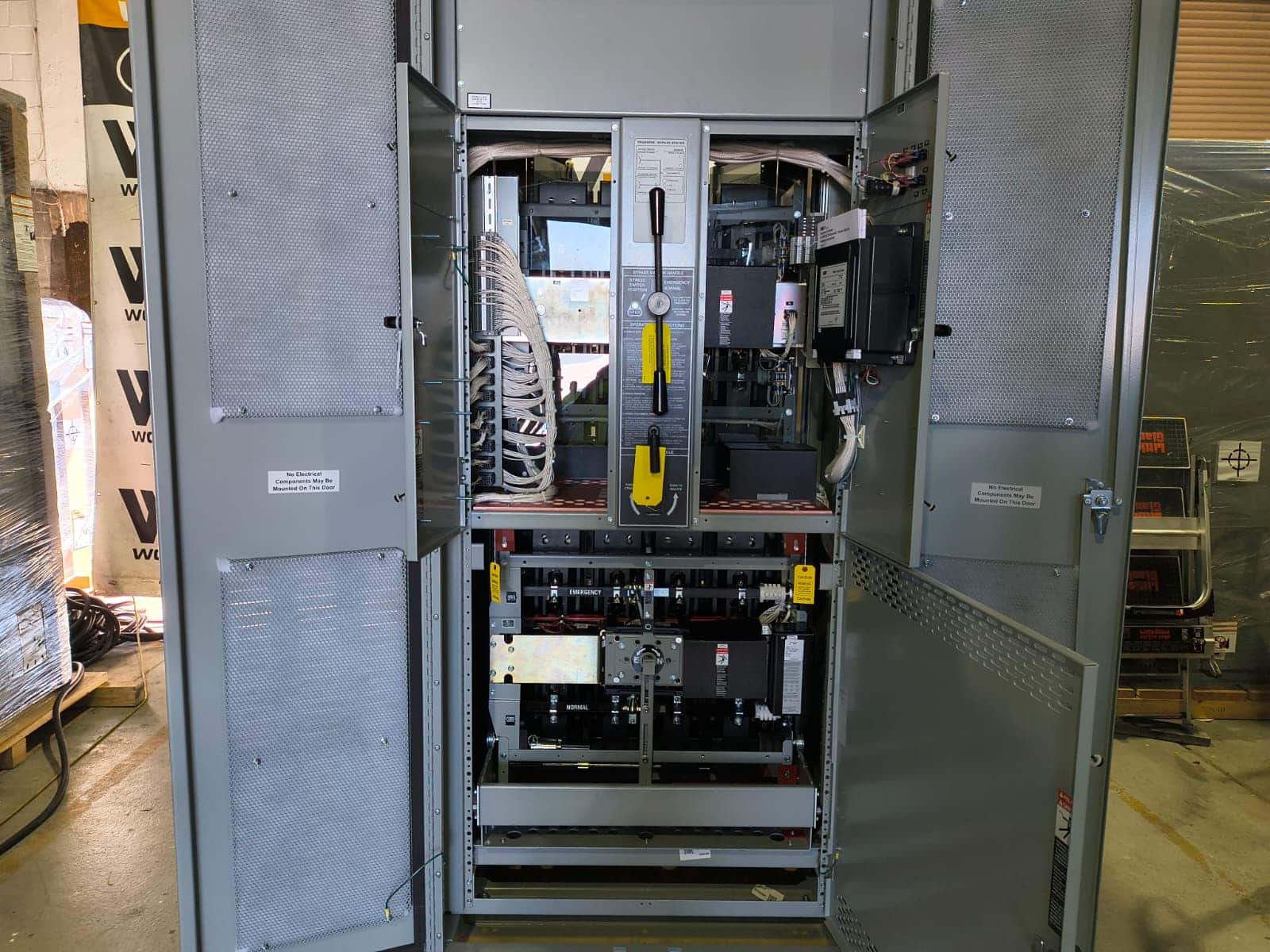

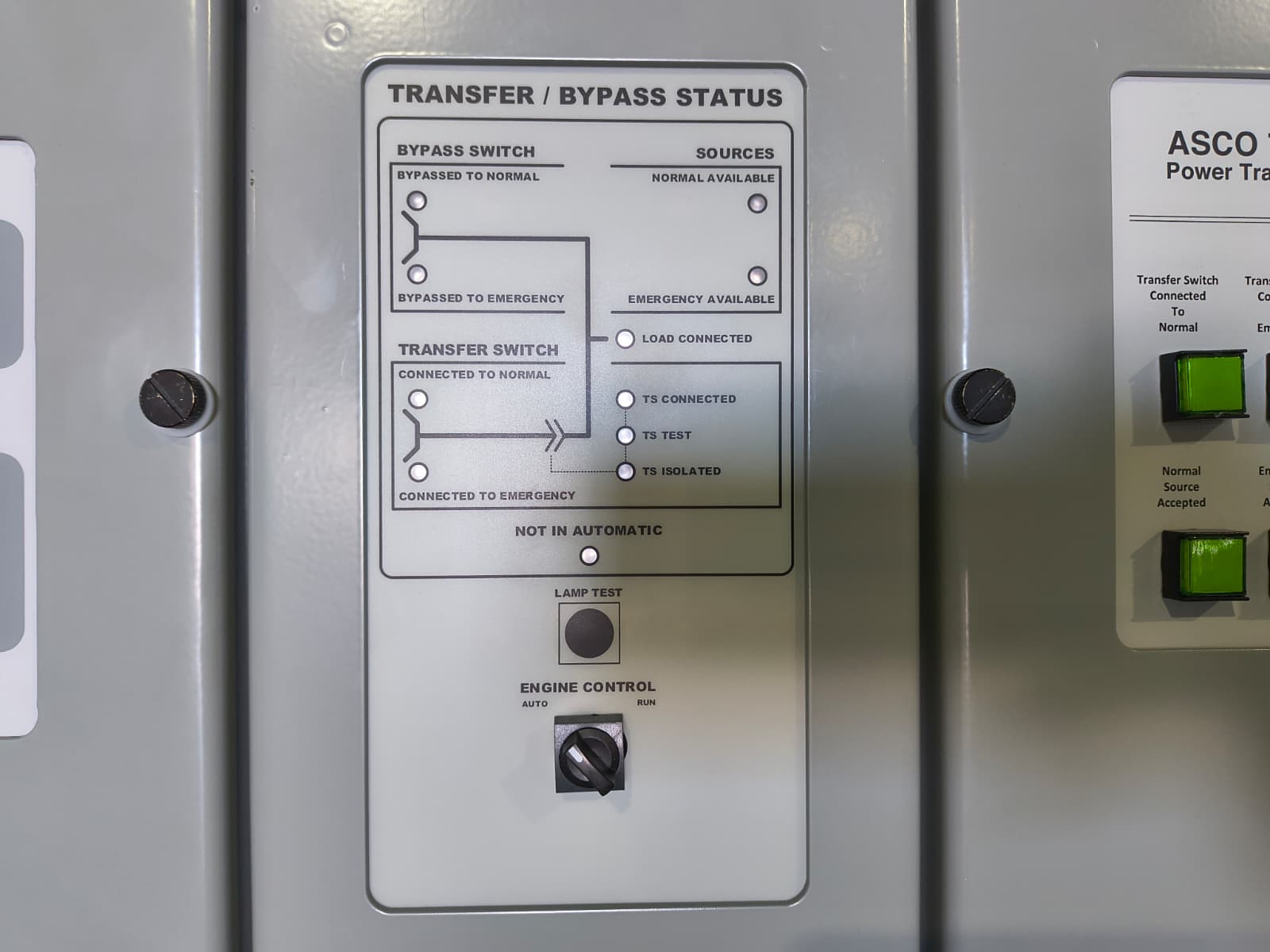

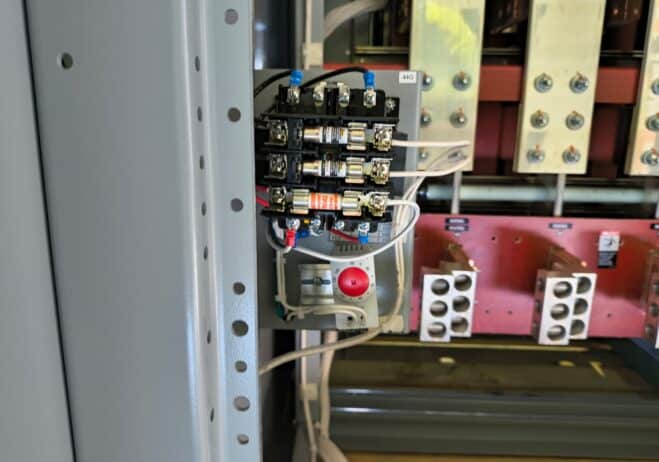

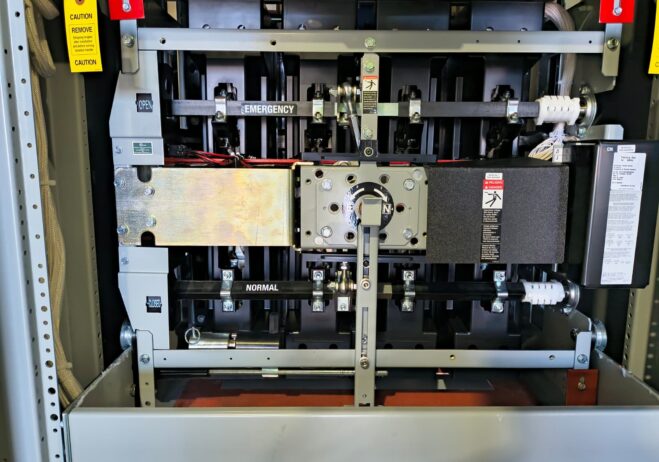

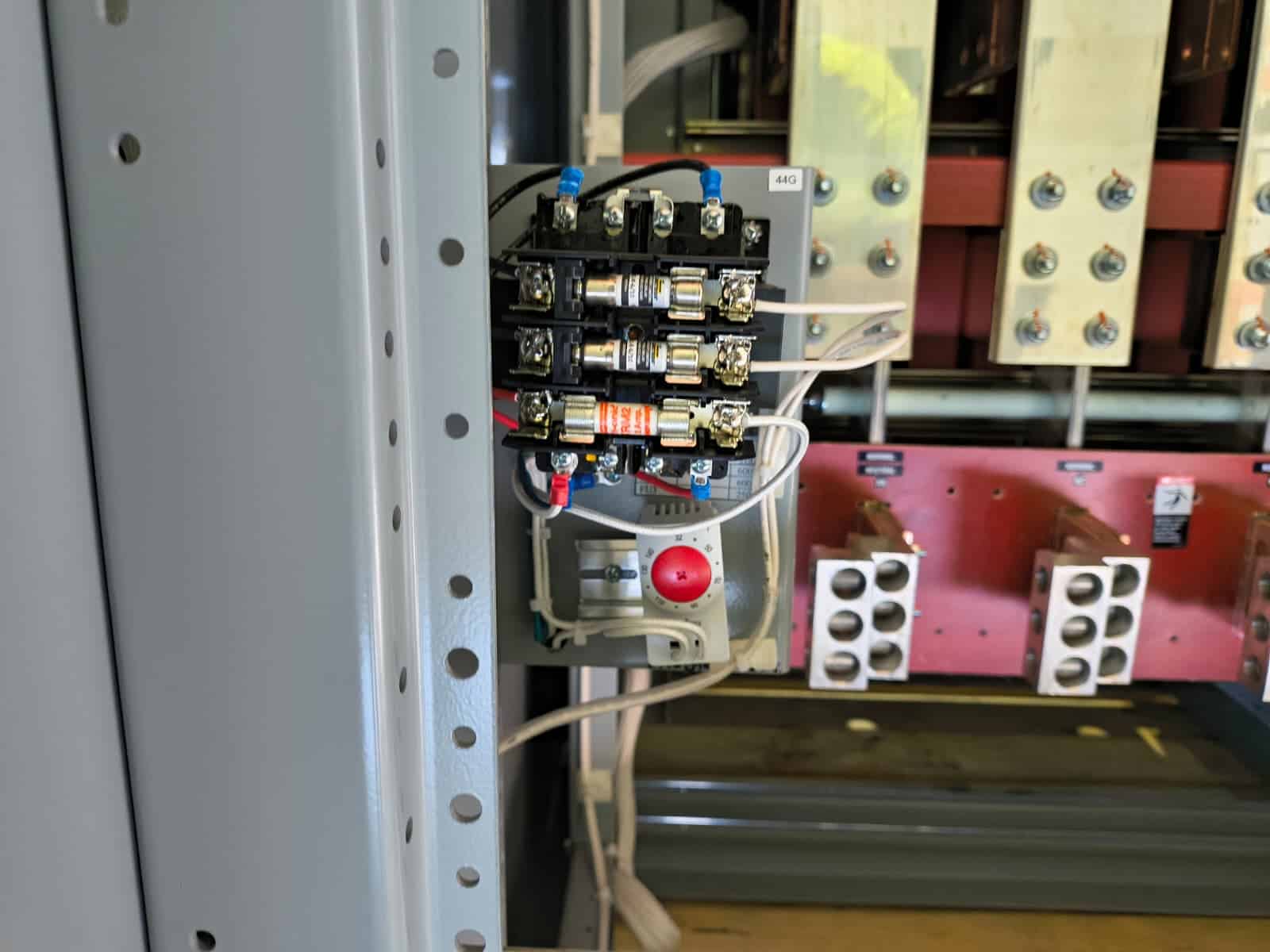

2000 Amp ASCO 7000 Series G7ATBB32000N5XC Bypass Transfer Switch 2000 bypass isolation switch NEMA 3R 480V 3-Phase 4-Wire 4-Pole Switched [B] neutral configuration Optional accessories: 6DL – Retransfer to normal mode selector. Maintained two position selector switch permits selection of manual or automatic retransfer. Manual retransfer requires a second selector switch 6B or 6C be momentarily closed to initiate a retransfer to the normal source. While in manual retransfer mode if an emergency source failure should occur and the normal source is still available manual retransfer will be automatically bypassed. A pilot light indicates manual retransfer mode. 31BG1 – Status Relay Bundle – Provides dry contacts for each of the following statuses, (2) Form-C contacts for Normal Source Acceptability, (2) Form-C contacts for Emergency Source Acceptability, and (4) Form-C Contacts for Pre/Post Transfer Signaling. Each set of contacts is rated for 6A at 120Vac, 250Vac Max. 44G – Strip heater w/ thermostat, wired to load terminals: 208-600 volts 82E – Standard Bypass Isolation Status Display Replaced With Membrane Display to match the J and H frame switches. Should be used on G, Q, S, and U Bypass switches |
|
