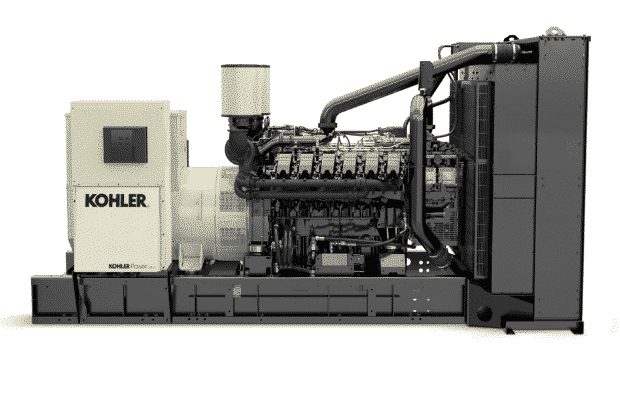

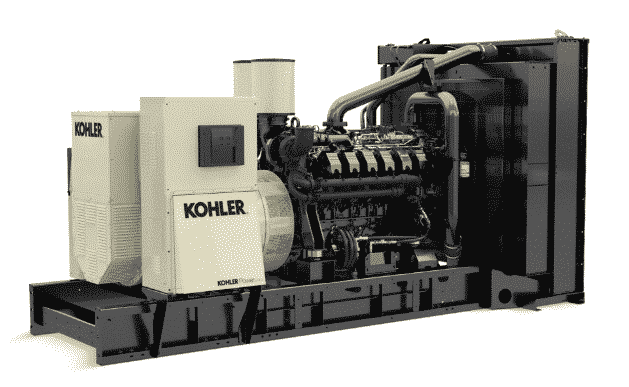

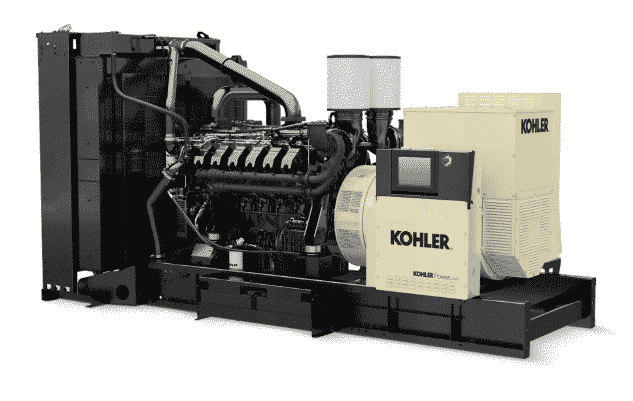

New 1000 kW Kohler KD1000 Diesel Generator

EPA Tier 2

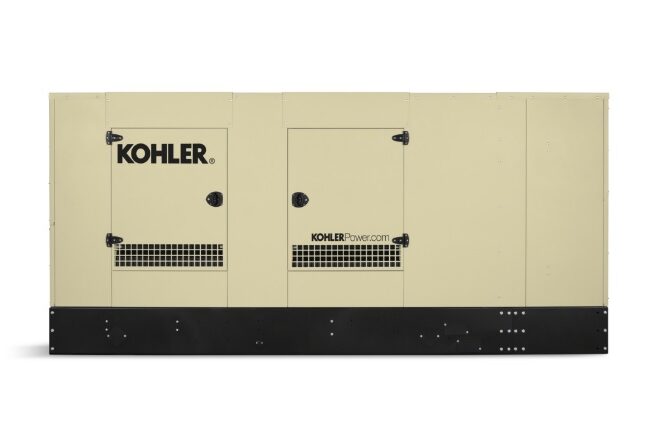

Sound-attenuated enclosure
24 hour, 1749 gallon diesel base tank
APM603 controller
KH04070TO4D alternator

This unit is expected to arrive late August 2022!

Standard Features:
This 60 Hz generator set offers a UL 2200 listing
The generator set accepts rated load in one step
The 60 Hz generator set meets all NFPA 110, Level 1, when equipped with the necessary accessories and installed per NFPA standards
Tier 2 EPA-certified for Stationary Emergency Applcations
Battery rack and cables
Closed crankcase ventilation (CCV) filters
Customer connection
Integral vibration isolation

Alternator Features:
Local emergency stop switch
Oil drain and coolant drain extension
Operation and installation literature
Pilot-excited, permanent magnet (PM) alternator provides superior short-circuit capability
NEMA MG1, IEEE, and ANSI standards compliance for temperature rise and motor starting
Sustained short-circuit current of up to 300% of the rated current for up to 10 seconds
Sustained short-circuit current enabled downstream circuit breakers to trip without collapsing the alternator field

Other Features:
Self-ventilated and dripproof construction
Superior voltage waveform from wo-thirds pitch windings and skewed stator
Brushless alternator with brushless pilot exciter for excellent load response
Kohler designed controllers for one-source system integration and remote communication
The low coolant level shutdown prevents overheating (standard on radiator models only)

Bill of Materials
